IT-4LEAF Navigation System overview
settings. This pre cools or heats the passenger
compartment before starting to drive. Electric
power consumption from the Li-ion battery
resulting from heater and air conditioner opera-
tion can be reduced because the temperature in
the passenger compartment is adjusted before
starting to drive.
ªSetting Climate Ctrl. Timerº (page 2-12)
TELEMATICS SERVICEGUID-83BF17CD-9518-4EAD-A43A-430AE307EBD7This vehicle incorporates a communication
device that is called a TCU (Telematics Com-
munication Unit) . The communication connec-
tion between this unit and the NISSAN
CARWINGS Data Center allows for various
services.
NOTE:
.Establishing the CARWINGS
TMservice
is necessary before using this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
ÐThe vehicle must be located in a
cellular phone or smart phone cov-
erage area. Ð
The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cov-
erage area.
Ð The computer must be connected to
the internet.
Ð A cellular phone must be used to
communicate with the vehicle.
Ð A cellular phone capable of text
messaging must be used to receive
text message regarding vehicle
charge status.
. When the remote heater and air condi-
tioner is set, the system operates the
heater and air conditioner to adjust the
in-cabin temperature to a set tempera-
ture.
. When the charge connector is discon-
nected from the vehicle, the heater and
air conditioner operates using vehicle
Li-ion battery electric power.
. If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion
battery charging will take longer than
usual due to the power used to heat or
cool the vehicle. .
Certain remote functions require a
compatible smart phone, which is not
included with vehicle.
. CARWINGS
TMinformation system fea-
tures are included through a subscrip-
tion service which requires owner
consent to activate. The subscription
must be active to use these features.
. CARWINGS
TMcommunications may be
received at a verified e-mail address or
by SMS/text messaging-enabled cellu-
lar phone.
. Standard text rates and/or data usage
may apply depending on your carrier.
Remote functionsGUID-885EE742-03E5-4B2F-A435-557125B40724
LNB0009X
When an Internet connection is available, you
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
can use a personal computer or an Internet-
enabled smart phone to check the battery status
and operate battery charging or the heater/air
conditioner remotely from another location.
Battery status check:
The status of the battery can be checked using
your personal computer or a internet enabled
smart phone even if you are not in the vehicle.
You may also choose to have SMS messages
(text messages) sent to a cellular phone.
Unplugged status, Charge status:
By registering frequently used charging stations,
notifications can be sent to your personal
computer or cellular phone email address to
inform you when the charging connector is
disconnected or charging is stopped mid-
charge at those locations.
Remote charge, Remote climate control:
Remote activation of battery charging or climate
control can be set using your personal computer
or a internet enabled smart phone.
Li-ion battery warmer status:
When ambient temperature is low, the Li-ion
battery warmer operates automatically.
Notifications will be sent to the e-mail address
you have registered on the NISSAN CARW-
INGS Data Center the following conditions inorder to remind you to connect the charging
connector.
.
Approximately 5 minutes after the Li-ion
battery warmer starts operating while the
power switch is in the OFF position and the
charging cable is not connected to the
vehicle.
. Approximately 5 minutes after the Li-ion
battery warmer stops operating due to low
remaining Li-ion battery power while the
power switch is in the OFF position and the
charging cable is not connected to the
vehicle.
NOTE:
. The remaining Li-ion battery power
lowers gradually while the Li-ion bat-
tery warmer is operating without con-
necting the charging connector.
. When the remaining Li-ion battery
power lowers, the Li-ion battery war-
mer stops operating. When this occurs,
the Li-ion battery temperature lowers
gradually, and as a result the EV
system may be disabled.Navigation Telematics (CAR-
WINGSTMservice)GUID-AE9D9BC3-84F3-41B7-9FA0-1786ADB897BB
LNB0052X
When the system connects to the NISSAN
CARWINGS Data Center, charging station
information will be automatically updated and
you can receive useful information for driving
your vehicle.
Automatic update of charging stations:
The information for the charging stations that is
recorded in the map data is automatically
updated.
All Information Feeds:
Convenient information for driving such as
weather and traffic information, ECO information
shared with the LEAF users, etc. is provided.
Favorites:
When the information of an Internet site is
selected and it is stored in the page that is
specially established in the NISSAN Owner's
LEAF Navigation System overviewIT-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

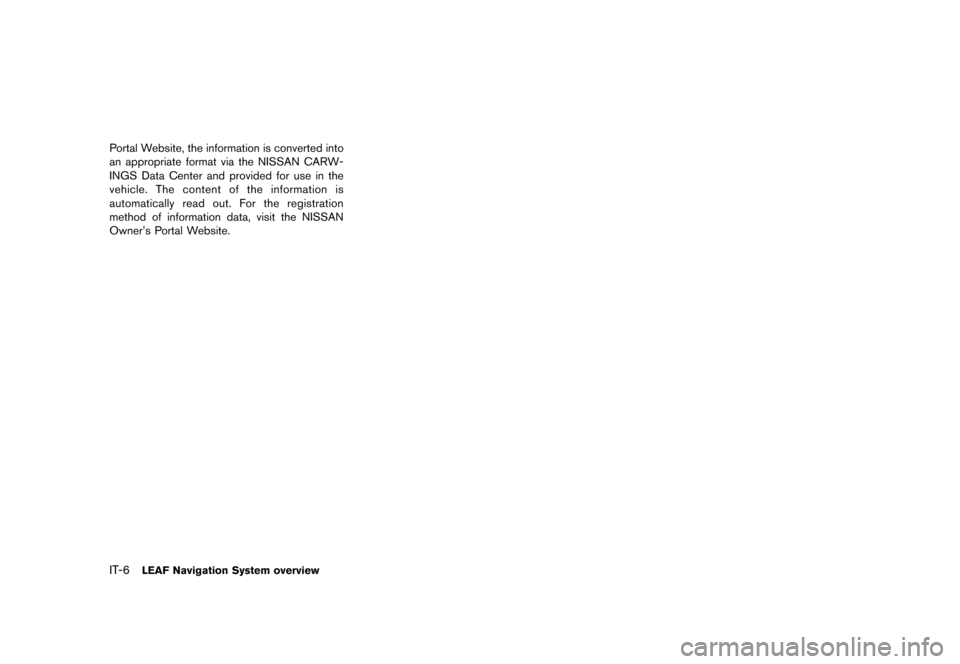

IT-6LEAF Navigation System overview
Portal Website, the information is converted into
an appropriate format via the NISSAN CARW-
INGS Data Center and provided for use in the
vehicle. The content of the information is
automatically read out. For the registration
method of information data, visit the NISSAN
Owner's Portal Website.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

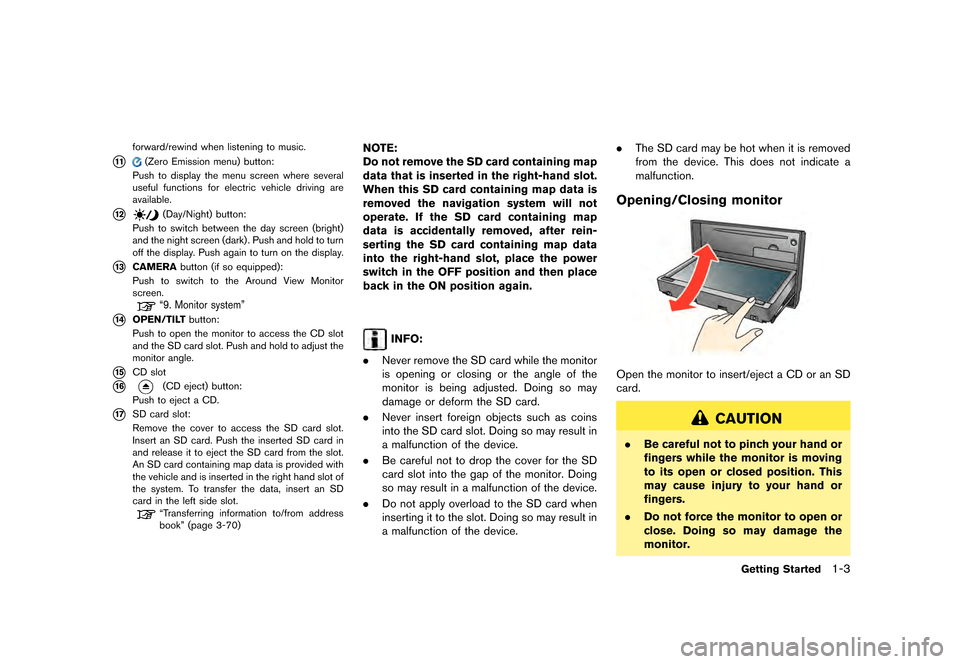

forward/rewind when listening to music.
*11(Zero Emission menu) button:
Push to display the menu screen where several
useful functions for electric vehicle driving are
available.
*12(Day/Night) button:
Push to switch between the day screen (bright)
and the night screen (dark) . Push and hold to turn
off the display. Push again to turn on the display.
*13CAMERA button (if so equipped):
Push to switch to the Around View Monitor
screen.
ª9. Monitor systemº
*14OPEN/TILT button:
Push to open the monitor to access the CD slot
and the SD card slot. Push and hold to adjust the
monitor angle.
*15CD slot
*16(CD eject) button:
Push to eject a CD.
*17SD card slot:
Remove the cover to access the SD card slot.
Insert an SD card. Push the inserted SD card in
and release it to eject the SD card from the slot.
An SD card containing map data is provided with
the vehicle and is inserted in the right hand slot of
the system. To transfer the data, insert an SD
card in the left side slot.
ªTransferring information to/from address
bookº (page 3-70)
NOTE:
Do not remove the SD card containing map
data that is inserted in the right-hand slot.
When this SD card containing map data is
removed the navigation system will not
operate. If the SD card containing map
data is accidentally removed, after rein-
serting the SD card containing map data
into the right-hand slot, place the power
switch in the OFF position and then place
back in the ON position again.
INFO:
. Never remove the SD card while the monitor
is opening or closing or the angle of the
monitor is being adjusted. Doing so may
damage or deform the SD card.
. Never insert foreign objects such as coins
into the SD card slot. Doing so may result in
a malfunction of the device.
. Be careful not to drop the cover for the SD
card slot into the gap of the monitor. Doing
so may result in a malfunction of the device.
. Do not apply overload to the SD card when
inserting it to the slot. Doing so may result in
a malfunction of the device. .
The SD card may be hot when it is removed
from the device. This does not indicate a
malfunction.
Opening/Closing monitorGUID-5EA31989-EF80-4583-A6DD-2A7730FC07B1
LNC0002X
Open the monitor to insert/eject a CD or an SD
card.
CAUTION
.Be careful not to pinch your hand or
fingers while the monitor is moving
to its open or closed position. This
may cause injury to your hand or
fingers.
. Do not force the monitor to open or
close. Doing so may damage the
monitor.
Getting Started1-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

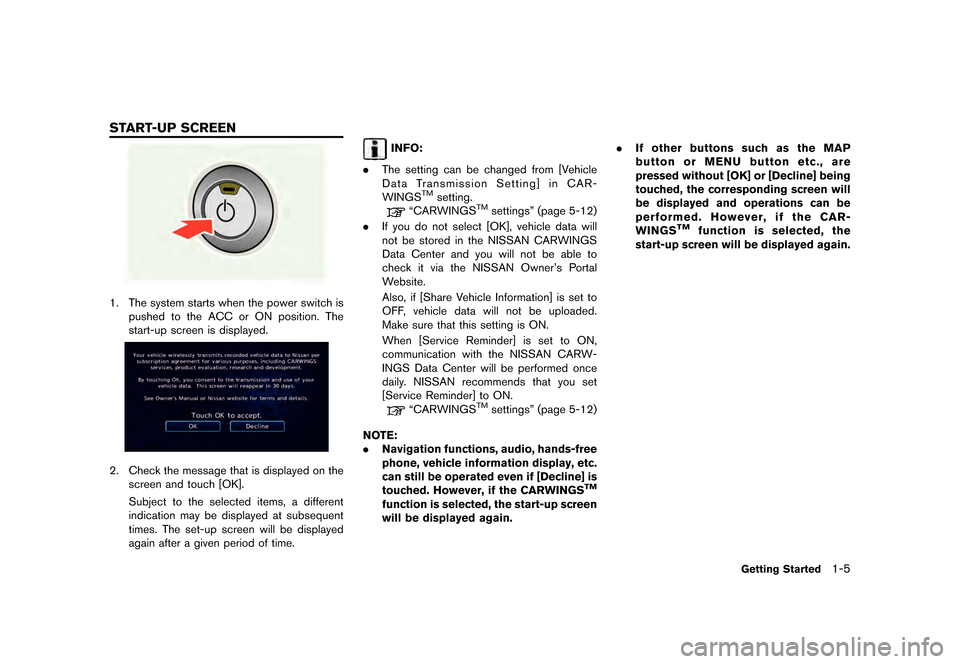

GUID-F7A7E93C-1CA4-4F06-A2C8-03063B07BE78
LNC0090X
1. The system starts when the power switch ispushed to the ACC or ON position. The
start-up screen is displayed.
LNC0194X
2. Check the message that is displayed on thescreen and touch [OK].
Subject to the selected items, a different
indication may be displayed at subsequent
times. The set-up screen will be displayed
again after a given period of time.
INFO:
. The setting can be changed from [Vehicle
Data Transmission Setting] in CAR-
WINGS
TMsetting.
ªCARWINGSTMsettingsº (page 5-12)
. If you do not select [OK], vehicle data will
not be stored in the NISSAN CARWINGS
Data Center and you will not be able to
check it via the NISSAN Owner's Portal
Website.
Also, if [Share Vehicle Information] is set to
OFF, vehicle data will not be uploaded.
Make sure that this setting is ON.
When [Service Reminder] is set to ON,
communication with the NISSAN CARW-
INGS Data Center will be performed once
daily. NISSAN recommends that you set
[Service Reminder] to ON.
ªCARWINGSTMsettingsº (page 5-12)
NOTE:
. Navigation functions, audio, hands-free
phone, vehicle information display, etc.
can still be operated even if [Decline] is
touched. However, if the CARWINGS
TM
function is selected, the start-up screen
will be displayed again. .
If other buttons such as the MAP
button or MENU button etc., are
pressed without [OK] or [Decline] being
touched, the corresponding screen will
be displayed and operations can be
performed. However, if the CAR-
WINGS
TMfunction is selected, the
start-up screen will be displayed again.
Getting Started1-5
START-UP SCREEN
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
1-10Getting Started
.[CARWINGS]:
Information feeds are displayed and settings
for CARWINGS
TMcan be performed.
ª5. CARWINGSTMº
STATUS SCREENGUID-C59D9F23-051C-4909-840F-9659DFB5FE6E
LNC0017X
Push the STATUS button to display the current
status of the navigation system.
Each time the STATUSbutton is pushed,
displayed information is switched in the order
of climate control, vehicle information and
navigation route information.
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
FM´AM RADIO SCREENGUID-F18B130E-F474-4E1B-B8A7-AFA62A4EA4EC
LNC0018X
Push the FM´AMbutton to turn on the radio and
display the radio screen. Push the switch to
toggle the radio mode: AM?FM1?FM2.
ªFM-AM-SAT radio operationº (page 4-11)
SiriusXM SATELLITE RADIO
SCREEN
GUID-EDED61A6-8D25-4ADA-A44A-36AFCBA043FE
LNC0019X
Push the XMbutton to turn on the satellite radio
and display the SiriusXM Satellite Radio screen.
Push the switch to toggle the radio mode:
XM1?XM2?XM3.
ªFM-AM-SAT radio operationº (page 4-11)
CD´AUX SCREENGUID-50077224-4B9F-4058-BE80-9C925824B7C3
LNC0020X
Push the CD´AUXbutton to turn on the audio
system and display the audio screen. Push the
CD´AUX button to toggle the mode: iPod


> (GLW    0RGHO 1DYL(9 @
completion.

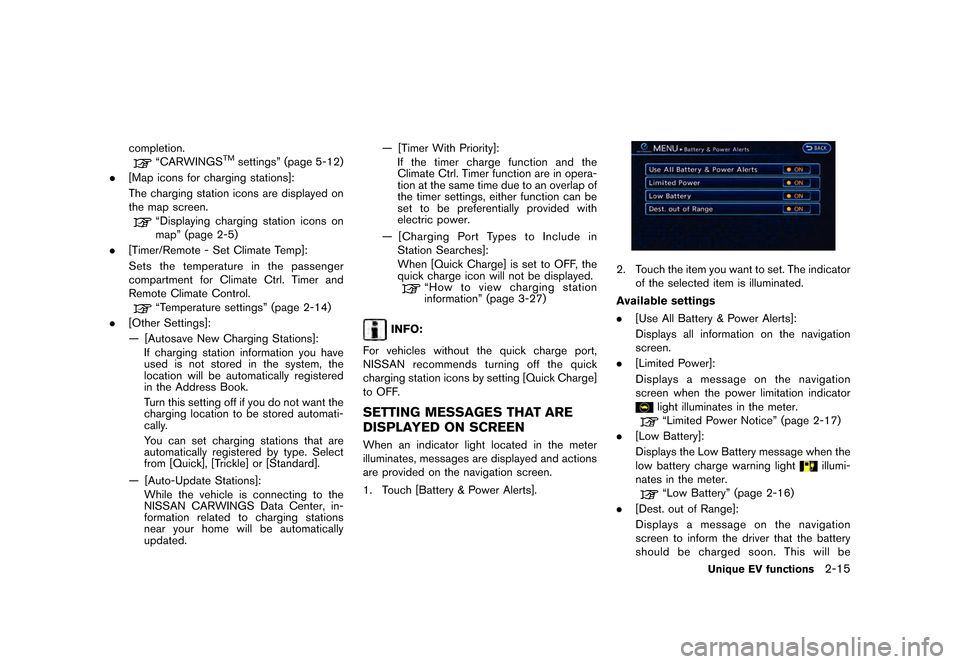

ªCARWINGSTMsettingsº (page 5-12)
. [Map icons for charging stations]:
The charging station icons are displayed on
the map screen.
ªDisplaying charging station icons on
mapº (page 2-5)
. [Timer/Remote - Set Climate Temp]:
Sets the temperature in the passenger
compartment for Climate Ctrl. Timer and
Remote Climate Control.
ªTemperature settingsº (page 2-14)
. [Other Settings]:
Ð [Autosave New Charging Stations]:
If charging station information you have
used is not stored in the system, the
location will be automatically registered
in the Address Book.
Turn this setting off if you do not want the
charging location to be stored automati-
cally.
You can set charging stations that are
automatically registered by type. Select
from [Quick], [Trickle] or [Standard].
Ð [Auto-Update Stations]: While the vehicle is connecting to the
NISSAN CARWINGS Data Center, in-
formation related to charging stations
near your home will be automatically
updated. Ð [Timer With Priority]:
If the timer charge function and the
Climate Ctrl. Timer function are in opera-
tion at the same time due to an overlap of
the timer settings, either function can be
set to be preferentially provided with
electric power.
Ð [Charging Port Types to Include in Station Searches]:
When [Quick Charge] is set to OFF, the
quick charge icon will not be displayed.
ªHow to view charging station
informationº (page 3-27)
INFO:
For vehicles without the quick charge port,
NISSAN recommends turning off the quick
charging station icons by setting [Quick Charge]
to OFF.
SETTING MESSAGES THAT ARE
DISPLAYED ON SCREEN
GUID-B6604D94-3A25-487A-86EB-CC370F62DE53When an indicator light located in the meter
illuminates, messages are displayed and actions
are provided on the navigation screen.
1. Touch [Battery & Power Alerts].
LND0024X
2. Touch the item you want to set. The indicator of the selected item is illuminated.
Available settings
. [Use All Battery & Power Alerts]:
Displays all information on the navigation
screen.
. [Limited Power]:
Displays a message on the navigation
screen when the power limitation indicator
light illuminates in the meter.
ªLimited Power Noticeº (page 2-17)
. [Low Battery]:
Displays the Low Battery message when the
low battery charge warning light
illumi-
nates in the meter.
ªLow Batteryº (page 2-16)
. [Dest. out of Range]:
Displays a message on the navigation
screen to inform the driver that the battery
should be charged soon. This will be
Unique EV functions2-15
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

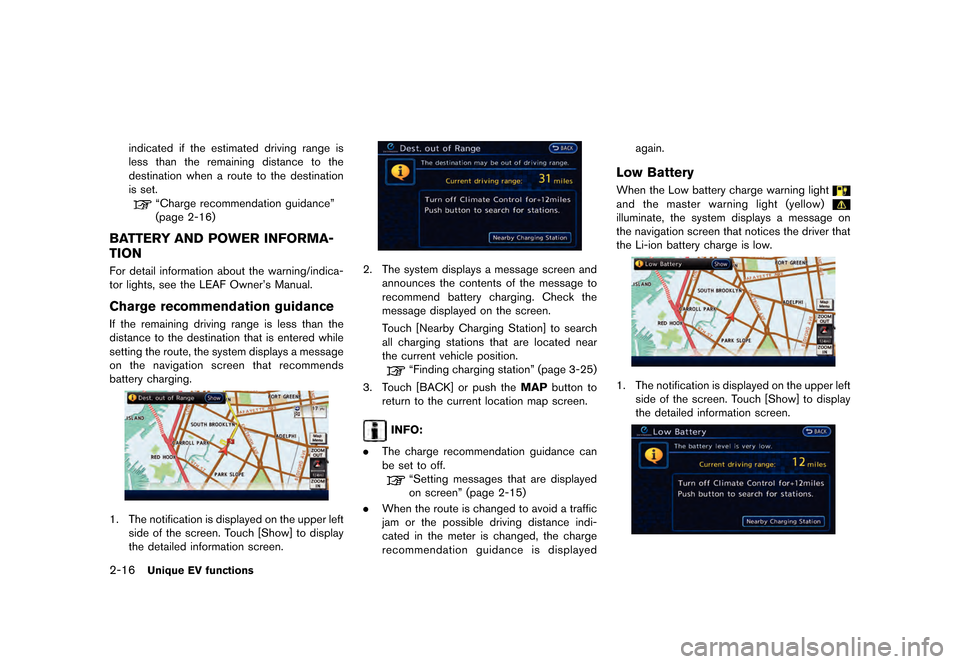

2-16Unique EV functions
indicated if the estimated driving range is
less than the remaining distance to the
destination when a route to the destination
is set.
ªCharge recommendation guidanceº
(page 2-16)
BATTERY AND POWER INFORMA-
TION
GUID-7AEA344E-F599-40B2-A19A-7C5B1B69A62BFor detail information about the warning/indica-
tor lights, see the LEAF Owner's Manual.
Charge recommendation guidanceGUID-68E35D09-F37A-4158-A60F-DD6103C98453If the remaining driving range is less than the
distance to the destination that is entered while
setting the route, the system displays a message
on the navigation screen that recommends
battery charging.
LNM0001X
1. The notification is displayed on the upper leftside of the screen. Touch [Show] to display
the detailed information screen.
LNM0002X
2. The system displays a message screen andannounces the contents of the message to
recommend battery charging. Check the
message displayed on the screen.
Touch [Nearby Charging Station] to search
all charging stations that are located near
the current vehicle position.
ªFinding charging stationº (page 3-25)
3. Touch [BACK] or push the MAPbutton to
return to the current location map screen.
INFO:
. The charge recommendation guidance can
be set to off.
ªSetting messages that are displayed
on screenº (page 2-15)
. When the route is changed to avoid a traffic
jam or the possible driving distance indi-
cated in the meter is changed, the charge
recommendation guidance is displayed again.
Low BatteryGUID-3D06FDCE-4A0D-48E1-986A-B088F1A6CBB7When the Low battery charge warning light
and the master warning light (yellow)
illuminate, the system displays a message on
the navigation screen that notices the driver that
the Li-ion battery charge is low.
LNM0003X
1. The notification is displayed on the upper left
side of the screen. Touch [Show] to display
the detailed information screen.
LNM0004X
&RQGLWLRQ 1$0
