4.Install a new battery with the + side (A)
up.+ side- sideCoin type battery CR2032
5. Close the case firmly.
6. Check the keyless operation function to
see that it works.
Doors
E00300402060CAUTIONlMake sure the doors are closed: driving with
doors not completely closed is dangerous.
l Never leave children in the vehicle unatten-
ded.
l Be careful not to lock the doors while the
key is inside the vehicle.NOTEl To prevent the key from being locked inside
the vehicle, neither the lock knob on the
driver’s door nor the key can be used to lock the driver’s door when it is open.
To lock or unlock with the key
1- Lock
2- Unlock
NOTEl When locking or unlocking with the key, on-
ly the driver’s door will be locked or un-
locked.
To lock or unlock all doors and the tailgate,
use the central door lock switch, the keyless entry system or the keyless operation func- tion.
Refer to “Central door locks” on pages
3-26 , “Keyless entry system” on pages 3-04,
3-22 , and “To operate using the keyless op-
eration function” on page 3-11.NOTEl If the vehicle is equipped with the keyless
operation system, the driver’s door can be locked or unlocked with the emergency key.
Refer to “Emergency key” on page 3-21.
To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
Pull the inside door handle towards you toopen the door.
NOTEl The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
Doors
3-25OGAE15E5Locking and unlocking3

NOTElIn a vehicle that has a Dead Lock System, it
is not possible to unlock the door by pushingthe lock knob to the unlock side while the Dead Lock System is set.
(Refer to “Dead Lock System” on page
3-27.)
To lock without using the key
Front passenger’s door, Rear
door
Set the inside lock knob (1) to the locked po-
sition, and close the door (2).
NOTEl The driver’s door cannot be locked using the
inside lock knob while the driver’s door is
opened.Operation mode ON reminder
system*
E00310100268
For vehicles equipped with the keyless op-
eration system
If the driver’s door is opened with the engine stopped and the operation mode in any posi-
tion other than OFF, the operation mode ON reminder buzzer sounds intermittently to re-
mind you to put the operation mode in OFF.
In addition, the warning display will be dis- played on the information screen in the multi-information display.
Central door locks
E00300801777NOTElEach of the doors can be locked or unlocked
independently by using the inside lock knob.
l When locking or unlocking with the key on
the driver’s door, only the driver’s door will
lock or unlock.NOTEl Repeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating.
If this occurs, wait approximately 1 minute before operating the central door lockswitch.
l When the driver’s door is open, the central
door lock switch cannot be used to lock it.
To lock and unlock the doors
and tailgate
Using the central door lock
switch
Using the central door lock switch on the
driver’s door locks or unlocks all doors and the tailgate.
Central door locks
3-26OGAE15E5Locking and unlocking3 LHD

1- Lock
2- Unlock
To unlock the doors and tail-
gate
E00311300313
You can select the functions to unlock the doors and tailgate either using the ignition
switch or the engine switch, or using the se- lector lever position A/T or CVT).
These functions are not activated when the vehicle is shipped from the factory. To acti-
vate or deactivate these functions, please contact a MITSUBISHI MOTORS Author-
ized Service Point.Using the ignition switch or the engine switch
All doors and the tailgate will unlock when-
ever the ignition switch is turned to the
“LOCK” position or the operation mode is
put in OFF.
Using the selector lever position (A/T or CVT)
All doors and the tailgate will unlock when-
ever the selector lever is moved to the “P” (PARK) position with the ignition switch inthe “ON” position or the operation mode in
ON.

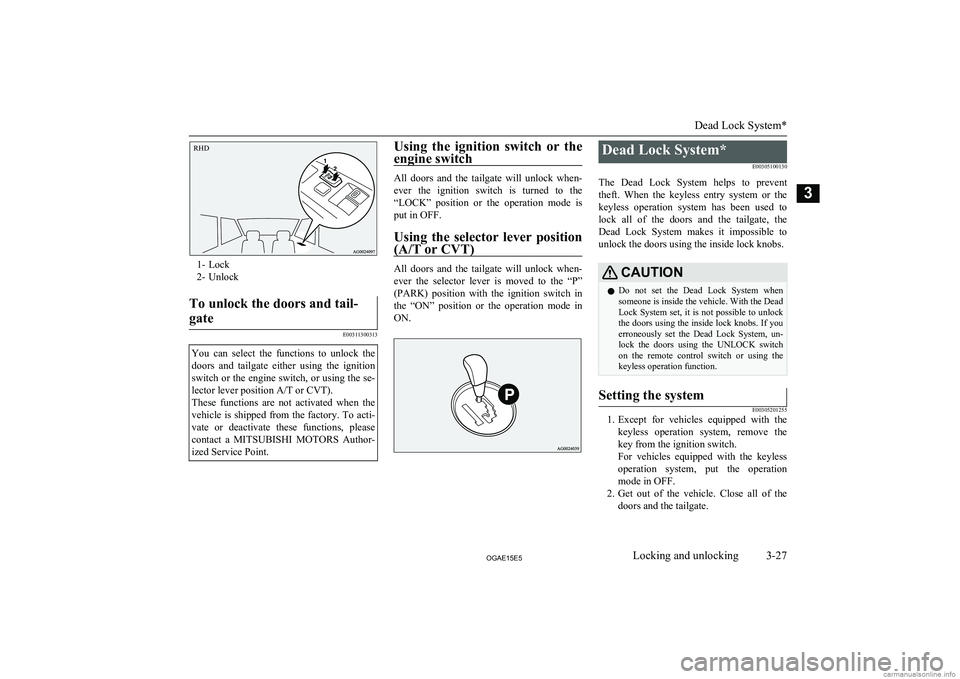

Dead Lock System*
E00305100130
The Dead Lock System helps to prevent theft. When the keyless entry system or the
keyless operation system has been used to lock all of the doors and the tailgate, the
Dead Lock System makes it impossible to unlock the doors using the inside lock knobs.CAUTIONl Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un-
lock the doors using the UNLOCK switch on the remote control switch or using the
keyless operation function.Setting the system
E00305201255
1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch.
For vehicles equipped with the keyless operation system, put the operation
mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
Dead Lock System*
3-27OGAE15E5Locking and unlocking3RHD

3.Press the LOCK switch (A) on the re-
mote control switch, the driver’s or front
passenger’s door lock/unlock switch (B),
or the tailgate LOCK switch (C) to lock
all of the doors and the tailgate. The turn-signal lamps will blink once.
4. Press the switch again within 2 seconds. The turn-signal lamps will blink three
times to show that the Dead Lock Sys- tem has been set.Except for vehicles equipped with the keyless operation
systemVehicles equipped with the keyless operation systemTailgate LOCK switch*
NOTEl Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to
confirm that the Dead Lock System is set.Cancelling the system
E00305301302
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously cancelled.
l The UNLOCK switch (D) on the remote
control switch is pressed.
l The driver’s or front passenger’s door
lock/unlock switch (E) is pressed while
you are carrying the keyless operation key.
l The tailgate OPEN switch (F) is pressed.
Except for vehicles equipped with the keyless
operation system
Dead Lock System*
3-28OGAE15E5Locking and unlocking3Driver’s and front passenger’s door lock/unlock
switches*

Vehicles equipped with the keyless operation systemTailgate OPEN switch
NOTElIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate OPEN switch), the doors and
tailgate are automatically relocked and the Dead Lock System is simultaneously set
again.
l Even when it is not possible to use the key-
less entry system or keyless operation func-
tion to unlock the doors, it is possible to use the key to unlock the driver’s door. When
the key is used to unlock the driver’s door, the Dead Lock System is cancelled for only
the driver’s door. If you wish to subsequent- ly unlock all other doors, perform the fol-
lowing operation.
• Except for vehicles equipped with the
keyless operation system, turn the ignitionswitch to the “ON” or “ACC” position.
• For vehicles equipped with the keyless
operation system, put the operation mode in ON or ACC.
l It is possible to adjust the time between
pressing the UNLOCK switch (D) on the re- mote control switch or the driver’s or front
passenger’s door lock/unlock switch (E) and automatic locking. For details, please con- tact a MITSUBISHI MOTORS Authorized
Service Point.NOTEl It is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er’s or front passenger’s door lock/unlock
switch (B), or the tailgate LOCK switch (C).
For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.Testing the system
E00305400104
Open all of the door windows, then set the
Dead Lock System. (Refer to “Setting the system” on page 3-27.)
After setting the Dead Lock System, reach
into the vehicle through a window and con-
firm that you cannot unlock the doors using the lock knobs.
NOTEl If you need advice on how to set the Dead
Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.
Dead Lock System*
3-29OGAE15E5Locking and unlocking3Driver’s and front passenger’s door lock/unlock
switches*

“Child-protection” reardoors E00300900999
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUTIONl When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Tailgate
E00301402461WARNINGlThe luggage compartment was not de-
signed for people to ride in it. Do not let
passengers ride in or let children play in
the luggage compartment. Riding or play- ing in the luggage compartment could re-
sult in a serious accident.
l It is dangerous to drive with the tailgate
open, since carbon monoxide (CO) gas
contained in engine exhaust gases can en- ter the cabin.
You cannot see or smell CO. It can cause
unconsciousness and even death.
In addition, if the tailgate opens when
driving, luggage could fall onto the road and cause an accident.
l When opening and closing the tailgate,
make sure that there are no people near-
by and that there is sufficient space be-
hind and above the vehicle. In addition, be careful not to hit your head or pinch
your hands, neck, etc.WARNINGl When there is a build up of snow or ice, it
should be removed before opening the tailgate. If you open the tailgate without
removing it, there is a possibility that the tailgate may close suddenly due to theweight of that snow or ice.
l When you open the tailgate make sure
that the tailgate is opened fully and re- mains fully open. If you only open the tail-
gate halfway there is a risk that the tail- gate may drop and slam shut. If you open
the tailgate while your vehicle is parked on an incline it is more difficult to do so than on the flat and also it may drop and
slam shut.CAUTIONl Do not stand behind the exhaust pipe when
loading and unloading luggage. The heat
from the exhaust could lead to burns.
l To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.NOTEl Locking/unlocking with the central door
lock switch, the keyless entry system, or the
keyless operation function also locks/ unlocks the tailgate.
“Child-protection” rear doors
3-30OGAE15E5Locking and unlocking3

To open
After unlocking, press the tailgate OPENswitch (A) and lift the tailgate.
NOTEl If you do not open the tailgate immediately
after pressing the tailgate OPEN switch, thetailgate can not be lifted. If this happens, press the tailgate OPEN switch again and lift
the tailgate.
l The tailgate cannot be opened when the bat-
tery is flat or disconnected.To close
Pull the tailgate grip (A) downward as illus-
trated. Gently push the upper gate from the
outside with enough force so that it is com-
pletely closed. Always ensure the tailgate is securely closed.
CAUTIONl Do not close the tailgate completely by hold-
ing the tailgate grip (A). Your hand or arm
could be pinched and personal injury could result.NOTEl Gas struts (B) are installed to support the
tailgate.NOTE
To prevent damage or faulty operation.
• Do not hold the gas struts when closing
the tailgate.
• Also, do not push or pull the gas struts.
• Do not attach any plastic material, tape,
etc., to the gas struts.
• Do not tie string, etc., around the gas
struts.
• Do not hang any object on the gas struts.
Inside tailgate release
E00303401354
The inside tailgate release is designed to pro-
vide a way to open the tailgate in the case of a discharged battery.
Inside tailgate release
3-31OGAE15E5Locking and unlocking3

The tailgate release lever (see illustration) ismounted on the tailgate.
You and your family should familiarize your-
selves with the location and operation of the tailgate release lever.
To open
1. Insert a straight blade (or minus) screw-
driver into the notch of the lid (A) and pry gently to open the lid.
2. Move the lever (B) to open the tailgate.
3. Push out on the tailgate to open it.
WARNINGl Always keep the lid (A) on the tailgate
closed when driving so that your luggage
cannot accidentally bump the lever (B)
and open the tailgate.Security alarm system*
E00301500891
The security alarm system is for alerting thesurrounding area of suspicious behaviour to
prevent unlawful entry into the vehicle by op- erating an alarm if a door, the tailgate or the bonnet is opened when the vehicle has not
been unlocked using the keyless entry system or the keyless operation function.
Also, the alarm will be activated if any of the
following occur.
l Attempt an unlawful moving of the vehi-
cle. (the vehicle inclination detection function)
l Detect a motion in the vehicle. (the inte-
rior intrusion detection function)
l Disconnect the battery terminal.
The security alarm system is set to “active”.
When making changes to the settings, please
follow the procedure listed in the section ti- tled “Changing the security alarm settings”
on page 3-34.
Security alarm system*
3-32OGAE15E5Locking and unlocking3
