Vehicle dimensionsE01100204474NOTElThe overall width varies depending on whether the vehicle is equipped with wheel lip moldings.
To determine whether your vehicle is equipped with wheel lip moldings, refer to “Exterior” on page 1-12.
Vehicle dimensions
11-05OGAE15E5Specifications11Except for vehicles equipped with wheel lip molding
Vehicles equipped with wheel lip molding

ItemVehicles for Russia, Kazakhstanand UkraineExcept for vehicles for Russia,Kazakhstan and UkraineVehicles with16 or 17 inch tyreVehicles with18 inch tyreVehicles with16 or 17 inch tyreVehicles with18 inch tyre1Front track1,525 mm1,545 mm2Overall widthWithout wheel lip molding1,770 mm—With wheel lip molding—1,810 mm3Front overhang870 mm4Wheel base2,670 mm5Rear Overhang755 mm6Overall length4,295 mm
7Ground clearance (unla-
den)
Petrol-powered vehicles195 mm215 mm180 mm,
190 mm *190 mmDiesel-powered vehicles——170 mm,
180 mm *180 mm8
Overall height (unladen)
Without roof rails1,615 mm1,630 mm1,615 mm,
1,625 mm *1,625 mm9With roof rails1,625 mm1,640 mm1,625 mm,
1,635 mm *1,635 mm10Rear track1,530 mm1,525 mm1,530 mm1,545 mmMinimum turning radiusBody5.63 mWheel5.3 m*
: 215/70R16 size tyre

Vehicle dimensions
11-06OGAE15E5Specifications11

Vehicle performanceE01100303902Petrol-powered vehicles
Maximum speed
1600 models183 km/h (114 mph)1800 models189 km/h (116 mph)2000 models2WD194 km/h (121 mph)4WD191 km/h (119 mph)Diesel-powered vehicles
Maximum speed1600 models2WD182 km/h (113 mph)4WD180 km/h (112 mph)2200 models190 km/h (118 mph)

Vehicle performance
11-07OGAE15E5Specifications11

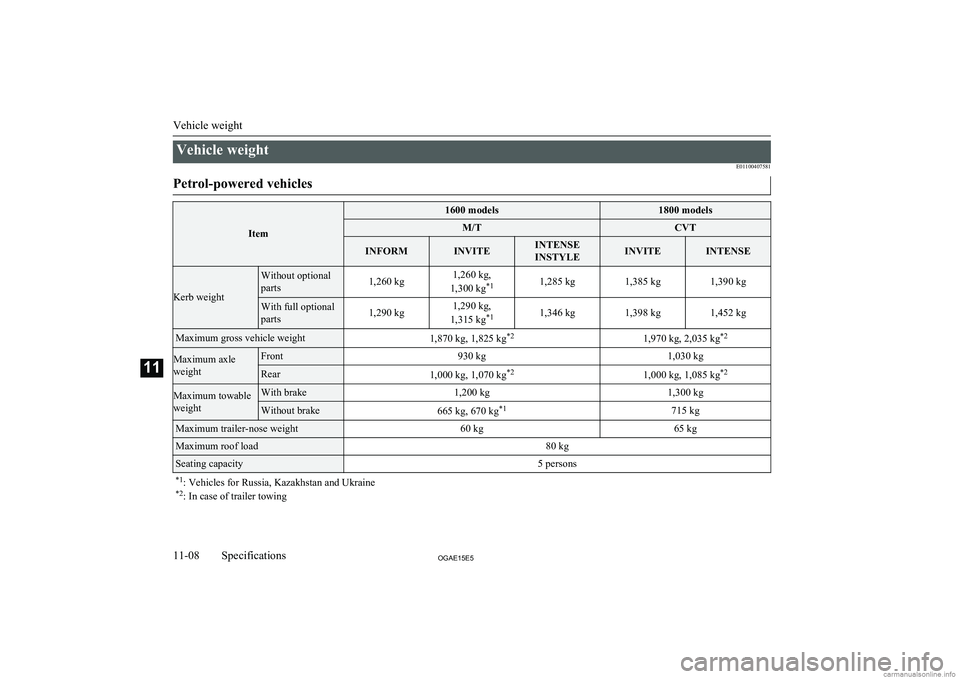

Vehicle weightE01100407581Petrol-powered vehicles
Item
1600 models1800 modelsM/TCVTINFORMINVITEINTENSE
INSTYLEINVITEINTENSE
Kerb weight
Without optional
parts1,260 kg1,260 kg,
1,300 kg *11,285 kg1,385 kg1,390 kgWith full optional
parts1,290 kg1,290 kg,
1,315 kg *11,346 kg1,398 kg1,452 kgMaximum gross vehicle weight1,870 kg, 1,825 kg *21,970 kg, 2,035 kg *2Maximum axle
weightFront930 kg1,030 kgRear1,000 kg, 1,070 kg *21,000 kg, 1,085 kg *2Maximum towable
weightWith brake1,200 kg1,300 kgWithout brake665 kg, 670 kg *1715 kgMaximum trailer-nose weight60 kg65 kgMaximum roof load80 kgSeating capacity5 persons*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : In case of trailer towing
Vehicle weight
11-08OGAE15E5Specifications11

NOTElTrailer specifications indicate the manufacturer’s recommendation.
Item
2000 models2WD4WDM/TCVTINTENSEINVITEINTENSEKerb weightWithout optional parts1,360 kg1,450 kg1,455 kgWith full optional parts1,413 kg1,463 kg1,517 kgMaximum gross vehicle weight1,970 kg, 2,035 kg *Maximum axle weight
Front1,030 kgRear1,000 kg, 1,085 kg*Maximum towable weightWith brake1,300 kgWithout brake715 kg745 kgMaximum trailer-nose weight65 kgMaximum roof load80 kgSeating capacity5 persons*
: In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.
Vehicle weight
11-09OGAE15E5Specifications11

Diesel-powered vehicles
Item
1600 models2200 models2WD4WD4WDM/TA/TINFORM IN-VITEINTENSE IN-STYLEINFORM IN- VITEINTENSE IN-STYLEINFORM IN- VITEINTENSE IN-STYLE
Kerb weight
Without option-
al parts1,355 kg1,380 kg1,420 kg1,445 kg1,520 kg1,540 kgWith full option-
al parts1,377 kg1,441 kg1,442 kg1,506 kg1,542 kg1,601 kgMaximum gross vehicle weight1,980 kg, 2,050 kg *2,060 kg, 2,130 kg*Maximum axle
weightFront1,120 kgRear1,000 kg, 1,090 kg *Maximum towa-
ble weightWith brake1,400 kgWithout brake695 kg745 kg750 kgMaximum trailer-nose weight70 kgMaximum roof load80 kgSeating capacity5 persons* : In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight
11-10OGAE15E5Specifications11

Engine specificationsE01100604335Petrol-powered vehiclesItem1600 models1800 models2000 modelsEngine model4A924B104B11No. of cylinders4 in line4 in line4 in lineTotal displacement1,590 cc1,798 cc1,998 ccBore75.0 mm86.0 mm86.0 mmStroke90.0 mm77.4 mm86.0 mmCamshaftDouble overheadDouble overheadDouble overheadMixture preparationElectronic injectionElectronic injectionElectronic injection
Maximum output (EEC net)
86 kW/6,000 r/min,
86 kW/6,100 r/min *1
85 kW/6,000 r/min *2
103 kW/6,000 r/min110 kW/6,000 r/min
Maximum torque (EEC net)154 N•m/4,000 r/min177 N•m/4,200 r/min197 N•m/4,200 r/min*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : Vehicles for Belgium and NorwayDiesel-powered vehiclesItem1600 models2200 modelsEngine model9HD4N14No. of cylinders4 in line4 in lineTotal displacement1,560 cc2,268 cc
Engine specifications
11-11OGAE15E5Specifications11

Item1600 models2200 modelsBore75.0 mm86.0 mmStroke88.3 mm97.6 mmCamshaftSingle overheadDouble overheadMixture preparationElectronic direct injectionElectronic direct injectionMaximum output (EEC net)84 kW/3,600 r/min110 kW/3,500 r/minMaximum torque (EEC net)270 N•m/1,750 r/min360 N•m/1,500 to 2,750 r/min

Electrical systemE01100804122Item
Petrol-powered vehiclesDiesel-powered vehicles1600 models1800 models,2000 models1600 models2200 models
Battery
Voltage12 VType1Type (JIS)75D23L, Q-85 *175D23LT-10595D31LCapacity (5HR)52Ah, 55Ah*152 Ah73Ah64 AhType2Type (BCI)BCI Group No.35 (530CCA/118RC)—Alternator capacity95 A, 85 A*2105 A150 A130 A
Spark plug type
NGKDILFR5A11
LZFR5BI-11 *2FR6EI—
DENSO—K20PSR-B8*1
: Vehicles equipped with Auto Stop & Go (AS&G) system
*2 : Vehicles for Russia, Kazakhstan and Ukraine
Electrical system
11-12OGAE15E5Specifications11
