2015 MERCEDES-BENZ GLE COUPE Owners Manual

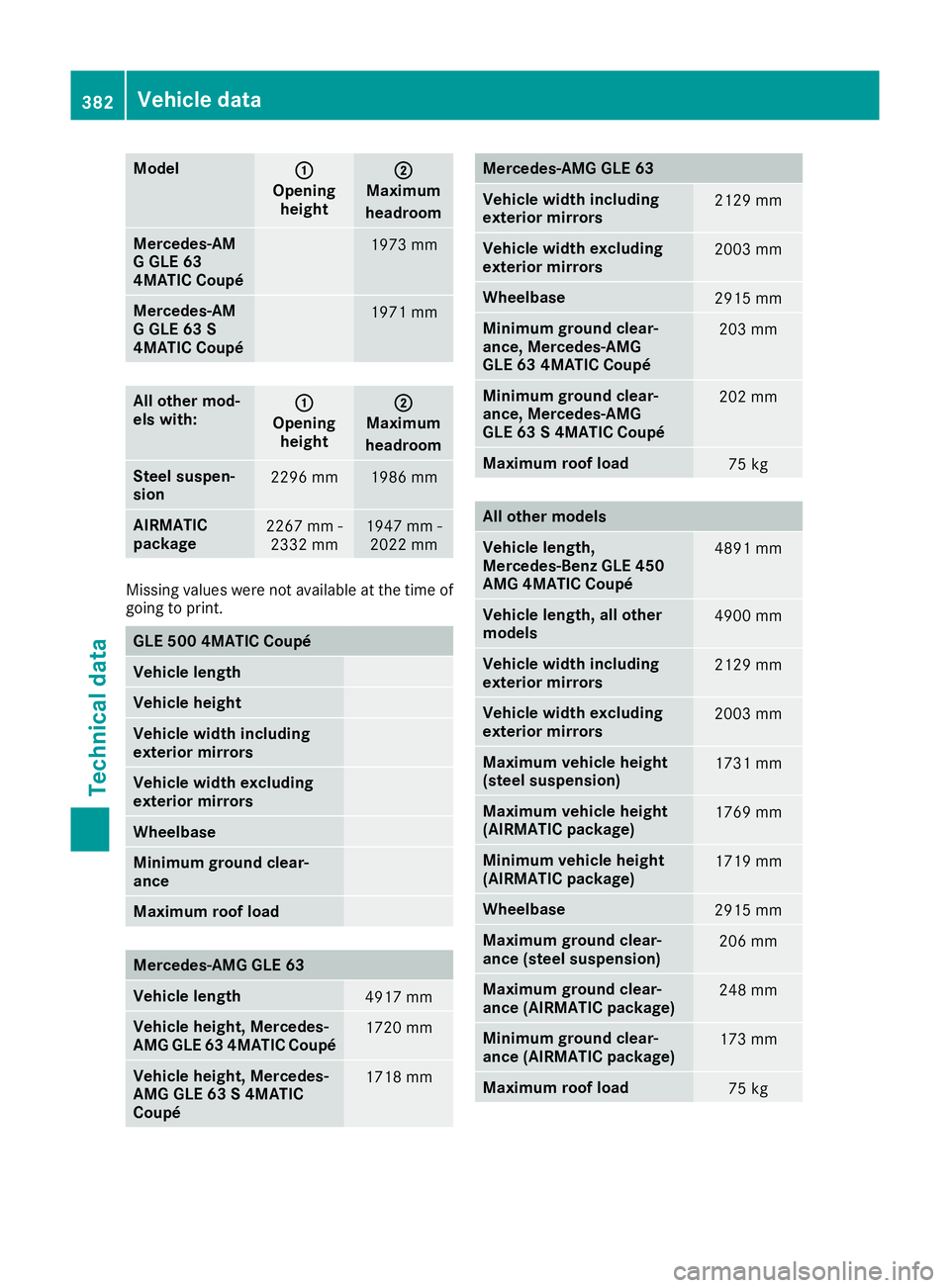

Model
:
:
Opening height ;
;
Maximum
headroom Mercedes‑AM
G GLE 63
4MATIC Coupé
1973 mm
Mercedes‑AM
G GLE 63 S
4MATIC Coupé
1971 mm
All other mod-
els with:
: :
Opening height ;
;
Maximum
headroom Steel suspen-
sion
2296 mm 1986 mm
AIRMATIC
package
2267 mm -
2332 mm 1947 mm -
2022 mm Missing values were not available at the time of
going to print. GLE 500 4MATIC Coupé
Vehicle length
Vehicle height
Vehicle width including
exterior mirrors
Vehicle width excluding
exterior mirrors Wheelbase
Minimum ground clear-
ance
Maximum roof load
Mercedes‑AMG GLE 63
Vehicle length
4917 mm
Vehicle height, Mercedes-
AMG GLE 63 4MATIC Coupé
1720 mm
Vehicle height, Mercedes-
AMG GLE 63 S 4MATIC
Coupé
1718 mm Mercedes‑AMG GLE 63
Vehicle width including
exterior mirrors
2129 mm
Vehicle width excluding
exterior mirrors
2003 mm
Wheelbase
2915 mm
Minimum ground clear-
ance, Mercedes-AMG
GLE 63 4MATIC Coupé
203 mm
Minimum ground clear-
ance, Mercedes-AMG
GLE 63 S 4MATIC Coupé
202 mm
Maximum roof load
75 kg
All other models
Vehicle length,
Mercedes‑Benz GLE 450
AMG 4MATIC Coupé 4891 mm
Vehicle length, all other
models
4900 mm
Vehicle width including
exterior mirrors
2129 mm
Vehicle width excluding
exterior mirrors
2003 mm
Maximum vehicle height
(steel suspension)
1731 mm
Maximum vehicle height
(AIRMATIC package)
1769 mm
Minimum vehicle height
(AIRMATIC package)
1719 mm
Wheelbase
2915 mm
Maximum ground clear-
ance (steel suspension)
206 mm
Maximum ground clear-
ance (AIRMATIC package)
248 mm
Minimum ground clear-
ance (AIRMATIC package)
173 mm
Maximum roof load
75 kg382
Vehicle dataTechnical data

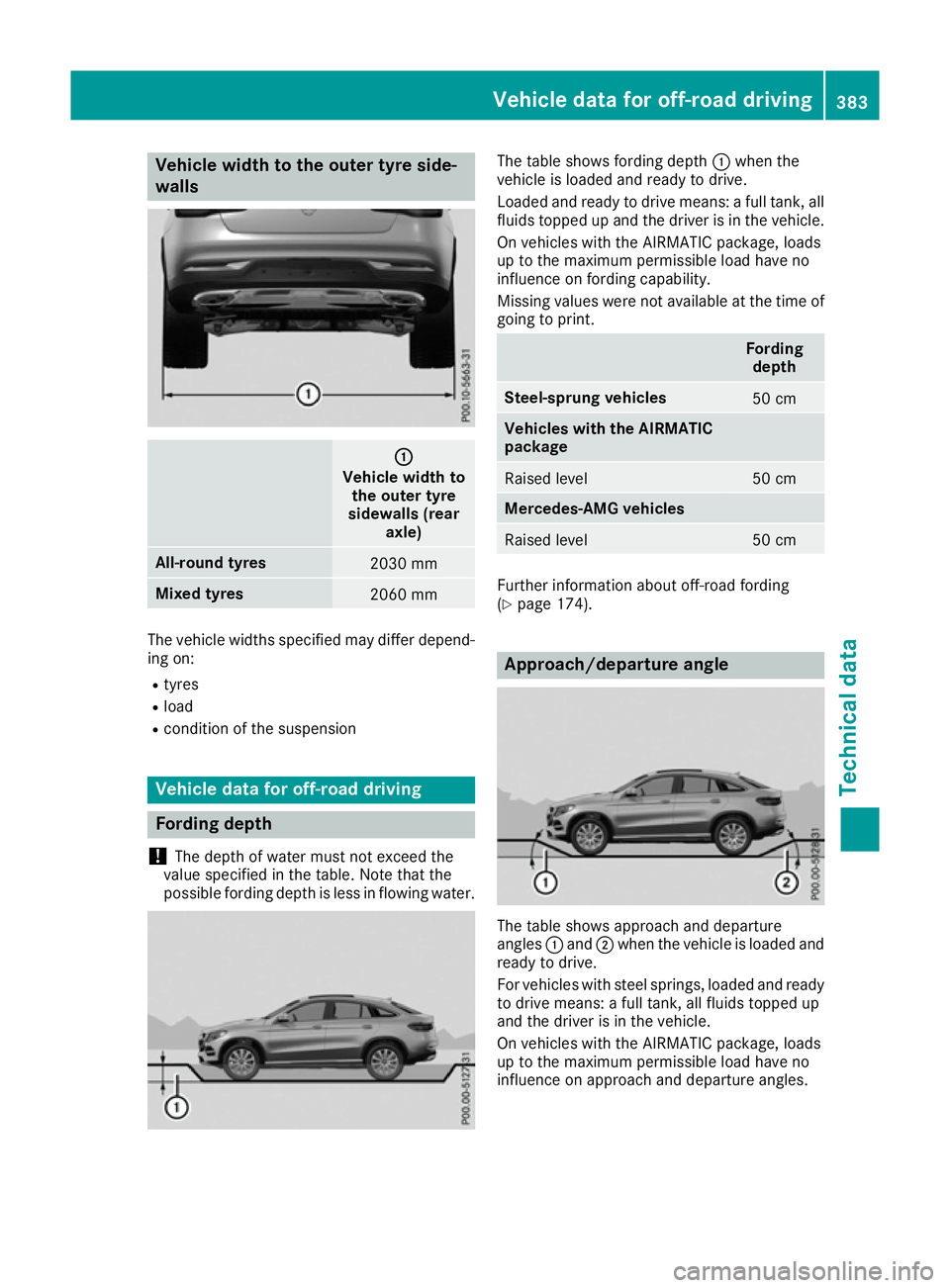

Vehicle width to the outer tyre side-
walls :
:
Vehicle width to the outer tyre
sidewalls (rear axle) All-round tyres
2030 mm
Mixed tyres
2060 mm
The vehicle widths specified may differ depend-
ing on:
R tyres
R load
R condition of the suspension Vehicle data for off-road driving
Fording depth
! The depth of water must not exceed the
value specified in the table. Note that the
possible fording depth is less in flowing water. The table shows fording depth
:when the
vehicle is loaded and ready to drive.
Loaded and ready to drive means: a full tank, all fluids topped up and the driver is in the vehicle.
On vehicles with the AIRMATIC package, loads
up to the maximum permissible load have no
influence on fording capability.
Missing values were not available at the time of
going to print. Fording
depth Steel-sprung vehicles
50 cm
Vehicles with the AIRMATIC
package Raised level 50 cm
Mercedes-AMG vehicles
Raised level 50 cm
Further information about off-road fording
(Y
page 174). Approach/departure angle
The table shows approach and departure
angles
:and ;when the vehicle is loaded and
ready to drive.
For vehicles with steel springs, loaded and ready
to drive means: a full tank, all fluids topped up
and the driver is in the vehicle.
On vehicles with the AIRMATIC package, loads
up to the maximum permissible load have no
influence on approach and departure angles. Vehicle data for off-road driving
383Technical data Z

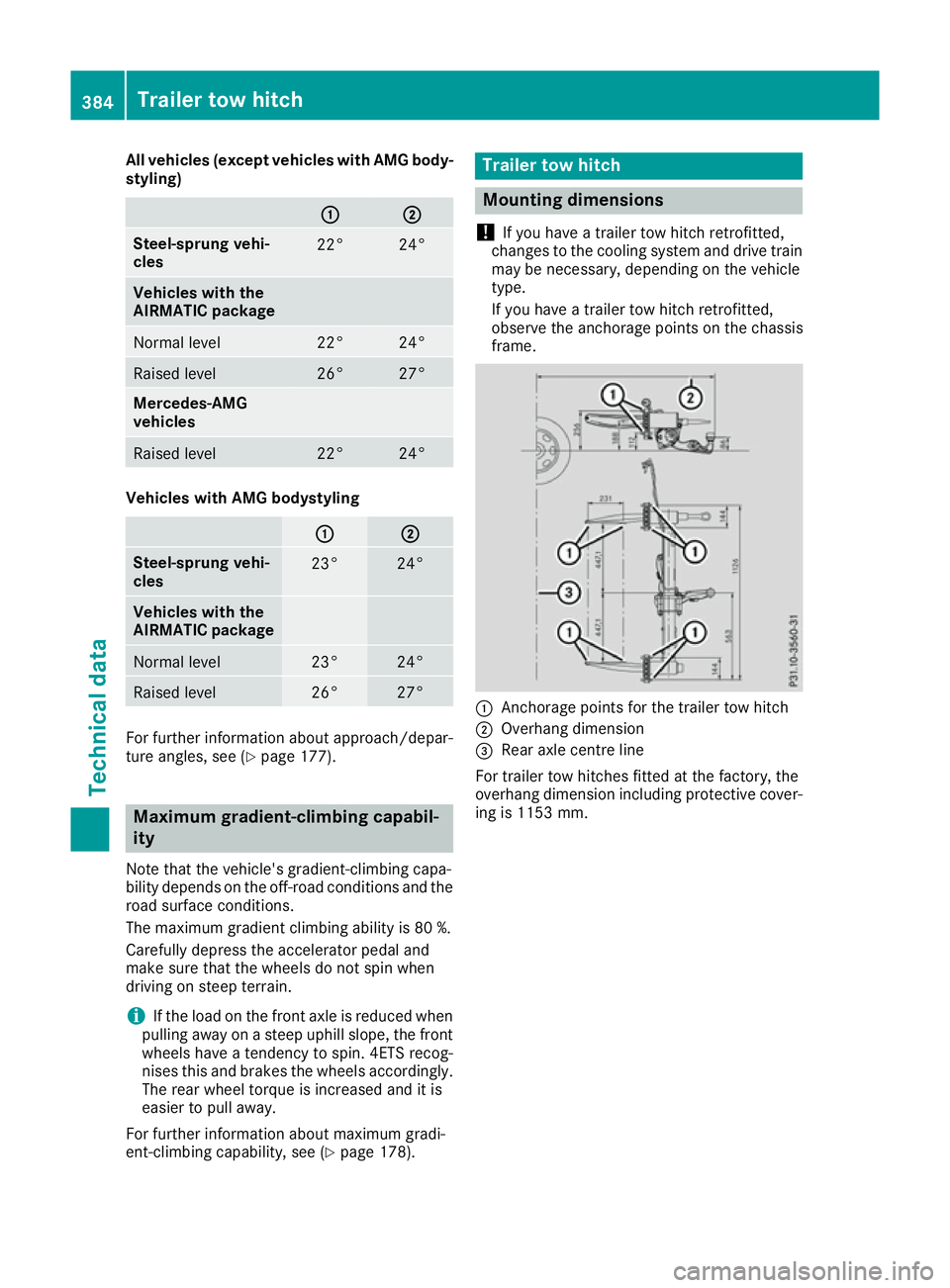

All vehicles (except vehicles with AMG body-
styling) :
: ;
;
Steel-sprung vehi-
cles
22° 24°
Vehicles with the
AIRMATIC package Normal level 22° 24°
Raised level 26° 27°
Mercedes-AMG
vehicles
Raised level 22° 24°
Vehicles with AMG bodystyling
: : ;
;
Steel-sprung vehi-
cles
23° 24°
Vehicles with the
AIRMATIC package
Normal level 23° 24°
Raised level 26° 27°
For further information about approach/depar-
ture angles, see (Y
page 177).Maximum gradient-climbing capabil-
ity
Note that the vehicle's gradient-climbing capa-
bility depends on the off-road conditions and the road surface conditions.
The maximum gradient climbing ability is 80 %.
Carefully depress the accelerator pedal and
make sure that the wheels do not spin when
driving on steep terrain.
i If the load on the front axle is reduced when
pulling away on a steep uphill slope, the front
wheels have a tendency to spin. 4ETS recog-
nises this and brakes the wheels accordingly. The rear wheel torque is increased and it is
easier to pull away.
For further information about maximum gradi-
ent-climbing capability, see (Y page 178). Trailer tow hitch
Mounting dimensions
! If you have a trailer tow hitch retrofitted,
changes to the cooling system and drive train
may be necessary, depending on the vehicle
type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chassis
frame. :
Anchorage points for the trailer tow hitch
; Overhang dimension
= Rear axle centre line
For trailer tow hitches fitted at the factory, the
overhang dimension including protective cover- ing is 1153 mm. 384
Trailer tow hitchTechnical data

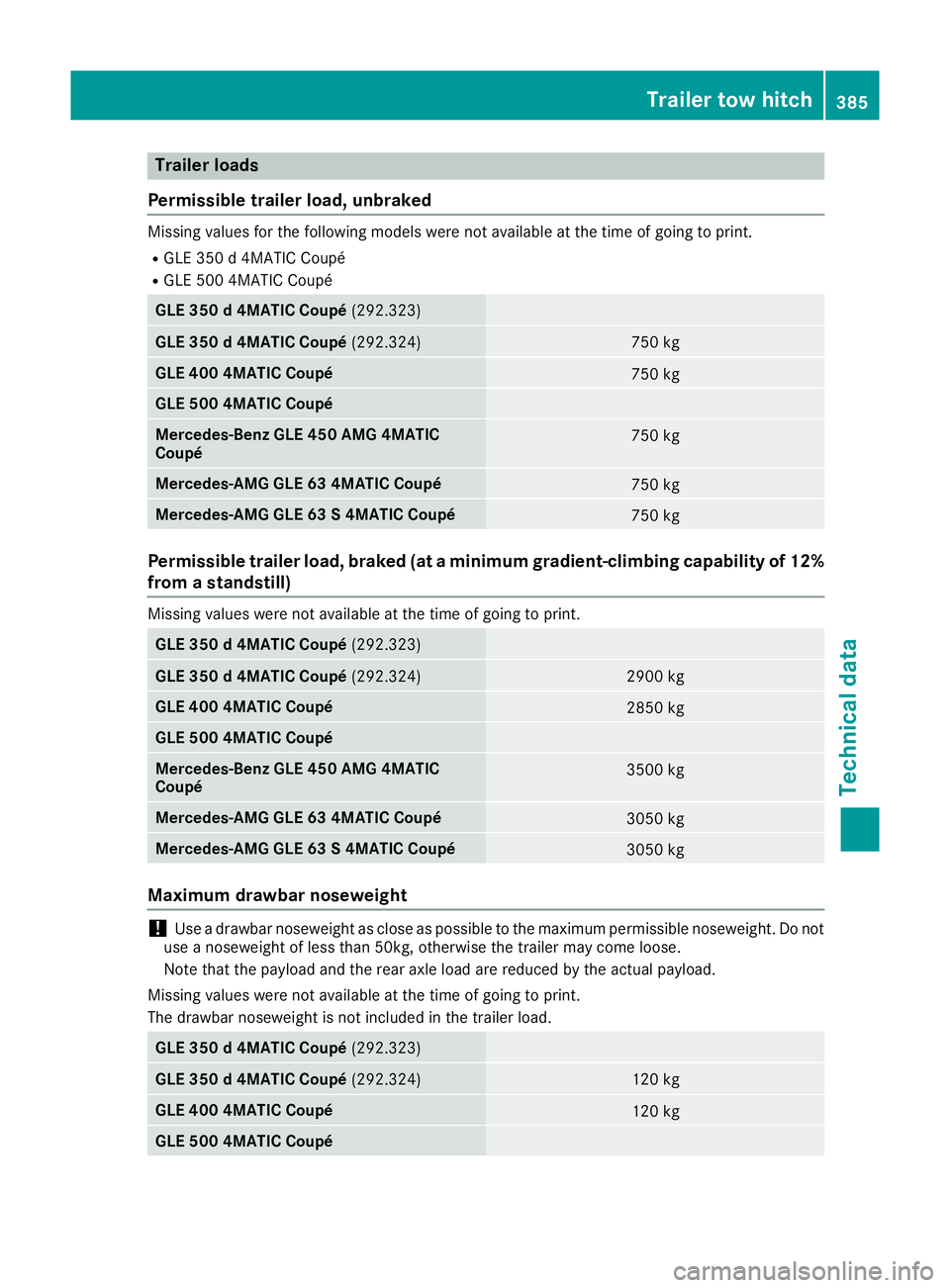

Trailer loads
Permissible trailer load, unbraked Missing values for the following models were not available at the time of going to print.
R GLE 350 d 4MATIC Coupé
R GLE 500 4MATIC Coupé GLE 350 d 4MATIC Coupé
(292.323)GLE 350 d 4MATIC Coupé
(292.324) 750 kg
GLE 400 4MATIC Coupé
750 kg
GLE 500 4MATIC Coupé
Mercedes-Benz GLE 450 AMG 4MATIC
Coupé
750 kg
Mercedes-AMG GLE 63 4MATIC Coupé
750 kg
Mercedes-AMG GLE 63 S 4MATIC Coupé
750 kg
Permissible trailer load, braked (at a minimum gradient-climbing capability of 12%
from a standstill) Missing values were not available at the time of going to print.
GLE 350 d 4MATIC Coupé
(292.323)GLE 350 d 4MATIC Coupé
(292.324) 2900 kg
GLE 400 4MATIC Coupé
2850 kg
GLE 500 4MATIC Coupé
Mercedes-Benz GLE 450 AMG 4MATIC
Coupé
3500 kg
Mercedes-AMG GLE 63 4MATIC Coupé
3050 kg
Mercedes-AMG GLE 63 S 4MATIC Coupé
3050 kg
Maximum drawbar noseweight
!
Use a drawbar noseweight as close as possible to the maximum permissible noseweight. Do not
use a noseweight of less than 50kg, otherwise the trailer may come loose.
Note that the payload and the rear axle load are reduced by the actual payload.
Missing values were not available at the time of going to print.
The drawbar noseweight is not included in the trailer load. GLE 350 d 4MATIC Coupé
(292.323)GLE 350 d 4MATIC Coupé
(292.324) 120 kg
GLE 400 4MATIC Coupé
120 kg
GLE 500 4MATIC Coupé Trailer tow hitch
385Technical data Z

Mercedes-Benz GLE 450 AMG 4MATIC
Coupé
140 kg
Mercedes-AMG GLE 63 4MATIC Coupé
140 kg
Mercedes-AMG GLE 63 S 4MATIC Coupé
140 kg

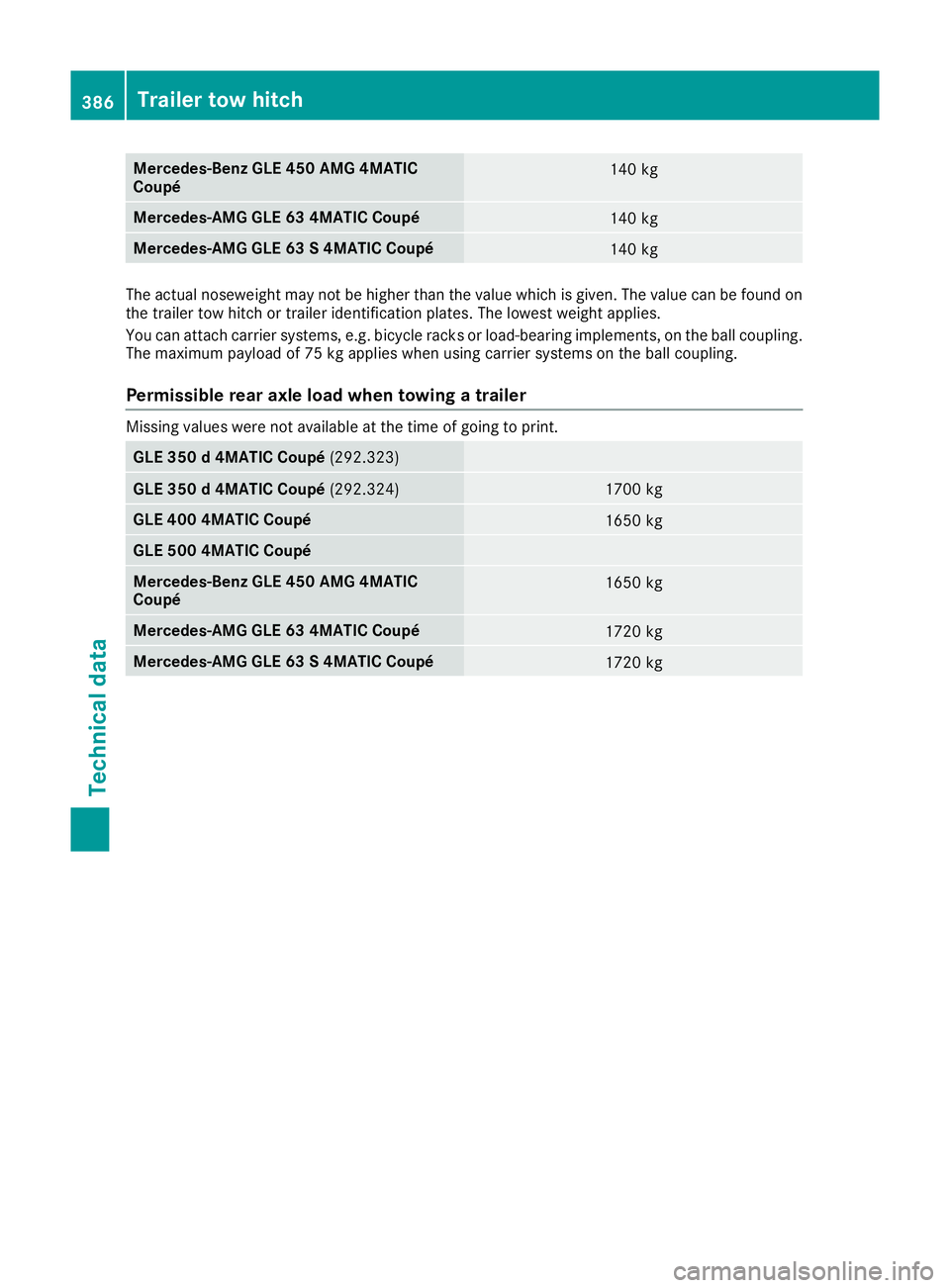

The actual noseweight may not be higher than the value which is given. The value can be found on
the trailer tow hitch or trailer identification plates. The lowest weight applies.
You can attach carrier systems, e.g. bicycle racks or load-bearing implements, on the ball coupling.
The maximum payload of 75 kg applies when using carrier systems on the ball coupling.
Permissible rear axle load when towing a trailer Missing values were not available at the time of going to print.
GLE 350 d 4MATIC Coupé
(292.323)GLE 350 d 4MATIC Coupé
(292.324) 1700 kg
GLE 400 4MATIC Coupé
1650 kg
GLE 500 4MATIC Coupé
Mercedes-Benz GLE 450 AMG 4MATIC
Coupé
1650 kg
Mercedes-AMG GLE 63 4MATIC Coupé
1720 kg
Mercedes-AMG GLE 63 S 4MATIC Coupé
1720 kg386
Trailer tow hitchTechnical data
