Tyres
GLC 220 d 4MATIC Summer tyres
R 17
Tyres Wheels
BA: 235/6
5 R17 104 V BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 V BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 V
6 BA: 8.0 J x 19 H2 ET 38
R 20
Tyres Wheels
BA: 255/45 R20 101 W
6, 7 BA: 8.5 J x 20 H2 ET 40
Winter tyres
R 17
Tyres Wheels
BA: 235/65 R17 104 H M+S
i BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 H M+S
i BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 H M+S
i6 BA: 8.0 J x 19 H2 ET 38
6
Available as MOExtended tyres.
7 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations". 470
Wheel and tyre combinationsWheels and tyres

GLC 250 4MATIC
Summer tyres
R 17
Tyres Wheels
BA: 235/65 R17 104 V BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 V BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 V
6 BA: 8.0 J x 19 H2 ET 38
R 20
Tyres Wheels
BA: 255/45 R20 101 W
6, 7 BA: 8.5 J x 20 H2 ET 40
Winter tyres
R 17
Tyres Wheels
BA: 235/65 R17 104 H M+Si BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 H M+Si BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 H M+Si
6 BA: 8.0 J x 19 H2 ET 38
6
Available as MOExtended tyres.
7 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations". Wheel and tyre combinations
471Wheels and tyres Z

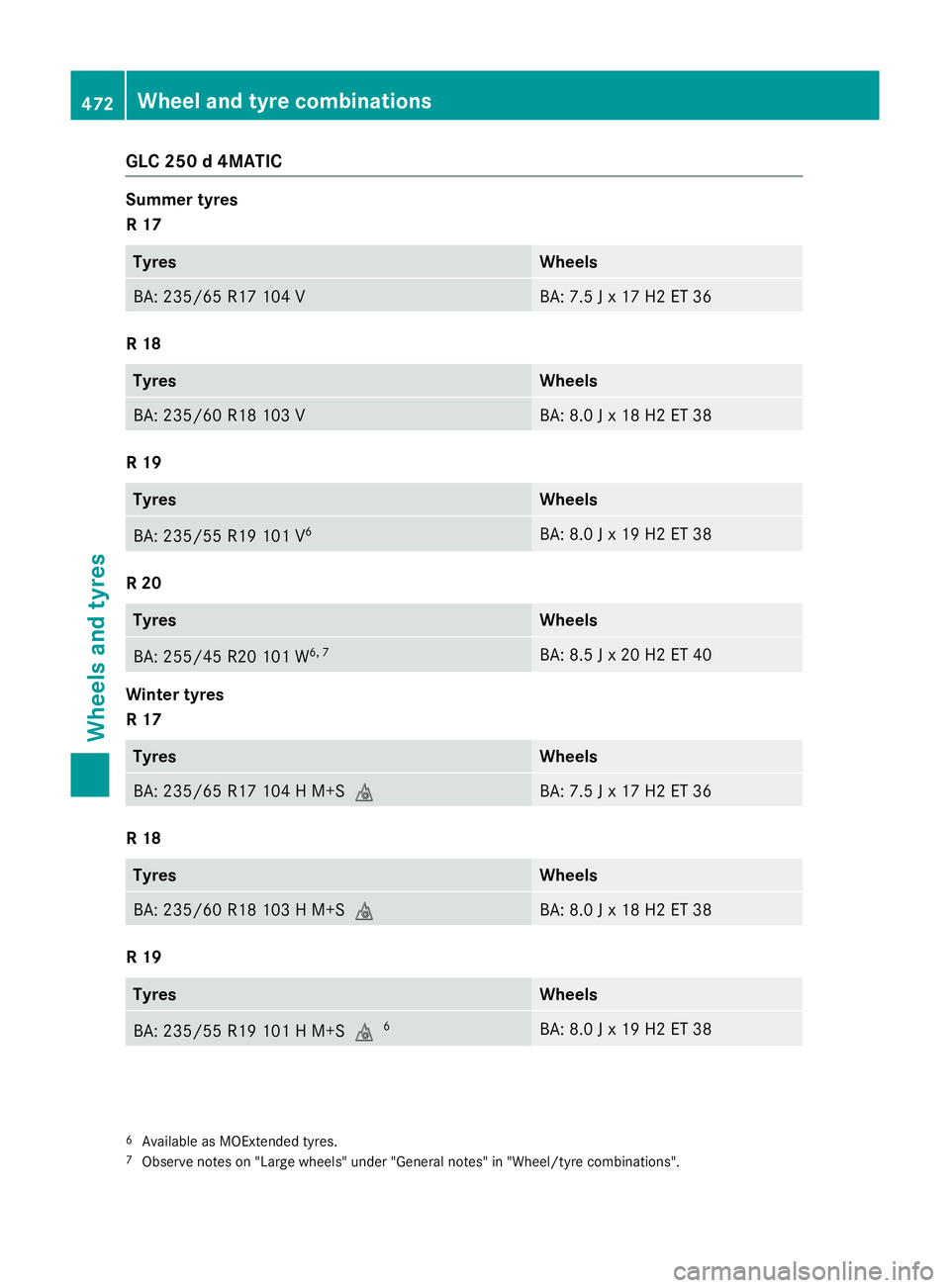

GLC 250 d 4MATIC
Summer tyres
R 17
Tyres Wheels
BA: 235/65 R17 104 V BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 V BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 V
6 BA: 8.0 J x 19 H2 ET 38
R 20
Tyres Wheels
BA: 255/45 R20 101 W
6, 7 BA: 8.5 J x 20 H2 ET 40
Winter tyres
R 17
Tyres Wheels
BA: 235/65 R17 104 H M+Si BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 H M+Si BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 H M+Si
6 BA: 8.0 J x 19 H2 ET 38
6
Available as MOExtended tyres.
7 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations". 472
Wheel and tyre combinationsWheels and tyres

GLC 300 4MATIC
Summer tyres
R 17
Tyres Wheels
BA: 235/65 R17 104 V BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 V BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 V
6 BA: 8.0 J x 19 H2 ET 38
R 20
Tyres Wheels
BA: 255/45 R20 101 W
6, 7 BA: 8.5 J x 20 H2 ET 40
Winter tyres
R 17
Tyres Wheels
BA: 235/65 R17 104 H M+Si BA: 7.5 J x 17 H2 ET 36
R 18
Tyres Wheels
BA: 235/60 R18 103 H M+Si BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 H M+Si
6 BA: 8.0 J x 19 H2 ET 38
6
Available as MOExtended tyres.
7 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations". Wheel and tyre combinations
473Wheels and tyres Z

GLC 350 e 4MATIC
Summer tyres
R 18
Tyres Wheels
BA: 235/60 R18 103 V BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 V
6 BA: 8.0 J x 19 H2 ET 38
R 20
Tyres Wheels
BA: 255/45 R20 101 W
6, 7 BA: 8.5 J x 20 H2 ET 40
Winter tyres
R 18
Tyres Wheels
BA: 235/60 R18 103 H M+Si BA: 8.0 J x 18 H2 ET 38
R 19
Tyres Wheels
BA: 235/55 R19 101 H M+Si
6 BA: 8.0 J x 19 H2 ET 38
Emergency spare wheel
Important safety notes
G
WARNING
The wheel/tyre dimensions and the tyre type of the spare wheel/emergency spare wheel
and the wheel to be replaced may differ. Fit-
ting a spare wheel/emergency spare wheel
may severely impair the driving characteris-
tics. There is a risk of accident. To prevent hazardous situations:
R Adapt your driving style accordingly and
drive carefully.
R Never fit more than one spare wheel/emer-
gency spare wheel if the dimensions are
different to those of the wheel being
replaced.
R Only use a spare wheel/emergency spare
wheel briefly if the dimensions are different
to those of the wheel being replaced.
6 Available as MOExtended tyres.
7 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations". 474
Emergency spare wheelWheels and tyres

R
Do not switch off ESP ®
.
R Have the spare wheel/emergency spare
wheel in question replaced at the nearest
qualified specialist workshop. Make sure
that the wheel/tyre dimensions and tyre
type are correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 80 km/h.
Snow chains must not be fitted to emergency spare wheels. General notes
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as nec- essary (Y page 458). The value on the wheel is
valid. In addition, the emergency spare wheel
tyre pressure can be found under "Technical
data" (Y page 476).
An emergency spare wheel may also be fitted
against the direction of rotation. Observe the time restriction on use as well as the speed
limitation specified on the emergency spare
wheel.
Replace the tyres after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
If you are driving with the emergency spare
wheel fitted, the tyre pressure loss warning
system or the tyre pressure monitor cannot
function reliably. Only restart the tyre pres-
sure loss warning system or tyre pressure
monitor when the defective wheel has been
replaced with a new wheel.
Vehicles with tyre pressure monitor: after
fitting an emergency spare wheel, the system
may still display the tyre pressure of the
removed wheel for a few minutes. The value
displayed for the position where the emer-
gency spare wheel is fitted is not the same as
the current tyre pressure of the emergency
spare wheel. Removing the emergency spare wheel
The emergency spare wheel is secured in the emergency spare wheel bag in the luggage
compartment.
X Open the luggage compartment.
X Detach the fastening straps.
X Unhook retaining spring hooks of fastening
straps from the retainers.
X Remove the emergency spare wheel bag
with the emergency spare wheel.
X Open the bag and remove the emergency
spare wheel.
Always pay attention to the instructions and
safety notes under "Changing a wheel"
(Y page 464). Emergency spare
wheel
475Wheels an d tyres Z

Technical data
"Minispare" emergency spare wheel
8Tyres Light-alloy wheels
T 155/8
0 R19 114 P
Tyre pressure : 420 kPa (4.2 ba r/61 psi) 4.5 B x 19 H2 ET 35
8
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 476
