2015 Lexus IS300h Owner's Manual

4336-3. Using the storage features
6
Interior features
IS300h_EE(OM53D56E)
Hold the hook and lift up the lug-
gage mat.
Secure the luggage mat using the
hook.
Lift up the luggage mat and secure it by
using the hook.
Luggage mat
1
2
NOTICE
When closing the trunk, do not leave the luggage mat lever hooked on the edge of the
trunk. The luggage mat may get damaged.
Luggage under tray

4346-3. Using the storage features
IS300h_EE(OM53D56E)
Loosen the belt
Tighten the belt
Warning reflector storage belt
1
2
To prevent damage to the warning reflector stor-
age belt when it is not in use, fold the belt (as
shown in ) and secure it with the clip ( ).
12

435
IS300h_EE(OM53D56E)
6
Interior features
6-4. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
Slide the cover to open.
The light turns on when the cover is
opened.
The clock can be adjusted. Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
Other interior features
Sun visors
1
2
Vanity mirrors
Clock
1
2

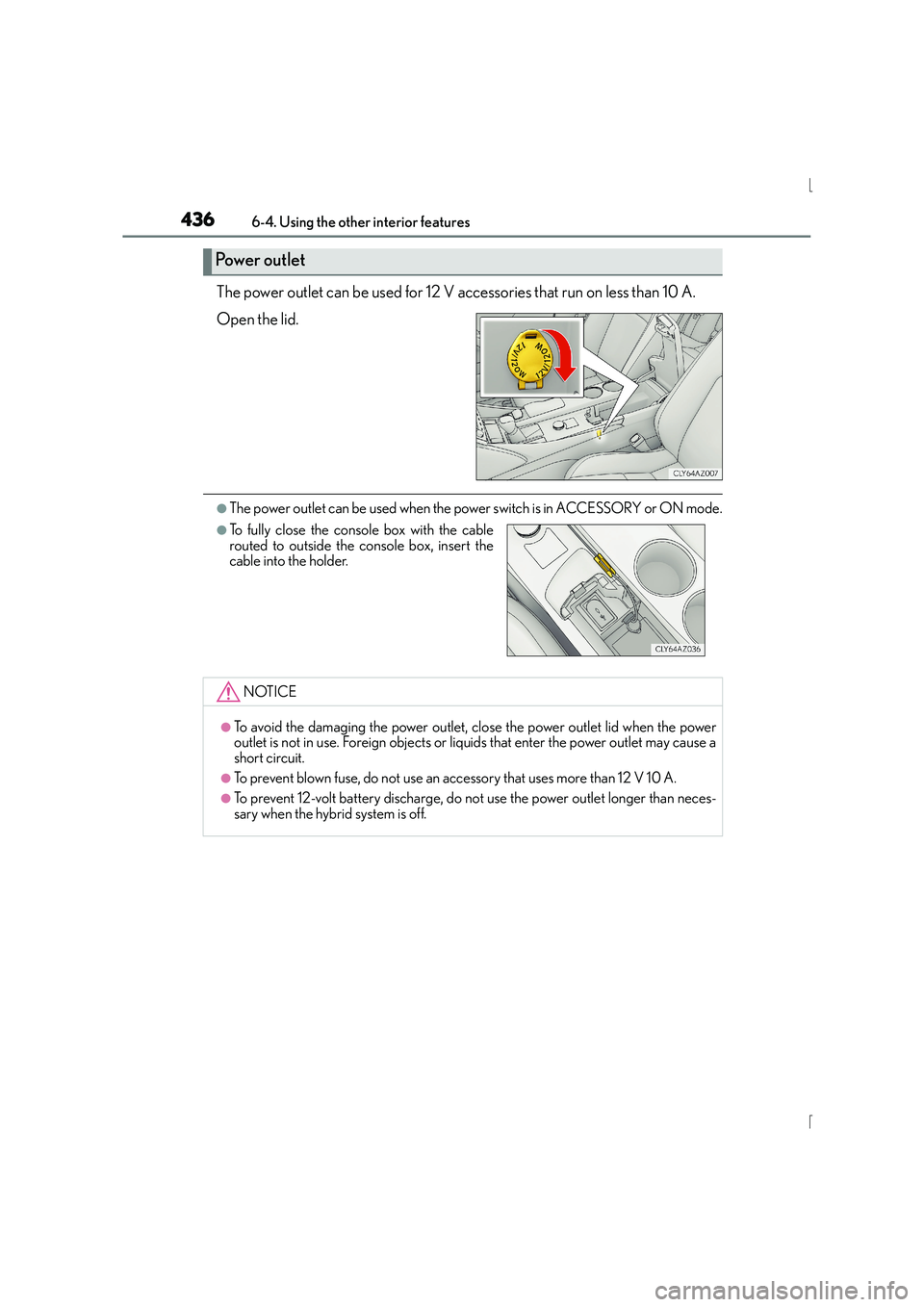

4366-4. Using the other interior features
IS300h_EE(OM53D56E)
The power outlet can be used for 12 V accessories that run on less than 10 A.
Open the lid.
●The power outlet can be used when the power switch is in ACCESSORY or ON mode.
Power outlet
●To fully close the console box with the cable
routed to outside the console box, insert the
cable into the holder.
NOTICE
●To avoid the damaging the power outlet, close the power outlet lid when the power
outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a
short circuit.
●To prevent blown fuse, do not use an accessory that uses more than 12 V 10 A.
●To prevent 12-volt battery discharge, do not use the power outlet longer than neces-
sary when the hybrid system is off.

4376-4. Using the other interior features
6
Interior features
IS300h_EE(OM53D56E)
Fold down the armrest for use.
The rear sunshade can be raised and lowered.
Raise/lower
Armrest (if equipped)
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
Rear sunshade (if equipped)

4386-4. Using the other interior features
IS300h_EE(OM53D56E)
●The rear sunshade can be used when the power switch is in ON mode.
●The rear sunshade can be operated for approximately 1 minute even after the power
switch is turned to ACCESSORY mode or turned off.
●Reverse operation feature: To ensure adequate rear visibility, the rear sunshade auto-
matically lowers when the shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
• The button is pressed again.
*• The shift lever is shifted into P.
• The shift lever is shifted out of R, and the vehicle reaches a speed of 15 km/h (9
mph).
If the hybrid system is off when the rear sunshade has been lowered due to the reverse
operation feature, it will not be raised even when the hybrid system is turned on again
and the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade again,
press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been
pressed. Repeat the above operation to operate the function.
CAUTION
When the rear sunshade is being operated, do not place fingers or other objects in the
fastener section or in the opening. They may get caught, causing injury.
NOTICE
●To prevent 12-volt battery discharge, do not operate the rear sunshade when the
hybrid system is off.
●Observe the following precautions to ensure normal operation of the rear sunshade.
• Do not place excessive load on the motor or other components of the rear sun- shade.
• Do not place objects where they may hinder opening and closing operations.
• Do not attach items to the rear sunshade.
• Keep the opening clean and clear of obstructions.
• Do not operate the rear sunshade continuously for long periods of time.

4396-4. Using the other interior features
6
Interior features
IS300h_EE(OM53D56E)
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
The coat hooks are provided with the
rear assist grips.
Assist grips
CAUTION
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist grip.
Coat hooks
CAUTION
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.

4406-4. Using the other interior features
IS300h_EE(OM53D56E)
