2015 Lexus IS300h Owner's Manual

3455-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
Go to “Audio settings”: → “Setup” → “Audio”
Change sound settings ( →P. 344)
Change FM radio settings
( → P. 3 4 6 )
Change DAB settings ( →P. 3 4 6 )
Change iPod settings ( →P. 3 4 7 )
Change USB settings ( →P. 3 4 7 )
Change A/V settings ( →P. 3 4 8 )
Change the cover art settings ( →P. 3 4 8 )
Audio settings
Screen for audio settings
1
2
3
4
5
6
7

3465-3. Using the audio system
IS300h_EE(OM53D56E)
Change the order of the station list
Select to set the traffic announce-
ment interrupt operation on/off
When traffic announcement is set to on,
the radio will begin seeking a TP station.
(→ P. 3 5 3 )
Select to set the alternative fre-
quency network following operation
on/off
When alternative frequency is set to on, a station providing good reception is auto-
matically selected if current reception worsens.
Select to set the region code change operation on/off
When region code change operation is se t to on, programs will switch over to a
broadcasting station within the same local program network.
Select to set the FM Radio text feature on/off
Update the DAB station list
Select to set the L-band on/off
When set to off, the physical channel
range for tune operations is limited to
Band III except preset operations.
When set to on, the physical channel
range for tune operations is Band III and
L-band.
Select to set traffic announcement
operation on/off
When traffic announcement is set to on, the tuner will automatically seek a station that
regularly broadcasts traffic information and the station will broadcast when the traffic
information program starts.
Select to set alternative frequency net work following operation on/off
When alternative frequency is set to on, a station providing good reception is auto-
matically selected if current reception worsens.
Select to set the DAB radio text feature on/off
Changing FM radio settings
1
2
3
Changing DAB settings
4
5
1
2
3
4
5

3475-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
Change the screen size (video
mode)
Change the cover art settings
(→ P. 3 4 8 )
Adjust the screen quality (video
mode) ( →P. 3 4 2 )
Change video so und input port
Change the screen size (video
mode)
Change the cover art settings
( → P. 3 4 8 )
Adjust the screen quality (video
mode) ( →P. 3 4 2 )

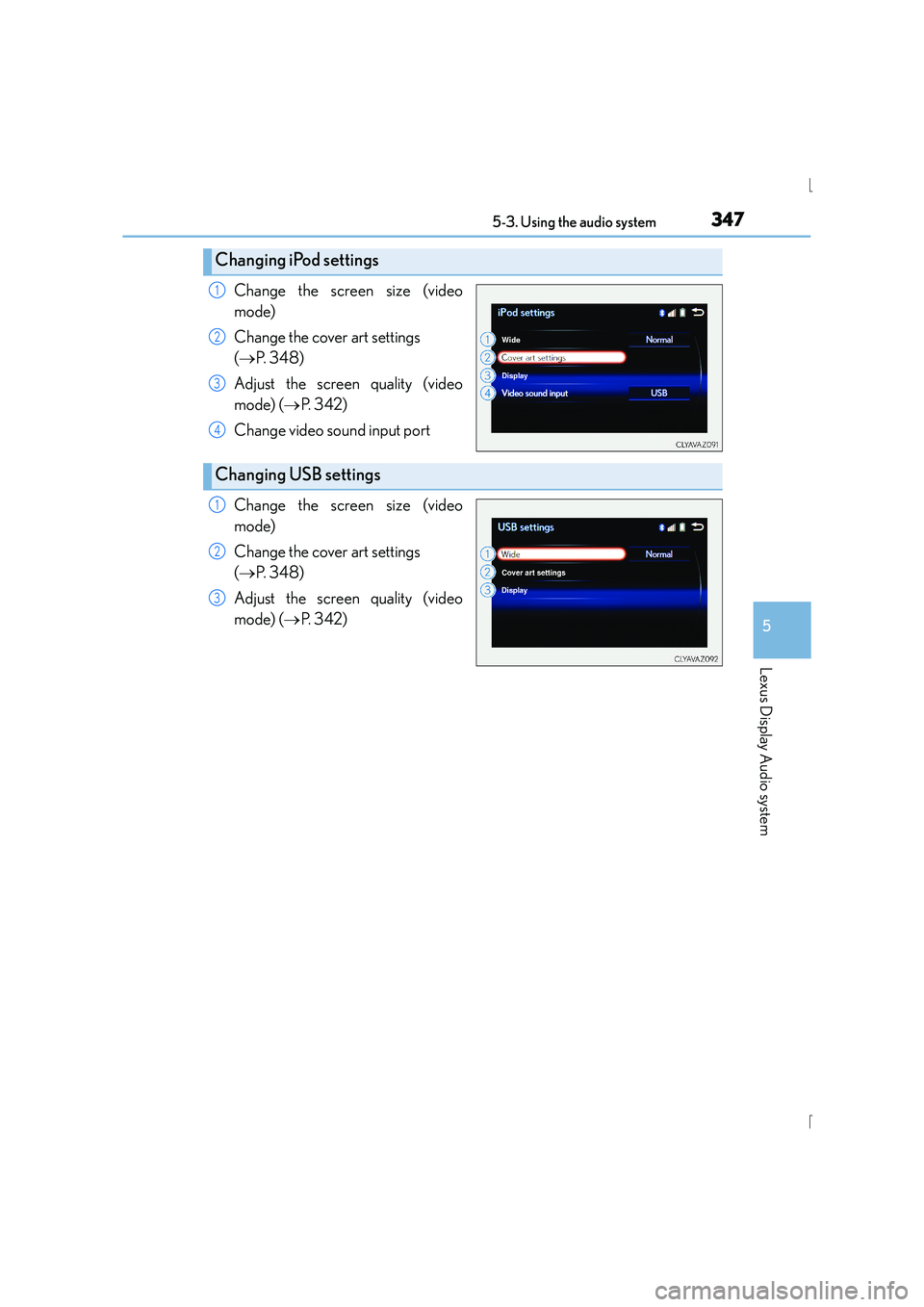

Changing iPod settings
1
2
3
4
Changing USB settings
1
2
3

3485-3. Using the audio system
IS300h_EE(OM53D56E)
Change the screen size
Change the video signal
Adjust the screen quality (→P. 3 4 2 )
Select to set the cover art display of
DISC mode on/off.
Select to set the cover art display of
USB mode on/off.
Change the priority of the cover art
display for USB mode.
Select to set the cover art display of
iPod mode on/off.
Change the priority of the cover art display for iPod mode.
Changing A/V settings
1
2
3
Changing the cover art settings
1
2
3
4
5

3495-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
To display the audio menu screen, move the controller to the left while on an
audio top screen.
XFM or AM radioSeek a station of the nearest fre-
quency (stops when a station is
found) (manual mode)
Change FM radio settings
(→ P. 3 4 6 )
Change DAB settings ( →P. 3 4 6 )
XDAB
Adjust the playback offset time on
time shift mode
Cancel time shift operation
Select an ensemble (manual
mode)
Select a service (manual mode)
Change FM radio settings
(→ P. 3 4 6 )
Change DAB settings ( →P. 3 4 6 )
Audio menu screen operation
You can change the settings and cont rol functions for each audio source.
Audio menu screen
1
2
3
1
2
3
4
5
6

3505-3. Using the audio system
IS300h_EE(OM53D56E)
XCD, MP3/WMA/AAC disc, USB, Bluetooth® or iPod
Play or pause a track/file/song
Select a track/file/song
Select a folder/album (MP3/
WMA/AAC disc or USB)
Select and hold: Fast-forward or
reverse a track/file/song
Select a repeat mode. ( →P. 3 5 1 )
Select a random/shuffle play
mode. ( →P. 3 5 1 )
Select the full screen mode. (USB
video or iPod video mode)
Change USB settings (USB)
( → P. 3 4 7 )
Change iPod settings (iPod)
( → P. 3 4 7 )
Connect a Bluetooth
® device (Bluetooth®) ( → P. 3 7 3 )
Change the cover art settings (CD or MP3/WMA/AAC disc) ( →P. 3 4 8 )
XAUX or A/V
Select the full screen mode (A/V)
Change A/V settings (A/V)
(→ P. 3 4 8 )
1
2
3
4
5
6
7
8
9
10
11
1
2

3515-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
Repeat play
ModeActionTa r g e t a u d i o s o u r c e
File/track/song repeat All media
Folder repeat MP3 /WMA/AAC disc, USB
Album repeat USB, Bluetooth
®
Random/shuffle playback
ModeActionTa r g e t a u d i o s o u r c e
Random/shuffle play of the disc/
folder/album All media
Random play of all folders MP3/WMA/AAC disc, USB
Random/shuffle play of all albums USB, iPod, Bluetooth
®

352
IS300h_EE(OM53D56E)5-4. Using the radio
Pressing the “RADIO” button displays the radio top screen from any screen of
the selected source.
■Menu screen
→
P. 3 4 9
Move the controller to the right to display the right menu screen. Change the radio top screen to the
preset selection screen.
Change the radio top screen to the
station list selection screen. (FM and
DAB)
Change the radio top screen to the
manual selection screen.
Change the radio top screen to the
time shift operation screen. (DAB)
(→ P. 3 5 3 )
Tune in to the desired station using one of the following methods.
■Seek tuning
Manual screen: Press or press and hold “ <” or “ >” button.
Preset or station list screen: Press and hold “ <” or “ >” button.
Seek turning can also be operated on the menu screen. ( →P. 3 4 9 )
The radio will begin seeking up or down for a station of the nearest frequency
and will stop when a station is found.
Radio operation
Select “AM”, “FM” or “DAB” on the “Source” screen to begin listening to the
radio.
Radio top screen
Changing the top screen mode
1
2
3
4
Selecting a station
