2015 FORD POLICE INTERCEPTOR UTILITY Owners Manual

Replacing sidemarker bulbs (Utility)
1. Rotate the bulb socket
counterclockwise and remove it from
the lamp assembly.
2. Pull the bulb straight out of the
socket.
Reverse steps to reinstall bulb(s).
Front parking lamp/turn signal flashers (wig-wags) (If equipped)
Your vehicle is equipped with an LED front parking lamp/turn signal
flashers (wig-wags). It is designed to last the life of the vehicle. If
replacement is required, it is recommended that you see your authorized
dealer.
Note:Use of the wig-wag feature overrides normal operation of the
park/turn indicator.
Spot lights (If equipped)
Your vehicle is equipped with a spot light attached to one or both of the
A-Pillars. It is designed to last the life of the vehicle. If replacement is
required, it is recommended that you see your authorized dealer.
Replacing stop/tail/turn and sidemarker lamp bulbs (Sedan)
1. Make sure the headlamp switch is in the off position and open the
trunk.
2. Remove the press pin and cargo net
fastener (if equipped) and carefully pull
the carpet away to expose the backside
of the tail lamp assembly.
3. Remove the nut and washer
assemblies, then pull the lamp assembly
away from the vehicle.
240Maintenance
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

4. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
5. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
Replacing backup lamp bulbs (Sedan)
1. Make sure the headlamp switch is in the off position.
2. Remove the deck lid trim panel press pins
and carefully pull the panel away to expose
the backside of the backup lamp assembly.
3. Remove bulb socket by rotating it
counterclockwise, then pull it out of
the lamp assembly.
Maintenance241
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

4. Pull the bulb straight from the
socket.
5. Install the new bulb in reverse order.
Replacing high-mount brake lamp bulbs (Sedan)
Your vehicle is equipped with an LED high-mount brake lamp. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
Replacing license plate lamp bulbs (Sedan)
1. Make sure the headlamp switch is in the off position.
2. Remove the two screws from the
license plate lamp assembly.
3. Carefully pull the bulb out from
the contacts.
Install new bulb(s) in reverse order.
Replacing supplemental park lamp bulbs (Sedan)
Your vehicle is equipped with an LED supplemental park lamps. The LED
supplemental park lamps bulbs are located in the headlamp and tail lamp
and indicate the corners of the vehicle. It is designed to last the life of
the vehicle. If replacement is required, it is recommended that you see
your authorized dealer.
242Maintenance
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Replacing turn/backup lamp bulbs (Utility)
The turn/backup lamp bulbs are located in the same area of the tail lamp
assembly, one below the other. Follow the same steps to replace these
bulbs:
1. Make sure the headlamp switch is in the off
position, then open the liftgate to expose the lamp
assembly bolts.
2. Remove the two bolts covers using a standard flat
tip screwdriver.
3. Remove the two bolts from the lamp assembly.
4. Carefully remove the lamp assembly away from the
vehicle by pulling the assembly straight out to expose
the bulb socket.
5. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
6. Pull bulb straight out of socket.
7. Install the new bulb in reverse order.
Carefully install the tail lamp assembly on the vehicle by securing the
lamp assembly with two bolts. Reinstall bolt covers.
Replacing tail/brake lamp bulbs (Utility)
For bulb replacement, see your authorized dealer.
Replacing high-mount brake lamp bulb (Utility)
Your vehicle is equipped with an LED center high-mount stop lamp
located in the spoiler. It is designed to last the life of the vehicle. If
replacement is required, see your authorized dealer.
Maintenance243
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Replacing license plate lamp bulb (Utility)
1. Carefully release the spring clip
(1).
2. Remove the lamp (2).
3. Remove the bulb (3).
Reverse steps to reinstall bulb.
Replacing rear quarter glass LED lamp (Utility) (if equipped)
Your vehicle is equipped with an LED rear quarter glass lamp. It is
designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
Replacing exterior mirror LED lamp (Utility) (if equipped)
Your vehicle is equipped with an LED strobe located in the mirror cap. It
is designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
Replacing fender vent LED lamp (Sedan) (if equipped)
Your vehicle is equipped with an LED strobe located in the fender vent.
It is designed to last the life of the vehicle. If replacement is required,
see your authorized dealer.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
3
2
1
244Maintenance
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Function Number of bulbsTrade
number
Low/high beam headlamp 2HIR2 (Sedan)
HB3 (Utility)
Front park/turn lamp
(without wig-wag)23457AK
(amber)
(Sedan)
3457K
(Utility)
* Front park/turn/wig-wag
lamp2 LED
Sidemarker lamp (front) 2168 (Sedan)
W5W
(Utility)
Sidemarker lamp (rear)
(Sedan)2 168
Stop/tail/turn lamp
(Sedan)2 3157K
* Tail/brake lamp (Utility) 2 LED
Rear turn lamp (Utility) 2WY21W
(amber)
Backup lamp 2921 (Sedan)
W21W
(Utility)
License plate lamp 2C5W (Sedan)
W5W
(Utility)
* High-mount brake lamp 1 LED
* Supplemental park lamp
(Sedan)2 LED
Front map lamp 2W5WL
(Sedan)
168 (T10)
(Utility)
Maintenance245
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

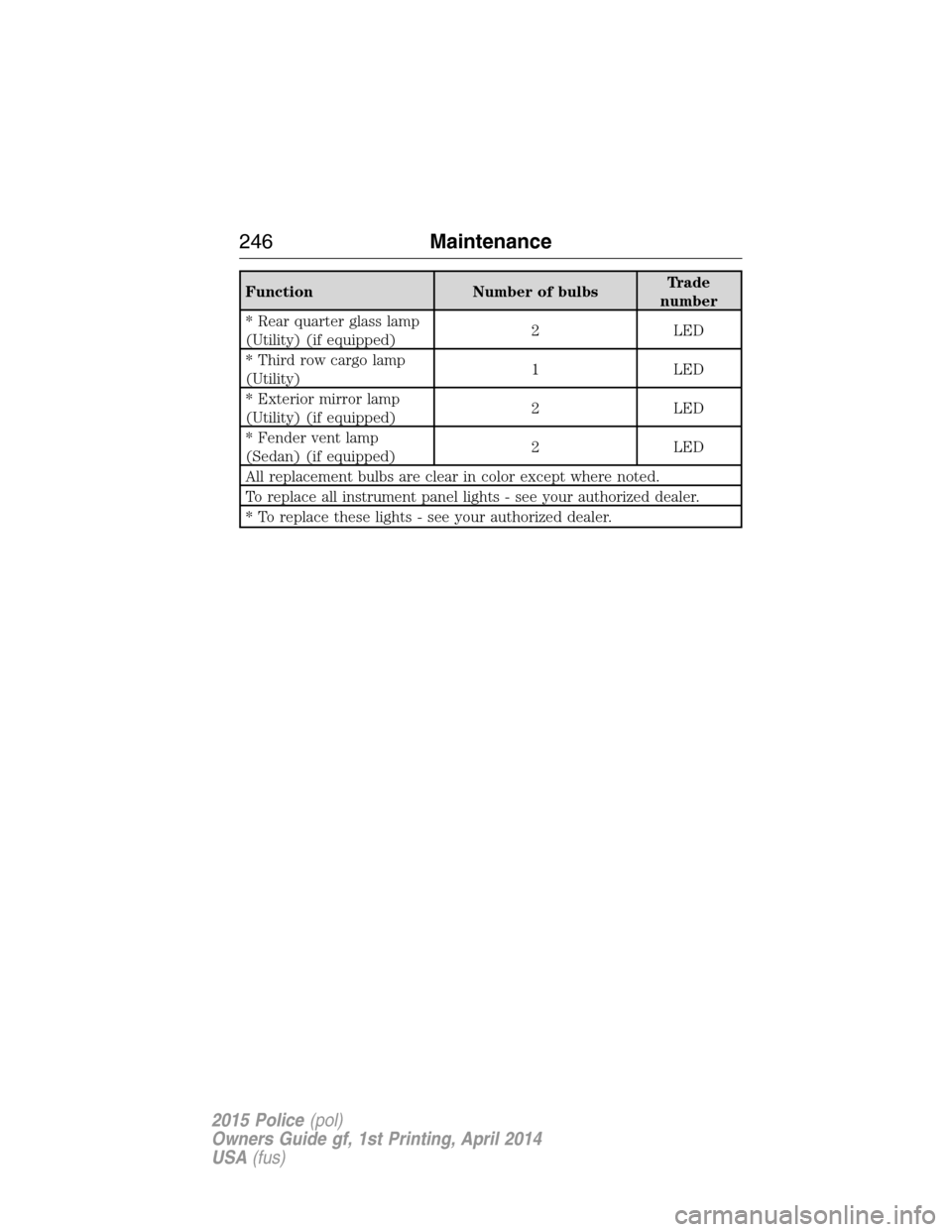

Function Number of bulbsTrade
number
* Rear quarter glass lamp
(Utility) (if equipped)2 LED
* Third row cargo lamp
(Utility)1 LED
* Exterior mirror lamp
(Utility) (if equipped)2 LED
* Fender vent lamp
(Sedan) (if equipped)2 LED
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
* To replace these lights - see your authorized dealer.
246Maintenance
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

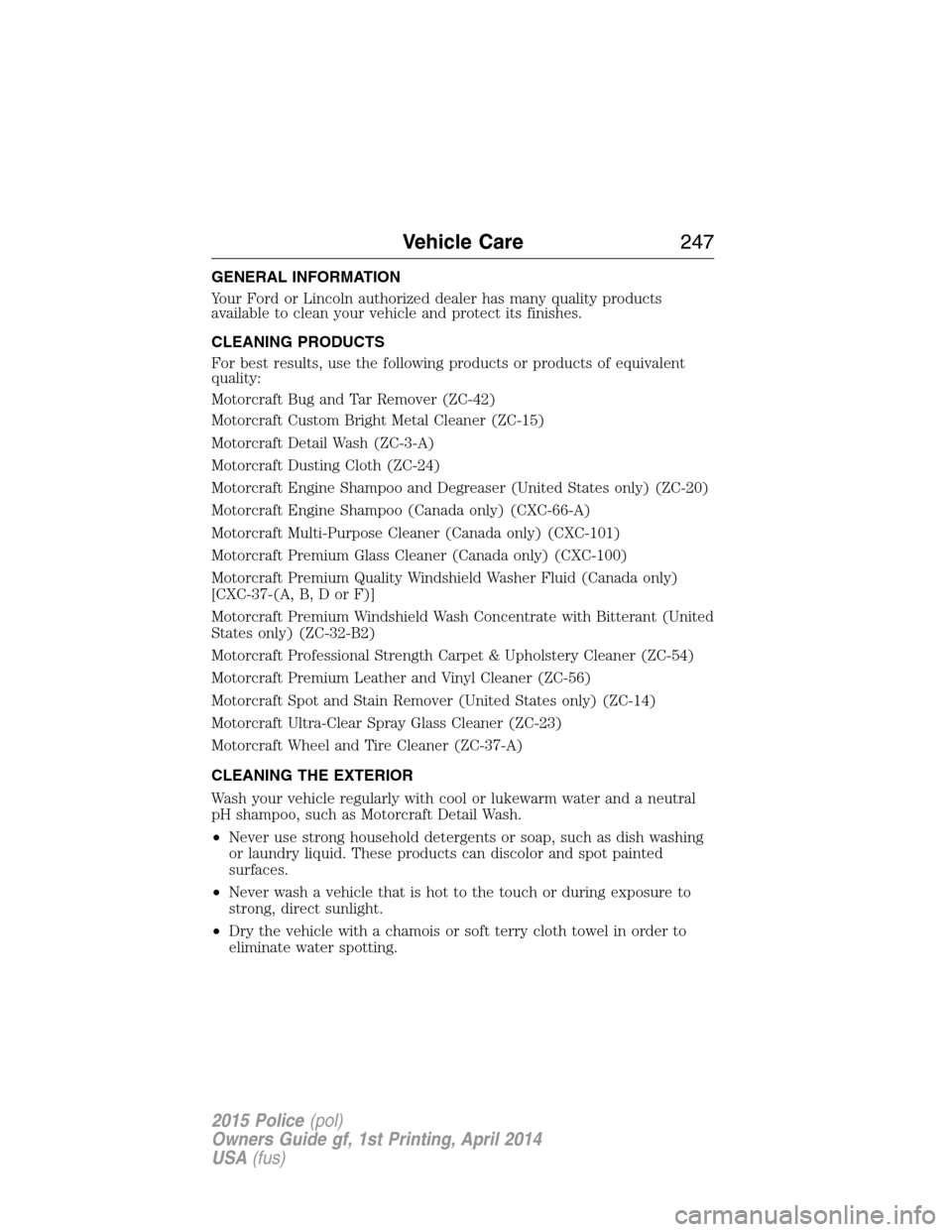

GENERAL INFORMATION
Your Ford or Lincoln authorized dealer has many quality products
available to clean your vehicle and protect its finishes.
CLEANING PRODUCTS
For best results, use the following products or products of equivalent
quality:
Motorcraft Bug and Tar Remover (ZC-42)
Motorcraft Custom Bright Metal Cleaner (ZC-15)
Motorcraft Detail Wash (ZC-3-A)
Motorcraft Dusting Cloth (ZC-24)
Motorcraft Engine Shampoo and Degreaser (United States only) (ZC-20)
Motorcraft Engine Shampoo (Canada only) (CXC-66-A)
Motorcraft Multi-Purpose Cleaner (Canada only) (CXC-101)
Motorcraft Premium Glass Cleaner (Canada only) (CXC-100)
Motorcraft Premium Quality Windshield Washer Fluid (Canada only)
[CXC-37-(A, B, D or F)]
Motorcraft Premium Windshield Wash Concentrate with Bitterant (United
States only) (ZC-32-B2)
Motorcraft Professional Strength Carpet & Upholstery Cleaner (ZC-54)
Motorcraft Premium Leather and Vinyl Cleaner (ZC-56)
Motorcraft Spot and Stain Remover (United States only) (ZC-14)
Motorcraft Ultra-Clear Spray Glass Cleaner (ZC-23)
Motorcraft Wheel and Tire Cleaner (ZC-37-A)
CLEANING THE EXTERIOR
Wash your vehicle regularly with cool or lukewarm water and a neutral
pH shampoo, such as Motorcraft Detail Wash.
•Never use strong household detergents or soap, such as dish washing
or laundry liquid. These products can discolor and spot painted
surfaces.
•Never wash a vehicle that is hot to the touch or during exposure to
strong, direct sunlight.
•Dry the vehicle with a chamois or soft terry cloth towel in order to
eliminate water spotting.
Vehicle Care247
