2015 FORD POLICE INTERCEPTOR UTILITY Owners Manual

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Fuel tankSedan
19.0 gal (72L)
Utility
18.6 gal (70L)——
Sedan
A/C refrigerant
(Without auxiliary
A/C)
9
2.0L/3.5L GTDI:
1.63 lb (0.74 kg)
Motorcraft R-134a
RefrigerantYN-19 (U.S.)
CYN-16-R (Canada) /
WSH-M17B19-A 3.5L/3.7L TiVCT
1.81 lb (0.82 kg)
Utility
A/C refrigerant
(Without auxiliary
A/C)
9
3.7L TiVCT:
1.63 lb (0.74 kg)
Motorcraft R-134a
RefrigerantYN-19 (U.S.)
CYN-16-R (Canada) /
WSH-M17B19-A 3.5L GTDI:
2.1 lb (0.95 kg)
Utility
A/C refrigerant
(With auxiliary
A/C)
9
3.7L TiVCT:
2.31 lb (1.04 kg)
Motorcraft R-134a
RefrigerantYN-19 (U.S.);
CYN-16-R (Canada) /
WSH-M17B19-A 3.5L GTDI
2.94 lb (1.33 kg)
296Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Sedan
A/C compressor oil
(Without auxiliary
A/C)2.0L/3.5L GTDI and
3.5L/3.7L TiVCT
5.24 fl oz (155 ml)
Motorcraft PAG
Refrigerant Compressor
OilYN-12-D /
WSH-M1C231-B Utility
A/C compressor oil
(Without auxiliary
A/C)3.7L TiVCT:
5.24 fl oz (155 ml)
3.5L GTDI
5.58 fl oz (165 ml)
Utility
A/C compressor oil
(With auxiliary A/C)3.7L TiVCT:
7.9 fl oz (235 ml)
3.5L GTDI
7.27 fl oz (215 ml)
1Ford recommends using Motorcraft (Ford) DOT 4 Low Viscosity High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake
fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may
result in brake system damage and possible failure.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.
Capacities and Specifications297
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
5Use of synthetic or synthetic blend motor oil is not mandatory. Only use fluid that meets Ford
specifications. Motor oils of the recommended viscosity grade that meet API SN requirements
and display the API Certification Mark for gasoline engines are also acceptable. Do not use oil
labeled with API SN service category unless the label also displays the API certification mark.6An oil that displays the API Certification Mark symbol conforms to current engine, emission
system and fuel economy performance standards of the International Lubricant Standardization
and Approval Committee (ILSAC).7Do not use supplemental engine oil additives. They are unnecessary and could lead to engine
damage that is not covered by your Ford warranty.8Add the coolant type originally equipped in your vehicle.9See warning below:
WARNING:The air conditioning refrigerant system contains refrigerant R134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury. Only
qualified personnel should service the air conditioning refrigerant system.
298Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Motorcraft part numbers
Component2.0L
EcoBoost
engine3.5L V6
engine3.5L V6
EcoBoost
engine3.7L V6
engine
Air filter
elementFA-1884 FA-1884 FA-1884 FA-1884
Battery BXT-65–750 BXT-65–750 BXT-65-750 BXT-65–750
Oil filter FL-910-S FL-500-S FL-500-S FL-500-S
Spark plugs SP-537 SP-534
1SP-5341SP-5201
Cabin air
filterFP68
Windshield
wiper bladeSedan
WW-2601-PF (driver side)
WW-2001-PF (passenger side)
Utility
WW-2206 (driver side)
WW-2600 (passenger side)
WW-1106 (rear wiper blade)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
We recommend Motorcraft replacement parts available at your Ford
dealer or at fordparts.com for scheduled maintenance. These parts meet
or exceed Ford Motor Company’s specifications and are engineered for
your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage
related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets
industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the
spark plugs at the appropriate intervals. SeeScheduled Maintenance.
Capacities and Specifications299
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
300Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

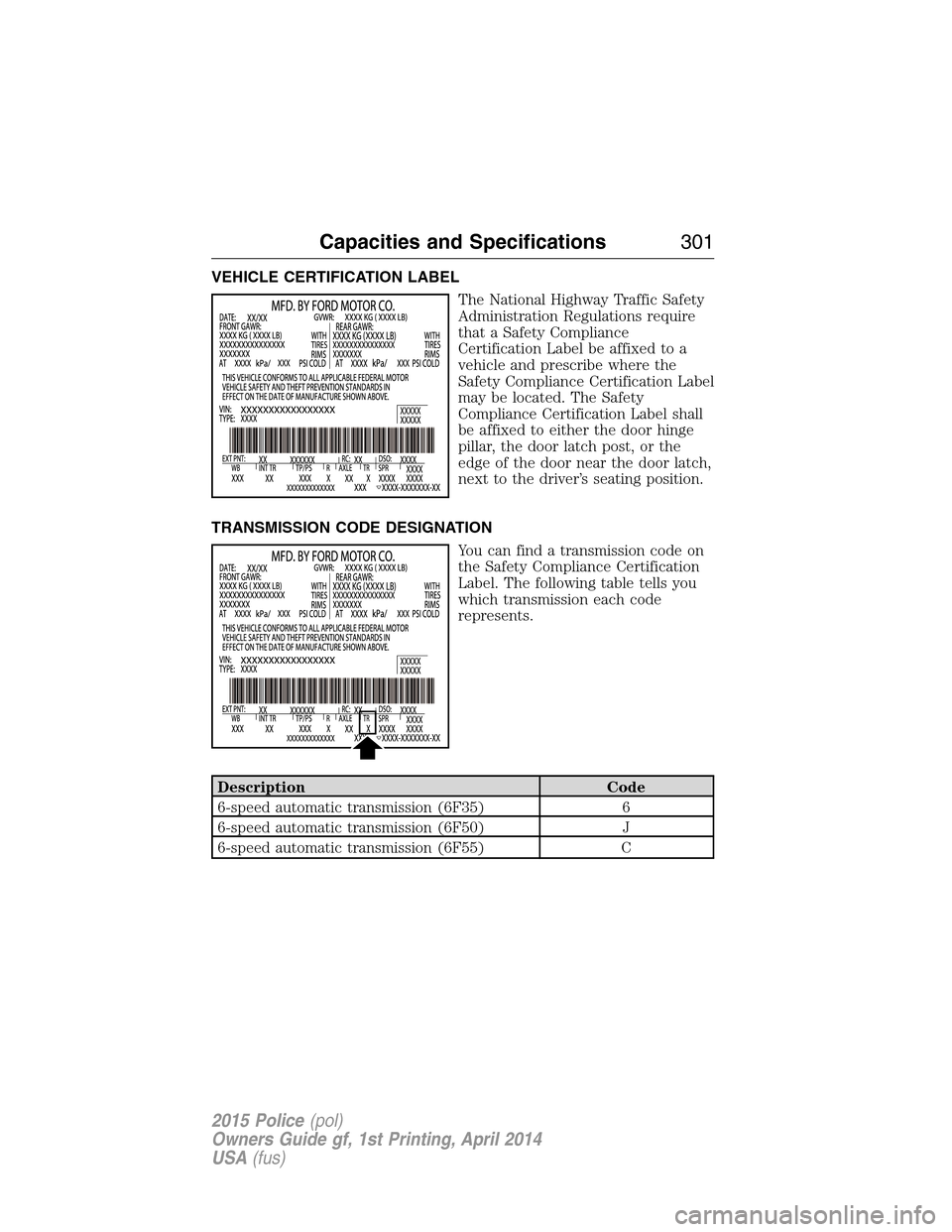

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification Label
may be located. The Safety
Compliance Certification Label shall
be affixed to either the door hinge
pillar, the door latch post, or the
edge of the door near the door latch,
next to the driver’s seating position.
TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F35) 6
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) C
Capacities and Specifications301
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Extended Service Plan
PROTECT YOURSELF FROM THE RISING COST OF VEHICLE REPAIRS
WITH A FORD EXTENDED SERVICE PLAN.
SERVICE PLANS (U.S. Only)
More than 32 million Ford owners have discovered the powerful
protection of Ford Extended Service Plan. It is the only extended service
plan backed by Ford Motor Company, and provides peace of mind
protection beyond the New Vehicle Limited Warranty coverage.
Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford Extended Service Plan. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Up to 1,000+ Covered Vehicle Components
There are four Extended Service Plans with different levels of coverage.
Ask your authorized dealer for details.
1. PremiumCARE - Our most comprehensive coverage. With over 1,000
covered components, this plan is so complete that we generally only
discuss what’s not covered.
2. ExtraCARE - Covers 113 components, and includes many high-tech
items.
3. BaseCARE - Covers 84 components.
4. PowertrainCARE - Covers 29 critical components.
Ford Extended Service Plan is honored by all authorized Ford dealers in
the U.S. and Canada. It is the only extended service plan authorized and
backed by Ford Motor Company.
That means you get:
•Reliable, quality service at any Ford or Lincoln dealership
•Repairs performed by factory trained technicians, using genuine parts
Rental Car Reimbursement
1st day Rental Benefit
You take advantage of replacement transportation if your vehicle is at
your authorized dealer for same day covered repairs.
Extended Rental Benefits
If your vehicle is kept overnight for covered repairs, you are eligible for
rental car coverage, including bumper to bumper warranty repairs, and
Field Service Actions.
302Extended Service Plan
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Roadside Assistance
Exclusive 24/7 roadside assistance, including:
•Towing, flat-tire change and battery jump starts
•Out of fuel and lock-out assistance
•Travel expense reimbursement for lodging, meals and rental car
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation
Transferable Coverage
If you sell your vehicle before your Ford Extended Service Plan coverage
expires, you can transfer any remaining coverage to the new owner.
Whenever you sell your vehicle, prospective buyers may have a higher
degree of confidence that vehicle was properly maintained with Ford
ESP, thereby improving resale value.
Avoid the Rising Cost of Properly Maintaining Your Vehicle!
Ford Extended Service Plan also offers a Premium Maintenance Plan
that covers all scheduled maintenance, and selected wear items. The
coverage is prepaid, so you never have to worry about affording your
vehicle’s maintenance. It covers regular checkups, routine inspections,
preventive care and replacement of select items that require periodic
attention for normal wear:
•Windshield wiper blades
•Spark plugs (except in California)
•The clutch disc
•Brake pads and linings
•Shock absorbers
•Belts and hoses
•Diesel exhaust fluid replenishment
Contact your selling authorized Ford or Lincoln dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
