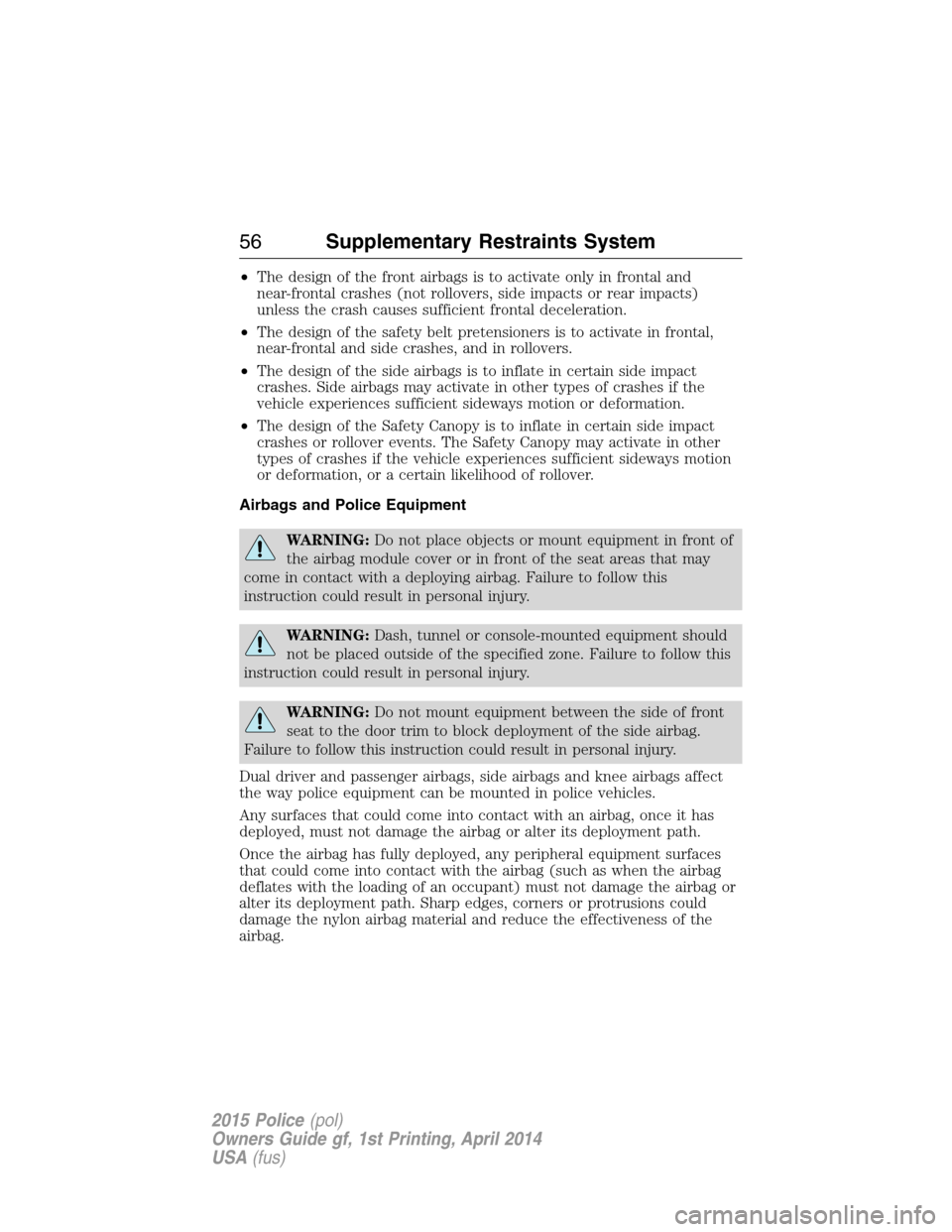

2015 FORD POLICE INTERCEPTOR UTILITY Owners Manual

•The design of the front airbags is to activate only in frontal and
near-frontal crashes (not rollovers, side impacts or rear impacts)
unless the crash causes sufficient frontal deceleration.
•The design of the safety belt pretensioners is to activate in frontal,
near-frontal and side crashes, and in rollovers.
•The design of the side airbags is to inflate in certain side impact
crashes. Side airbags may activate in other types of crashes if the
vehicle experiences sufficient sideways motion or deformation.
•The design of the Safety Canopy is to inflate in certain side impact
crashes or rollover events. The Safety Canopy may activate in other
types of crashes if the vehicle experiences sufficient sideways motion
or deformation, or a certain likelihood of rollover.
Airbags and Police Equipment
WARNING:Do not place objects or mount equipment in front of
the airbag module cover or in front of the seat areas that may
come in contact with a deploying airbag. Failure to follow this
instruction could result in personal injury.
WARNING:Dash, tunnel or console-mounted equipment should
not be placed outside of the specified zone. Failure to follow this
instruction could result in personal injury.
WARNING:Do not mount equipment between the side of front
seat to the door trim to block deployment of the side airbag.
Failure to follow this instruction could result in personal injury.
Dual driver and passenger airbags, side airbags and knee airbags affect
the way police equipment can be mounted in police vehicles.
Any surfaces that could come into contact with an airbag, once it has
deployed, must not damage the airbag or alter its deployment path.
Once the airbag has fully deployed, any peripheral equipment surfaces
that could come into contact with the airbag (such as when the airbag
deflates with the loading of an occupant) must not damage the airbag or
alter its deployment path. Sharp edges, corners or protrusions could
damage the nylon airbag material and reduce the effectiveness of the
airbag.
56Supplementary Restraints System
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Some approximate dimensions for airbags, at full inflation, are provided
in Figures 1 through 5. These dimensions are somewhat flexible and
represent free form deployments without the loading of occupants. The
shaded areas in Figures 6 through 8 represent available police equipment
mounting zones. These zones are shown for police vehicles equipped
with standard bucket seats. The zone dimensions provided in Figures 6
through 8 are approximate and will vary with the loading of occupants in
the seats.
All airbag and equipment mounting zone dimensions are approximate
due to different airbag deployment characteristics.
No equipment will mount between the side of the front seat and the
door trim to block deployment of the side airbag.
Figure 1 - Sedan
Figure 1 - Utility
1.Sedan:13 inches (330 millimeters) from center of emblem;utility:
9.5 inches (240 millimeters) from center of emblem
2
13
2
1
3
Supplementary Restraints System57
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

2.Sedan:13.2 inches (335 millimeters) from center of airbag door;
utility:13.8 inches (350 millimeters) from center of airbag door
3.Sedan:29.5 inches (750 millimeters);utility:28.3 inches (720
millimeters)
No objects should be placed between the airbags due to airbag
variability.
Figure 2
1.Sedan:29.9 inches (760 millimeters);utility:27.5 inches (700
millimeters)
Figure 3
Note:No objects should be placed between the driver side steering
wheel airbag and the passenger side dash airbag.
1. Front passenger airbag –sedan:27.5 inches (700 millimeters);
utility:22.8 inches (580 millimeters)
2. Front driver – 17 inches (430 millimeters)
58Supplementary Restraints System
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

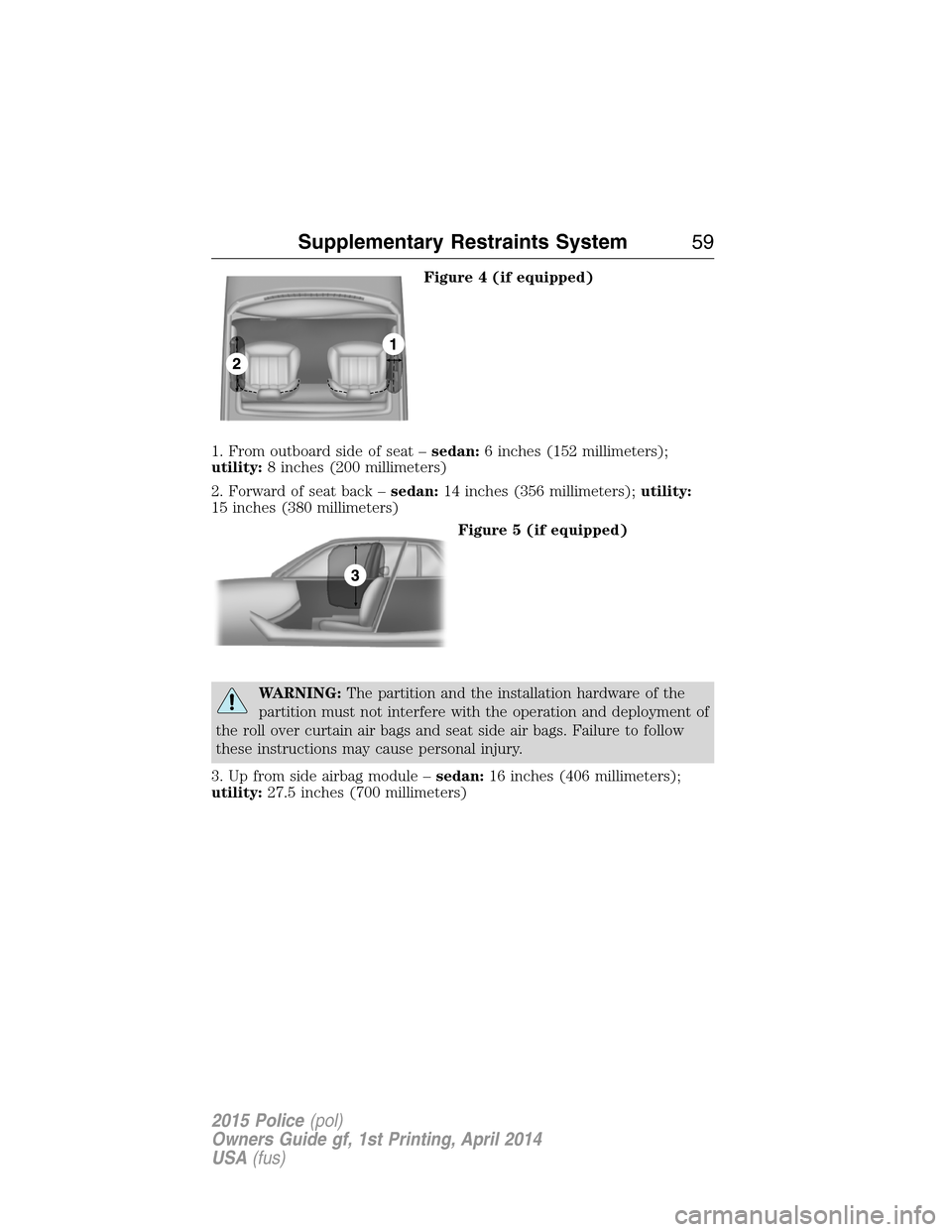

Figure 4 (if equipped)
1. From outboard side of seat –sedan:6 inches (152 millimeters);
utility:8 inches (200 millimeters)
2. Forward of seat back –sedan:14 inches (356 millimeters);utility:
15 inches (380 millimeters)
Figure 5 (if equipped)
WARNING:The partition and the installation hardware of the
partition must not interfere with the operation and deployment of
the roll over curtain air bags and seat side air bags. Failure to follow
these instructions may cause personal injury.
3. Up from side airbag module –sedan:16 inches (406 millimeters);
utility:27.5 inches (700 millimeters)
Supplementary Restraints System59
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Figure 6 - Sedan
Figure 6 - Utility
1. Area on top of the instrument panel (Note:Equipment must not
interfere with driver visibility)
2. Airbag door must be kept clear for deployment of the airbag
3.Sedan:Area in front of the electronic finish panel from the bottom to
the top of the instrument panel;utility:Area in front of the center
console from the bottom to the top of the instrument panel
4.Utility:Area in front of electronic finish panel from the bottom to the
top of the instrument panel
1
2
34
60Supplementary Restraints System
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Figure 7
1. Area on top of instrument panel
2. Area in front of center console from tunnel up to instrument panel
3. Prisoner screen (reference only)
4. 10 inches (254 millimeters)
5. Area on tunnel between seats
6. Height: 8.5 inches (216 millimeters)
7. 12 inches (305 millimeters)
8. Area on tunnel beneath center console
9. Tunnel
10. Depth: 1.5 inches (38 millimeters)
A5A
4 A6
A3
A
7
A8 A
9A
10A
1
A2
Supplementary Restraints System61
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Figure 8
1. Area on top of the instrument panel.
Note:Equipment must not interfere
with driver visibility.
2. Area on tunnel between seats
3. 9 inches (229 millimeters)
AIRBAG DISPOSAL
Contact your authorized dealer as soon as possible. Airbags must be
disposed of by qualified personnel.
62Supplementary Restraints System
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short-distance radio transmissions, for example amateur radios,
medical equipment, wireless headphones, remote controls and alarm
systems. If the frequencies are jammed, you will not be able to use your
remote control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
REMOTE CONTROL (IF EQUIPPED)
If there are problems with the
remote entry system, make sure to
take all remote entry transmitters
with you to the authorized dealer in
order to aid in troubleshooting the
problem.
Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Keys and Remote Control63
