Stowing the Spare and Jack (Utility)
1. Replace the wheel chock in the foam tray.
2. Adjust the jack to the proper
height to install the wrench. Turn
the jack lead screw until the arrow
on the upper link is slightly below
the circle indicator shown on the
lower link.
Push the button (A) to retract the
wrench handle and place the
wrench over the raised tab on the
lower link and drop the tang (B)
through the hole in the diagonally
opposite upper link. Turn the lead
screw of jack clockwise until the
arrow aligns with the circle
indicator to secure the wrench onto
the jack.
3. Place the jack in the foam tray and secure it with the attached strap.
4. Place the foam tray over the mounting bracket on the floor of the
spare tire well.
5. Replace the spare over the jack and secure with the wing nut.
A
B
288Wheels and Tires
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

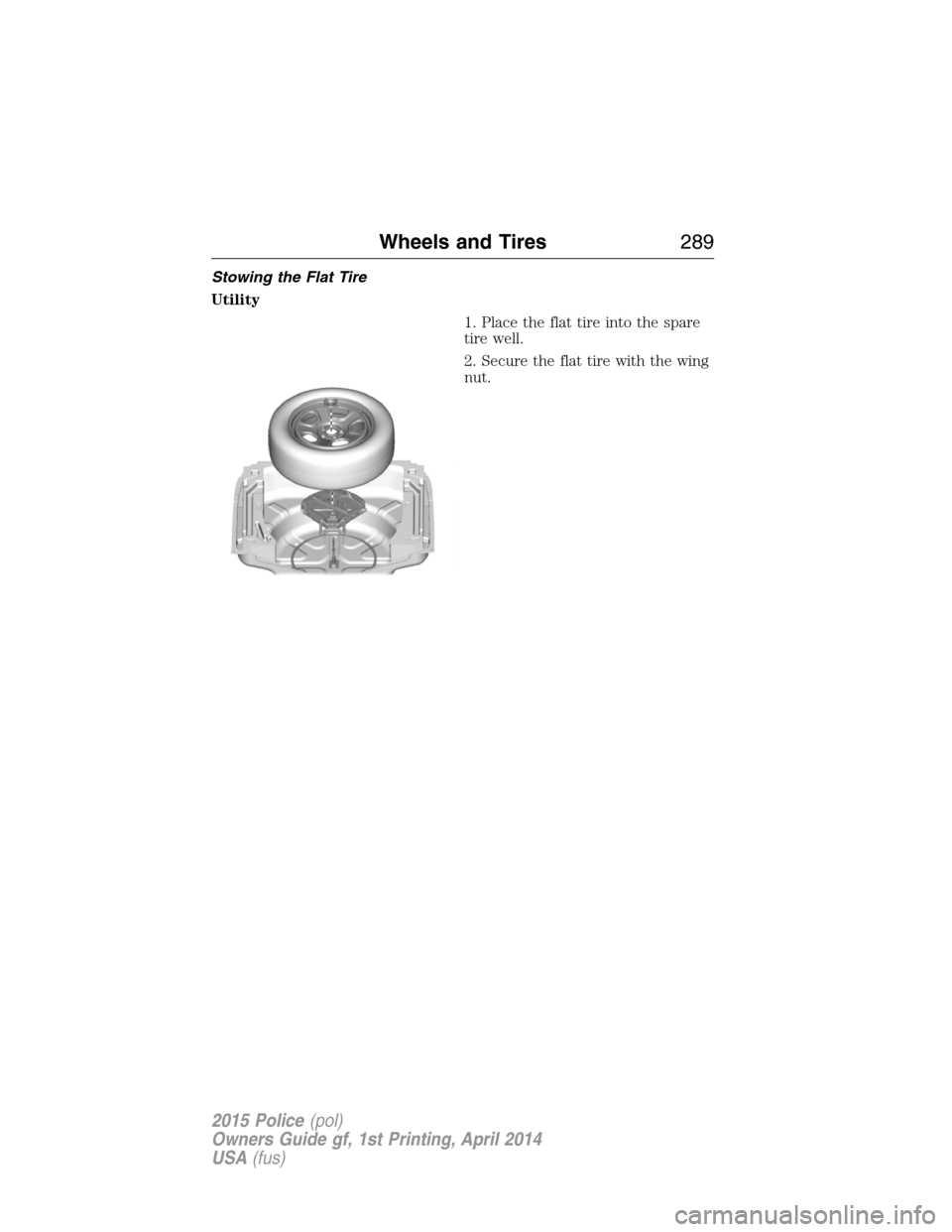

Stowing the Flat Tire
Utility
1. Place the flat tire into the spare
tire well.
2. Secure the flat tire with the wing
nut.
Wheels and Tires289
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Sedan
1. Insert the straight end of the jack retention
bracket through the eyelet of the angled bracket
and swing the retention bracket over the jack.
With the jack in place, place the end of the
retention bracket over the threaded stud in the
trunk floor and secure it with the plastic wing
nut.
2. Screw the extension bolt onto the threaded
stud of the jack retention bracket.
3. Place the flat tire in the spare
tire well with the wheel facing up.
4. Safely secure the wheel by
screwing the large wing nut onto
the extension bolt.
290Wheels and Tires
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while your vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque at 100 miles
(160 kilometers), and again at 500 miles (800 kilometers) of new vehicle
operation and after any wheel disturbance (such as tire rotation,
changing a flat tire, wheel removal).
Lug nut socket
size/bolt sizeWheel lug nut torque*
ft-lb N•m
12x 20 110 149
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Note:Inspect the wheel pilot hole
and mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
Wheels and Tires291
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Engine2.0L
EcoBoost
engine3.5L V6
engine3.5L V6
EcoBoost
engine3.7L V6
engine
Cubic inches 122 214 214 227
Required fuelMinimum
87 octaneMinimum
87 octane or
Ethanol (E-85)Minimum
87 octaneMinimum
87 octane or
Ethanol (E-85)
Firing order 1–3–4–2 1–4–2–5–3–6 1–4–2–5–3–6 1–4–2–5–3–6
Ignition system Coil on plug Coil on plug Coil on plug Coil on plug
Spark plug gap0.027-0.031 in.
(0.70-0.80 mm)0.049-0.053 in.
(1.25-1.35 mm)0.033–0.037 in.
(.85–.95 mm)0.049-0.053 in.
(1.25-1.35 mm)
Compression
ratio9.3:1 10.8:1 10.0:1 10.5:1
Engine drivebelt routing
2.0L EcoBoost engines
3.5L/3.7L V6 engines
1. Short drivebelt is on first pulley
groove closest to engine (except
vehicles with electric power assisted
steering).
2. Long drivebelt is on second
pulley groove farthest from engine.
292Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

TECHNICAL SPECIFICATIONS
Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraft DOT 4 Low
Viscosity High
Performance Motor
Vehicle Brake FluidPM-20 / WSS-M6C65-A2
Door latch, hood
latch, auxiliary hood
latch, seat tracks,
trunk and liftgate
latches—Motorcraft Multi-Purpose
Grease SprayXL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic
transmission fluid
2,3
6F35 transmission
9.0 qt (8.5L)
Motorcraft
MERCON LVXT-10-QLVC (U.S.);
CXT-10-LV12 (Canada) /
MERCON LV 6F50 transmission
10.9 qt (10.3L)
6F55 transmission
11.6 qt (11.0L)
Rear differential
fluid2.4 pt (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Capacities and Specifications293
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Sedan and Utility
Power Transfer Unit
fluid (All Wheel
Drive)
4
18 oz (0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
2.0L EcoBoost
engine oil
5, 6, 7
5.7 qt (5.4L)Motorcraft SAE 5W-30
Premium Synthetic Blend
Motor Oil or Motorcraft
SAE 5W-30 Full Synthetic
Motor OilXO-5W30–QSP or
XO-5W30–QFS (U.S.) /
WSS-M2C946–A
CXO-5W30–LSP12 or
CXO-5W30–LFS12
(Canada) /
WSS-M2C946–A
3.5L V6 engine oil
5,
6, 7
6.0 qt (5.7L)
Motorcraft SAE 5W-20
Premium Synthetic Blend
Motor Oil or Motorcraft
SAE 5W-20 Full Synthetic
Motor OilXO-5W20–QSP or
XO-5W20–QFS (U.S.) /
WSS-M2C945–A
3.7L V6 engine oil
5,
6, 7
6.0 qt (5.7L)CXO-5W20–LSP12 or
CXO-5W20–LFS12
(Canada) /
WSS-M2C945–A
294Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
3.5L V6 EcoBoost
engine oil
5, 6, 7
6.0 qt (5.7L)Motorcraft SAE 5W-30
Premium Synthetic Blend
Motor Oil or Motorcraft
SAE 5W-30 Full Synthetic
Motor OilXO-5W30–QSP or
XO-5W30–QFS (U.S.) /
WSS-M2C946–A
CXO-5W30–LSP12 or
CXO-5W30–LFS12
(Canada) /
WSS-M2C946–A
Engine coolant
8
(2.0L Ecoboost
engines)
8.9 qt (8.4L)
Motorcraft Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (U.S.)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2 (3.5L V6/3.7L
V6 engines)
11.5 qt (10.9L)
(3.5L V6 EcoBoost
engine)
11.8 qt (11.2L)
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrates with
Bitterant (U.S.)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-B2 (U.S.)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2
Capacities and Specifications295
