Roadside Emergencies 187
Getting roadside assistance..............................187
Hazard warning flashers................................188
Fuel cut-off switch....................................188
Jump-starting the vehicle...............................189
Customer Assistance 192
Reporting safety defects (U.S. only).......................199
Reporting safety defects (Canada only).....................199
Fuses 200
Changing a fuse......................................200
Fuse specification chart................................200
Maintenance 210
General information...................................210
Opening and closing the hood............................211
Under hood overview..................................213
Engine oil dipstick....................................217
Engine oil check......................................217
Engine coolant check..................................218
Automatic transmission fluid check........................223
Brake fluid check.....................................227
Fuel filter...........................................227
Washer fluid check....................................228
Changing the vehicle battery.............................228
Checking the wiper blades..............................230
Changing the wiper blades..............................230
Air filter(s).........................................231
Adjusting the headlamps................................234
Changing a bulb......................................236
Bulb specification chart.................................244
Table of Contents5
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Battery Saver
The battery saver shuts off the lamps 10 minutes after you switch the
ignition off.
•If you switched the dome lamps on using the panel dimmer control,
the battery saver shuts them off 10 minutes after you switch the
ignition off.
•If the courtesy lamps turn on because you opened one of your vehicle
doors or the trunk or liftgate, the battery saver shuts them off
10 minutes after you switch the ignition off.
•The battery saver shuts off the headlamps 10 minutes after you switch
the ignition off.
TRUNK RELEASE (SEDAN)
To open the trunk from outside your vehicle, use the key in the trunk
lock cylinder.
To open the trunk from inside your vehicle, press the
button located on the instrument panel.
Your dealer can set the trunk-release button to open
the trunk only when the ignition is in the on position,
or to open the trunk when the ignition is in any
position. See your authorized dealer to change these
settings.
LIFTGATE (UTILITY)
WARNING:Make sure to close and latch the liftgate to prevent
drawing exhaust fumes into your vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents or windows open so outside air comes into
your vehicle. Failure to follow this warning could result in serious
personal injury.
Note:Be careful when opening or closing the liftgate in a garage or
other enclosed area to avoid damaging the liftgate.
Note:Do not hang anything, for example a bike rack, from the spoiler,
glass or liftgate. This could damage the liftgate and its components.
Note:Do not leave the liftgate open while driving. This could damage
the liftgate and its components.
70Locks
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

LIGHTING CONTROL
Sedan
Utility
A. Off
B. Parking lamps, instrument panel lamps, license plate lamps and tail
lamps.
C. Headlamps
P
ABC
80Lighting
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Headlamp Flasher
Sedan
Utility
Pull toward you slightly to activate and release to deactivate.
SPOT LIGHT CONTROL (IF EQUIPPED)
•Use the switch on the chrome
handle to turn the spot light on
and off.
•Rotate and twist the handle to
adjust the position of the spot
light.
82Lighting
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

INSTRUMENT LIGHTING DIMMER
Sedan
•Press repeatedly or press and
hold until the desired level is
reached.
•If the vehicle is not equipped
with the Dark Car feature, press
and hold the top of the control to
the full on position to activate
the “dome on” feature. This will
turn on the interior courtesy lights. Press and hold the bottom of the
control to turn off the interior courtesy lights.
•If equipped with the Dark Car feature, courtesy illumination is
disabled. Press and hold the bottom of the control to turn off the
instrument cluster lights and the information display lights.
Utility
•Press repeatedly or press and
hold the top control to brighten
the instrument cluster and
information display lighting.
•Press repeatedly or press and
hold the bottom control to dim
the instrument cluster and
information display lighting. If
equipped with the Dark Car
feature, you may turn off the
instrument cluster and
information display lighting.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer will set the illuminated components to the
maximum setting automatically.
DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
Lighting83
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

The system turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the lighting control is in the off, autolamp, or parking lamp position
and
•the transmission is not in PARK.
DIRECTION INDICATORS
Sedan
Utility
•To operate the left direction indicator, push the lever down until it
stops.
•To operate the right direction indicator, push the lever up until it
stops.
Note:Tap the lever up or down to make the direction indicators flash
only three times to indicate a lane change.
84Lighting
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Engine oil pressure (RTT)
Illuminates when the oil pressure falls below the normal range.
Engine coolant temperature (RTT)
Illuminates when the engine coolant temperature is high. Stop
the vehicle as soon as possible, switch off the engine and let
cool.
High beams
Illuminates when the high-beam headlamps are on.
Low fuel (RTT)
Illuminates when the fuel level in the fuel tank is at or near
empty.
Low tire pressure warning
Illuminates when your tire pressure is low. If the light remains
on at start up or while driving, the tire pressure should be
checked. When the ignition is first turned to on, the light will
illuminate for 3 seconds to ensure the bulb is working. If the light does
not turn on or begins to flash, contact your authorized dealer as soon as
possible.
Low washer fluid (RTT)
Illuminates when the windshield washer fluid is low.
Park lamps
Illuminates when the park lamps are on.
Powertrain malfunction/reduced power (RTT)
Illuminates when a powertrain or an AWD/4WD fault has been
detected. Contact your authorized dealer as soon as possible.
Instrument Cluster95
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)

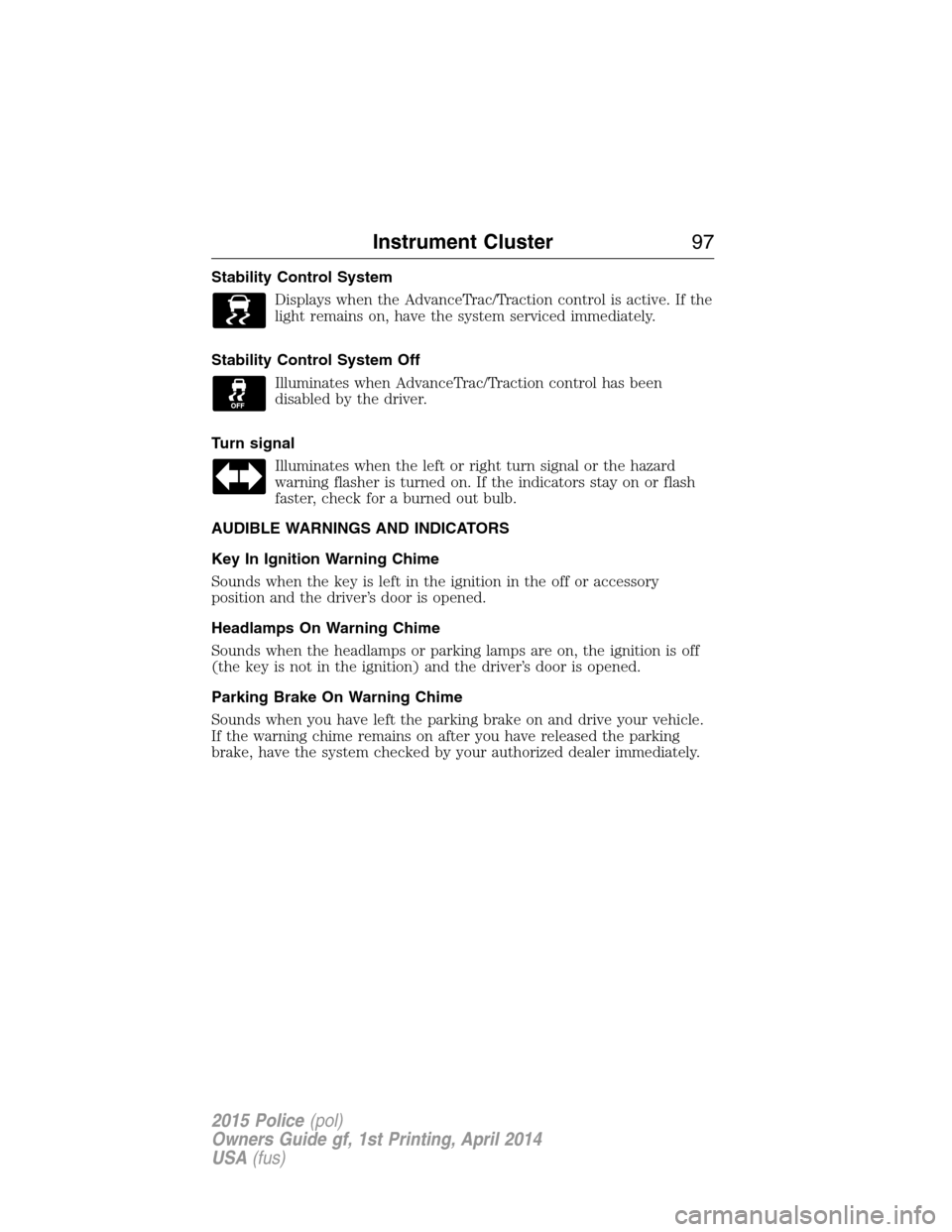

Stability Control System
Displays when the AdvanceTrac/Traction control is active. If the
light remains on, have the system serviced immediately.
Stability Control System Off
Illuminates when AdvanceTrac/Traction control has been
disabled by the driver.
Turn signal
Illuminates when the left or right turn signal or the hazard
warning flasher is turned on. If the indicators stay on or flash
faster, check for a burned out bulb.
AUDIBLE WARNINGS AND INDICATORS
Key In Ignition Warning Chime
Sounds when the key is left in the ignition in the off or accessory
position and the driver’s door is opened.
Headlamps On Warning Chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(the key is not in the ignition) and the driver’s door is opened.
Parking Brake On Warning Chime
Sounds when you have left the parking brake on and drive your vehicle.
If the warning chime remains on after you have released the parking
brake, have the system checked by your authorized dealer immediately.
Instrument Cluster97
