2015 FORD F750 Owners Manual

•Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes,
remove contact lenses (if worn), flush with water for 15 minutes and
seek medical attention. Failure to seek proper medical attention could
lead to permanent injury.
•Fuels can also be harmful if absorbed through the skin. If fuel is
splashed on the skin or clothing, promptly remove contaminated
clothing and wash skin thoroughly with soap and water. Repeated or
prolonged skin contact with fuel liquid or vapor causes skin irritation.
•Be particularly careful if you are taking Antabuse or other forms of
disulfiram for the treatment of alcoholism. Breathing gasoline vapors,
or skin contact could cause an adverse reaction. In sensitive
individuals, serious personal injury or sickness may result. If fuel is
splashed on the skin, promptly wash skin thoroughly with soap and
water. Consult a physician immediately if you experience an adverse
reaction.
CHOOSING THE RIGHT FUEL
Note:Do not add after-market fuel additive products to your fuel tank.
We recommend that you use only high quality fuel without after-market
additives or other engine treatments.
Note:Use of any fuel other than those recommended may cause vehicle
damage, a loss of vehicle performance and repairs may not be covered
under warranty.
Gasoline Engine – 6.8L V10
Use only UNLEADED gasoline or UNLEADED gasoline blended with a
maximum of 15% ethanol in your gasoline vehicle.
Do not use:
•fuels containing more than 15% ethanol or E-85 fuel
•fuel containing methanol
•fuels containing metallic based additives, including manganese-based
compounds
•fuels containing the octane booster additive, methylcyclopentadienyl
manganese tricarbonyl (MMT)
•leaded-fuel(The use of leaded fuel is prohibited by law.)
Your vehicle was not designed to use fuels that contain manganese-based
additives. Using fuels not recommended could damage or impair the
emission control system.
104Fuel and Refueling
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Diesel Engine
WARNING:Using low sulfur (16-500 ppm) or high sulfur
(greater than 500 ppm) diesel fuel in a diesel engine designed to
use only Ultra Low Sulfur Diesel fuel causes certain emission
components to malfunction which may also cause the Service Engine
Soon light to illuminate indicating an emissions-related concern. It may
also increase the likelihood of engine oil dilution with fuel which may
lead to major engine damage
WARNING:Do not mix diesel fuel with gasoline, gasohol or
alcohol. This could cause an explosion resulting in personal
injury.
WARNING:Do not add gasoline, gasohol or alcohol to diesel
fuel. This practice creates a serious fire hazard resulting in
personal injury and engine performance problems.
WARNING:Do not use starting fluid such as ether or gasoline.
Such fluids can cause immediate explosive damage to the engine
and possible personal injury.
WARNING:Do not use home heating oil or any diesel fuel not
intended for highway use. Red dye is used to identify fuels
intended for agricultural and non-highway use. Damage to the fuel
injection system, engine and exhaust catalyst can occur if an improper
fuel is used.
Note:Use of any fuel other than those recommended may cause
powertrain damage, a loss of vehicle performance, and repairs may not
be covered under warranty.
Use only Ultra Low Sulfur (15 ppm Sulfur Maximum) No. 1-D or 2-D
diesel fuel in your diesel engine. Diesel fuel No. 1-D or winter diesel fuel
blend of No. 2-D is recommended at ambient temperatures below 20°F
(-7°C). Diesel fuel that is blended with 20% biodiesel maximum may be
used.
Fuel and Refueling105
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Biodiesel fuel is a product converted from renewable fuel sources,
including vegetable oil, animal fat and cooking oil. You should not use
raw, refined, and recycled vegetable/plant oils, greases, and animal fats.
Biodiesel fuel blends must meet requirements of ASTM D7467 standard
specification. See your engine operator’s manual for more information
and restrictions about the use of biodiesel fuel.
Octane Recommendations - Gasoline Engines
Regular unleaded gasoline with a
pump (R+M)/2 octane rating of 87
is recommended. Some stations
offer fuels posted as Regular with
an octane rating below 87,
particularly in high altitude areas. Do not use fuels with a posted octane
rating below 87.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see an authorized dealer to
prevent any engine damage.
RUNNING OUT OF FUEL
Gasoline Engine
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time takes a few seconds longer
than normal.
•If your vehicle is equipped with dual fuel tanks, adding four–five
gallons (15–19 liters) of fuel is enough to restart the engine. If your
vehicle is out of fuel and on a steep grade, more than four–five
gallons (15–19 liters) may be required.
•The service engine soon indicator may come on. For more
information on the service engine soon indicator, see theInstrument
Clusterchapter.
SeeGeneral informationin theInformation Displayschapter for
information on Miles to Empty.
Diesel Engine
Avoid running out of fuel as this allows air to enter the fuel system,
which makes restarting your vehicle difficult.
87(R+M)/2 METHOD
106Fuel and Refueling
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

If you have run out of fuel:
•If your vehicle is equipped with dual fuel tanks, adding four–five
gallons (15–19 liters) of fuel is enough to restart the engine. If your
vehicle is out of fuel and on a steep grade, more than four–five
gallons (15–19 liters) may be required.
•The fuel system must be primed before attempting to restart the
engine. See your engine operator’s manual for instructions on priming
the engine.
•Use caution not to overheat and damage the starter by cranking the
engine for an excessive period. You may need to crank the engine for
a longer time than normal. If the engine fails to start in 30 seconds,
turn the ignition to the off position and wait for two minutes before
cranking the engine again.
•Any remaining trapped air self-purges from the fuel system once the
engine starts running.
•The engine may run rough and produce white smoke while air is in
the fuel system. This is normal and should stop after a short period.
SeeGeneral informationin theInformation Displayschapter for
information on Miles to Empty.
REFUELING
WARNING:Fuel vapor burns violently and a fuel fire can cause
severe injuries. To help avoid injuries to you and others:
•Read and follow all the instructions on the pump island.
•Turn off your engine when you are refueling.
•Do not smoke if you are near fuel or refueling your vehicle.
•Keep sparks, flames and smoking materials away from fuel.
•Stay outside your vehicle and do not leave the fuel pump unattended
when refueling your vehicle - this is against the law in some places.
•Keep children away from the fuel pump; never let children pump
fuel.
•Do not use personal electronic devices while refueling.
Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
Fuel and Refueling107
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel Filler Cap
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap, excessive
pressure or vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a crash, which may result in
possible personal injury.
Note:If you must replace the fuel filler cap, replace it with a fuel filler
cap designed for your vehicle. The customer warranty may be void for
any damage to the fuel tank or fuel system if the correct genuine Ford,
Motorcraft or other certified fuel filler cap is not used.
Your fuel tank filler cap has an indexed design with a quarter–turn on
and off feature. When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise a
14–turn until it clicks at least once.
If the check fuel cap light appears in the instrument cluster and stays on
after you start the engine, you not have installed the fuel filler cap
properly.
If the fuel cap light remains on, at the next opportunity, safely pull off
the road, remove the fuel filler cap, align the cap properly and reinstall
it. The check fuel cap light may not reset immediately; it may take
several driving cycles for the indicators to turn off. A driving cycle
consists of an engine start-up (after four or more hours with the engine
off) followed by normal city and highway driving.
108Fuel and Refueling
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

FUEL CONSUMPTION
Filling the Tank
The advertised capacity is the indicated capacity and the empty reserve
combined. Indicated capacity is the difference in the amount of fuel in a
full tank and a tank when the fuel gauge indicates empty. Empty reserve
is the amount of fuel in the tank after the fuel gauge indicates empty.
Note:The amount of usable fuel in the empty reserve varies. Do not rely
on it to increase your driving range. When refueling your vehicle after
the fuel gauge indicates empty, you might not be able to refuel the full
amount of the advertised capacity of the fuel tank due to the empty
reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the ignition off before fueling. An inaccurate reading results if
you leave the engine running.
•Use the same fill rate (low–medium–high) each time you fill the tank.
•Allow no more than two automatic click–offs when filling.
•Have the vehicle loading and distribution the same every time.
•If your vehicle is equipped with dual fuel tanks, fill the tanks evenly
or the fuel gauge reading may fluctuate slightly until the fuel level
between the two tanks balances out and becomes equal.
Note:If your vehicle is equipped with dual fuel tanks add fuel to both
fuel tanks when refueling or engine performance may degrade.
Results are most accurate when the filling method is consistent.
Calculating Fuel Economy
Do not measure fuel economy during the first 1000 miles
(1600 kilometers) of driving; this is your engine’s break-in period. Start
measuring after driving 2000–3000 miles (3200–4800 kilometers). Also,
fuel expense, frequency of fill-ups or fuel gauge readings are not
accurate ways to measure fuel economy.
1. Fill the fuel tank completely and record the initial odometer reading.
2. Each time you fill the tank, record the amount of fuel added.
3. After at least three to five tank fill-ups, fill the fuel tank and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
5. Calculate fuel economy as follows:
•Standard: Divide miles traveled by gallons used.
•Metric: Multiply liters used by 100, then divide by kilometers
traveled.
Fuel and Refueling109
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

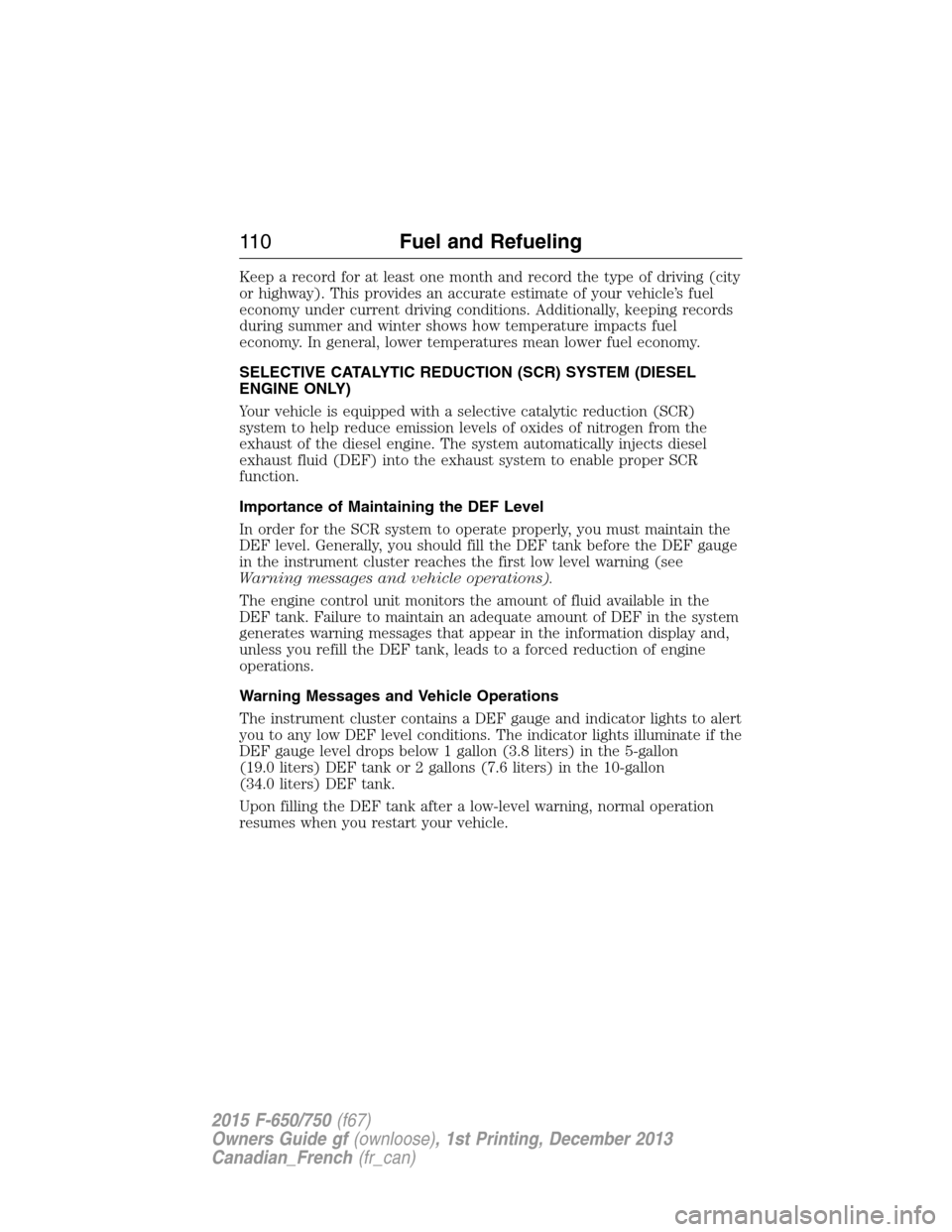

Keep a record for at least one month and record the type of driving (city
or highway). This provides an accurate estimate of your vehicle’s fuel
economy under current driving conditions. Additionally, keeping records
during summer and winter shows how temperature impacts fuel
economy. In general, lower temperatures mean lower fuel economy.
SELECTIVE CATALYTIC REDUCTION (SCR) SYSTEM (DIESEL
ENGINE ONLY)
Your vehicle is equipped with a selective catalytic reduction (SCR)
system to help reduce emission levels of oxides of nitrogen from the
exhaust of the diesel engine. The system automatically injects diesel
exhaust fluid (DEF) into the exhaust system to enable proper SCR
function.
Importance of Maintaining the DEF Level
In order for the SCR system to operate properly, you must maintain the
DEF level. Generally, you should fill the DEF tank before the DEF gauge
in the instrument cluster reaches the first low level warning (see
Warning messages and vehicle operations).
The engine control unit monitors the amount of fluid available in the
DEF tank. Failure to maintain an adequate amount of DEF in the system
generates warning messages that appear in the information display and,
unless you refill the DEF tank, leads to a forced reduction of engine
operations.
Warning Messages and Vehicle Operations
The instrument cluster contains a DEF gauge and indicator lights to alert
you to any low DEF level conditions. The indicator lights illuminate if the
DEF gauge level drops below 1 gallon (3.8 liters) in the 5-gallon
(19.0 liters) DEF tank or 2 gallons (7.6 liters) in the 10-gallon
(34.0 liters) DEF tank.
Upon filling the DEF tank after a low-level warning, normal operation
resumes when you restart your vehicle.
11 0Fuel and Refueling
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Continued driving without refilling results in the following actions as
required by the U.S. Environmental Protection Agency (EPA):
Low DEF Level Warning Indications and Vehicle Consequences
DEF Tank LevelIndicator
LampsConsequence Remedy
Above initial
warning threshold
(Over 20% full).None. None. None.
Initial warning
threshold (20% full).DEF solid
None.
Add 1 gallon
(3.8L) DEF to
5-gallon (19.0L)
tank or 2 gallons
(7.6L) DEF to
9-gallon (34.0L)
tank. Critical warning
threshold (15% full).DEF
blinking
None.
First vehicle
consequence (12.5%
full).DEF
blinking
/
Amber engine
solid25% torque
reduction.
Second vehicle
consequence
(Empty). System
cannot maintain
DEF pressure.DEF
blinking
/
Amber engine
solid
Torque
reduction
increases
from 25% to
40% at rate of
1% each
minute.
Final vehicle
consequence
(Empty) and engine
intentionally shut
down (key off), in
extended idle for
one hour or fuel
tank refilled.DEF
blinking
/
Amber engine
solid
(and/or MIL is
solid)/
Red engine
solid
•40% torque
reduction
•5 mph
(8 km/h)
vehicle speed
limit
•1000 RPM
engine speed
limit.Add 1 gallon
(3.8L) DEF to
5-gallon (19.0L)
tank or 2 gallons
(7.6L) DEF to
9-gallon (34.0L)
tank. Allow the
system to prime.
Fuel and Refueling111
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
