If the fuse is not blown and the brake lamps are working properly, the
following procedure allows you to move the gearshift lever from position
P:
1. Apply the parking brake, and
turn the engine off.
2. Remove the lower finish panel
below the steering column.
3. Turn the key to the on position,
but do not start the engine.
4. Pull back on the solenoid, and
at the same time, shift the
transmission into positionN.
5. Start your vehicle.
See an authorized dealer as soon as
possible if this procedure is used.
Six–speed TorqShift® Transmission
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in position P. Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
WARNING:Do not use the tow/haul feature when driving in icy
or slippery conditions as the increased engine braking can cause
the rear wheels to slide and the vehicle to swing around with the
possible loss of vehicle control.
128Transmission
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Position P
This position locks the transmission and prevents the rear wheels from
turning.
To put your vehicle in gear:
1. Start the engine.
2. Press the brake pedal.
3. Move the gearshift lever into the desired gear.
To put your vehicle in positionP:
1. Come to a complete stop.
2. Move the gearshift lever and securely latch it in positionP.
Position R
With the gearshift lever in positionR,your vehicle moves backward.
Always come to a complete stop before shifting into and out of position
R.
Position N
With the gearshift lever in positionN,you can start your vehicle and it is
free to roll. Hold the brake pedal down while in this position.
Position D
This is the normal driving position for the best fuel economy. This
position allows automatic upshifts and downshifts in gears one through
six.
Position 4
This position allows automatic upshifts and downshifts in gears one
through four.
Position 2
Use this position to start-up on slippery roads or provide extra engine
braking on downgrades.
PRND 4 2 1
Transmission129
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Position 1
•Provides maximum engine braking.
•Allows upshifts by moving gearshift lever.
•The transmission does not downshift into position1at high speeds; it
downshifts to a lower gear and then shifts into position1when your
vehicle reaches slower speeds.
Forced Downshifts
•Allowed in positionD.
•Press the accelerator to the floor.
•Allows transmission to select an appropriate gear.
Allison 2200 with Parking Pawl Feature
Note:Also, see the separateAllison Transmission Operator’s Manual.
WARNING:Always set the parking brake fully. Do not use the
gearshift in place of the parking brake.
WARNING: To avoid sudden, unexpected vehicle movement
and possible personal injury or death:
1. Bring the vehicle to a complete stop.
2. Shift the transmission into positionP.Slowly lift your foot from the
brake pedal to engage the transmission parking pawl mechanism.
3. Apply the parking brake and make sure it is holding properly. Do not
rely solely on the parking mechanism of the transmission.
4. Turn the engine off when you leave the vehicle.Never leave the
vehicle unattended when the engine is running.
A parking pawl effectively grounds the transmission’s output shaft
preventing rotation of the driveline. If your vehicle is stationary, selecting
positionPplaces the transmission in neutral and engages the parking
pawl. Always use the parking brake when parking your vehicle.
Note:If you select positionPwhen your vehicle is moving, the parking
pawl mechanism ratchets and does not hold the truck.
130Transmission
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Allison 2500
WARNING: To avoid sudden, unexpected vehicle movement
and possible personal injury or death:
1. Bring the vehicle to a complete stop.
2. Shift the transmission into positionN.
3. Apply the parking brake and make sure it is holding properly.
4. Turn the engine off when you leave the vehicle.Never leave the
vehicle unattended when the engine is running.
This transmission is available with a column-mounted gearshift lever. The
instrument cluster displays the gear positions.
Allison 3000
Note:For more information about this transmission, see the separate
Allison 3000 Series Operator’s Manual.
The Allison 3000 series offers two shift modes: Performance and
Economy.
Performance mode gives the best all-around transmission operation. The
transmission defaults to this mode when you start the engine. Pressing
MODE on the shifter switches to Economy mode and illuminates the
Mode ON lamp.
Economy mode provides operation at lower engine RPM while
maintaining adequate performance.
If the engine speed is above idle when a gear is selected using the
shifter, the vehicle does not move; the shifter must be moved to re-select
a gear after the engine speed returns to idle.
Torque Lock
If you park your vehicle on an incline without properly engaging position
P(by shifting into positionPbefore applying the parking brake), the
weight of the vehicle may generate an excessive amount of torque on the
parking pawl. This makes it difficult to shift the transmission out of
positionP.Hold the brake pedal down while shifting out of positionP,
then release the parking brake.
Transmission131
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

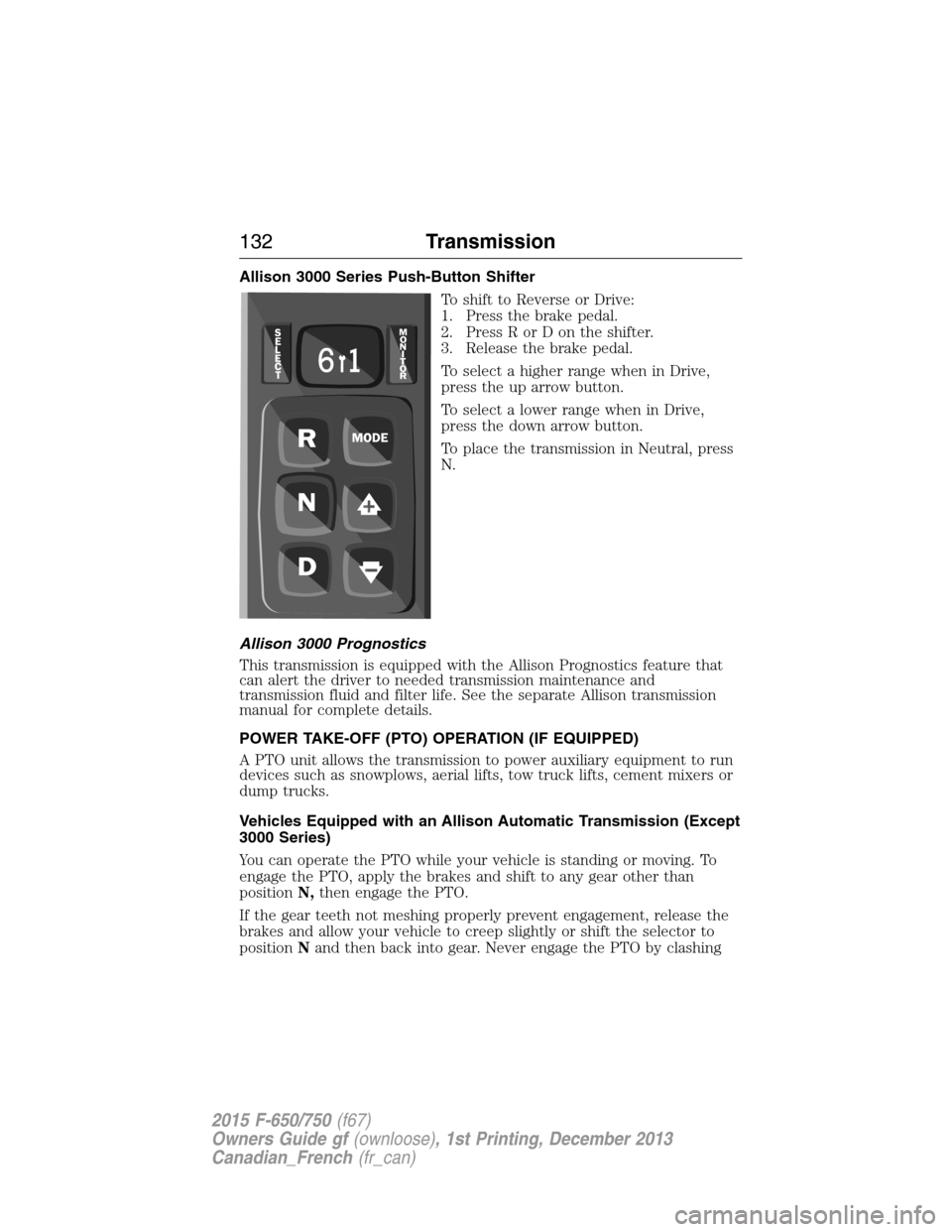

Allison 3000 Series Push-Button Shifter
To shift to Reverse or Drive:
1. Press the brake pedal.
2. Press R or D on the shifter.
3. Release the brake pedal.
To select a higher range when in Drive,
press the up arrow button.
To select a lower range when in Drive,
press the down arrow button.
To place the transmission in Neutral, press
N.
Allison 3000 Prognostics
This transmission is equipped with the Allison Prognostics feature that
can alert the driver to needed transmission maintenance and
transmission fluid and filter life. See the separate Allison transmission
manual for complete details.
POWER TAKE-OFF (PTO) OPERATION (IF EQUIPPED)
A PTO unit allows the transmission to power auxiliary equipment to run
devices such as snowplows, aerial lifts, tow truck lifts, cement mixers or
dump trucks.
Vehicles Equipped with an Allison Automatic Transmission (Except
3000 Series)
You can operate the PTO while your vehicle is standing or moving. To
engage the PTO, apply the brakes and shift to any gear other than
positionN,then engage the PTO.
If the gear teeth not meshing properly prevent engagement, release the
brakes and allow your vehicle to creep slightly or shift the selector to
positionNand then back into gear. Never engage the PTO by clashing
132Transmission
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

the gear teeth. This may damage the PTO unit and the transmission PTO
drive gear teeth, resulting in further damage to the transmission and
PTO.
PTO Operation with Vehicle Stationary
WARNING:When the PTO is operated with the vehicle
stationary, the transmission must be placed in positionNwith the
parking brake set. If the transmission is not in positionNand is
equipped with a remote throttle control, an increase in engine speed
can overpower the parking brake and cause the vehicle to move,
possibly resulting in personal injury and/or property damage.
Stop your vehicle, idle the engine and set the parking brake. Make sure
the gear selector is in any forward drive range, and then engage the
PTO. After engaging the PTO, move the range selector to positionN.
Increase the engine speed until reaching the desired PTO operation
speed. To disengage the PTO after operation with your vehicle standing,
release the throttle, allow the drive equipment to come to a stop, and
then disengage the PTO.
PTO Operation while Vehicle Is Moving
After engaging the PTO for driven vehicle operation, shift to the desired
range and drive your vehicle. The speed of the PTO, during this period
of operation, always maintains direct relation to vehicle speed. PTO
speed decreases in relation to vehicle (transmission output) speed as
shifts to a higher gear occur. When operating the PTO while your vehicle
is moving, the PTO may be disengaged whenever it is no longer required.
When there is no load on the PTO gear, you can pull it out of
engagement.
Vehicles Equipped with an Allison 3000 Series Automatic
Transmission
The PTO drive gear is engine-driven and provides direct engine power.
You can operate the PTO when your vehicle is either stationary or
moving. The PTO gear is in constant mesh with the drive gear in the
torque converter housing. A friction clutch or constant drive transmits
power to the PTO.
Vehicles Equipped with a Manual Transmission
Transmission-mounted PTO units are available for local installation on
your vehicle. See yourBody Builder’s Layout Bookfor restrictions on
use and installation of PTO units.
Transmission133
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

To engage the PTO unit, stop your vehicle, place the transmission in
positionN.Press the clutch, and allow the gears to stop rotating, and
then engage the PTO unit. You can also select the PTO with the
transmission in gear as long as the clutch is pressed.
When operating the PTO with your vehicle stationary, first set the
parking brake (chock the wheels if your vehicle is on a hill or another
uneven surface).
REAR AXLES
Gross Axle Weight
WARNING:Exceeding these ratings by overloading can cause
component failure resulting in property damage, personal injury
or death.
Your truck has gross axle weight, gross vehicle weight and gross
combination weight ratings. Do not exceed these ratings.
Locking or Limited-Slip Differentials
WARNING:If both wheels are not raised off the ground, the one
wheel that is not raised may pull the vehicle off its support,
possibly resulting in personal injury
If your vehicle is equipped with a locking or limited-slip differential, note
the following:
•Power is transmitted to the opposite wheel should one of the wheels
begin to slip.
•Both wheels must be raised off the ground should it be necessary to
operate one wheel with your vehicle stationary.
Driver-controlled Differential Lock
Note:Never use the differential lock at vehicle speeds above 25 mph
(40 km/h).
Some drive axles have a driver-controlled differential lock. The
differential lock can lock or unlock the differential when your vehicle is
moving or stopped. When extra traction is required, the differential lock
provides full power to both axles.
When you lock the differential, your vehicle’s turning radius increases
(under-steer).
134Transmission
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

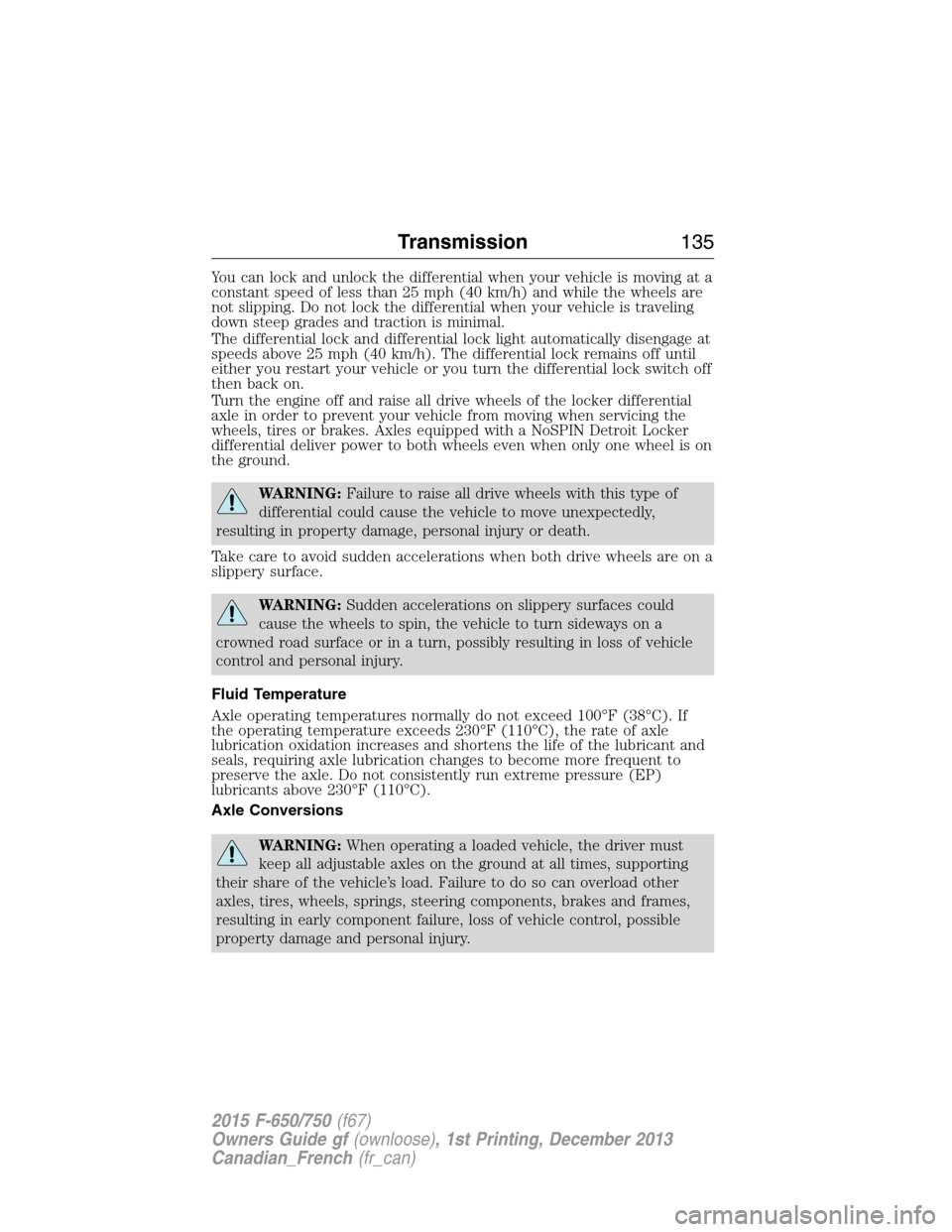

You can lock and unlock the differential when your vehicle is moving at a
constant speed of less than 25 mph (40 km/h) and while the wheels are
not slipping. Do not lock the differential when your vehicle is traveling
down steep grades and traction is minimal.
The differential lock and differential lock light automatically disengage at
speeds above 25 mph (40 km/h). The differential lock remains off until
either you restart your vehicle or you turn the differential lock switch off
then back on.
Turn the engine off and raise all drive wheels of the locker differential
axle in order to prevent your vehicle from moving when servicing the
wheels, tires or brakes. Axles equipped with a NoSPIN Detroit Locker
differential deliver power to both wheels even when only one wheel is on
the ground.
WARNING:Failure to raise all drive wheels with this type of
differential could cause the vehicle to move unexpectedly,
resulting in property damage, personal injury or death.
Take care to avoid sudden accelerations when both drive wheels are on a
slippery surface.
WARNING:Sudden accelerations on slippery surfaces could
cause the wheels to spin, the vehicle to turn sideways on a
crowned road surface or in a turn, possibly resulting in loss of vehicle
control and personal injury.
Fluid Temperature
Axle operating temperatures normally do not exceed 100°F (38°C). If
the operating temperature exceeds 230°F (110°C), the rate of axle
lubrication oxidation increases and shortens the life of the lubricant and
seals, requiring axle lubrication changes to become more frequent to
preserve the axle. Do not consistently run extreme pressure (EP)
lubricants above 230°F (110°C).
Axle Conversions
WARNING:When operating a loaded vehicle, the driver must
keep all adjustable axles on the ground at all times, supporting
their share of the vehicle’s load. Failure to do so can overload other
axles, tires, wheels, springs, steering components, brakes and frames,
resulting in early component failure, loss of vehicle control, possible
property damage and personal injury.
Transmission135
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
