2015 FIAT 500X technical specifications

ENGINE
178)
1.4 Turbo MultiAir
Stop/Start versions
Type code 55263624 55263842
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72 x 84 77 x 85.8
Total displacement (cm³) 1368 1598
Compression ratio 10.0 ± 0.2 11 ± 0.15
Maximum power (EEC) (kW)
103 / 100
(*)
81
Maximum power (EEC) (HP)
140 / 136
(*)
110
corresponding engine speed (rpm) 5000 5500
Maximum torque (EEC) (Nm) 230 152
corresponding engine speed (rpm) 1750 4500
Spark plugs NGK IKR9J8NGK - SINGLE IR - ZKRFBI - 10 JAPAN
C128
FuelUnleaded petrol 95 RON (EN 228
Specification)Unleaded petrol 95 RON (EN 228
Specification)
(*) Version for specific markets
174
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 174
1.6 E.torQ/1.6 E.torQ
Versions

Versions 1.6 MultiJet 2.0 MultiJet manual gearbox2.0 MultiJet AT9 automatic
transmission
Type code 55260384 55263087 55263088
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 79.5 x 80.5 83 x 90.4 83 x 90.4
Total displacement (cm³) 1598 1956 1956
Compression ratio 16.5 ± 0.4 16.5 ± 0.4 16.5 ± 0.4
Maximum power (EEC) (kW)
88 / 84,4
(*)
103 / 100
(*)
103 / 100
(*)
Maximum power (EEC) (HP)
120 / 115
(*)
140 / 136
(*)
140 / 136
(*)
corresponding engine speed
(rpm)3750 4000 3750
Maximum torque (EEC) (Nm) 320 350 350
corresponding engine speed
(rpm)1750 1750 1500
FuelDiesel for motor vehicles (EN 590
Specification)Diesel for motor vehicles (EN 590
Specification)Diesel for motor vehicles (EN 590
Specification)(*) Version for specific markets
WARNING
178)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
175
15-12-2014 8:23 Pagina 175

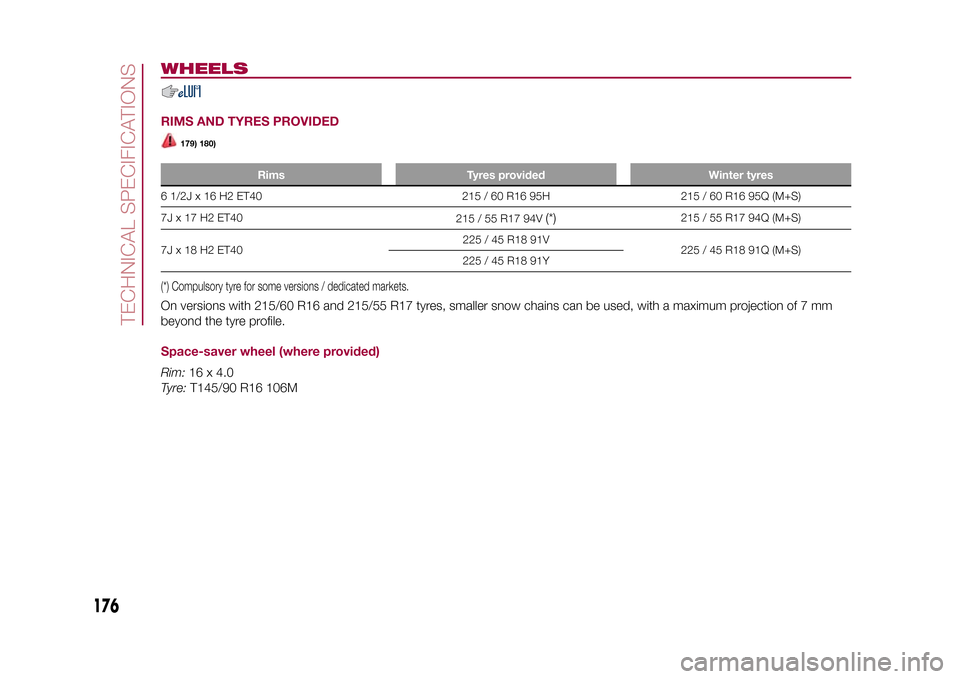

WHEELSRIMS AND TYRES PROVIDED
179) 180)
Rims Tyres provided Winter tyres
6 1/2J x 16 H2 ET40 215 / 60 R16 95H 215 / 60 R16 95Q (M+S)
7J x 17 H2 ET40
215 / 55 R17 94V
(*)
215 / 55 R17 94Q (M+S)
7J x 18 H2 ET40225 / 45 R18 91V
225 / 45 R18 91Q (M+S)
225 / 45 R18 91Y
(*) Compulsory tyre for some versions / dedicated markets.Space-saver wheel (where provided)Rim:16 x 4.0
Tyre:T145/90 R16 106M
176
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 176
On versions with 215/60 R16 and 215/55 R17 tyres, smaller snow chains can be used, with a maximum projection of 7 mm
beyond the tyre profile.

DIMENSIONSDimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I877 2570 801 4248
1600 / 1608
(*)
1545 1545 2025 1796
(*) With roof rack barsBoot volume: 350 litres. With rear seats folded: 1000 litres.149
F1B0169C
178
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 178

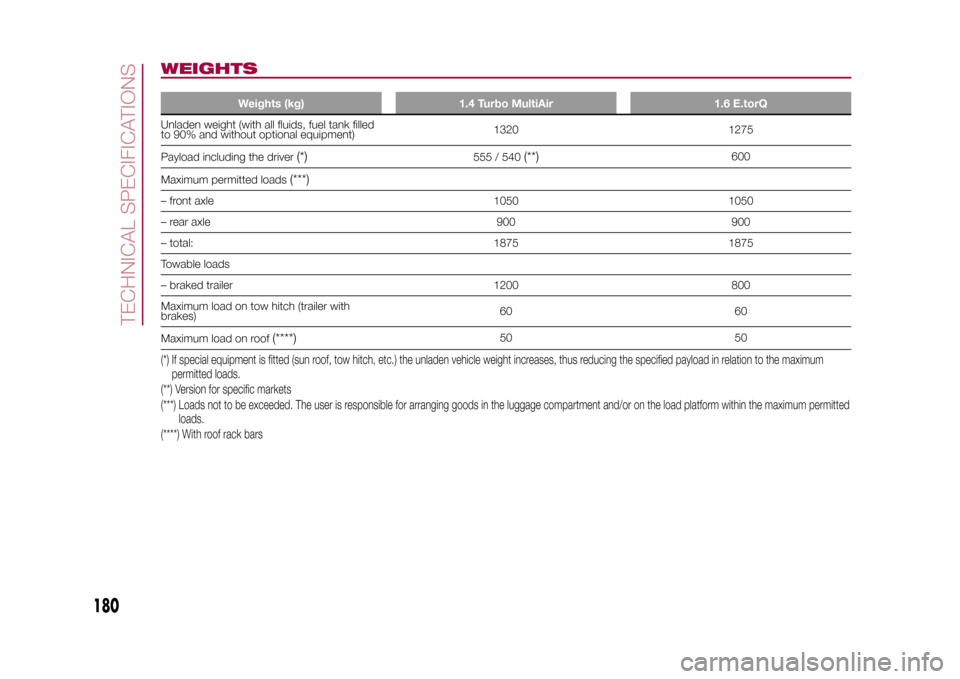

WEIGHTS
Weights (kg) 1.4 Turbo MultiAir 1.6 E.torQ
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1320 1275
Payload including the driver
(*)
555 / 540
(**)
600
Maximum permitted loads
(***)
– front axle 1050 1050
– rear axle 900 900
– total: 1875 1875
Towable loads
– braked trailer 1200 800
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof
(****)
50 50
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(****) With roof rack bars
180
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 180

SUPPLIES
1.4 Turbo MultiAir 1.6 E.torQ Prescribed fuels and original lubricants
Fuel tank (litres): 48 48
Unleaded petrol not less than 95 RON (EN 228
specification)
including a reserve of (litres): 5 - 7 5 - 7
Engine cooling system (litres): 5.2 5.6Mixture of distilled water and 50% PARAFLU
UP
(*)
Engine sump (litres): 3.2 4.0
SELENIA DIGITEK P.E.
Engine sump and filter (litres): 3.6 4.3
Gearbox/differential casing (litres): 1.8 2.0 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg): 0.83 0.83 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2.5 2.5Mixture of water and TUTELA PROFESSIONAL
SC35(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UP
and demineralised water.
182
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 182

FLUIDS AND LUBRICANTSYour vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.UseFluid and lubricant features for a correct use of
the vehicleOriginal fluids and lubricants Replacement intervalLubricant for petrol
enginesSAE 0W-30 ACEA C2 grade totally synthetic lubricant.
FIAT 9.55535-GS1 classification.SELENIA DIGITEK P.E.
Contractual Technical
Reference no. F020.B12According to the
Scheduled Servicing
Plan
Lubricant for diesel
engines
77)
SAE 0W-30 ACEA C2 grade totally synthetic lubricant.
FIAT 9.55535-DS1 classification.SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to the
Scheduled Servicing
Plan
In the case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated
ACEA performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.UseFluid and lubricant features for a correct use of
the vehicleOriginal fluids and lubricants ApplicationsLubricants and
greases for drive
transmissionSynthetic lubricant. FIAT 9.55550-AV5 classification.TUTELA TRANSMISSION
AS8
Contractual Technical
Reference No. F139.111AT9 automatic
transmission
SAE 75W grade synthetic lubricant. FIAT 9.55550-MZ6
classificationTUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference no. F002.F10Manual gearbox and
differential
Molybdenum disulphide grease, for use at high
temperatures. NL.G.I. 1-2 consistency FIAT 9.55580
classificationTUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
184
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 184
77)

UseFluid and lubricant features for a correct use of
the vehicleOriginal fluids and lubricants ApplicationsLubricants and
greases for drive
transmissionGrease for constant velocity joints with low friction
coefficient. NL.G.I. 0-1 consistency FIAT 9.55580
classificationTUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential-side constant
velocity joints
SAE 75W-90 API GL5 grade synthetic lubricant. FIAT
9.55550-DA6 classificationTUTELA TRANSMISSION
B-5X
Contractual Technical
Reference No. F006.814Idler unit (PTU - 4x4
versions)
SAE 75W-90 API GL5 grade synthetic lubricant. FIAT
9.55550-DA7 classificationTUTELA TRANSMISSION
COMPAQ DRIVE
Contractual Technical
Reference No. F007.814Rear differential (4×4
versions)
Brake fluidSynthetic fluid for brake and clutch systems. Exceeds
specifications: FMVSS no. 116 DOT 4, ISO 4925 SAE
J1704 FIAT 9.55597 classificationTUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective agent with antifreeze action, based on
inhibited monoethylene glycol with organic formula.
Exceeds CUNA NC 956-16, ASTM D 3306
specifications. FIAT 9.55523 classificationPARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Cooling circuit usage
percentage: 50% water
50% PARAFLU
UP
(**)
Diesel fuel additiveAdditive for diesel with antifreeze and protective action
for diesel enginesTUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and surfactants. Exceeds CUNA NC
956-11 specifications. FIAT 9.55522 classificationTUTELA PROFESSIONAL SC
35
Contractual Technical
Reference No.F201.D02To be used diluted or
undiluted in screen
washer/wiper systems(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40% demineralised water.
WARNING
77)The use of products with specifications different than those indicated above could cause damage to the engine that is not covered by the
warranty.
