PERFORMANCETop speed reachable after the initial period of usage of the vehicle.
Versions km/h
1.4 Turbo MultiAir 140 HP190
1.4 Turbo MultiAir 136 HP
(*)
187
1.6 E.torQ180
1.6 MultiJet 120 HP186
1.6 MultiJet 115 HP
(*)
183
2.0 MultiJet 140 HP with manual gearbox - 4x4190
2.0 MultiJet 136 HP with manual gearbox - 4x4
(*)
187
2.0 MultiJet 140 HP AT9 automatic transmission - 4x4190
2.0 MultiJet 136 HP - AT9 automatic transmission - 4x4
(*)
187
(*) Version for specific marketsFUEL CONSUMPTIONThe fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives. The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the vehicle: speed varies between 0 and
120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-
urban cycle.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the car, trim level/
equipment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to different fuel
consumption levels than those measured. The fuel consumption will get more regular only after having driven the first 3000 km.
186
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 186

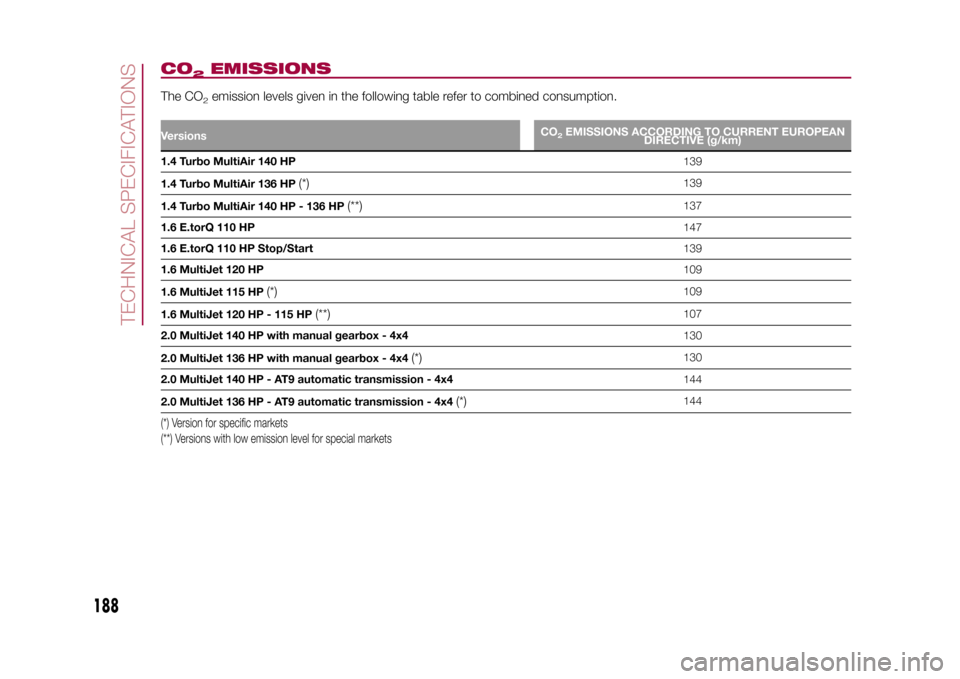

CO
2
EMISSIONS
The CO
2emission levels given in the following table refer to combined consumption.
VersionsCO
2EMISSIONS ACCORDING TO CURRENT EUROPEAN
DIRECTIVE (g/km)
1.4 Turbo MultiAir 140 HP139
1.4 Turbo MultiAir 136 HP
(*)
139
1.4 Turbo MultiAir 140 HP - 136 HP
(**)
137
1.6 E.torQ 110 HP147
1.6 E.torQ 110 HP Stop/Start139
1.6 MultiJet 120 HP109
1.6 MultiJet 115 HP
(*)
109
1.6 MultiJet 120 HP - 115 HP
(**)
107
2.0 MultiJet 140 HP with manual gearbox - 4x4130
2.0 MultiJet 136 HP with manual gearbox - 4x4
(*)
130
2.0 MultiJet 140 HP - AT9 automatic transmission - 4x4144
2.0 MultiJet 136 HP - AT9 automatic transmission - 4x4
(*)
144
(*) Version for specific markets
(**) Versions with low emission level for special markets
188
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 188
SBR (Seat Belt Reminder)
system ......................................... 77
Scheduled servicing ....................... 145
Scheduled Servicing Plan ....... 146-149
Seat belts....................................... 75
Seats ............................................. 15
Servicing procedures ..................... 164
Side bags....................................... 96
Side direction indicators (bulb
replacement) ................................ 126
Side lights/daytime running lights
(DRL) (bulb replacement) .............. 125
Single-colour display ...................... 39
Snow chains .................................. 167
Speed Limiter................................. 108
SRS (supplementary restraint
system) ........................................ 92
Starting the engine ......................... 100
Start&Stop system ......................... 107
Steering lock .................................. 10
Steering wheel ............................... 19
Supplies ......................................... 182
Symbols......................................... 3
TC (system)................................... 63
Technical specifications .................. 173
The keys ........................................ 8
Third brake lights (bulb
replacement) ................................ 127
Towing the vehicle .......................... 142
Towing trailers ................................ 117
Trip Computer ................................ 43
TSC (system) ................................. 64
Tyres (inflation pressure) ................. 177V
ehicle changes/alterations........... 3
W
arning lights and messages ....... 44
Weights.......................................... 180
Wheels and tyres ........................... 167
Window bag .................................. 96
Windows (cleaning) ........................ 169
Windscreen/rear window wiper ...... 25
Windscreen wiper
– replacing wiper blades............... 165
Windscreen wiper/washer .............. 25
– Smart washing function ............. 25
INDEX
