2015 DODGE VIPER Owners Manual

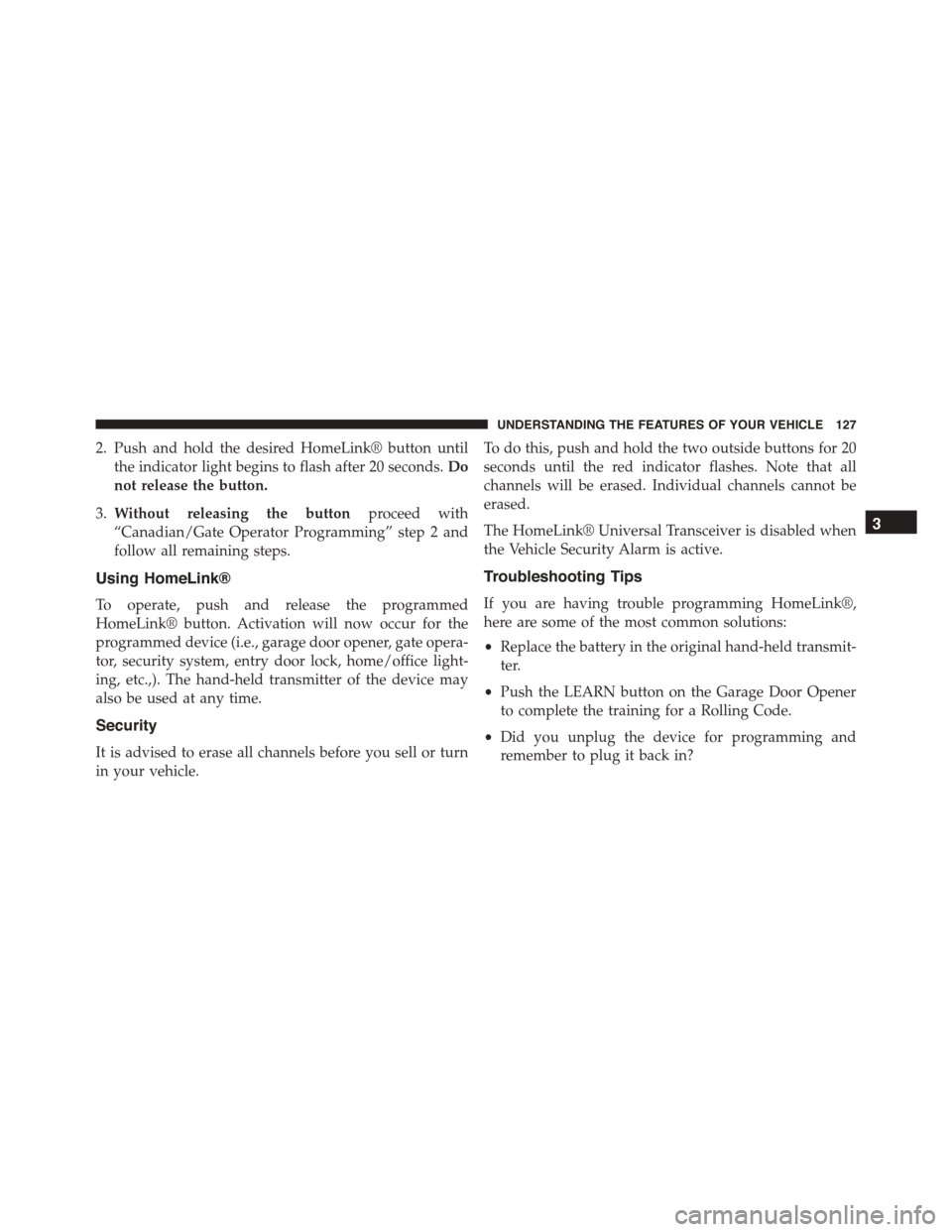

2. Push and hold the desired HomeLink® button until
the indicator light begins to flash after 20 seconds.Do
not release the button.
3.Without releasing the buttonproceed with
“Canadian/Gate Operator Programming” step 2 and
follow all remaining steps.
Using HomeLink®
To operate, push and release the programmed
HomeLink® button. Activation will now occur for the
programmed device (i.e., garage door opener, gate opera-
tor, security system, entry door lock, home/office light-
ing, etc.,). The hand-held transmitter of the device may
also be used at any time.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, push and hold the two outside buttons for 20
seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.
The HomeLink® Universal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink®,
here are some of the most common solutions:
•Replace the battery in the original hand-held transmit-
ter.
•Push the LEARN button on the Garage Door Opener
to complete the training for a Rolling Code.
•Did you unplug the device for programming and
remember to plug it back in?
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.
WARNING!
•Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while programming the transceiver. Exhaust gas
can cause serious injury or death.
(Continued)
WARNING!(Continued)
•Your motorized door or gate will open and close
while you are programming the universal trans-
ceiver. Do not program the transceiver if people,
pets or other objects are in the path of the door or
gate. Only use this transceiver with a garage door
opener that has a “stop and reverse” feature as
required by Federal safety standards. This includes
most garage door opener models manufactured
after 1982. Do not use a garage door opener without
these safety features. Call toll-free 1-800-355-3515
or, on the Internet at HomeLink.com for safety
information or assistance.
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause unde-
sired operation.
NOTE:
•The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
•The term IC before the certification/registration num-
ber only signifies that Industry Canada technical speci-
fications were met.
ELECTRICAL POWER OUTLETS
Your vehicle is equipped with two 12 Volt (13 Amp)
power outlet that can be used to power cellular phones,
small electronics and other low powered electrical acces-
sories.
One power outlet is located on the center console to the
right of the shifter. Push down on the power outlet to
access the opening. Push down on it again to close. This
power outlet is powered when the ignition is in the ON
or ACC position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

The second power outlet is located between the seat
backs above the cup holders. This power outlet is con-
nected directly by the battery and powered at all times.
NOTE:Do not exceed the maximum power of 160 Watts
(13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
Front Power OutletCenter Console Outlet
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

Auxiliary Jumper Harness
The SRT Viper is equipped with an auxiliary power
jumper, allowing an electronic device to be directly
connected to the vehicle without having to use the
console power outlets. Power to the device will be
controlled by the ignition switch.
NOTE:The electronic device must draw less than five
amps to prevent damage.
To install, remove the mirror cover by pulling straight
down and separating the cover pieces.
Connect the auxiliary port jumper into the unused con-
nector taped to the wiring bundle. Connect the other end
of the auxiliary port jumper to the electronic device.
NOTE:The red wire in the bundle is the power wire and
will provide the positive 12 volts to the electronic device.
Mirror Cover Removal
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Re-install the mirror cover and be sure to not pinch the
wires that go into the electronic device.
Auxiliary Port JumperMirror Cover Installation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

CUPHOLDERS — IF EQUIPPED
There are two cupholders located in the rear of the center
console.
STORAGE
Glove Compartment
An electronic glove compartment is located on the pas-
senger side of the instrument panel. Push in the button to
open the glove compartment.
Center Console Cupholders
Glove Compartment
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
