2015 DODGE VIPER Owners Manual

position. Then, using body pressure, move forward and
rearward on the seat to be sure that the seat adjusters
have latched.
Seat Height Adjustment
The seat height adjustment lever is located on the out-
board side of the seat. Pull upward on the lever to raise
the seat height or push downward on the lever to lower
the seat height.
Height Adjustment Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Recliner Adjustment
The recliner lever is located on the outboard side of the
seat. To recline the seat, lean forward slightly, pull the
recliner lever upward, lean backward until the seat is in
the desired position, and release the lever. To return the
seat to its full upright position, lean forward, pull the
recliner lever upward and hold it until the seat returns to
its full upright position.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt, which could result in serious injury or death.
Recline Lever
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Seats
On models equipped with power seats, the power seat
switch is located on the outboard side of the seat near the
floor.
Adjusting The Seat Forward Or Rearward
The seat can be adjusted both forward and rearward.
Push the seat switch forward or rearward, the seat will
move in the direction of the switch. Release the switch
when the desired position has been reached.
Adjusting The Seat Up Or Down
The height of the seats can be adjusted up or down. Pull
upward or push downward on the seat switch, the seat
will move in the direction of the switch. Release the
switch when the desired position is reached.
Power Seat Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

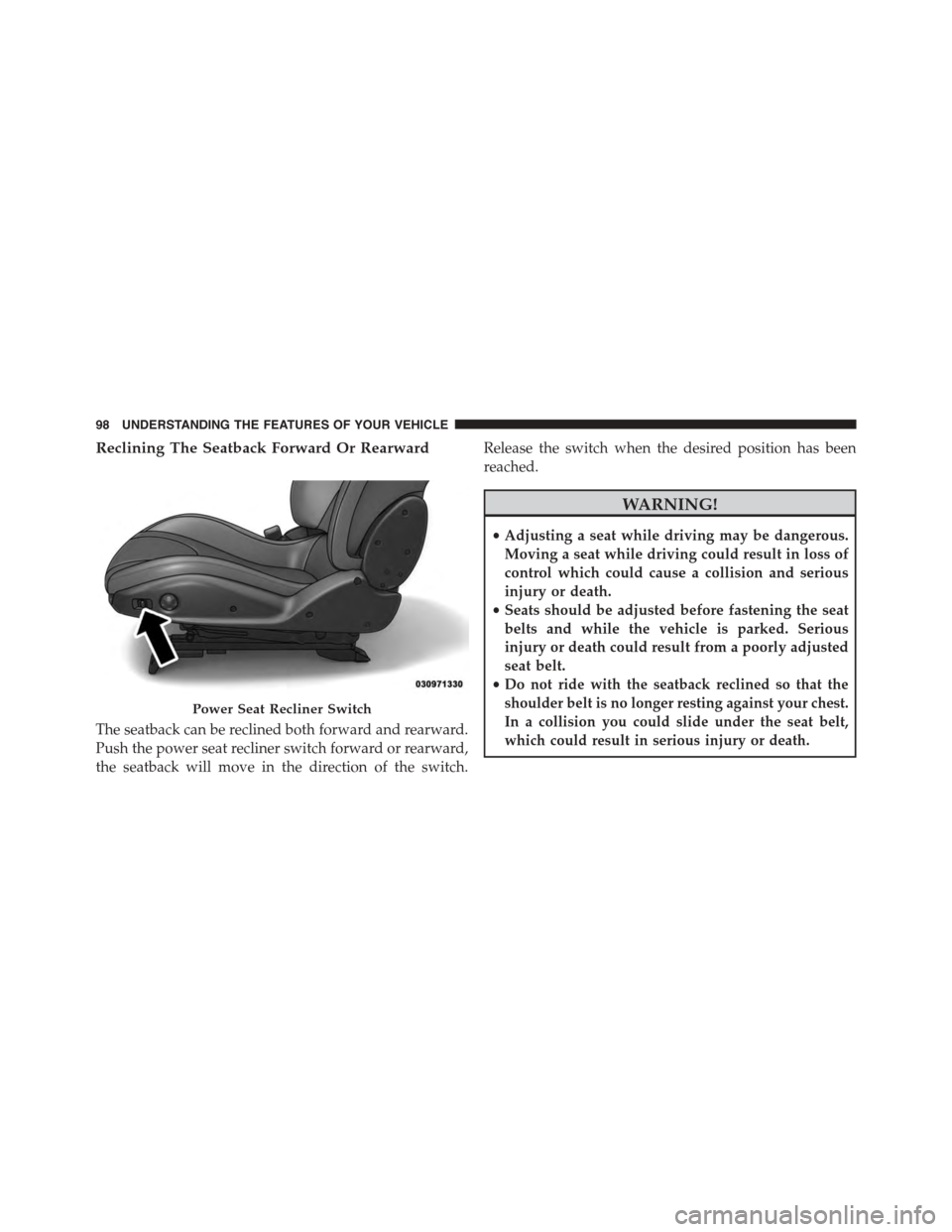

Reclining The Seatback Forward Or Rearward
The seatback can be reclined both forward and rearward.
Push the power seat recliner switch forward or rearward,
the seatback will move in the direction of the switch.
Release the switch when the desired position has been
reached.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Power Seat Recliner Switch
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

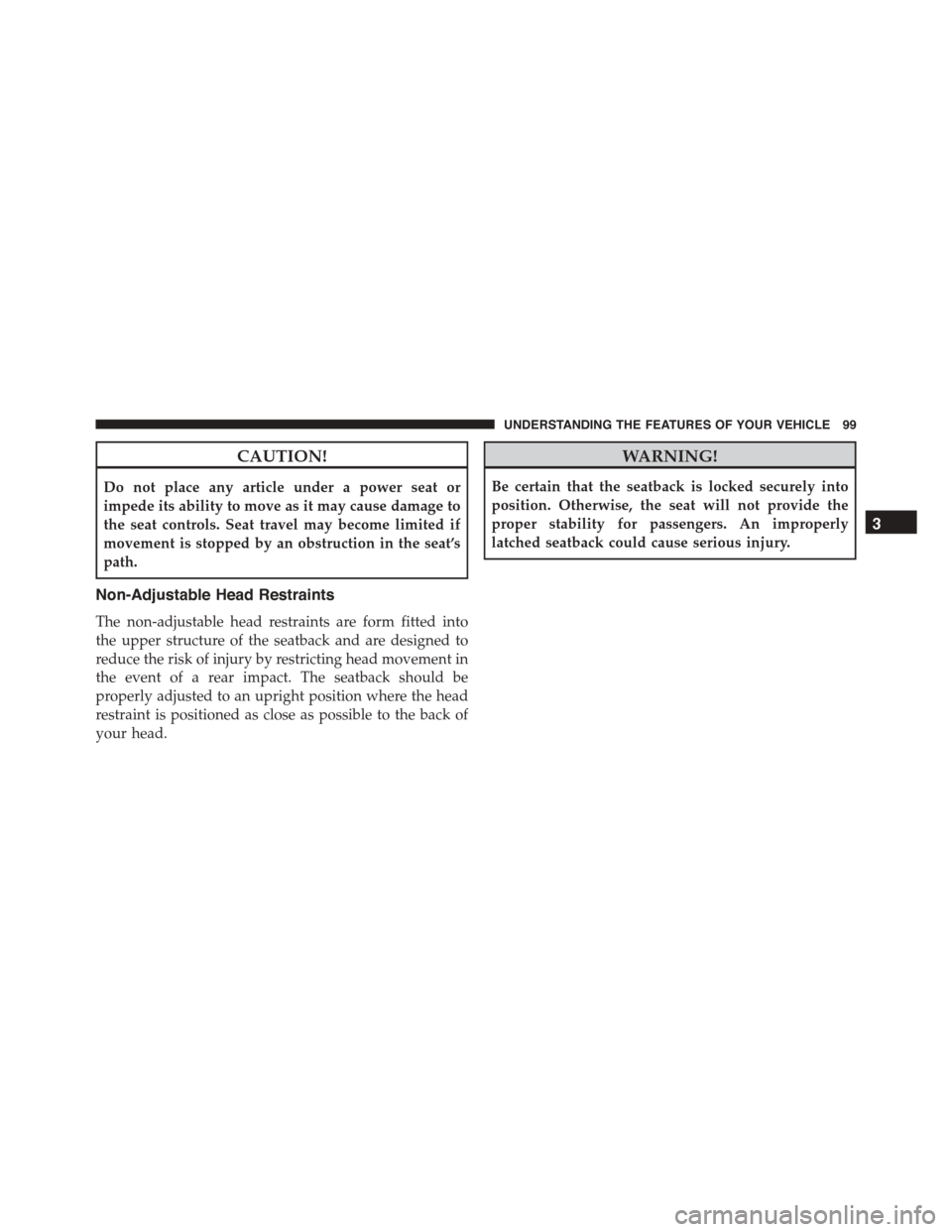

CAUTION!
Do not place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.
Non-Adjustable Head Restraints
The non-adjustable head restraints are form fitted into
the upper structure of the seatback and are designed to
reduce the risk of injury by restricting head movement in
the event of a rear impact. The seatback should be
properly adjusted to an upright position where the head
restraint is positioned as close as possible to the back of
your head.
WARNING!
Be certain that the seatback is locked securely into
position. Otherwise, the seat will not provide the
proper stability for passengers. An improperly
latched seatback could cause serious injury.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

TO OPEN AND CLOSE THE HOOD
1. Reach into the back side area of the drivers front
fender to gain access to the hood release lever.
2. Pull the hood release lever rearward to release the
hood latches.
Hood Release Lever Location
Hood Release Lever
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Lift the hood upward to the full forward position.
NOTE:The recommended lift point is to place the lifting
hand forward of one of the wiper arms and pull up. The
assist props will help raise and hold the hood to a normal
usage position.
CAUTION!
•Do not leave the hood open in areas where strong
gust of wind are likely. Such a place might be by
the side of the road where large trucks pass by.
Strong gusts of wind may damage the hood. Al-
ways close the hood in such situations.
•To prevent possible damage, do not slam the hood
to close it. Simply lower the hood until it is open
approximately 18 in (46 cm) and then drop it. This
should secure both latches. If both latches did not
secure, a slight push effort in the same area used
for opening the hood (front of wiper arm) needs to
be applied to secure the latches. Never drive the
vehicle unless the hood is fully closed with both
latches engaged.
Opened Hood
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls the
operation of the headlights, parking lights, instru-
ment panel lights, instrument panel light dimming and
interior lights.
Rotate the headlight switch clockwise to the first detent
for parking light and instrument panel light operation.
Rotate the headlight switch to the second detent for
headlight, parking light and instrument panel light op-
eration.
Headlight Switch
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
