CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS.90032), by an au-
thorized dealer as soon as possible.
(Continued)
CAUTION!(Continued)
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
•This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (an-
tifreeze) is not recommended.
7
MAINTAINING YOUR VEHICLE 359

Chassis
ComponentFluid, Lubricant, or Genuine Part
TransmissionWe recommend you use MOPAR® ATF+4® Automatic Transmis-
sion Fluid.
Rear AxleWe recommend you use Castrol SAF-XJ/SAE 75W-140 Synthetic
Gear and Axle Lubricant.
Brake/Clutch Master CylinderWe recommend you use MOPAR® Brake and Clutch Fluid DOT 4
Motor Vehicle.
Power Steering ReservoirWe recommend you use MOPAR® Power Steering Fluid + 4,
MOPAR® or ATF+4® Automatic Transmission Fluid.
360 MAINTAINING YOUR VEHICLE

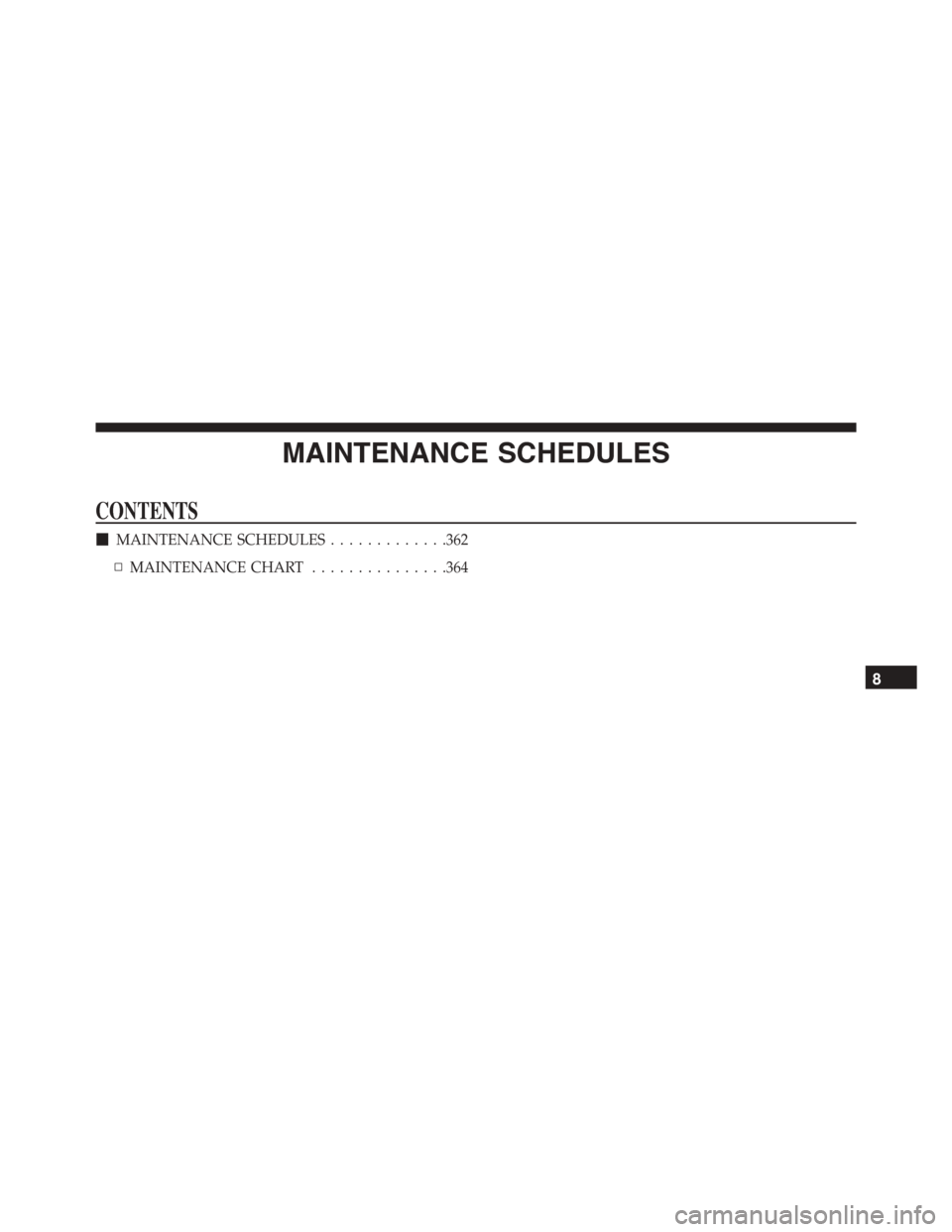

MAINTENANCE SCHEDULES
CONTENTS
!MAINTENANCE SCHEDULES.............362
▫MAINTENANCE CHART...............364
8

MAINTENANCE SCHEDULES
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
NOTE: Under no circumstances should oil change in-
tervals exceed 6,000 miles (10 000 km) or six months,
whichever comes first.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
At Each Stop For Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
362 MAINTENANCE SCHEDULES

Once A Month
•Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before your next scheduled service.
•Inspect the battery, and clean and tighten the terminals
as required.
•Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering, and transmission, and
add as needed.
•Check all lights and all other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the exhaust system.
NOTE:Also, inspect the exhaust system if you notice a
change in the sound of the exhaust system, or if the
exhaust fumes can be detected inside the vehicle.
•Inspect the brake hoses.
•Inspect the suspension components.
•Lubricate door hinges and check springs.
•Check the engine coolant level, hoses, and clamps.
•Check power steering fluid level.
8
MAINTENANCE SCHEDULES 363

MAINTENANCE CHART
Miles:6,00012,00018,00024,00030,00036,00042,00048,00054,00060,00066,00072,00078,00084,00090,00096,000102,000108,00011 4 , 0 0 0120,000126,000132,000138,000144,000150,000
Or Months:6121824303642485460667278849096102108114120126132138144150
Or Kilometers:10,00020,00030,00040,00050,00060,00070,00080,00090,000100,00011 0 , 0 0 0120,000130,000140,000150,000160,000170,000180,000190,000200,000210,000220,000230,000240,000250,000
Change the engine oil andengine oil filter.XXXXXXXXXXXXXXXXXXXXXXXXX
Rotate the tires, rotate at thefirst sign of irregular wear, evenif it occurs before scheduledmaintenance.
XXXXXXXXXXXXXXXXXXXXXXXXX
Inspect the brake linings; re-place if necessary.XXXXXXXXXXXX
Inspect the exhaust system.XXXXXXXXXXXX
Change Brake FluidXXXXXX
Adjust the parking brake onvehicles equipped with fourwheel disc brakes.XXXXX
364 MAINTENANCE SCHEDULES

Miles:6,00012,00018,00024,00030,00036,00042,00048,00054,00060,00066,00072,00078,00084,00090,00096,000102,000108,00011 4 , 0 0 0120,000126,000132,000138,000144,000150,000
Or Months:6121824303642485460667278849096102108114120126132138144150
Or Kilometers:10,00020,00030,00040,00050,00060,00070,00080,00090,000100,00011 0 , 0 0 0120,000130,000140,000150,000160,000170,000180,000190,000200,000210,000220,000230,000240,000250,000
Change the engine oil andengine oil filter.XXXXXXXXXXXXXXXXXXXXXXXXX
Change the manual transmis-sion fluid.XXXX
Inspect the manual transmis-sion fluid, add as necessary.XX XX XX XX
Change the rear axle fluid.XXXXXXXX
Inspect front suspension, tierod ends, and boot seals, forcracks or leaks and all parts fordamage, wear, improper loose-ness or end play; replace ifnecessary.
XXXXXXXXXXXX
Replace the engine air cleaner.XXXXX
Replace the air conditioningfilter.XXXXXXXXXXXX
8
MAINTENANCE SCHEDULES 365

Miles:6,00012,00018,00024,00030,00036,00042,00048,00054,00060,00066,00072,00078,00084,00090,00096,000102,000108,00011 4 , 0 0 0120,000126,000132,000138,000144,000150,000
Or Months:6121824303642485460667278849096102108114120126132138144150
Or Kilometers:10,00020,00030,00040,00050,00060,00070,00080,00090,000100,00011 0 , 0 0 0120,000130,000140,000150,000160,000170,000180,000190,000200,000210,000220,000230,000240,000250,000
Change the engine oil andengine oil filter.XXXXXXXXXXXXXXXXXXXXXXXXX
Inspect and replace the PCVVa l v e i f n e c e s s a r yX
Replace the spark plugs **X
Flush and replace the enginecoolant at 120 months if notdone at 150,000 miles(240,000 km).
XX
** The spark plug change interval is mileage based only,
monthly intervals do not apply.
