Oil Temperature
Push and release the UP or DOWN arrow button until
“Oil Temperature” is highlighted in the DID. Push and
release the RIGHT arrow button, and the oil temperature
will be displayed.
Engine Hours
Push and release the UP or DOWN arrow button until
“Engine Hours” is highlighted in the DID. Push and
release the RIGHT arrow button, and the oil temperature
will be displayed.
Intake Air Temp.
Push and release the UP or DOWN arrow button until
“Intake Air Temp.” is highlighted in the DID. Push and
release the RIGHT arrow button, and the intake air
temperature will be displayed.
Current Power
Push and release the UP or DOWN arrow button until
“Current Power” is highlighted in the DID. Push and
release the RIGHT arrow button, and the current power
will be displayed.
Current Torque
Push and release the UP or DOWN arrow button until
“Current Torque” is highlighted in the DID. Push and
release the RIGHT arrow button, and the current torque
will be displayed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 167

SRT Performance
WARNING!
Measurement of vehicle statistics with the Perfor-
mance Features is intended for off-highway or off-
road use only and should not be done on any public
roadways. It is recommended that these features be
used in a controlled environment and within the
limits of the law. The capabilities of the vehicle as
measured by the performance pages must never be
exploited in a reckless or dangerous manner, which
can jeopardize the user ’s safety or the safety of
others. Only a safe, attentive, and skillful driver can
prevent accidents.
Push and release the UP or DOWN arrow button until
the SRT icon is highlighted in the DID. Push and release
the RIGHT arrow button, and 0–60 MPH Duration will be
displayed. Push and release the LEFT and RIGHT arrow
button to scroll through the following information sub-
menus:
0–60 Time
Push and release the LEFT and RIGHT arrow button
until the last 0–60 MPH information is displayed.
Braking Distance
Push and release the LEFT and RIGHT arrow button
until the last Braking Distance information is displayed.
1/4 Mile Elapsed Time
Push and release the LEFT and RIGHT arrow button
until the last 1/4 Mile Top Speed & Duration information
is displayed.
168 UNDERSTANDING YOUR INSTRUMENT PANEL

1/8 Mile Elapsed Time
Push and release the LEFT and RIGHT arrow button
until the last 1/8 Mile Top Speed & Duration information
is displayed.
G-Force Instant
Push and release the LEFT and RIGHT arrow button
until the Current G-Forces are displayed.
G-Force Peak
Push and release the LEFT and RIGHT arrow button
until the Peak G-Forces are displayed.
Fuel Economy
Push and release the UP or DOWN arrow
button until the Fuel Economy icon is high-
lighted and the following will display:
Range To Empty (RTE)
Average Fuel Economy/Miles Per Gallon (MPG Bar-
graph)
Current Miles Per Gallon (MPG)
Trip A
Push and release the UP or DOWN arrow
button until the Trip A icon is highlighted in
the DID. The Trip A information will display
the following:
•Distance
•Average Speed
•Elapsed Time
Hold the RIGHT arrow button to reset all the informa-
tion.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 169

Tr i p B — I fEquipped
Push and release Up or Down arrow button
until the Trip B icon is highlighted in the DID.
The Trip B information will display the
following:
•Distance
•Average Speed
•Elapsed Time
Hold the RIGHT arrow button to reset all the informa-
tion.
Audio
Push and release the UP or DOWN arrow
button until the Audio display icon is high-
lighted in the DID. Push and release the RIGHT
arrow button to display the active source.
Stored Messages
Push and release the UP or DOWN arrow
button until the Messages Menu item is high-
lighted in the DID. This feature shows the
number of stored warning messages. Pushing
the RIGHT arrow button will allow you to see what the
stored messages are.
170 UNDERSTANDING YOUR INSTRUMENT PANEL

Screen Setup Driver Selectable Items
Upper Left
•None
•Compass
•Temperature
•Range To Empty (RTE)
•Average Fuel
•Current Fuel
•Trip A
•Trip B
•Elapsed Time
•Oil Pressure
•Oil Temperature
•Battery
•Coolant Temperature
Upper Right
•None
•Compass
•Temperature
•Range To Empty (RTE)
•Average Fuel
•Current Fuel
•Trip A
•Trip B
•Elapsed Time
•Oil Pressure
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

•Oil Temperature
•Battery
•Coolant Temperature
•RIGHT Arrow Button
Restore To Defaults (Restores All Settings To Default
Settings)
Push and release the RIGHT arrow button to
confirm.
Digital Speed
•On
•Off
Tach. Peak Hold
When enabled, the Tach. Peak Hold function marks the
peak Revolutions Per Minute (RPM) on the tachometer
gauge for 3 seconds when the RPM is above 4000. Using
the UP and DOWN arrow switches on the left side of the
steering wheel, select the gauges icon from the menu on
the left side of the cluster (highlighted red is the active
menu item). Use the right arrow to enter the gauges setup
screen and the up down arrows to select Tach Peak from
the menu of gauge options.
172 UNDERSTANDING YOUR INSTRUMENT PANEL

Select up and down to toggle between “ON” and “OFF.”
Diagnostic Codes
Push and release the UP or DOWN arrow
button until the Diagnostic Code icon is high-
lighted in the DID. Push and release the RIGHT
arrow button to display any present diagnostic
trouble codes along with a brief definition.
Vehicle Hibernation
Push and release the UP or DOWN arrow
button until the Hibernation icon is highlighted
in the DID. Push and release the RIGHT arrow
button to activate the Vehicle Hibernation
Mode, which minimizes vehicle battery drain while the
vehicle is being stored.
Tach. Peak Hold
4
UNDERSTANDING YOUR INSTRUMENT PANEL 173

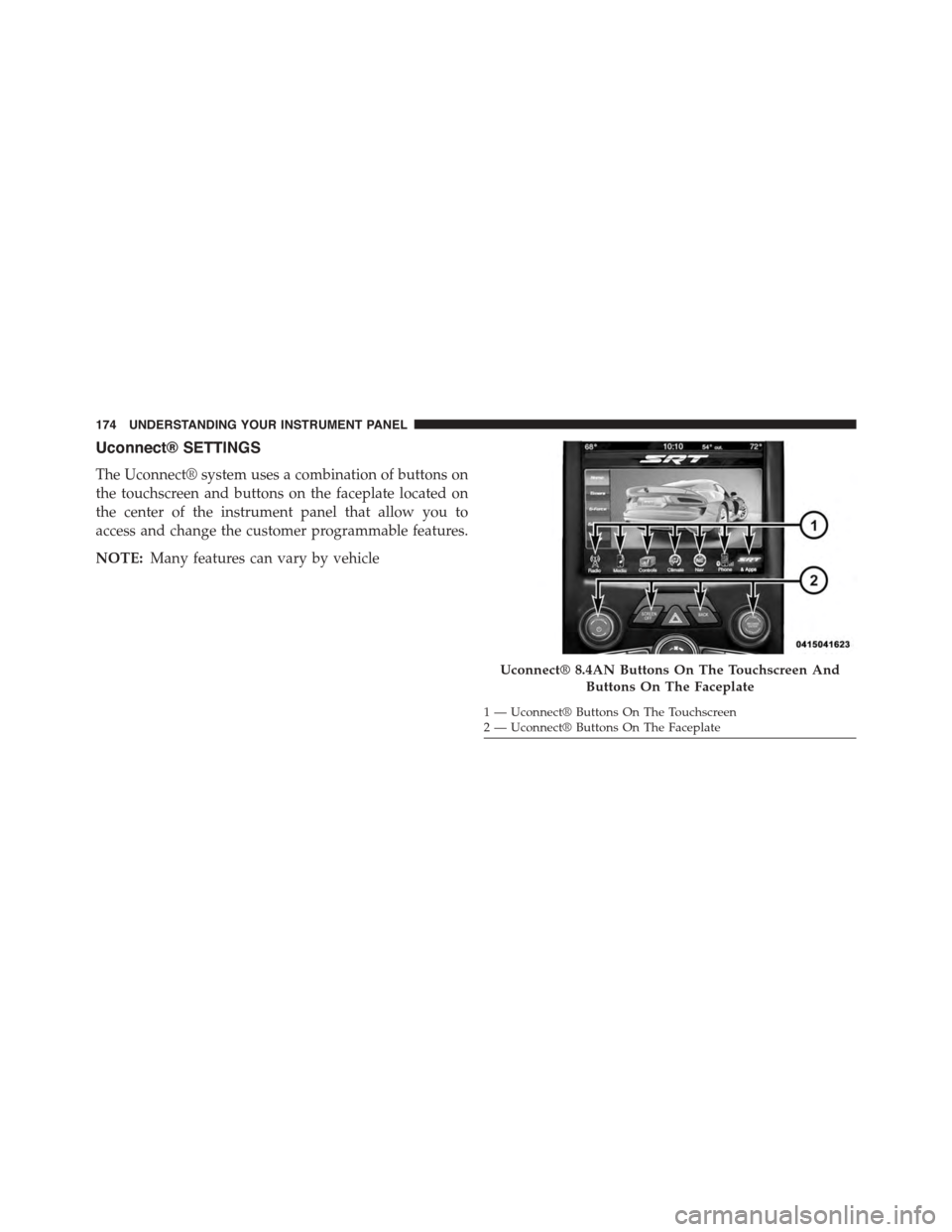

Uconnect® SETTINGS
The Uconnect® system uses a combination of buttons on
the touchscreen and buttons on the faceplate located on
the center of the instrument panel that allow you to
access and change the customer programmable features.
NOTE:Many features can vary by vehicle
Uconnect® 8.4AN Buttons On The Touchscreen And
Buttons On The Faceplate
1—Uconnect®ButtonsOnTheTouchscreen2—Uconnect®ButtonsOnTheFaceplate
174 UNDERSTANDING YOUR INSTRUMENT PANEL
