2015 CHRYSLER TOWN AND COUNTRY Owners Manual

5. Pull upward on the seatback recliner lever located on
the outboard side of the seat.
The non-adjustable head restraint and seatback will fold
automatically during the seat tumble. No additional
actuation is necessary.

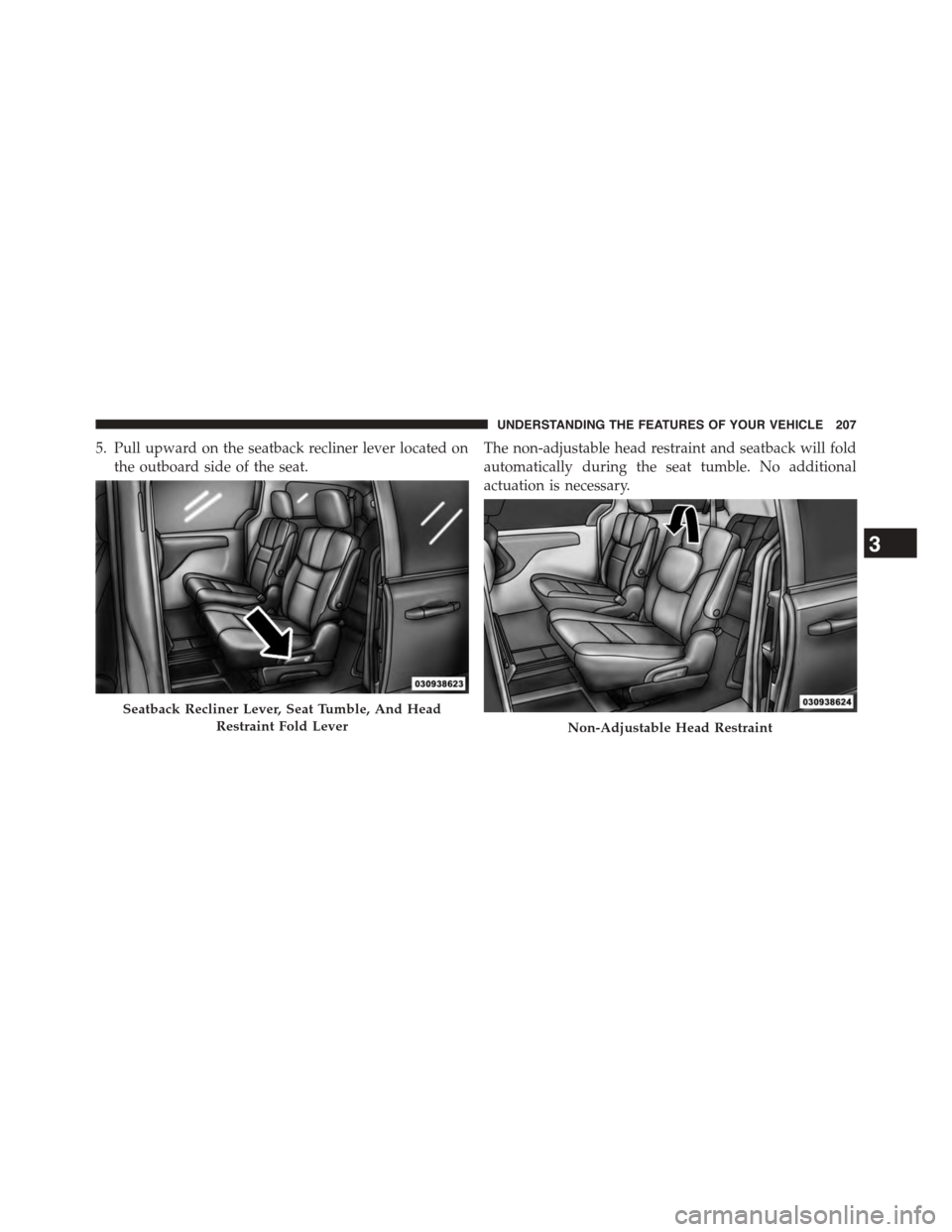

Seatback Recliner Lever, Seat Tumble, And Head
Restraint Fold LeverNon-Adjustable Head Restraint
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

The seat will automatically tumble into position for easy
storage.
6. Push the seat into the storage bin.

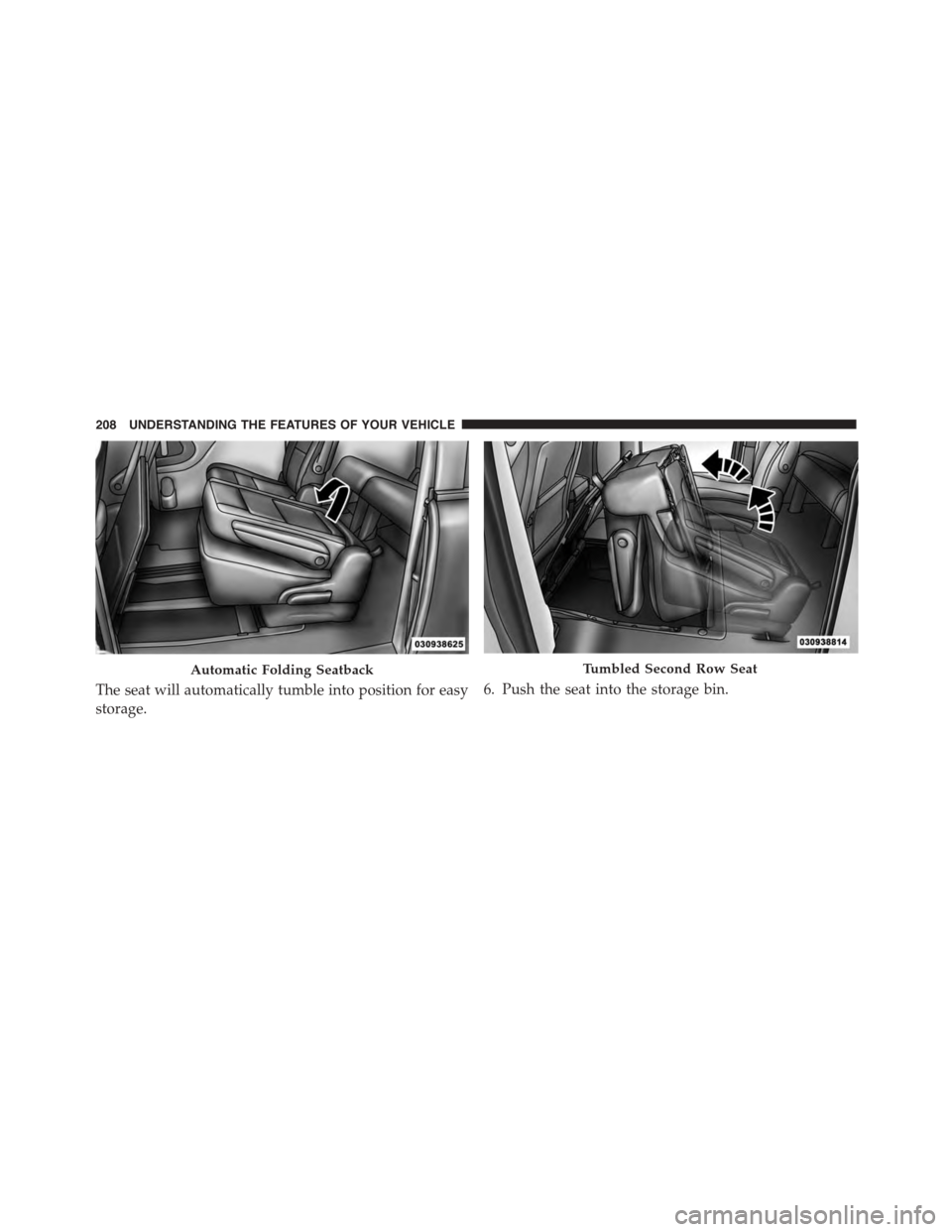

Automatic Folding SeatbackTumbled Second Row Seat
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

7. Close the storage bin cover.
CAUTION!
The storage bin cover must be locked and flat to
avoid damage from contact with the front seat tracks,
which have minimal clearance to the cover.
WARNING!
In a collision, serious injury could result if the seat
storage bin covers are not properly latched.
•Do not drive the vehicle with the storage bin covers
open.
•Keep the storage bin covers closed and latched
while the vehicle is in motion.
•Do not use a storage bin latch as a tie down.
Seat In Storage Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

To Unstow Second Row Seats
1. Pull up on the storage bin latch to open the cover.
2. Pull up on the strap to lift the seat out of the storage
bin and push the seat rearward to latch the seat
anchors.
3. Lift the seatback to the full upright position.
4. Return the head restraint to its upright position, close
the storage bin cover and slide the storage bin locking
mechanism to the “Unlocked” position.
WARNING!
•In a collision, you or others in your vehicle could
be injured if seats are not properly latched to their
floor attachments. Always be sure the seats are
fully latched.
•Sitting in a seat with the head restraint in its
lowered position could result in serious injury or
death in a collision. Always make sure the head
restraints are in their upright positions when the
seat is to be occupied.
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Stow ’n Go® Seat — Folded And Latched Position
To tumble or stow the seat from the folded and latched
position: return the seatback and head restraint to the
upright position. Then pull up on the seatback recliner
lever on the outboard side of the seat to fold head rest
and seatback and tumble seat forward.
1. Return the seatback to the upright position.
2. Return the head restraint to the upright position.

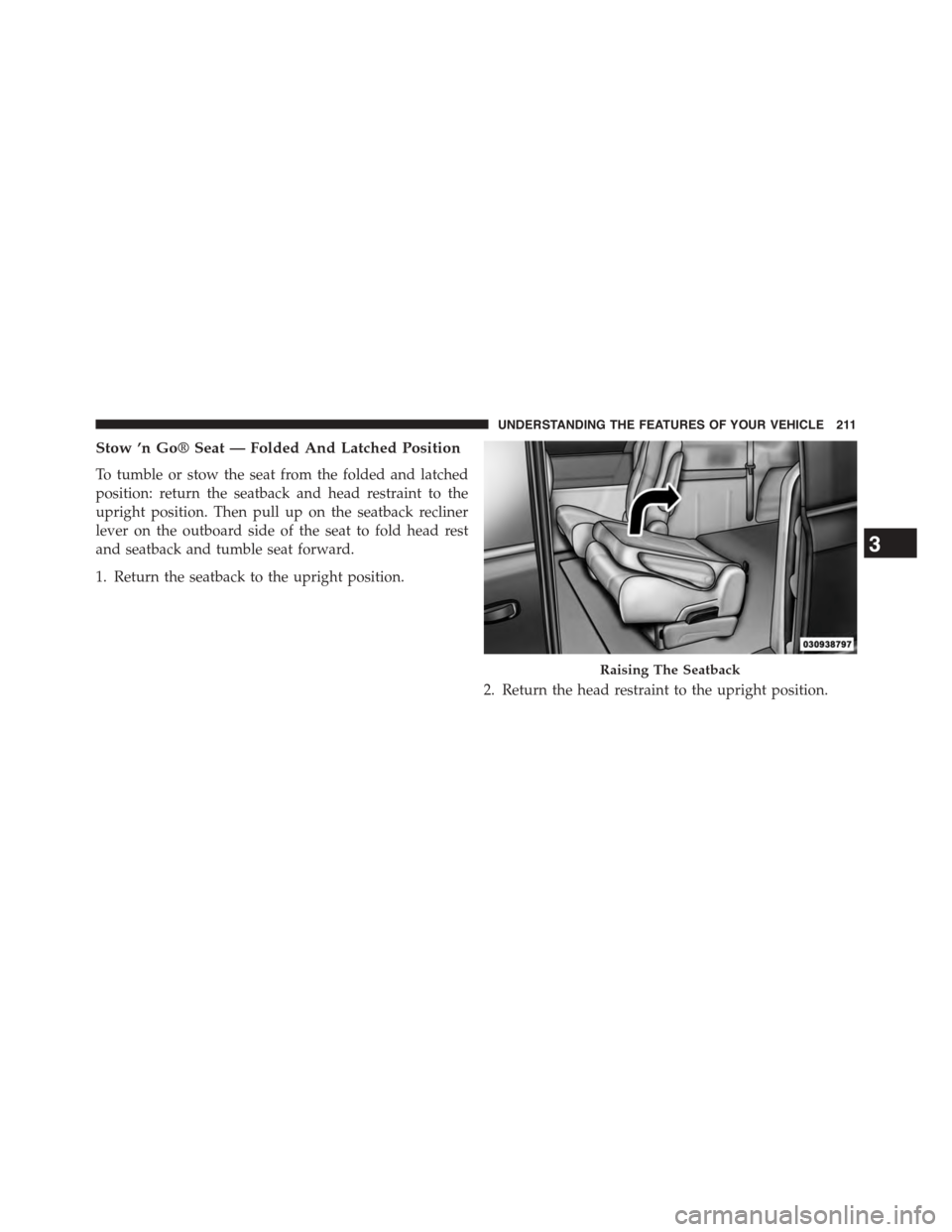

Raising The Seatback
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

3. Pull up on the seatback recliner lever on the outboard
side of the seat to fold head rest and seatback and
tumble seat forward.
Easy Entry Second Row
The second row Stow ’n Go® seats allow easy entry to the
third row seat or rear cargo area.
Pull up on the seatback recliner lever on the outboard
side of the seat.

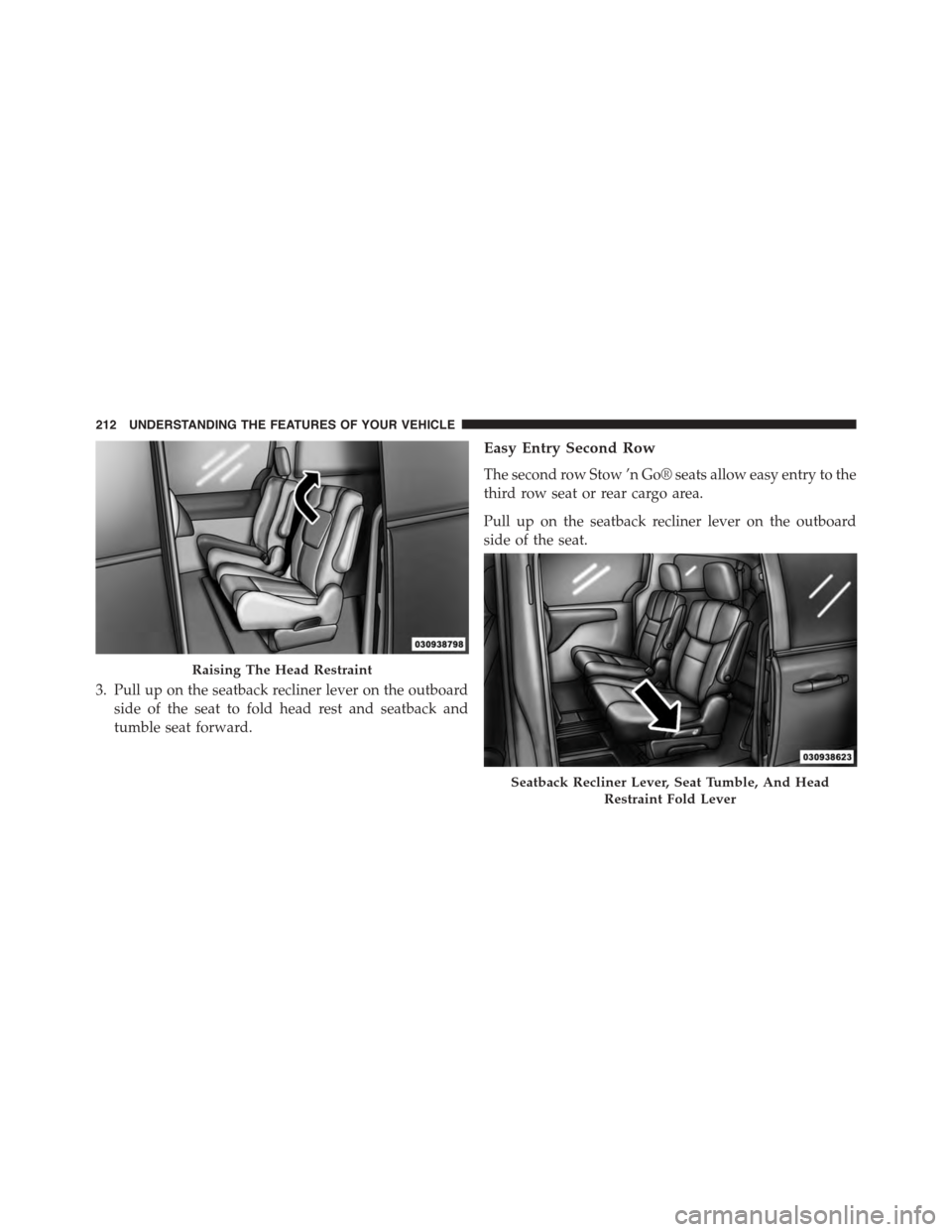

Raising The Head Restraint
Seatback Recliner Lever, Seat Tumble, And Head
Restraint Fold Lever
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The seat will automatically fold into position for easy
entry into the third row.
WARNING!
In the event of a collision you could be injured if the
seat is not fully latched.
Quad Seats — If Equipped
Both Quad seats are adjustable forward or rearward. The
manual seat adjustment handle is located under the seat
cushion at the front edge of each seat.
While sitting in the seat, pull up on the handle and slide
the seat forward or rearward. Release the bar once you
have reached the desired position. Then, using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.

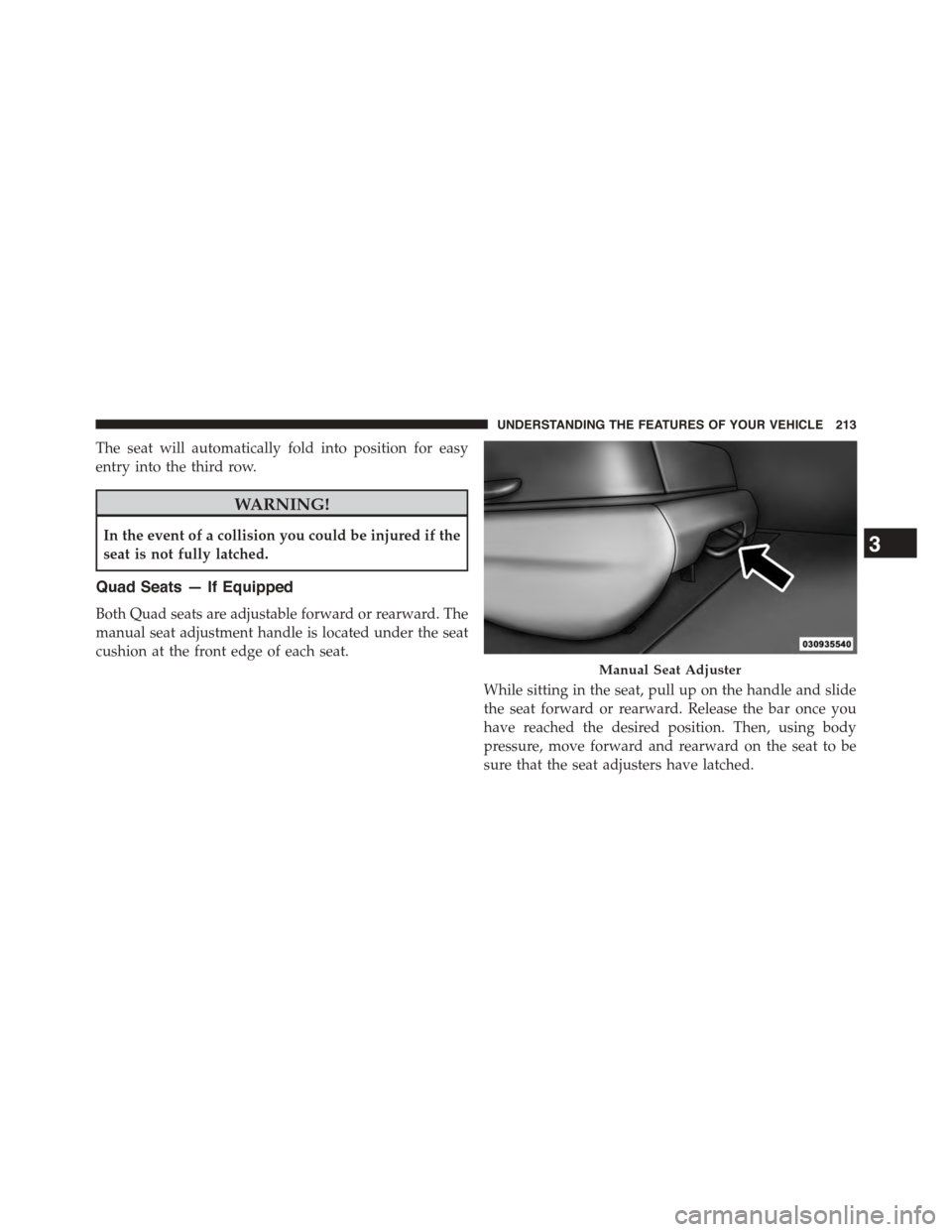

Manual Seat Adjuster
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Manual Recline
To recline, lean forward slightly, lift the lever, then push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.

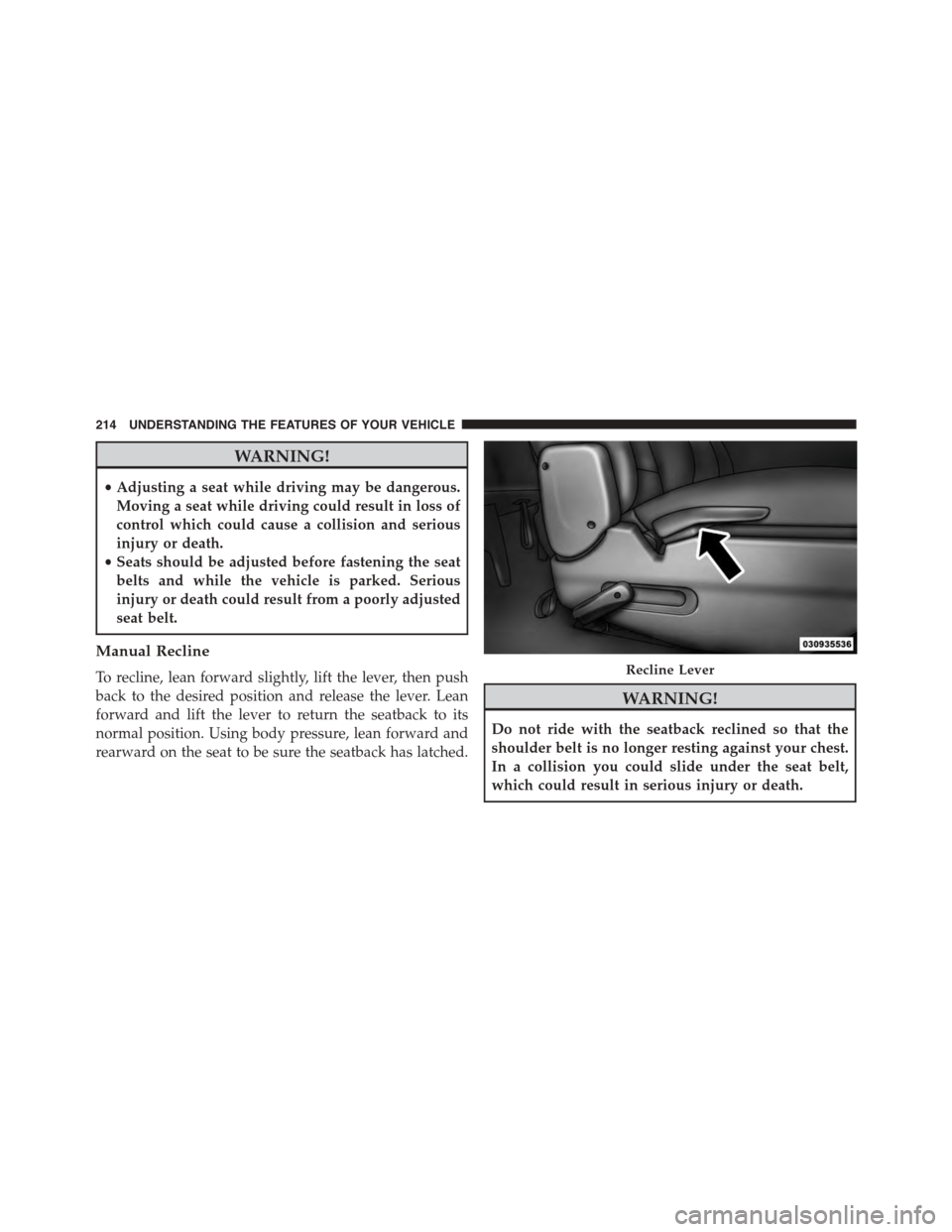

Recline Lever
214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
