2015 CHRYSLER TOWN AND COUNTRY Owners Manual

CAUTION!
•When installing the Totally Integrated Power Mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to do
so may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.

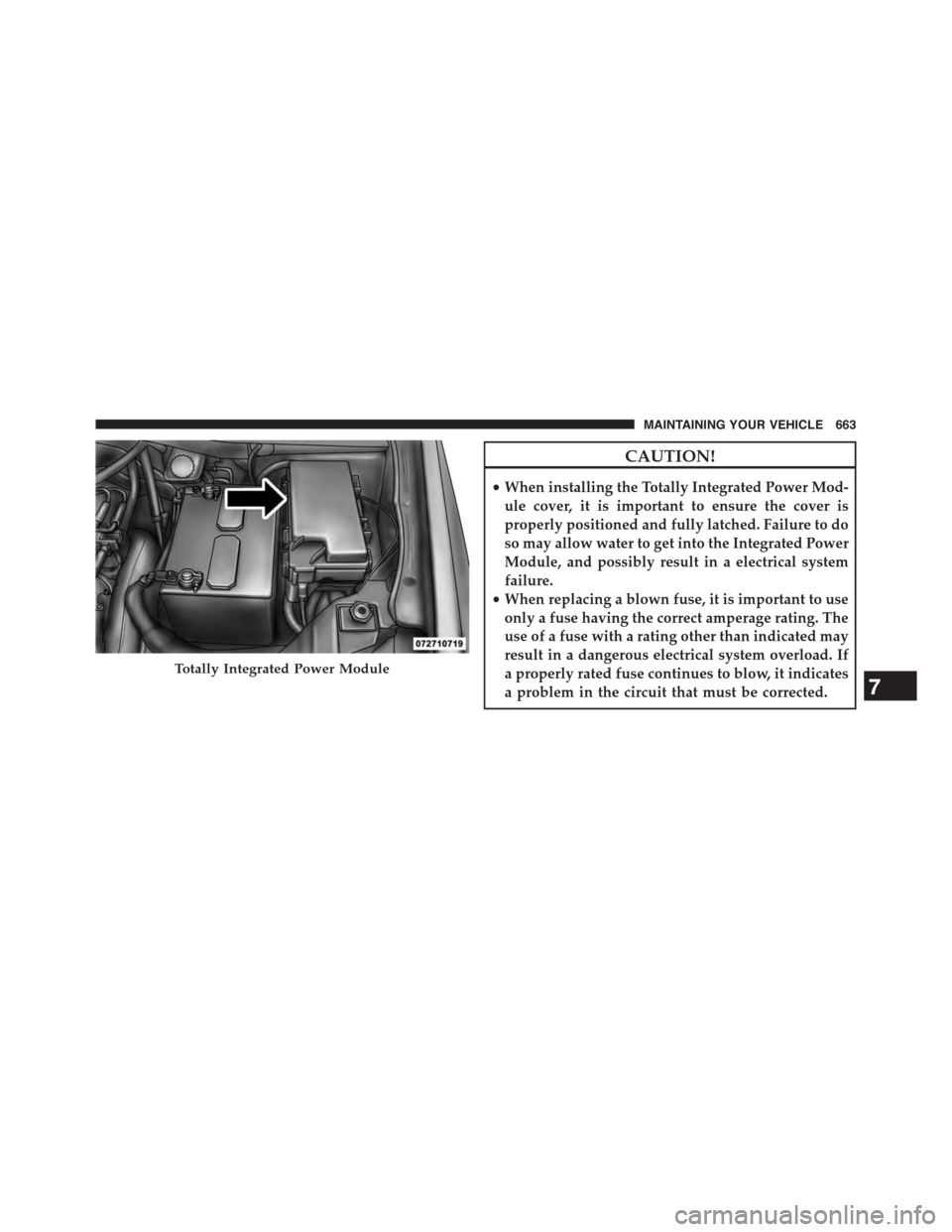

Totally Integrated Power Module
7
MAINTAINING YOUR VEHICLE 663

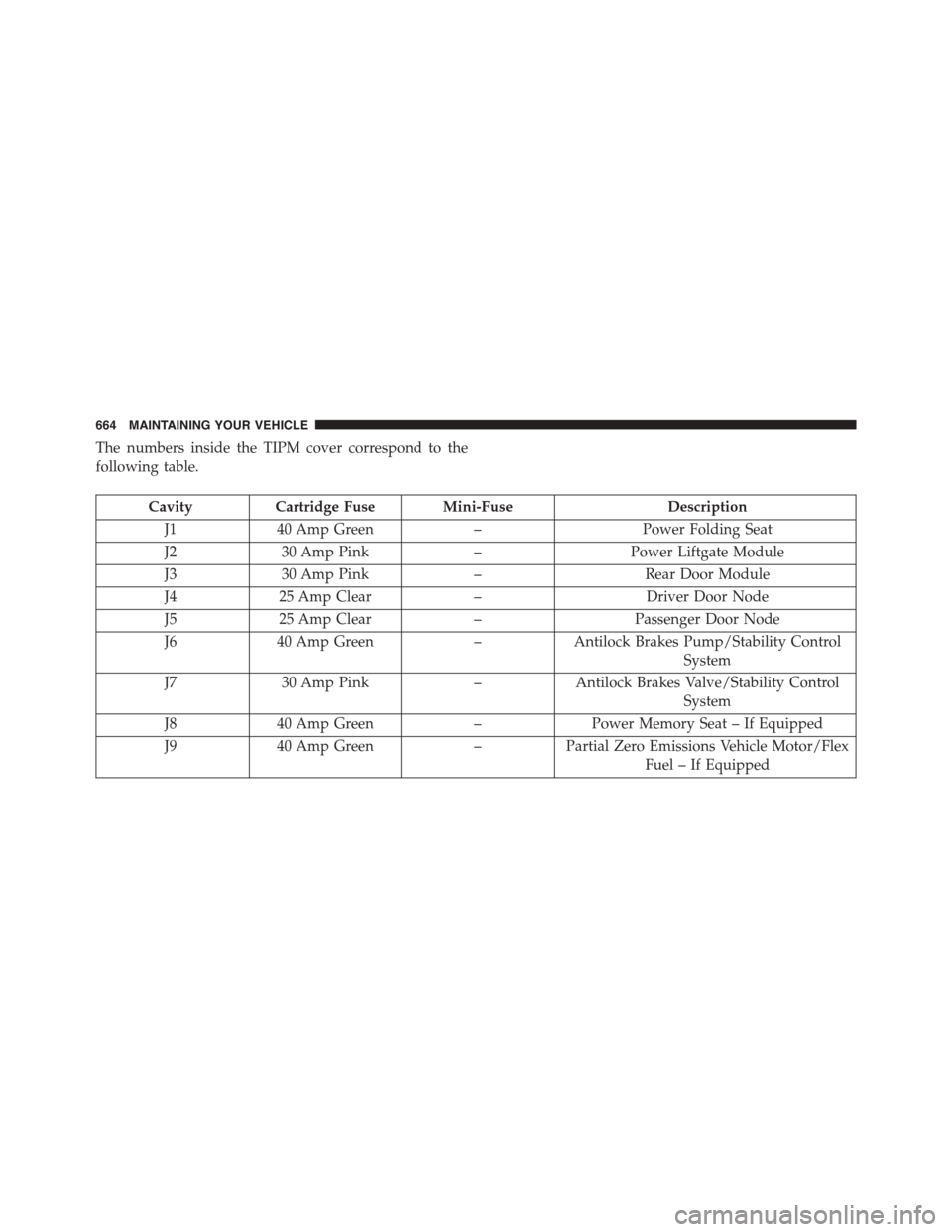

The numbers inside the TIPM cover correspond to the
following table.
CavityCartridge Fuse Mini-FuseDescription
J140 Amp Green–Power Folding Seat
J230 Amp Pink–Power Liftgate Module
J330 Amp Pink–Rear Door Module
J425 Amp Clear–Driver Door Node
J525 Amp Clear–Passenger Door Node
J640 Amp Green–Antilock Brakes Pump/Stability Control
System
J730 Amp Pink–Antilock Brakes Valve/Stability Control
System
J840 Amp Green–Power Memory Seat – If Equipped
J940 Amp Green–Partial Zero Emissions Vehicle Motor/Flex
Fuel – If Equipped
664 MAINTAINING YOUR VEHICLE

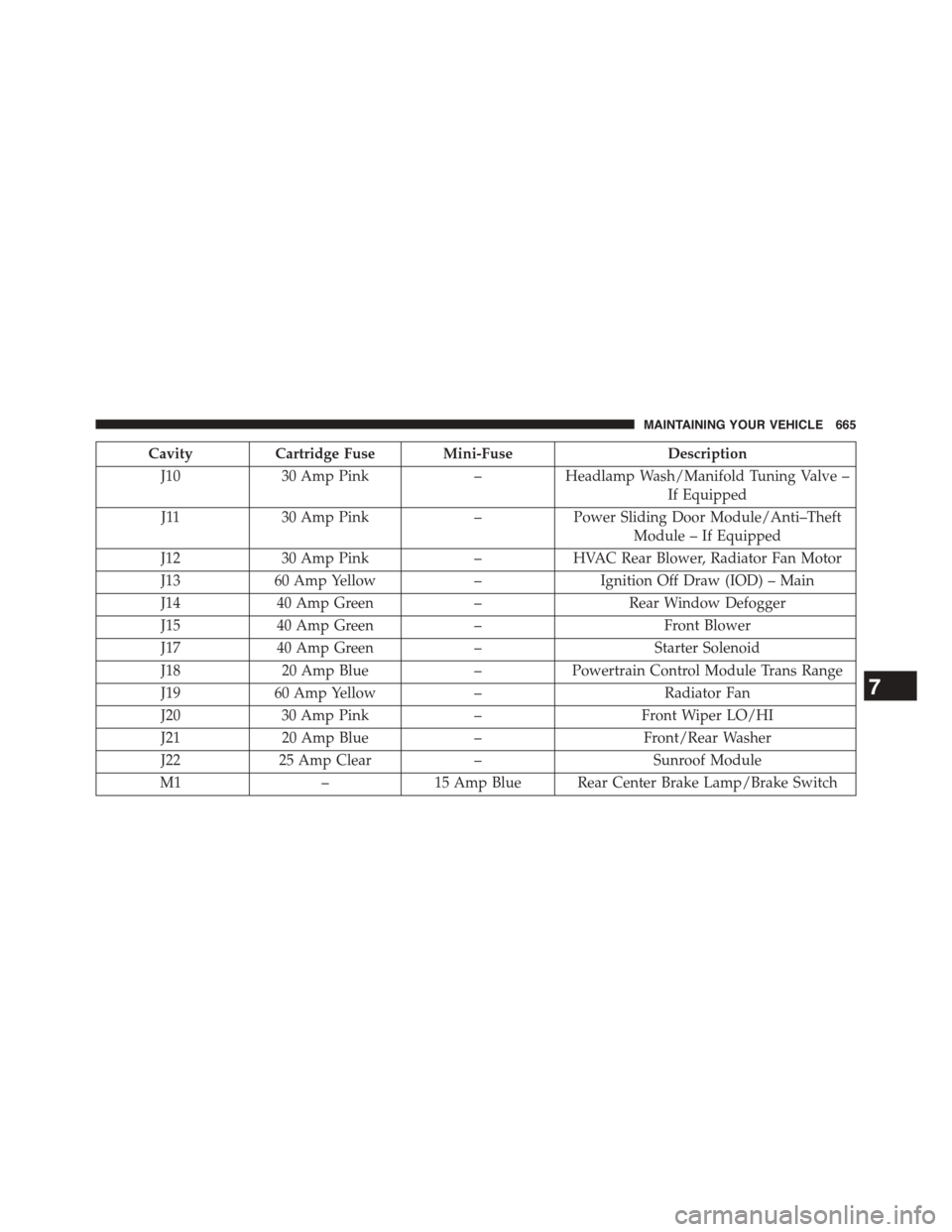

CavityCartridge Fuse Mini-FuseDescription
J1030 Amp Pink–Headlamp Wash/Manifold Tuning Valve –
If Equipped
J1130 Amp Pink–Power Sliding Door Module/Anti–Theft
Module – If Equipped
J1230 Amp Pink–HVAC Rear Blower, Radiator Fan Motor
J1360 Amp Yellow–Ignition Off Draw (IOD) – Main
J1440 Amp Green–Rear Window Defogger
J1540 Amp Green–Front Blower
J1740 Amp Green–Starter Solenoid
J1820 Amp Blue–Powertrain Control Module Trans Range
J1960 Amp Yellow–Radiator Fan
J2030 Amp Pink–Front Wiper LO/HI
J2120 Amp Blue–Front/Rear Washer
J2225 Amp Clear–Sunroof Module
M1–15 Amp Blue Rear Center Brake Lamp/Brake Switch
7
MAINTAINING YOUR VEHICLE 665

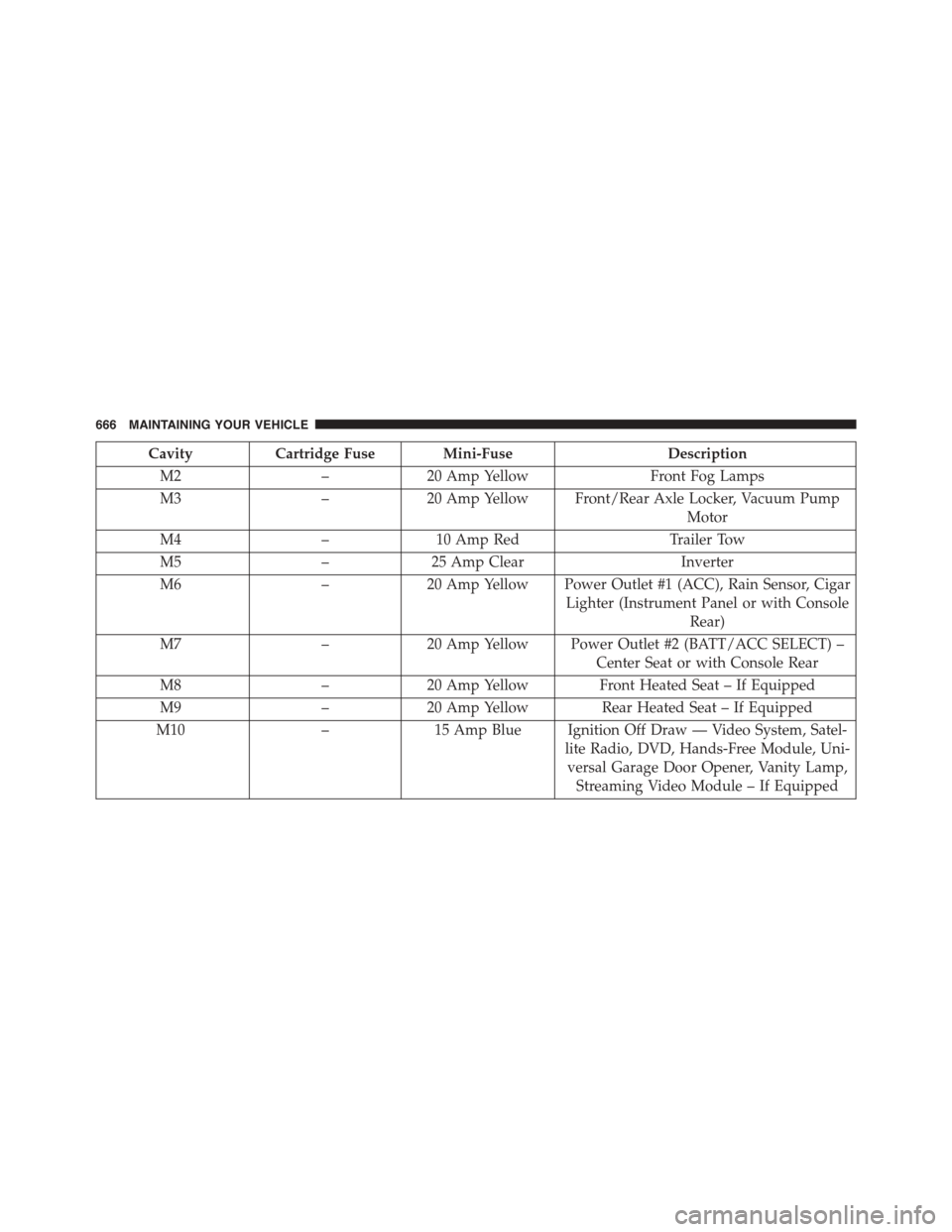

CavityCartridge Fuse Mini-FuseDescription
M2–20 Amp YellowFront Fog Lamps
M3–20 Amp Yellow Front/Rear Axle Locker, Vacuum Pump
Motor
M4–10 Amp RedTrailer Tow
M5–25 Amp ClearInverter
M6–20 Amp Yellow Power Outlet #1 (ACC), Rain Sensor, Cigar
Lighter (Instrument Panel or with Console
Rear)
M7–20 Amp Yellow Power Outlet #2 (BATT/ACC SELECT) –
Center Seat or with Console Rear
M8–20 Amp Yellow Front Heated Seat – If Equipped
M9–20 Amp Yellow Rear Heated Seat – If Equipped
M10–15 Amp Blue Ignition Off Draw — Video System, Satel-
lite Radio, DVD, Hands-Free Module, Uni-
versal Garage Door Opener, Vanity Lamp,
Streaming Video Module – If Equipped
666 MAINTAINING YOUR VEHICLE

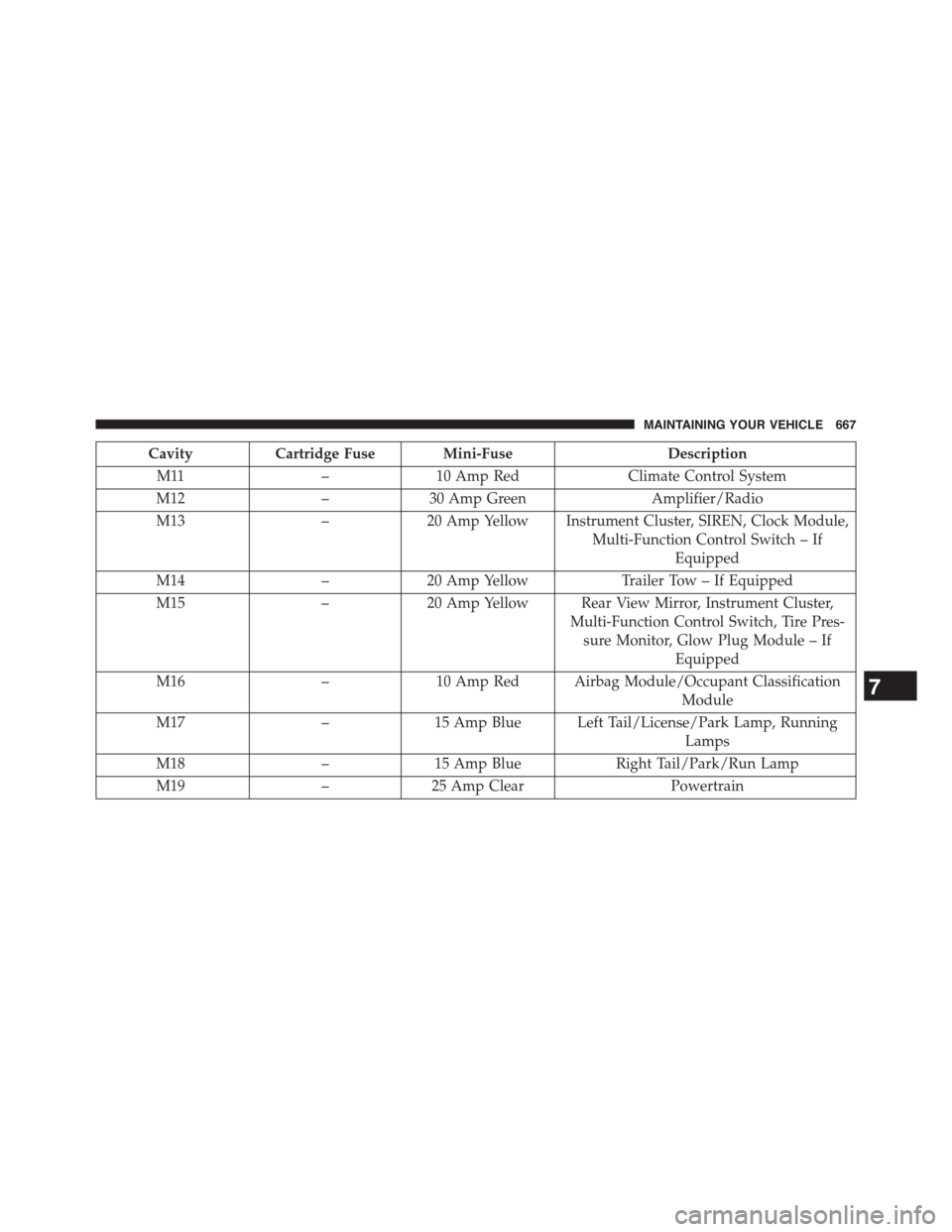

CavityCartridge Fuse Mini-FuseDescription
M11–10 Amp RedClimate Control System
M12–30 Amp GreenAmplifier/Radio
M13–20 Amp Yellow Instrument Cluster, SIREN, Clock Module,
Multi-Function Control Switch – If
Equipped
M14–20 Amp YellowTrailer Tow – If Equipped
M15–20 Amp Yellow Rear View Mirror, Instrument Cluster,
Multi-Function Control Switch, Tire Pres-
sure Monitor, Glow Plug Module – If
Equipped
M16–10 Amp Red Airbag Module/Occupant Classification
Module
M17–15 Amp Blue Left Tail/License/Park Lamp, Running
Lamps
M18–15 Amp BlueRight Tail/Park/Run Lamp
M19–25 Amp ClearPowertrain
7
MAINTAINING YOUR VEHICLE 667

CavityCartridge Fuse Mini-FuseDescription
M20–15 Amp Blue Instrument Cluster Interior Light, Switch
Bank, Steering Column Module, Switch
Steering Wheel
M21–20 Amp YellowPowertrain
M22–10 Amp RedHorn
M23–10 Amp RedHorn
M24–25 Amp ClearRear Wiper
M25–20 Amp Yellow Fuel Pump, Diesel Lift Pump – If
Equipped
M26–10 Amp Red Power Mirror Switch, Driver Window
Switch
M27–10 Amp Red Wireless Control Module, Keyless Entry
Module
M28–10 Amp Red Powertrain, Transmission Control Module
M29–10 Amp RedOccupant Classification Module
668 MAINTAINING YOUR VEHICLE

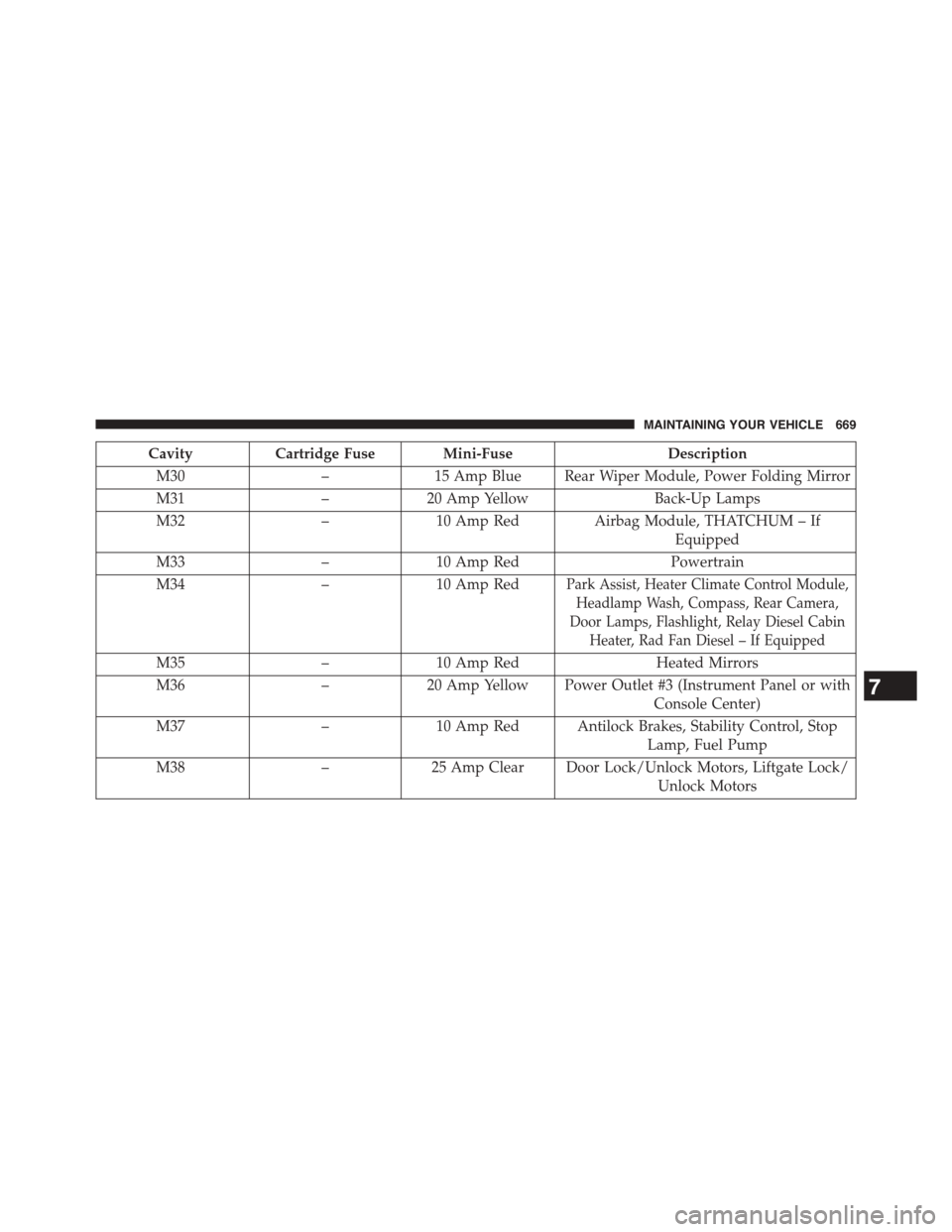

CavityCartridge Fuse Mini-FuseDescription
M30–15 Amp Blue Rear Wiper Module, Power Folding Mirror
M31–20 Amp YellowBack-Up Lamps
M32–10 Amp RedAirbag Module, THATCHUM – If
Equipped
M33–10 Amp RedPowertrain
M34–10 Amp RedPark Assist, Heater Climate Control Module,
Headlamp Wash, Compass, Rear Camera,
Door Lamps, Flashlight, Relay Diesel Cabin
Heater, Rad Fan Diesel – If Equipped
M35–10 Amp RedHeated Mirrors
M36–20 Amp Yellow Power Outlet #3 (Instrument Panel or with
Console Center)
M37–10 Amp Red Antilock Brakes, Stability Control, Stop
Lamp, Fuel Pump
M38–25 Amp Clear Door Lock/Unlock Motors, Liftgate Lock/
Unlock Motors
7
MAINTAINING YOUR VEHICLE 669

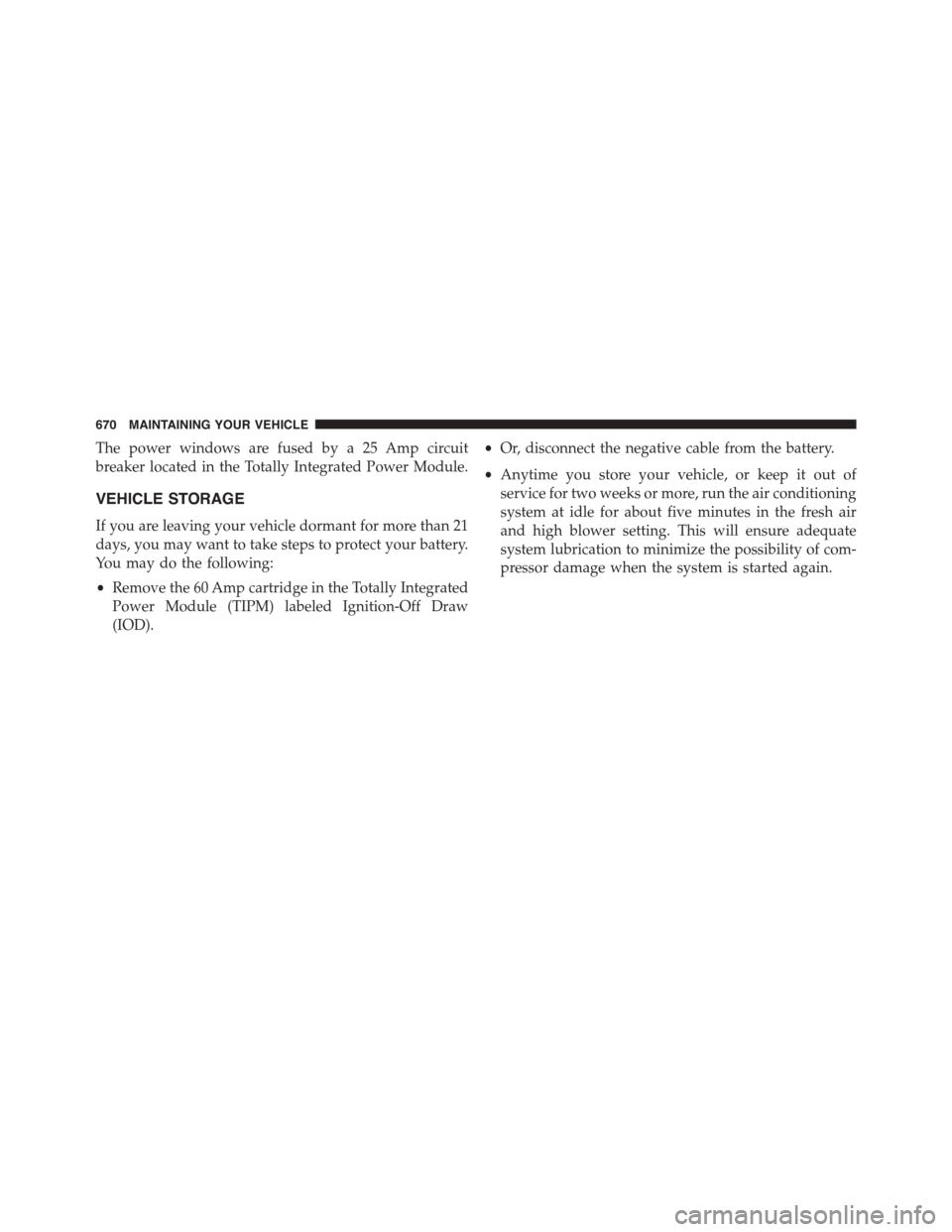

The power windows are fused by a 25 Amp circuit
breaker located in the Totally Integrated Power Module.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take steps to protect your battery.
You may do the following:
•Remove the 60 Amp cartridge in the Totally Integrated
Power Module (TIPM) labeled Ignition-Off Draw
(IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
670 MAINTAINING YOUR VEHICLE
