2015.5 Peugeot 308 Owner's Manual - RHD (UK, Australia)

87

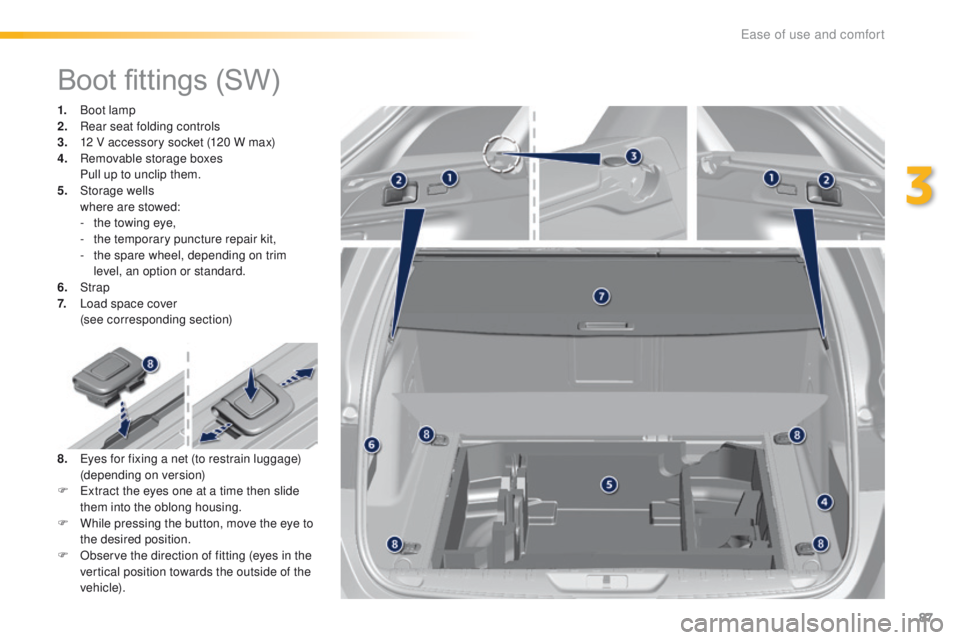

Boot fittings (SW)
1. Boot lamp
2. Rear seat folding controls
3.
1

2 V accessory socket (120 W max)
4.
R

emovable storage boxes
P

ull up to unclip them.
5.
St

orage wells
w

here are stowed:
-

t
he towing eye,
-

t
he temporary puncture repair kit,
-

t
he spare wheel, depending on trim
level, an option or standard.
6.


Strap
7.
L

oad space cover
(

see corresponding section)
8.


e
ye
s for fixing a net (to restrain luggage)
(

depending on version)
F
e
x
tract the eyes one at a time then slide
them into the oblong housing.
F

W
hile pressing the button, move the eye to
the desired position.
F

O
bserve the direction of fitting (eyes in the
vertical position towards the outside of the
vehicle).
3
Ease of use and comfort

88

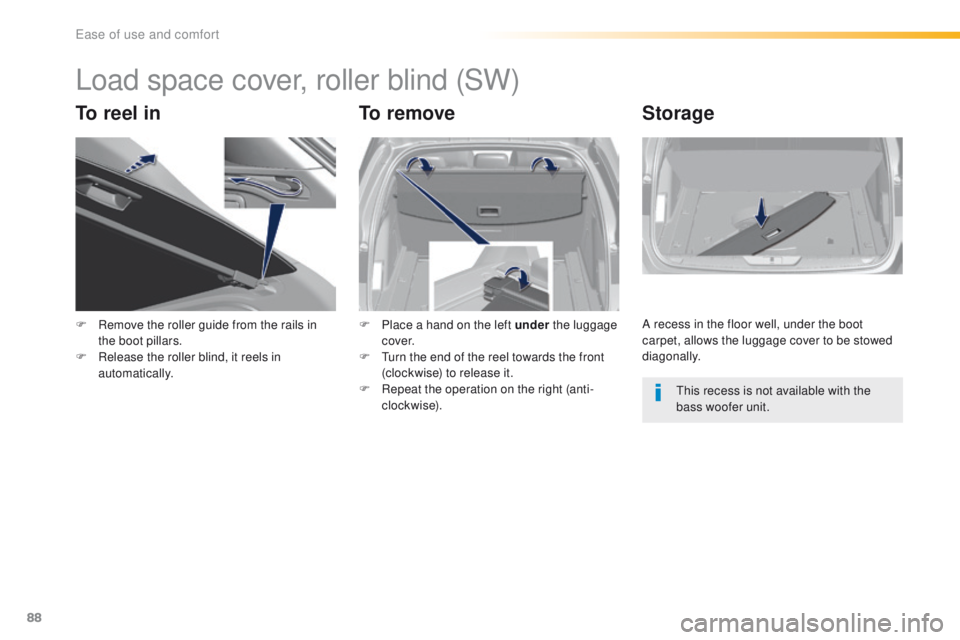

Load space cover, roller blind (SW)
To reel inTo removeStorage
F Remove the roller guide from the rails in
the boot pillars.
F

R
elease the roller blind, it reels in
automatically. F
P lace a hand on the left under
the luggage
c ove r.
F
t
u
rn the end of the reel towards the front
(clockwise) to release it.
F

R
epeat the operation on the right (anti-
clockwise). A recess in the floor well, under the boot
carpet, allows the luggage cover to be stowed
diagonally.
th

is recess is not available with the
bass woofer unit.
ease of use and comfort

89

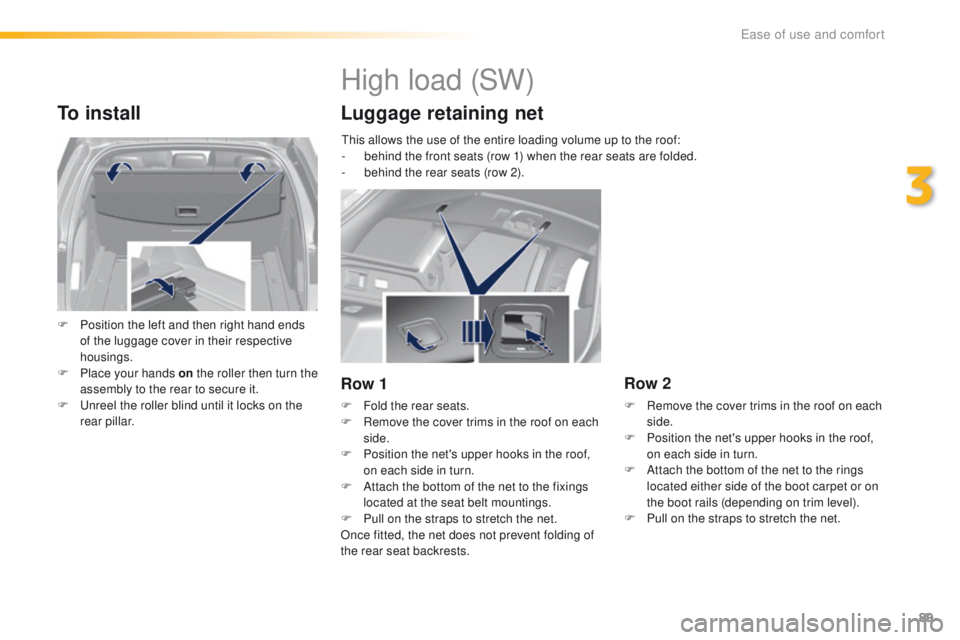

To install
F Position the left and then right hand ends of the luggage cover in their respective
housings.
F

P
lace your hands on the roller then turn the
assembly to the rear to secure it.
F
u
n
reel the roller blind until it locks on the
rear pillar.
High load (SW)
Luggage retaining net
Row 1
F Fold the rear seats.
F R emove the cover trims in the roof on each
side.
F

P
osition the net's upper hooks in the roof,
on each side in turn.
F

A
ttach the bottom of the net to the fixings
located at the seat belt mountings.
F

P
ull on the straps to stretch the net.
Once fitted, the net does not prevent folding of
the rear seat backrests.
Row 2
F Remove the cover trims in the roof on each side.
F

P
osition the net's upper hooks in the roof,
on each side in turn.
F

A
ttach the bottom of the net to the rings
located either side of the boot carpet or on
the boot rails (depending on trim level).
F

P
ull on the straps to stretch the net.
th

is allows the use of the entire loading volume up to the roof:
-

b

ehind the front seats (row 1) when the rear seats are folded.
-

b

ehind the rear seats (row 2).
3
Ease of use and comfort

90

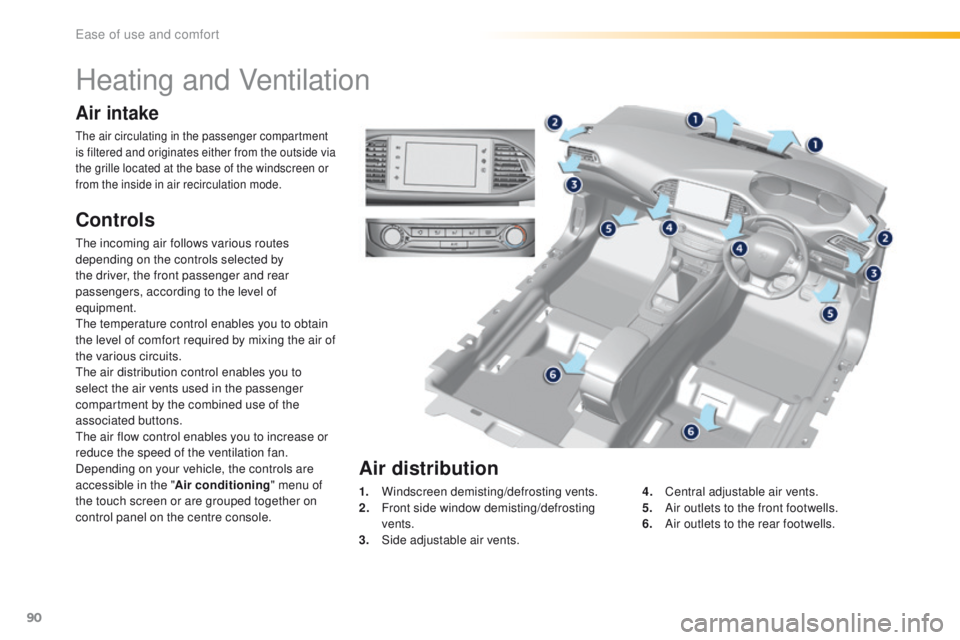

Heating and Ventilation
Air intake
the air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Controls
the incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
th
e temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
th

e air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
th

e air flow control enables you to increase or
reduce the speed of the ventilation fan.
Depending on your vehicle, the controls are
accessible in the " Air conditioning" menu of
the touch screen or are grouped together on
control panel on the centre console. 1.
W

indscreen demisting/defrosting vents.
2.
F

ront side window demisting/defrosting
vents.
3.
S

ide adjustable air vents.4.
C

entral adjustable air vents.
5.
A

ir outlets to the front footwells.
6.
A

ir outlets to the rear footwells.
Air distribution
ease of use and comfort

91

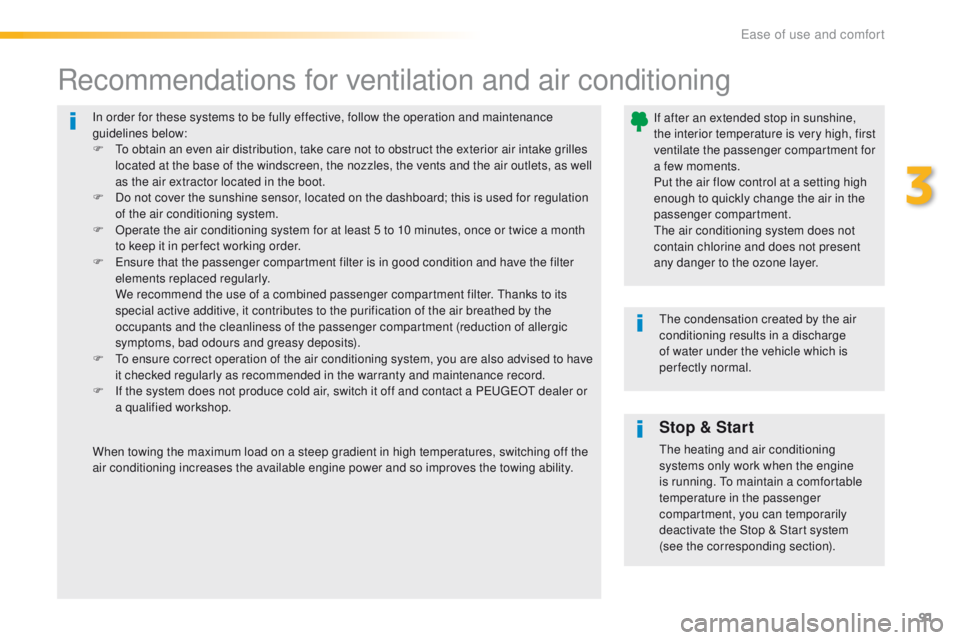

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F t
o o
btain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F
e
n
sure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. t
h
anks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F
t
o e
nsure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F

I
f the system does not produce cold air, switch it off and contact a P
e
uge
Ot
dealer or
a qualified workshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
th

e air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
th

e condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
the heating and air conditioning
systems only work when the engine
is running. t
o m
aintain a comfortable
temperature in the passenger
compartment, you can temporarily
deactivate the Stop & Start system
(see the corresponding section).
3
ease of use and comfort

92

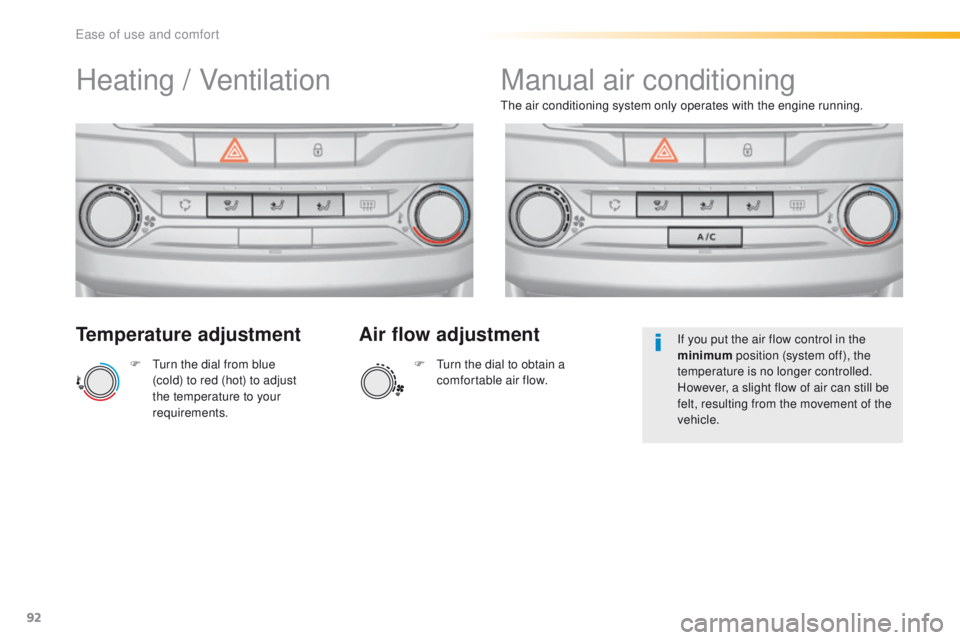

Temperature adjustment
F turn the dial from blue (cold) to red (hot) to adjust
the temperature to your
requirements.
th
e air conditioning system only operates with the engine running.
Air flow adjustment
F turn the dial to obtain a
comfortable air flow. If you put the air flow control in the
minimum
position (system off), the
temperature is no longer controlled.
However, a slight flow of air can still be
felt, resulting from the movement of the
vehicle.
Manual air conditioning
Heating / Ventilation
Ease of use and comfort

93

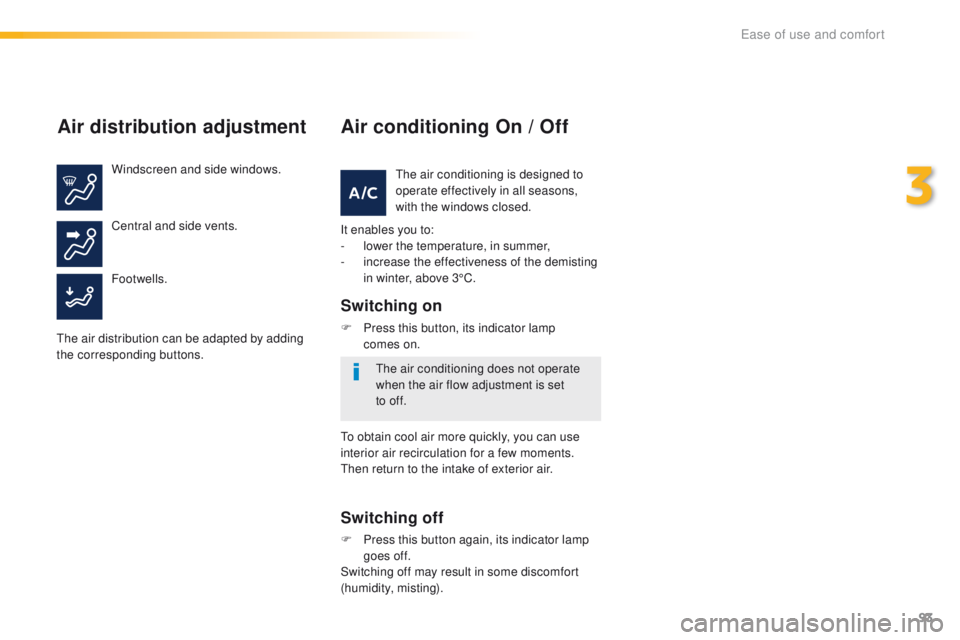

Air distribution adjustment
Windscreen and side windows.
Footwells. Central and side vents.
th

e air distribution can be adapted by adding
the corresponding buttons.
Air conditioning On / Off
It enables you to:
- l ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
F Press this button, its indicator lamp comes on.
Switching off
F Press this button again, its indicator lamp goes off.
Switching off may result in some discomfort
(humidity, misting).
th
e air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
th
e air conditioning does not operate
when the air flow adjustment is set
to

off.
to o

btain cool air more quickly, you can use
interior air recirculation for a few moments.
th
en return to the intake of exterior air.
3
Ease of use and comfort

94

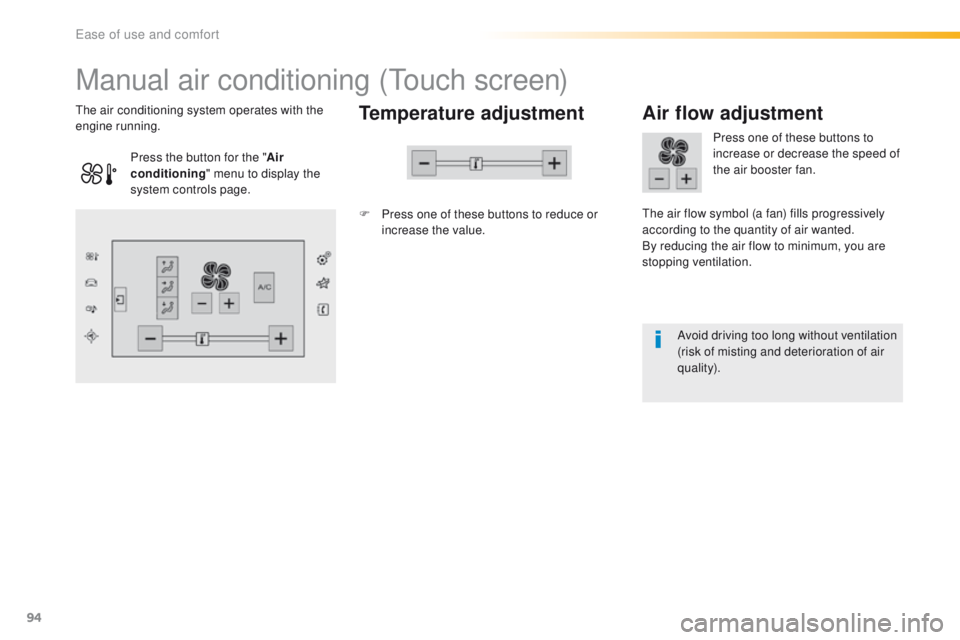

Manual air conditioning (touch screen)
Temperature adjustment
F Press one of these buttons to reduce or
increase the value.
th

e air conditioning system operates with the
engine running.
Air flow adjustment
Press one of these buttons to
increase or decrease the speed of
the air booster fan.
th

e air flow symbol (a fan) fills progressively
according to the quantity of air wanted.
By reducing the air flow to minimum, you are
stopping ventilation.
Avoid driving too long without ventilation
(risk of misting and deterioration of air
quality).
Press the button for the "
Air
conditioning " menu to display the
system controls page.
