2015.5 Citroen DS4 RHD Owner's Manual

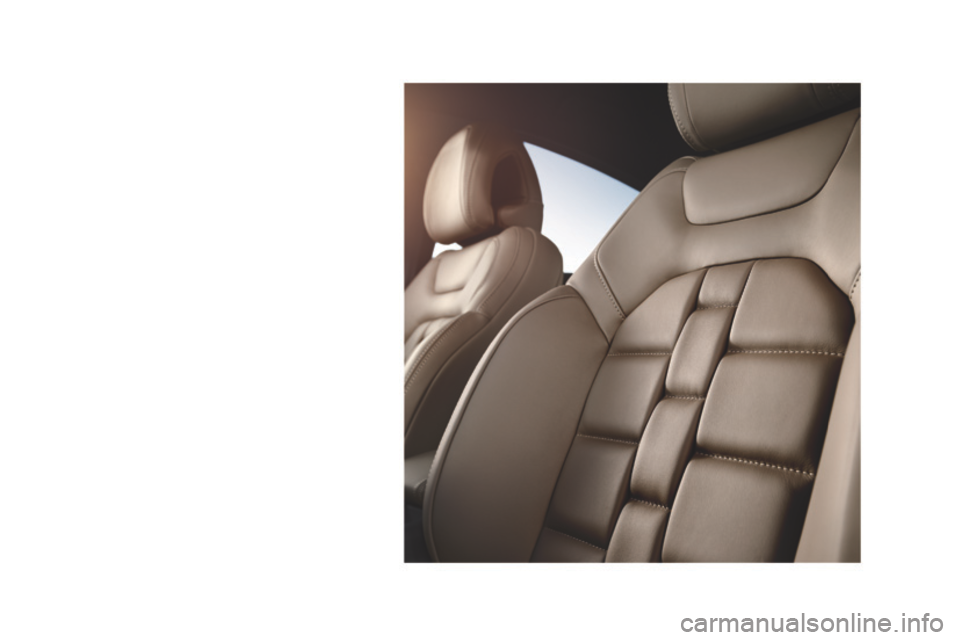

Front seats
Manual adjustments
Forwards-backwards
F Raise the control and slide the seat for wards or backwards.
F

R
elease the control to lock the position.
Seat height
F Pull the control upwards to raise or push it downwards to lower, as many times as
necessary, to obtain the position required.
Seat backrest angle
F Turn the control knob to adjust the seat backrest angle.
As a safety measure, seat adjustments should only be done when stationary.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming
the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

89
driver's seat electric
adjustments
Forwards-backwards
F Push the control for wards or rear wards to slide the seat.
Cushion height and angle
F Tilt the rear part of the control upwards or downwards to obtain the required height.
F

T
ilt the front part of the control upwards or
downwards to obtain the required angle.
Seat backrest angle
F Tilt the control for wards or rear wards to adjust the angle of the seat backrest.
The electrical functions of the driver's seat are deactivated approximately one minute after
the ignition is switched off.
To reactivate them, switch on the ignition.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the
seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.
Comfort

Heated seats control
With the engine running, the front seats can be
heated separately.
F
U
se the adjustment dial, placed on the side
of each front seat, to switch on and select
the level of heating required:
0 : O

ff.
1: L

ow.
2: M

edium.
3: H

igh.
Additional adjustments
Head restraint height and angle
F To raise a head restraint, pull it upwards.
F T o lower the head restraint, press the lug A
and the head restraint at the same time.
F

T
o adjust the angle of the head restraint, tilt
its lower part for wards or rear wards. The head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Removing a head restraint
F To remove the head restraint, press the
lug A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back and press the lug A at the same time.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.

91
Manual lumbar adjustment
F Turn the knob to obtain the desired level of lumbar support.
Electric lumbar adjustment
F Press the front or rear of the control to obtain the desired lumbar support. This function provides a back massage; it only
operates when the engine is running.
F

P
ress the switch to activate the function.
The warning lamp on the switch comes on and
the massage function is activated for a period
of 60
minutes. During this time, massage is
per formed in 6 cycles of 10 minutes each cycle
(6
minutes of massage followed by 4 minutes
break).
After an hour, the function is automatically
deactivated. The warning lamp in the switch
goes off.
deactivation
You can deactivate the massage function at
any time by pressing the switch. The movement
in progress continues until the initial non-
massage position is reached.
Massage function
Comfort

Rear seatsBench seat with fixed one-piece cushion and split backrests (1/3 - 2/3) which can be folded individually to adapt the load space in the boot.
F
M
ove the corresponding front seat for ward
if necessary.
F

P
osition the seat belt between the outer
and centre head restraints to avoid
trapping the belt when repositioning the
seat backrest.
F

P
lace the head restraints in the low
position.
Folding the backrest
F Pull control 1 for wards to release the seat back 2 .
F

F
old the seat back 2 on to the cushion. F

S
traighten the seat back 2 and secure it.
F
C
heck that the red indicator, located next to
the control 1 , is no longer visible.
F
P
ut the seat belt back in place on the side
of the seat backrest.
Repositioning the seat backrest
When repositioning the seat backrest,
take care not to trap the seat belts.

93
These have one position for use (up) and a
stowed position (down).
They can also be removed.
To remove a head restraint:
F
r
elease the backrest using control 1 ,
F

t
ilt the backrest 2 slightly for wards,
F

p
ull the head restraint upwards to the stop,
F

t
hen, press the lug A .
Rear head restraints
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Steering wheel adjustment
F When stationary , pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these operations
should only be carried out with the
vehicle stationary.
Comfort

Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
demisting - def rosting Adjustment
F Move control A to the right or to the left to
select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
door mirrors
As a safety measure, the mirrors
should be adjusted to reduce the blind
spots.
Folding
F From outside: lock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rear wards.
If the mirrors are folded using control

A,
t

hey will not unfold when the vehicle is
unlocked. Pull again on control A .
If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates by switching on the heated
rear screen.
Refer to the "Rear screen demist-defrost"
section.
The rear screen demist - defrost can only
operate when the engine is running. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
