2014 VOLVO V60 Owners Manual

11 Specifications
11
}}
399

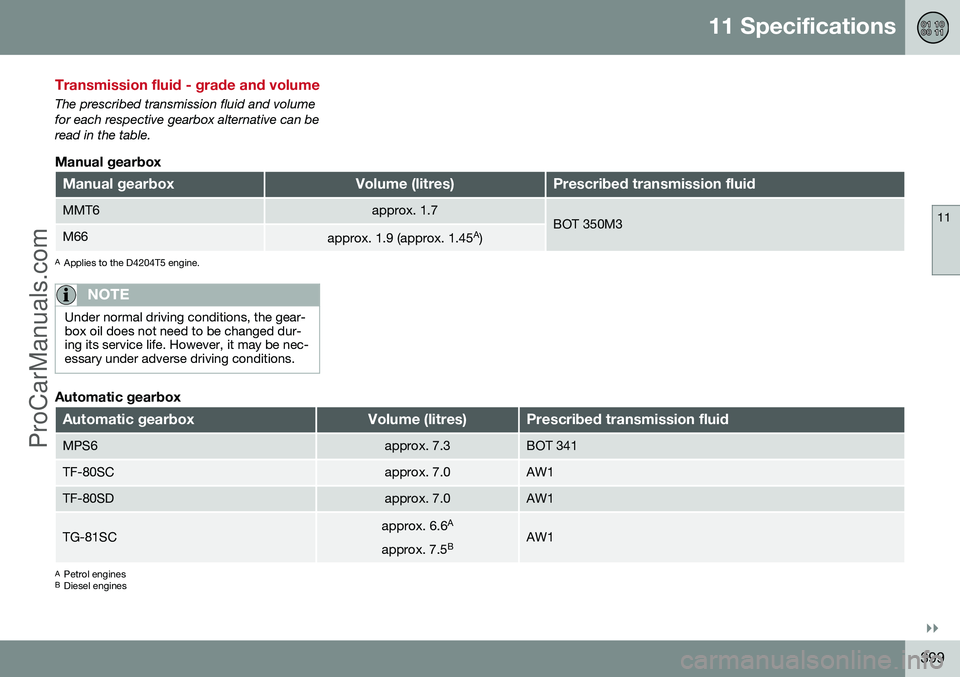

Transmission fluid - grade and volume
The prescribed transmission fluid and volume for each respective gearbox alternative can beread in the table.
Manual gearbox
Manual gearboxVolume (litres)Prescribed transmission fluid
MMT6approx. 1.7BOT 350M3M66approx. 1.9 (approx. 1.45A
)
A Applies to the D4204T5 engine.
NOTE
Under normal driving conditions, the gear- box oil does not need to be changed dur-ing its service life. However, it may be nec-essary under adverse driving conditions.
Automatic gearbox
Automatic gearboxVolume (litres)Prescribed transmission fluid
MPS6approx. 7.3BOT 341
TF-80SCapprox. 7.0AW1
TF-80SDapprox. 7.0AW1
TG-81SCapprox. 6.6 A
approx. 7.5 BAW1
A
Petrol engines
B Diesel engines
ProCarManuals.co’

||
11 Specifications
11
400

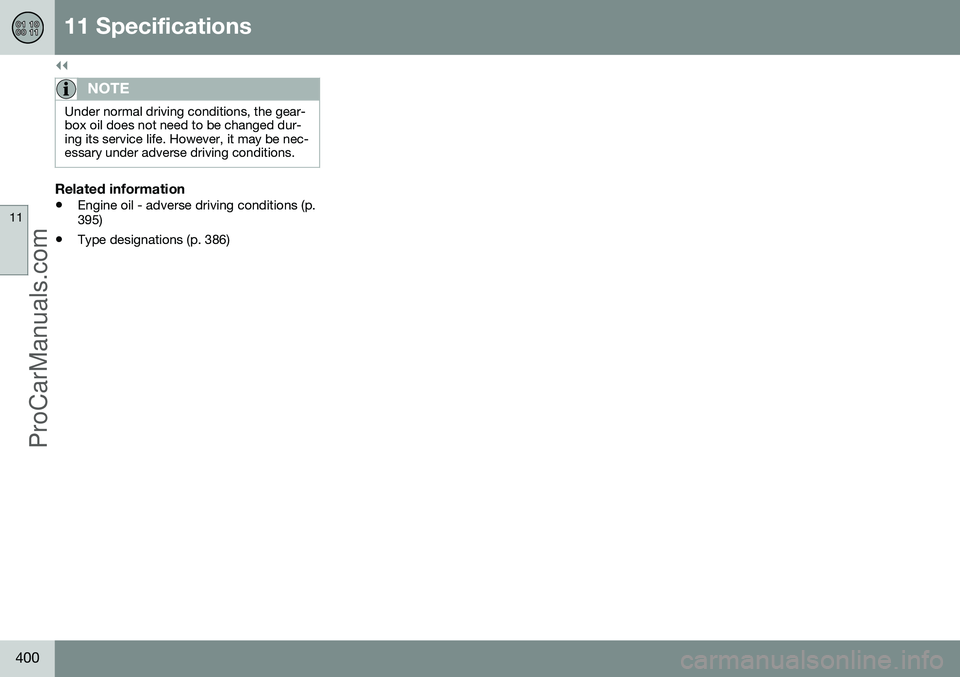

NOTE
Under normal driving conditions, the gear- box oil does not need to be changed dur-ing its service life. However, it may be nec-essary under adverse driving conditions.
Related information
•Engine oil - adverse driving conditions (p. 395)
• Type designations (p. 386)
ProCarManuals.co’

11 Specifications
11
401
Brake fluid - grade and volume
The medium in a hydraulic brake system is called brake fluid, and it is used to transferforce from e.g. a brake pedal via a masterbrake cylinder to one or more slave cylinders,which in turn act on a mechanical brake. Prescribed grade: DOT 4
Volume: 0.6 litres
Related information
•Brake and clutch fluid - level (p. 350)
Power steering fluid - grade
Power steering fluid is the denomination of the medium used in the car's power steeringsystem. Prescribed grade:
WSS M2C204-A2 or
equivalent product.
Related information
• Power steering fluid - level (p. 351)
Washer fluid - quality and volume
Washer fluid is used, together with wind- screen and rear window wipers (p. 90) to keepthe car's windows and headlamps clean andensure visibility when driving. Prescribed grade:
Washer fluid recom-
mended by Volvo - with frost protection dur- ing cold weather and below freezing point. Volume: • Cars
with headlamp washing: 5.4 litres.
• Cars
without headlamp washing: 4.0
litres.
Related information
• Washer fluid - filling (p. 361)
• Wiper blades (p. 359)
ProCarManuals.co’

11 Specifications
11
402
Fuel tank - volume
Fuel tank volume for each respective engine alternative can be read in the table.
EngineVolume (litres)Prescribed grade
Petrol engineapprox 67Petrol: Fuel - petrol (p. 302)
Diesel engineapprox 67Diesel: Fuel - diesel (p. 302)
Related information
•Filling up with fuel (p. 300)
• Engine specifications (p. 393)
ProCarManuals.co’

11 Specifications
11
}}
403
Fuel consumption and CO2 emissions
Fuel consumption in a vehicle is measured in litres per 100 km and CO2 emissions in gramsper km. Explanation
gram/km
litre/100 km
urban driving
extra-urban driving
combined driving
V60
T3 (B4164T3)––––––
T3 (B4164T3)2299.91345.81677.2
T4 (B4164T)––––––
T4 (B4164T)2299.91345.81677.2
T4FA
(B4164T2)219 (212 B
)9.5 (12.9 B
)129 (124 B
)5.6 (7.5 B
)162 (156 B
)7.0 (9.5 B
)
T4F A
(B4164T2)229 (218 B
)9.9 (13.3 B
)132 (128 B
)5.7 (7.8 B
)167 (161 B
)7.2 (9.8 B
)
ProCarManuals.co’

||
11 Specifications
11
404
V60
T5C
(B4204T11)––––––
T5 D
(B4204T11)––––––
T6 (B4204T9)––––––
T6 AWD (B6304T4)34614.81757,523710.2
D2 C
(D4162T)1375.21094.11194,5
D2 D
(D4162T)1214.61013.81084.1
D2 C
(D4162T)1345.11114.21194,5
D2 D
(D4162T)1254.81023.91104.2
D3 (D5204T7)1385.21084.11194,5
D3 (D5204T7)1596.11124.31294.9
D4 C
(D4204T5)––––––
ProCarManuals.co’

11 Specifications
11
}}
405
V60
D4D
(D4204T5)––––––
D4 C
(D4204T5)––––––
D4 D
(D4204T5)––––––
D4 AWD (D5244T12)––––––
D4 AWD (D5244T17)––––––
D5 (D5244T11)1485.61044.01204.6
D5 (D5244T15)2218.51284.91626.2
D5 AWD (D5244T15)––––––
A Flexifuel engines can be driven on both 95 octane unleaded petrol and bioethanol E85. Both fuels are filled in the common fuel tank so that any variations of mixing ratios between these two fuels is possible.
B E85
C Does not apply to the low-emissions variant.
D This only applies to the low-emissions variant.
ProCarManuals.co’

||
11 Specifications
11
406
NOTE
If the consumption and emission data is missing then it is included in the enclosedsupplement.
Fuel consumption and emission values in the table above are based on specific EU cycles3
,
that apply to cars with kerb weight in the basic version and without extra equipment.The car's weight may increase depending onequipment. This, as well as how heavily thecar is loaded, increases fuel consumption andcarbon dioxide emissions. There are several reasons for increased fuel consumption compared with the table's val-ues. Examples of this are:
• The driver's driving style.
• If the customer has specified wheels larger than those fitted as standard on themodel's basic version, then resistanceincreases.
• High speed results in increased windresistance.
• Fuel quality, road and traffic conditions,weather and the condition of the car. Even a combination of the above-mentioned examples can result in significantly improvedconsumption. For further information, please refer to the regulations referred to
3
.
Large deviations in fuel consumption may arise in a comparison with the EU driving cycles 3
which are used in the certification of
the car and on which the consumption figures in the table are based.
NOTE
Extreme weather conditions, driving with a trailer or driving at high altitudes in combi-nation with fuel grade are factors thatcould affect the car's performance.
Related information
• Economical driving (p. 305)
• Weights (p. 390)
3
Official fuel consumption figures are based on two standardised driving cycles in a laboratory environment ("EU driving cycles") all in accordance with EU Regulation no 692/2008 and 715/2007 (Euro 5 / Euro 6) and UN ECE Regulation no 101. The regulations cover the driving cycles for urban driving and extra-urban driving. - Urban driving - the measurement starts with cold starting theengine. The driving is simulated. - Extra-urban driving - the car is accelerated and braked at speeds between 0 and 120 km/h. The driving is simulated. - A car with T3, D2, D3, D4 or D5 engineand 6-speed manual gearbox is started in 2nd gear. The combined driving value given in the table is a combination of urban driving and extra-urban driving, in accordance with applicable legisla-tion. CO
2 emissions - the exhaust gases are collected in order to calculate the carbon dioxide emissions during the two driving cycles. These are then analysed and give the value for CO
2
emissions.
