2014 VOLVO V60 Owners Manual

11 Specifications
11
}}
391
Towing capacity and towball loadTowing capacity and towball load for driving with a trailer can be read in the tables.
Max. weight braked trailer
EngineEngine codeAGearboxMax. weight braked trailer (kg)Max. towball load (kg)
T3B4164T3Manual, MMT6160075
T3B4164T3Automatic, MPS6160075
T4B4164TManual, MMT6160075
T4B4164TAutomatic, MPS6160075
T4
BB5204T8Automatic, TF-80SD180090
T4FB4164T2Manual, MMT6160075
T4FB4164T2Automatic, MPS6160075
T5B4204T11Automatic, TG-81SC160075
T5BB5204T9Automatic, TF-80SD180090
T6B4204T9Automatic, TG-81SC180090
T6 AWDB6304T4Automatic, TF-80SC180090
D2D4162TManual, MMT6130075
D2D4162TAutomatic, MPS6130075
D3D5204T7Manual, M66160075
D3D5204T7Automatic, TF-80SD160075
D4D4204T5Manual, M66180090
ProCarManuals.co’

||
11 Specifications
11
392
EngineEngine codeAGearboxMax. weight braked trailer (kg)Max. towball load (kg)
D4D4204T5Automatic, TG-81SC180090
D4 AWDD5244T12Automatic, TF-80SC180090
D4 AWDD5244T17Automatic, TF-80SC180090
D5D5244T11Manual, M66160075
D5D5244T15Automatic, TF-80SC180090
D5 AWDD5244T15Automatic, TF-80SC180090
A
Engine code, component and serial number can be read on the engine; see Type designations (p. 386).
B Only certain markets.
Max. weight unbraked trailer
Max. weight unbraked trailer (kg)Max. towball load (kg)
75050
Related information
• Weights (p. 390)
• Driving with a trailer (p. 306)
• Trailer stabiliser - TSA (p. 312)
ProCarManuals.co’

11 Specifications
11
}}
393
Engine specifications
Engine specifications (output etc.) for each respective engine alternative can be read inthe table.NOTE
Not all engines are available in all markets.
EngineEngine codeAOutput
(kW/rpm)Output
(hp/rpm)Torque
(Nm/rpm)No. of cylin- dersBore
(mm)Stroke (mm)Swept vol- ume
(litres)Compres- sion ratio
T3B4164T3110/5700150/5700240/1600–400047981.41,59610.0:1
T4B4164T132/5700180/5700240/1600-500047981.41,59610.0:1
T4 BB5204T8132/5000180/5000300/2700–4200581.0771.98410.5:1
T4FB4164T2132/5700180/5700240/1600-500047981.41,59610.0:1
T5B4204T11180/5500245/5500350/1500-480048293.21,96910.8:1
T5BB5204T9157/6000213/6000300/2700–5000581.0771.98410.5:1
T6B4204T9225/5700306/5700400/2100-450048293.21,96910,3:1
T6B6304T4224/5600304/5600440/2100–4200682.093.22.9539.3:1
D2D4162T84/3600115/3600270/1750-250047588.31.56016.0:1
D3D5204T7100/3500136/3500350/1500-2250581.0771.98416.5:1
D4D4204T5133/4250181/4250400/1750-2500482.093.21,96915.8:1
D4 AWDD5244T12133/4000181/4000420/1500–2500581.093.22.40016.5:1
D4 AWDD5244T17120/4000163/4000420/1500–2500581.093.22.40016.5:1
ProCarManuals.co’

||
11 Specifications
11
394
EngineEngine codeAOutput
(kW/rpm)Output
(hp/rpm)Torque
(Nm/rpm)No. of cylin- dersBore
(mm)Stroke (mm)Swept vol- ume
(litres)Compres- sion ratio
D5D5244T11 C158/4000215/4000420/1500–3250581.093.152.40016.5:1
D5D5244T15D158/4000215/4000440/1500-3000581.093.152.40016.5:1
A
Engine code, component and serial number can be read on the engine; see Type designations (p. 386).
B Only certain markets.
C Manual gearbox
D Automatic gearbox
Related information
• Coolant - grade and volume (p. 398)
• Engine oil - grade and volume (p. 396)
ProCarManuals.co’

11 Specifications
11
395
Engine oil - adverse driving conditions
Adverse driving conditions can lead to abnor- mally high oil temperature or oil consumption.Below are some examples of adverse drivingconditions. Check the oil level (p. 346) more frequently for long journeys: •towing a caravan or trailer
• in mountainous regions
• at high speeds
• in temperatures colder than -30 °C or hotter than +40 °C.
The above also apply to shorter driving dis- tances at low temperatures. Choose a fully synthetic engine oil for adverse driving conditions. It provides extra protectionfor the engine. Volvo recommends:
IMPORTANT
In order to fulfil the requirements for the engine's service intervals all engines arefilled with a specially adapted syntheticengine oil at the factory. The choice of oilhas been made very carefully with regardto service life, starting characteristics, fuelconsumption and environmental impact. An approved engine oil must be used in order that the recommended service inter-vals can be applied. Only use a prescribedgrade of oil for both filling and oil change,otherwise you will risk affecting service life,starting characteristics, fuel consumptionand environmental impact. Volvo Car Corporation disclaims all war- ranty liability if engine oil of the prescribedgrade and viscosity is not used. Volvo recommends that oil changes are carried out at an authorised Volvo work-shop.
Related information
• Engine oil - grade and volume (p. 396)
• Engine oil - general (p. 345)
ProCarManuals.co’

11 Specifications
11
396

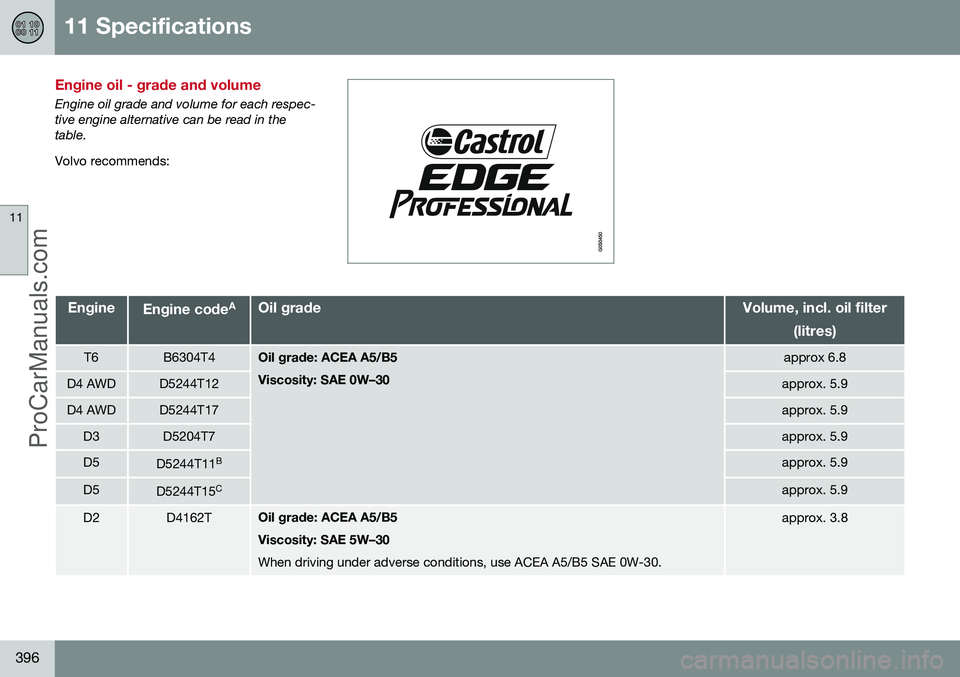

Engine oil - grade and volume
Engine oil grade and volume for each respec- tive engine alternative can be read in thetable. Volvo recommends:
EngineEngine codeAOil gradeVolume, incl. oil filter
(litres)
T6B6304T4Oil grade: ACEA A5/B5 Viscosity: SAE 0W–30approx 6.8
D4 AWDD5244T12approx. 5.9
D4 AWDD5244T17approx. 5.9
D3D5204T7approx. 5.9
D5D5244T11 Bapprox. 5.9
D5D5244T15Capprox. 5.9
D2D4162TOil grade: ACEA A5/B5 Viscosity: SAE 5W–30 When driving under adverse conditions, use ACEA A5/B5 SAE 0W-30.approx. 3.8
ProCarManuals.co’

11 Specifications
11
397
EngineEngine codeAOil gradeVolume, incl. oil filter
(litres)
T3B4164T3Certified and factory-filled oil: Oil grade WSS-M2C925-A
options for service: Oil grade: ACEA A5/B5 Viscosity: SAE 5W–30approx. 4.1
T4B4164Tapprox. 4.1
T4FB4164T2approx. 4.1
T4 DB5204T8Oil grade: ACEA A5/B5 Viscosity: SAE 0W–30approx 5.5
T5
DB5204T9approx 5.5
T5B4204T11Castrol Edge Professional V 0W-20 or 0w20 VCC RBS0-2AEapprox. 5.4
T6B4204T9approx. 5.4
D4D4204T5approx. 5.6
A
Engine code, component and serial number can be read on the engine; see Type designations (p. 386).
B Manual gearbox
C Automatic gearbox
D Only certain markets.
Related information
• Engine oil - adverse driving conditions (p. 395)
• Engine oil - checking and filling (p. 346)
ProCarManuals.co’

11 Specifications
11
398
Coolant - grade and volume
Approved coolant volume for each respective engine alternative can be read in the table. Prescribed grade: Coolant recommended by
Volvo mixed with 50% water 2
, see the pack-
aging.
Engine AVolume
(litres)
D2D4162T C10.5
D2D4162TD11.1
T4
BB5204T88.9
T5BB5204T9
T6B6304T4
D4 AWDD5244T12
D4 AWDD5244T17
D3D5204T7
D5D5244T15
D5D5244T11
Engine AVolume
(litres)
T3B4164T3 C9.2
T4B4164TC
T4FB4164T2 C
T3B4164T3D9.8
T4B4164TD
T4FB4164T2 D
T5B4204T118,3 (8,7
E
)
T6B4204T9
D4D4204T58,9 (9,2 E
)
A Engine code, component and serial number can be read on the engine; see Type designations (p. 386).
B Only certain markets.
C Manual gearbox
D Automatic gearbox
E Applies to cars with fuel-driven heater.
Related information
• Coolant - level (p. 349)
2
Water quality must fulfil the standard STD 1285.1.
