2014 TOYOTA PRIUS PLUS Owners Manual

1613-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS +_OM_OM47888E_(EE)

1623-2. Opening, closing and locking the doors
PRIUS +_OM_OM47888E_(EE)

1633-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS +_OM_OM47888E_(EE)

1643-2. Opening, closing and locking the doors
PRIUS +_OM_OM47888E_(EE)
WARNING
■ Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart entry & start system antennas. ( →P. 151)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.
On vehicles with the navigation syst em, the entry function can be disabled
personally. ( →P. 465)

165
3
3-3. Adjusting the seats
Operation of each component
PRIUS +_OM_OM47888E_(EE)
Front seats
XManual seat
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(for driver’s side)
Lumbar support adjustment
switch (for driver’s side)
XPower seat (for driver’s side)
Seat position adjustment switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Seatback angle adjustment
switch
Lumbar support adjustment
switch
Adjustment procedure
1
2
3
4
1
2
3
4
5

1663-3. Adjusting the seats
PRIUS +_OM_OM47888E_(EE)■
Before flattening the seatbacks
Stop the vehicle in a safe place.
Apply the parking brake firmly and shift the shift position to P. ( →P. 209)
Slide the second seats as far back as possible. ( →P. 169)
■Flattening the seatbacks
Move the front seat forward
and remove the head
restraint. ( →P. 177)
Tilt the front seatback to the
same height as the rear seat
cushion.
To return the seats, reverse the procedure.
After returning the seats to their original position, make sure to replace
the head restraint.
Flattening the seatbacks
1
2
1
2
3

1673-3. Adjusting the seats
3
Operation of each component
PRIUS +_OM_OM47888E_(EE)
WARNING
■ When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seats: After adjusting the seat, make sure that the seat is locked in
position.
● When returning the seats to their upright positions, be careful not to catch
the seat belts.
■ Flattening the seats
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not flatten the seats while driving.
● In a flat place, apply the parking brake firmly and shift the shift position to
P.
● Do not flatten the seats if they are occupied.
● Be careful not to get feet or hands caught in the moving parts or joints of
the seats while flattening.
● Do not allow children to flatten the seats.
● Do not drive with passengers sitting on the flattened seatback or in the lug-
gage compartment.
● Do not drive with luggage or passengers on the flattened seats.
● Do not allow children to enter the luggage compartment.
● After flattening, gently rock the seats to ensure they are firmly in place.
● Make sure that the seat belts are not caught in the gaps between the
seats.

1683-3. Adjusting the seats

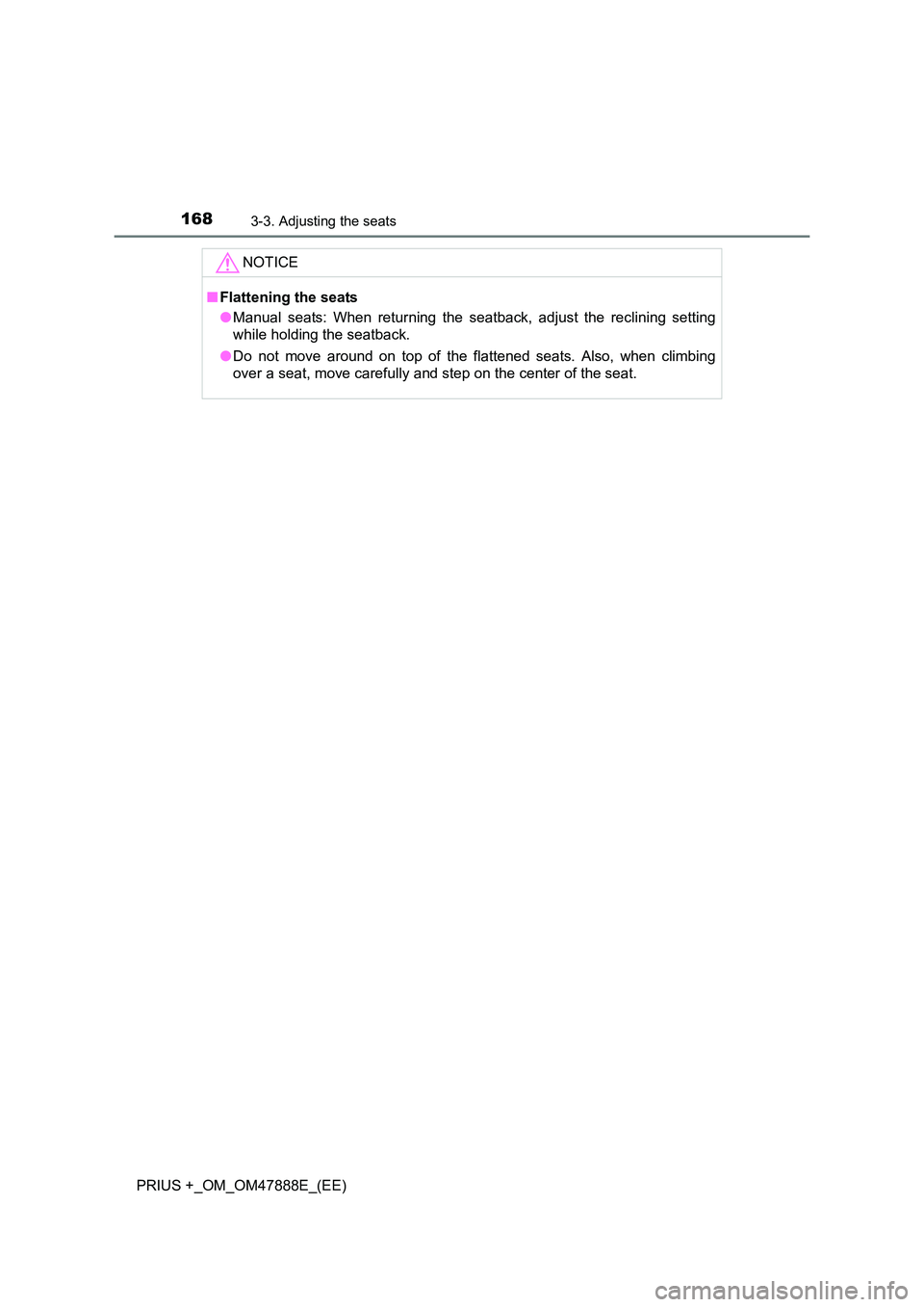

PRIUS +_OM_OM47888E_(EE)NOTICE
■
Flattening the seats
●Manual seats: When returning the seatback, adjust the reclining setting
while holding the seatback.
● Do not move around on top of the flattened seats. Also, when climbing
over a seat, move carefully and step on the center of the seat.
