1-3. Theft deterrent system
PRIUS +_OM_OM47888E_(EE)
For safety and security
Alar m∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
●A locked door or back door is unlocked or opened in any way other
than using the entry function or wireless remote control.
● The hood is opened.
● The quarter windows or back door window are tapped or broken. (if
equipped)
Close the doors and hood, and
lock all the doors using the entry
function or wireless remote con-
trol. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function or wireless remote con-
trol.
● Start the hybrid system. (The alarm will be deactivated or stopped
after a few seconds.)
∗: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm

981-3. Theft deterrent system
PRIUS +_OM_OM47888E_(EE)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following.
● Nobody is in the vehicle.
● The windows is closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The doors are unlocked using the
mechanical key.
● A person inside the vehicle opens a door
or hood.
● The 12-volt battery is recharged or
replaced when the vehicle is locked.
(→ P. 441)

991-3. Theft deterrent system
1
PRIUS +_OM_OM47888E_(EE)
For safety and security
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
12-volt battery.
■ Customization
The alarm can be set to deactivate when the mechanical key is used to
unlock.
(Customizable features: →P. 465)
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1001-3. Theft deterrent system
PRIUS +_OM_OM47888E_(EE)
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(→ P. 9 7 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as they will respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor
cancel switch.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor (if equipped)
1
2

1011-3. Theft deterrent system
1
PRIUS +_OM_OM47888E_(EE)
For safety and security

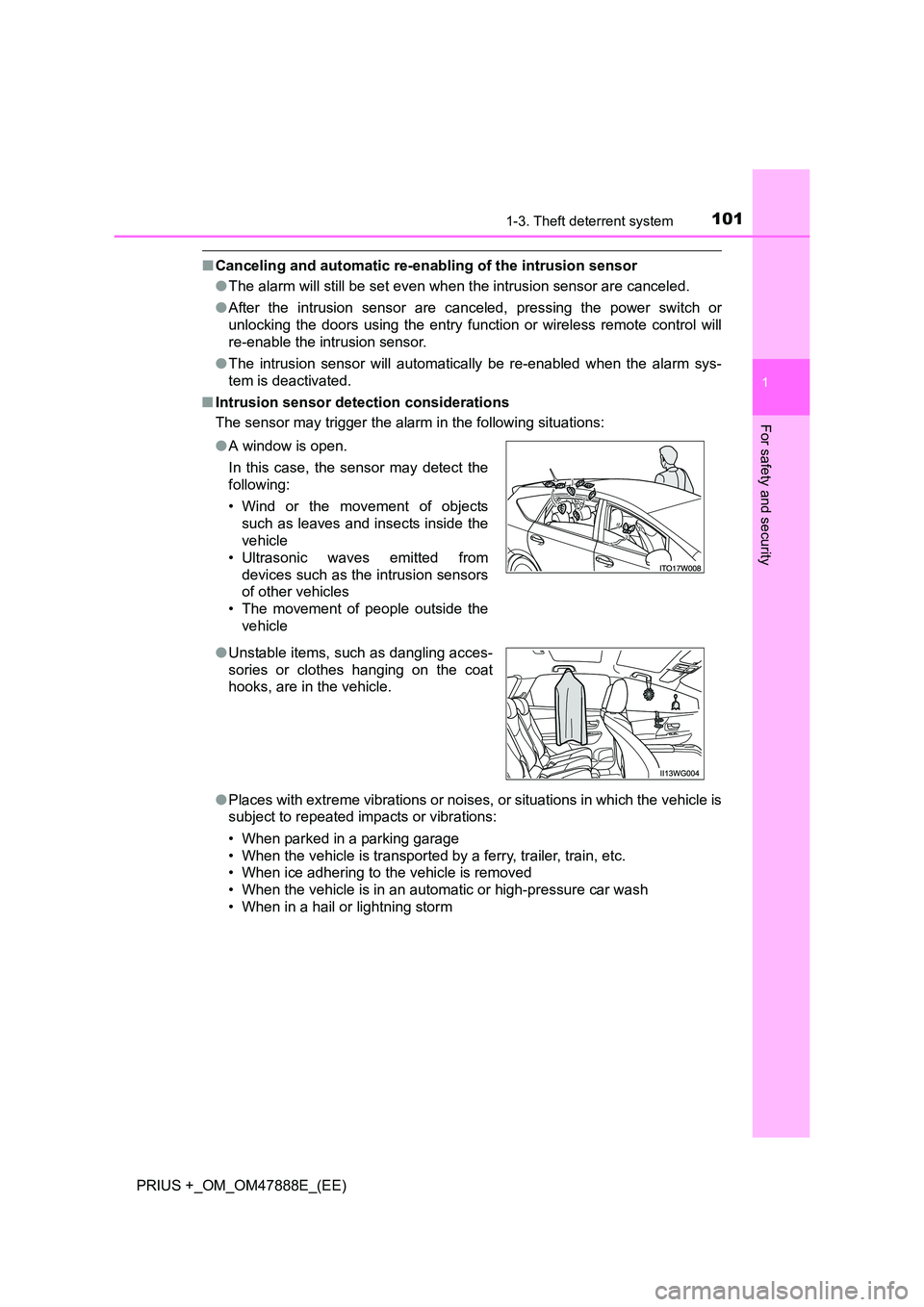

■Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor are canceled.
● After the intrusion sensor are canc eled, pressing the power switch or
unlocking the doors using the entry function or wireless remote control will
re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
● Places with extreme vibrations or noises, or situations in which the vehicle is
subject to repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
●
A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from devices such as the intrusion sensors
of other vehicles
• The movement of people outside the vehicle
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

1021-3. Theft deterrent system
PRIUS +_OM_OM47888E_(EE)NOTICE
■
To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
●To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

103
2Instrument cluster
PRIUS +_OM_OM47888E_(EE)2. Instrument cluster
Warning lights and indicators ......................... 104
Gauges and meters ........... 109
Multi-information display ............................. 118
Head-up display .................126
Energy monitor/ consumption screen ........ 131

1042. Instrument cluster
PRIUS +_OM_OM47888E_(EE)
War ning lights and indicators
XVehicles without multi-information display
XVehicles with multi-information display
The units used on the meter may differ depending on the target
region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
