2014 TOYOTA GT86 Owners Manual

65 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Getting out of the rear seats
Driver’s side (if equipped)
Pull the seatback fold strap.
The seatback will fold forward.
Passenger’s side
Pull the seatback fold strap.
The seatback will fold forward.
The seat can be slid forward and
backward.
After getting in or out of the rear seats
Return the seatback to the upright position until the seat locks.
Front passenger seat only: The seat will lock in position at the point where
the seatback reaches the upright position.
Seat dust cover
Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.

66 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
After adjusting the seat, make sure that the seat is locked in position.
Take care not to hit passengers with the seat.
When sliding the seat rearward, make sure not to squash the legs of the
rear passengers.
When returning the seatback upright, perform seatback angle adjustment
while holding down the seatback.
Do not pull on or use the front seat belt guide to adjust or fold the front
seat.
Do not put your hands under the seat or near the moving parts to avoid
injury. Fingers or hands may become jammed in the seat mechanism.
When driving the vehicle
Never operate the seatback angle adjustment lever or seatback fold strap.
Doing so could cause an accident resulting in death or serious injury.
Getting in and out of the rear seats
When getting in or out of the rear seats, make sure not to get your hands,
legs, etc. squashed in the movable or connecting parts.
When getting in or out of the rear seats, make sure not to trip on the seat
rails.
After getting in or out of the rear seats, always make sure the front seat is
locked in position.
When operating the front seat from the rear seat
Make sure that no passenger is seated in the front seat.

67
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Rear seats
Seat dust cover
Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (automatic transmission) or N (manual transmission).
Do not allow anyone to sit on a folded seatback or in the trunk while driv-
ing.
Do not allow children to enter the trunk.
The seatbacks of the rear seats can be folded down.
Press the seatback lock
release buttons and fold the
seatback down.
Press the button until the lock
is released.
To return the seatbacks to its
original position, lift it up until it
locks.

68 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Check that the seat belts are not twisted or caught in the seatback.
Before using the rear seat belts
Make sure that the seatback is
securely locked in position by lightly
pushing it back and forth.
If the seatback is not securely locked,
the red portion behind the seatback
lock release button will be visible.
Make sure that the red portion is not
visible.
Always make sure that the seat belt is not
caught in the seatback or twisted in one
of the hooks that secure the seatback.
Failure to do so may cause the seat belt
to not be fastened correctly or to become
ineffective in a collision, resulting in death
or serious injury.

69
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Head restraints
Removing the head restraints
Installing the head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.

70 1-3. Adjustable components (seats, mirrors, steering wheel)
Adjusting the height of the head restraints
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

71
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

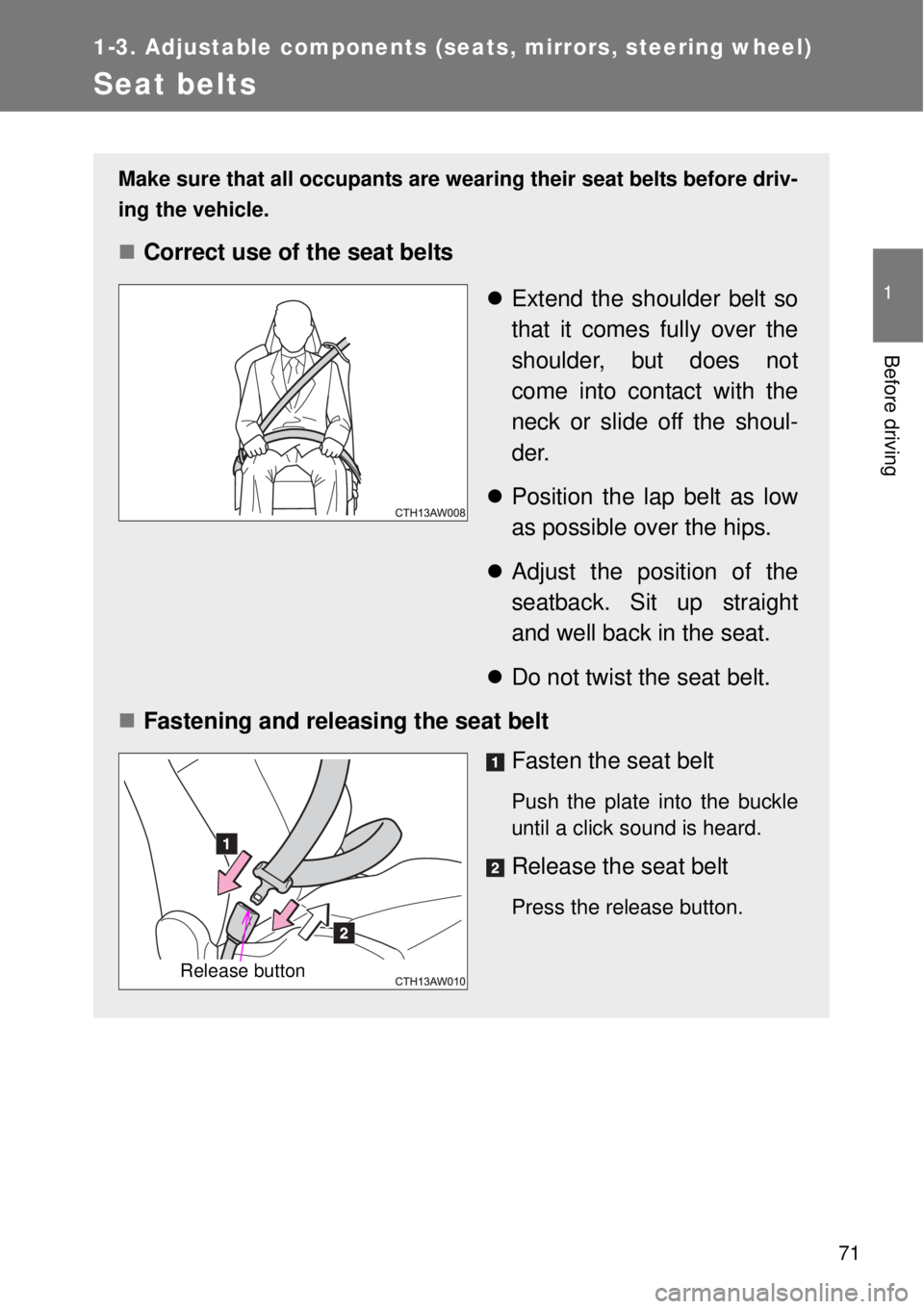

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fasten the seat belt
Push the plate into the buckle
until a click sound is heard.
Release the seat belt
Press the release button.
Release button

72 1-3. Adjustable components (seats, mirrors, steering wheel)
Front seat belt guide
To enable the seat belt to be
easily extended, pass the seat
belt through the guide.
When getting in or out of the rear
seats, release the seat belt from
the guide.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
