Replacing light bulbs

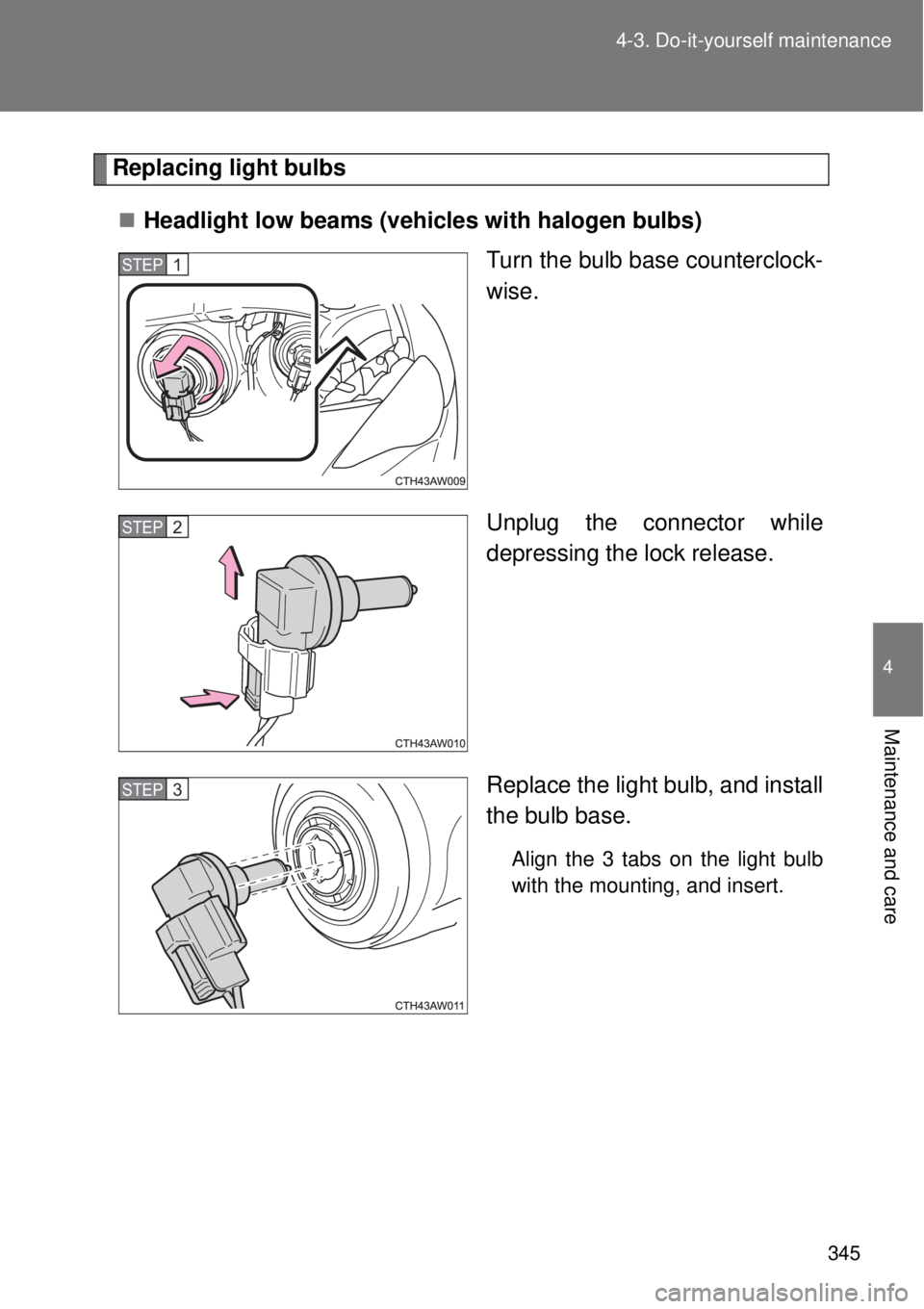

Headlight low beams (vehicles with halogen bulbs)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 1
STEP 2
STEP 3

346 4-3. Do-it-yourself maintenance
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beams on once and
visually confirm that no light is
leaking through the mounting.
Headlight high beams (vehicles with halogen bulbs)
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Install a new bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 4
STEP 1
STEP 2
STEP 3

347 4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams on once
and visually confirm that no light
is leaking through the mounting.
Front position lights (vehicles with halogen headlights)
Turn the bulb base counterclock-
wise.

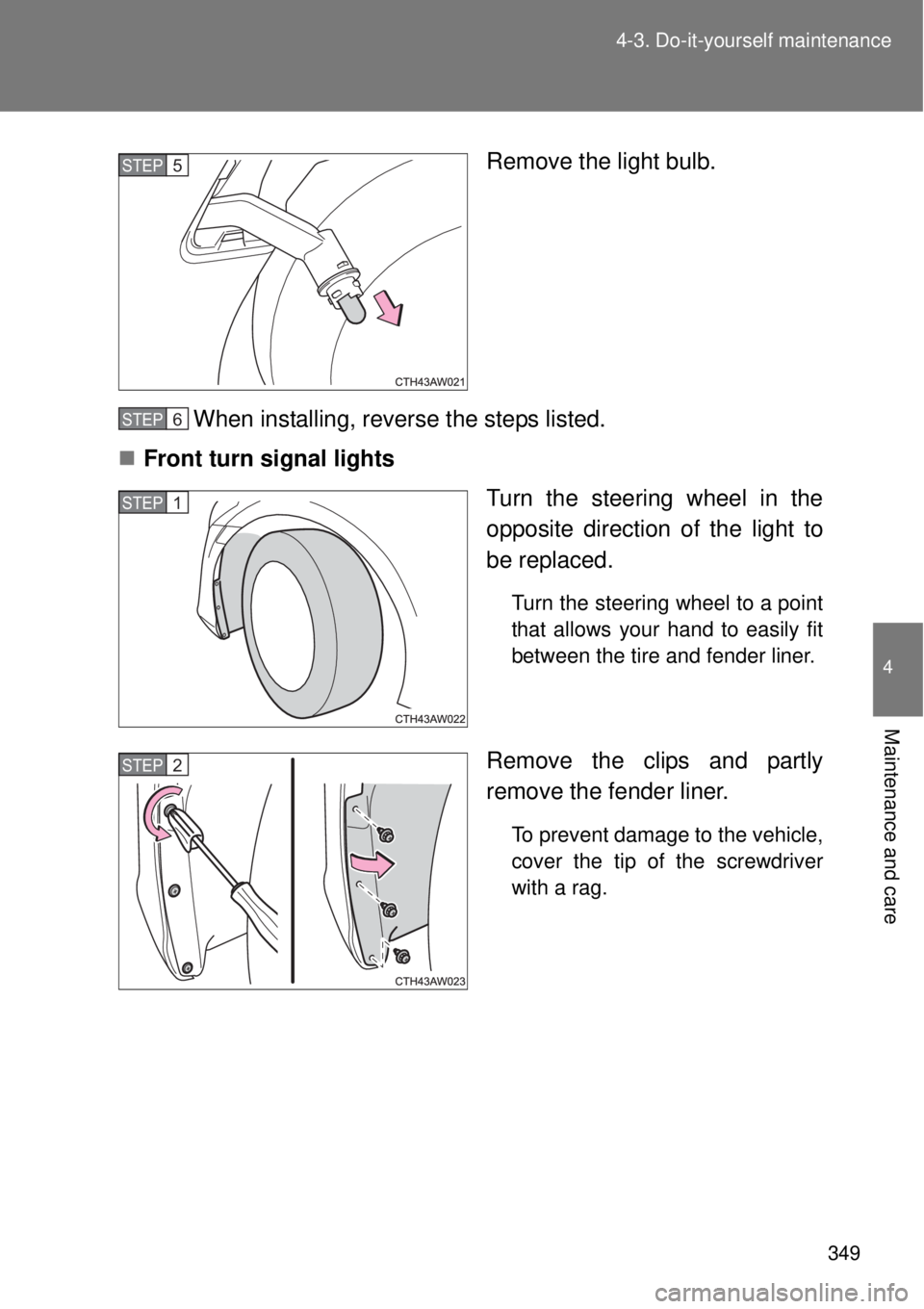

Remove the light bulb.
When installing, reverse the steps listed.
STEP 4
STEP 1
STEP 2
STEP 3

348 4-3. Do-it-yourself maintenance

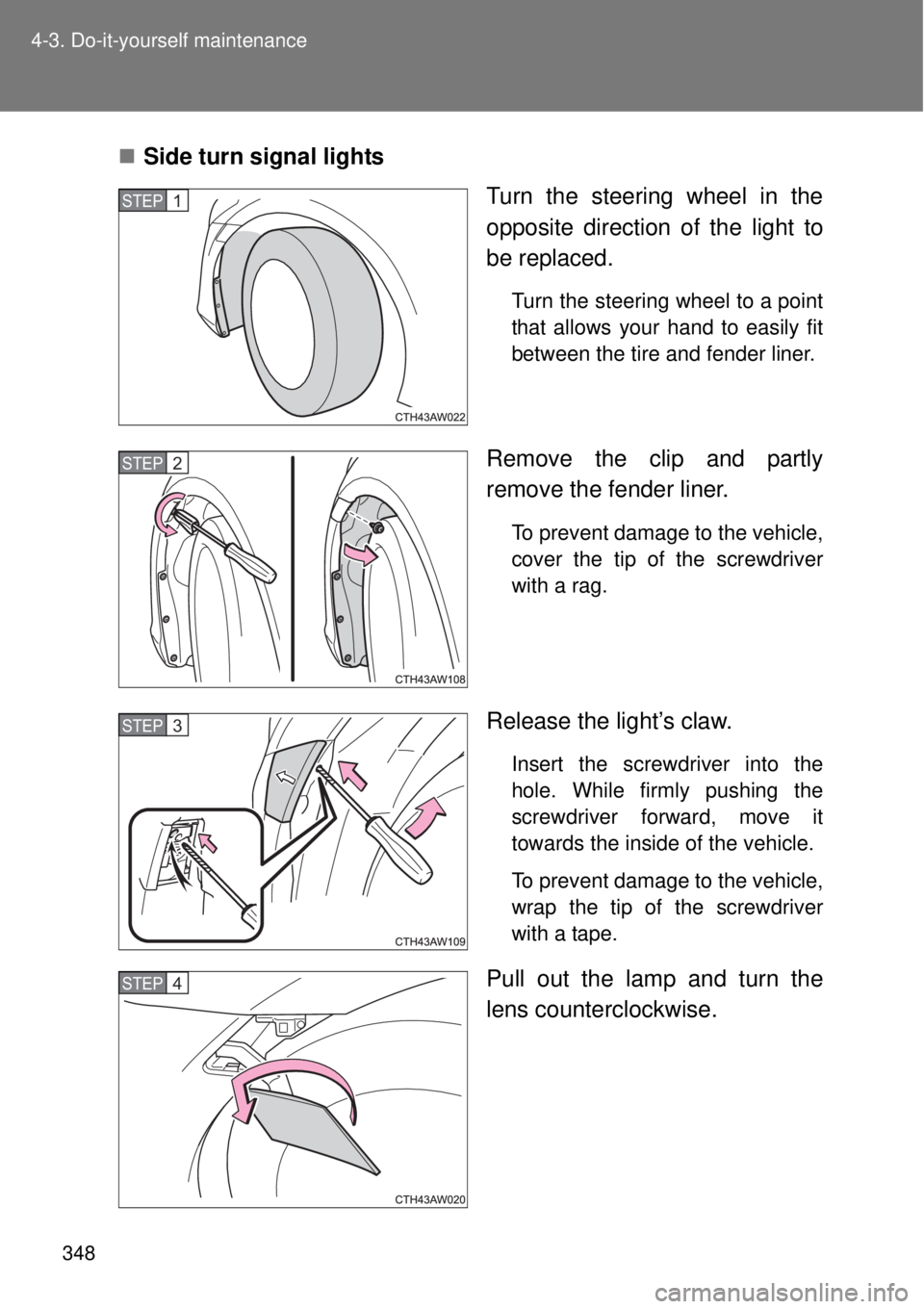

Side turn signal lights

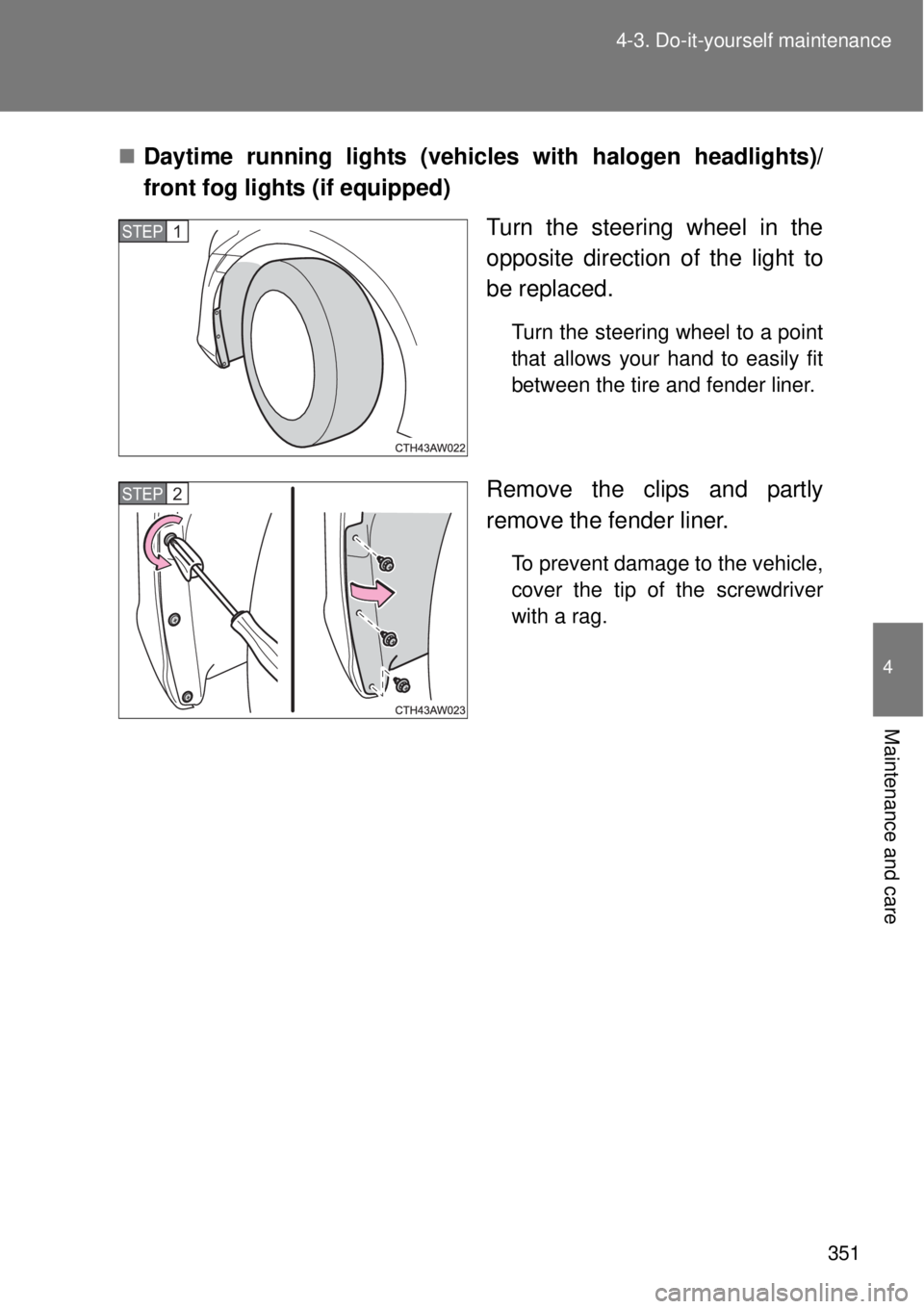

Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clip and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Release the light’s claw.
Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.
To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.
Pull out the lamp and turn the
lens counterclockwise.
STEP 1
STEP 2
STEP 3
STEP 4

349 4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.
When installing, reverse the steps listed.
Front turn signal lights
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
STEP 5
STEP 6
STEP 1
STEP 2

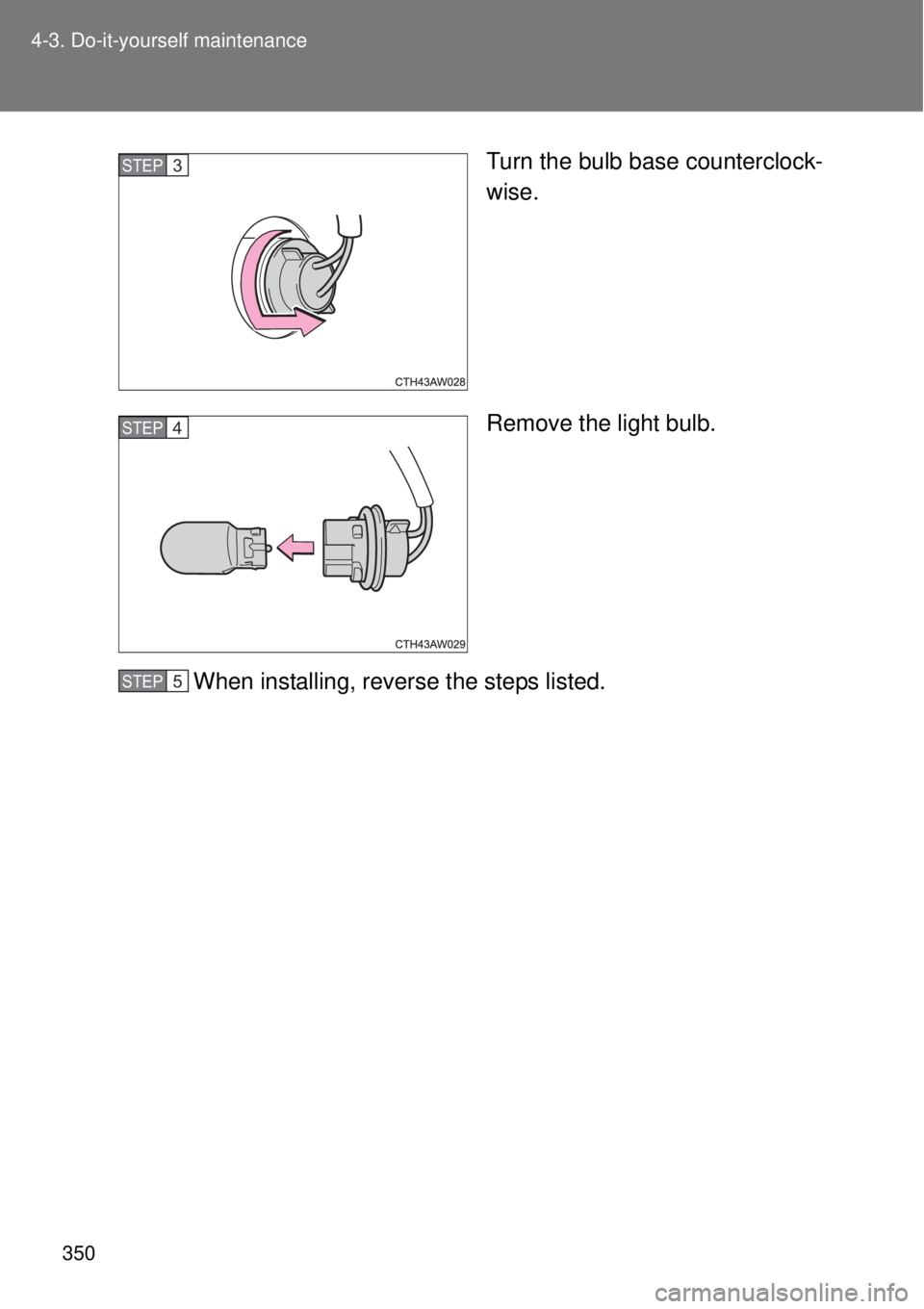

350 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.STEP 3
STEP 4
STEP 5

351 4-3. Do-it-yourself maintenance
4
Maintenance and care
Daytime running lights (vehicles with halogen headlights)/
front fog lights (if equipped)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
STEP 1
STEP 2

352 4-3. Do-it-yourself maintenance

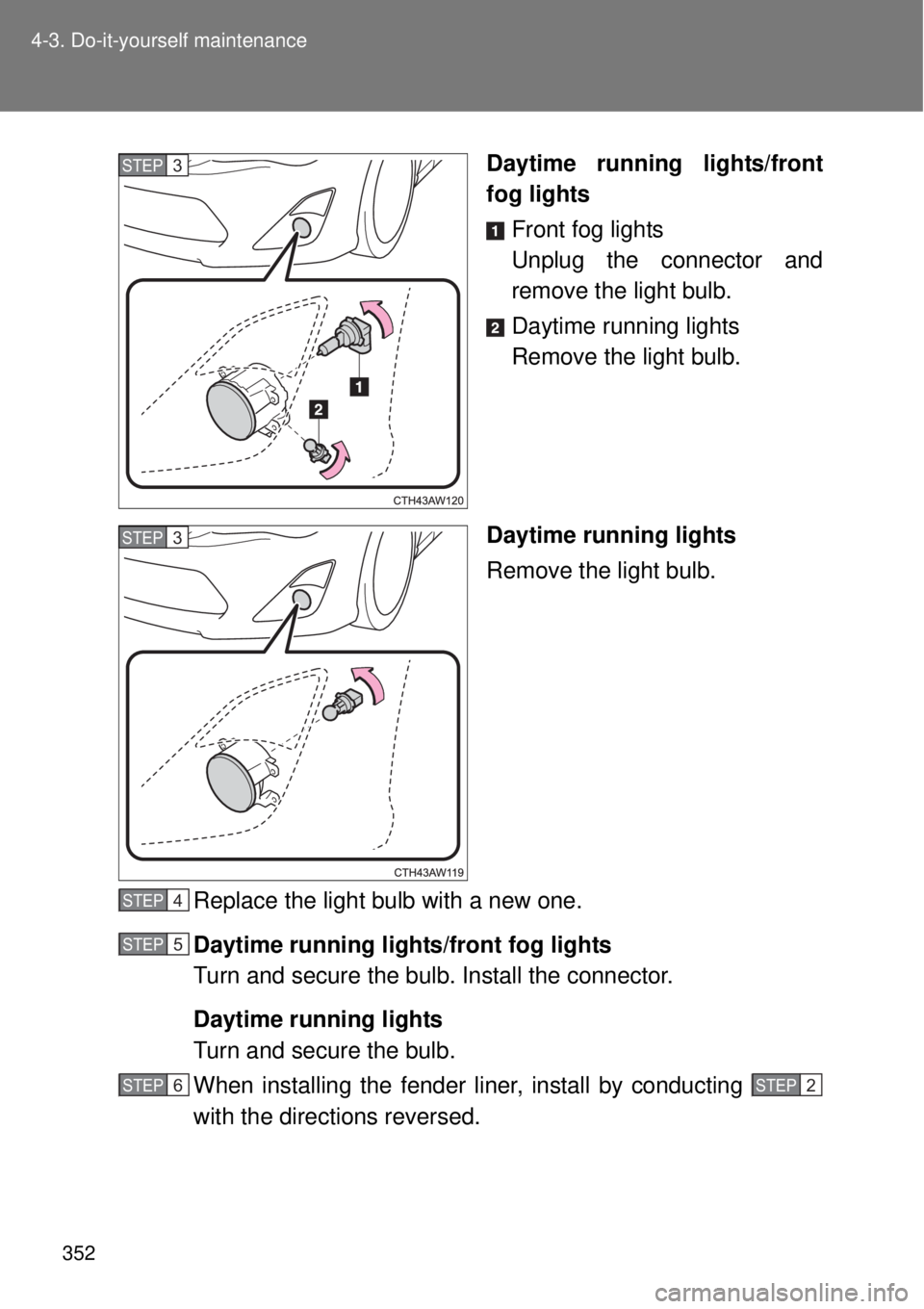

Daytime running lights/front
fog lights
Front fog lights
Unplug the connector and
remove the light bulb.
Daytime running lights
Remove the light bulb.
Daytime running lights
Remove the light bulb.
Replace the light bulb with a new one.
Daytime running lights/front fog lights
Turn and secure the bulb. Install the connector.
Daytime running lights
Turn and secure the bulb.
When installing the fender liner, install by conducting
with the directions reversed.STEP 3
STEP 3
STEP 5 STEP 4
STEP 5 STEP 5
STEP 5 STEP 6 STEP 5 STEP 2
