2014 TOYOTA 4RUNNER Owners Manual

4878-2. Customization
8
Vehicle specifications
4RUNNER (U)_(OM35A83U)■
Automatic light control system (
P. 205)
■Illumination ( P. 295)
FunctionDefault settingCustomized
setting
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
60 seconds
90 seconds
Ambient light level at which
instrument illumination begins
to dim (meter lights etc.)
Standard-2 (darker) to
2 (brighter)
Ambient light level at which
instrument illumination begins
to brighten (meter lights etc.)
Standard-2 (darker) to 2 (brighter)
FunctionDefault settingCustomized setting
Time period before lights turn
off15 seconds7.5 seconds
30 seconds
Vehicles without a smart key
system: Operation after the
engine switch is turned to the
“LOCK” position
Vehicles with a smart key sys-
tem: Operation after the
engine switch is turned OFF
OnOff
Operation when the doors are
unlockedOnOff
Vehicles with a smart key sys-
tem: Operation when you
approach the vehicle with the
electronic key on your person
(When the interior light switch
[ON/DOOR/OFF] is DOOR)
OnOff
Footwell lights OnOff
Interior light controlOnOff
Interior light dimmer control
while drivingOnOff

4888-2. Customization
4RUNNER (U)_(OM35A83U)■
Outer foot lights (if equipped) (
P. 295)
■Moon roof ( P. 155)
FunctionDefault settingCustomized
setting
Vehicles with a smart key sys-
tem: Operation when you
approach the vehicle with the
electronic key on your person
OnOff
Operation when the doors are
unlocked using the wireless
remote control, key or entry
function
OnOff
Operation when the doors are
unlocked using the door lock
switch
OnOff
Time period before lights turn
off15 seconds7.5 seconds
30 seconds
Lighting controlOnOff
FunctionDefault settingCustomized
setting
Mechanical key linked opera-
tionOffOn
Mechanical key linked opera-
tionOpen and closeOpen only
Close only
Linked operation of compo-
nents when door key is usedSlide onlyTilt only
Wireless remote control linked
operation (open only)OffOn
Linked operation of compo-
nents when wireless remote
control is used (open only)
Slide onlyTilt only

4898-2. Customization
8
Vehicle specifications
4RUNNER (U)_(OM35A83U)■
Rear window wiper and washer (
P. 216)
■Power back window ( P. 151)
FunctionDefault settingCustomized
setting
Wiper operates automatically
when washer is operatedOnOff
Drip prevention functionOnOff
Wiper operation interval3 seconds
2 seconds
4 seconds
5 seconds
Time elapsed before the rear
wiper storage function acti-
vates
3 seconds
4 seconds
5 seconds
6 seconds
FunctionDefault settingCustomized
setting
Vehicles without a smart key
system: Close operation linked
to door lock operation using a
key
OnOff
Vehicles without a smart key
system: Open operation linked
to door unlock operation using
a key
OnOff
Vehicles with a smart key sys-
tem: Close operation linked to
door lock operation using the
switch On Off
Vehicles with a smart key sys-
tem: Open operation linked to
door unlock operation using
the switch
OnOff
Vehicles with a smart key sys-
tem: Time required to press
and hold the switch before the
window begins to open/close
0.8 seconds
1 second
1.2 seconds
1.4 seconds

4908-2. Customization
4RUNNER (U)_(OM35A83U)■
Intuitive parking assist (
P. 226)
■Driving position memory ( P. 135)
■Seat belt reminder ( P. 421)
FunctionDefault settingCustomized
setting
Buzzer volumeMax.Min. to Max.
FunctionDefault settingCustomized
setting
Selecting the door linking driv-
ing position memory with door
unlock operation
Driver’s doorAll doors
FunctionDefault settingCustomizedsetting
Vehicle speed linked seat belt
reminder buzzerOnOff

491
8
Vehicle specifications
4RUNNER (U)_(OM35A83U)
8-3. Items to initialize
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Maintenance dataAfter the maintenance is per-
formedP. 348

4928-3. Items to initialize
4RUNNER (U)_(OM35A83U)

493
For owners9
4RUNNER (U)_(OM35A83U)Reporting safety defects for
U.S. owners ............................. 494
Seat belt instructions for Canadian owners
(in French) ............................... 495
SRS airbag instructions for Canadian
owners (in French) .................. 497

494
4RUNNER (U)_(OM35A83U)

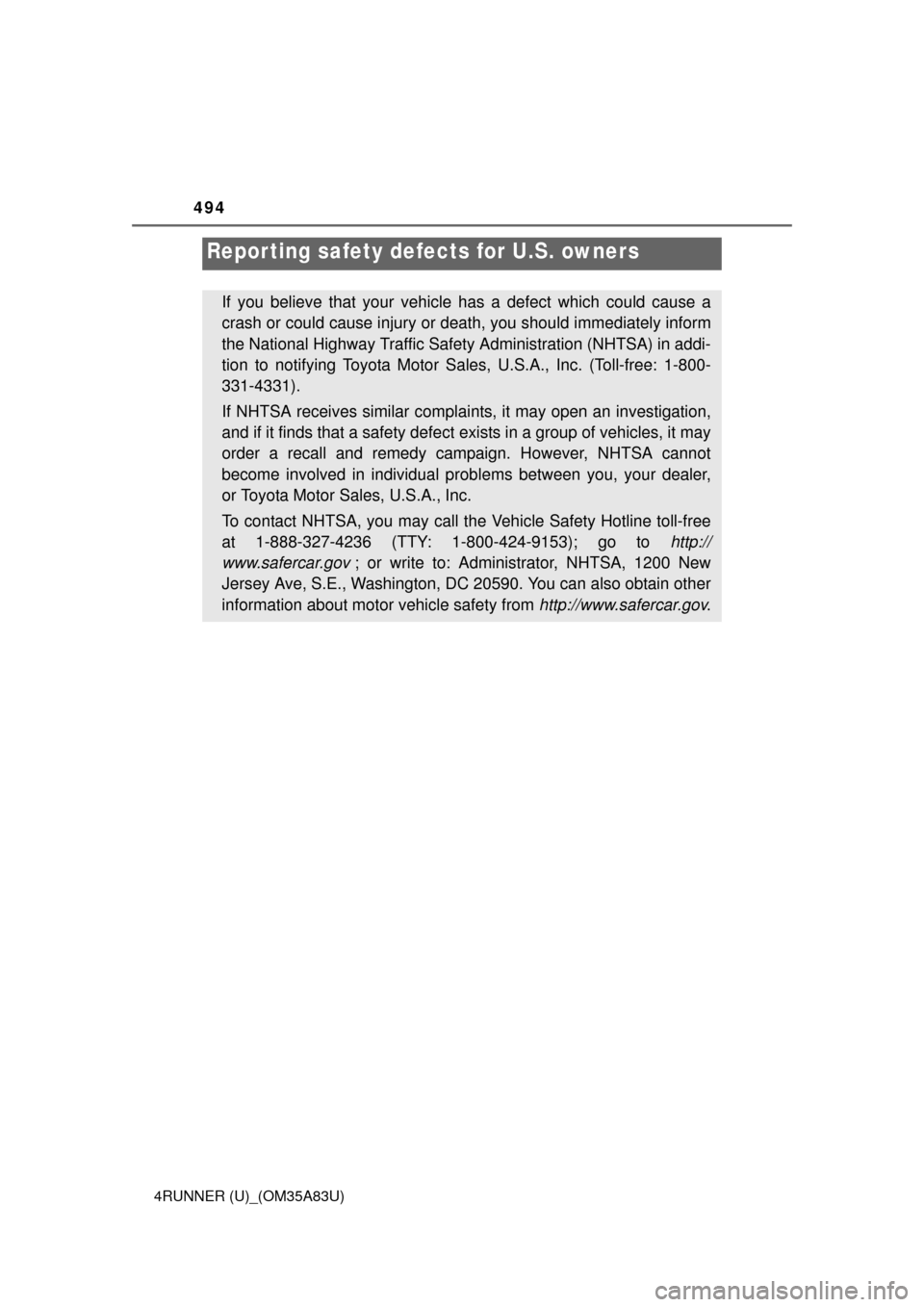

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.
