2014 TOYOTA 4RUNNER Owners Manual

2074-3. Operating the lights and wipers
4
Driving
4RUNNER (U)_(OM35A83U)
Ty p e CThe daytime runninglights turn on.
The side marker, park- ing, tail, license plate,
daytime running lights
and instrument panel
lights turn on.
The headlights and all the lights listed above
(except daytime running
lights) turn on.
1
2
3

2084-3. Operating the lights and wipers
4RUNNER (U)_(OM35A83U)
Ty p e DThe headlights, parkinglights, daytime running
lights and so on turn on
and off automatically
(when the engine switch
is in IGNITION ON
mode).
The side marker, park- ing, tail, license plate,
daytime running lights
and instrument panel
lights turn on.
The headlights and all the lights listed above
(except daytime running
lights) turn on.
The daytime running lights turn on.
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
1
2
3
Turning on the high beam headlights
4
1
2

2094-3. Operating the lights and wipers
4
Driving
4RUNNER (U)_(OM35A83U)
■Daytime running light system
●To make your vehicle more visible to other drivers, the headlight high beam
turn on automatically (at a decreased intensity) whenever the engine is
started and the parking brake is released. Daytime running lights are not
designed for use at night.
Type A and B: Daytime running lights can be turned off by operating the
switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Headlight control sensor (if equipped)
■ Automatic light off system
Vehicles without a smart key system
● When the headlights come on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the engine switch is turned to the
“ACC” or “LOCK” position. (The lights turn off immediately if on the
key is pressed after all the doors are locked.)
● When only the tail lights come on: The tail lights turn off automatically if the
engine switch is turned to the “ACC” or “LOCK” position and the driver’s
door is opened.
To turn the lights on again, turn the engine switch to the “ON” position, or turn
the lights off and then back to or .
Vehicles with a smart key system
● When the headlights come on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the engine switch is turned to
ACCESSORY mode or turned off. (The lights turn off immediately if
on the key is pressed after all the doors are locked.)
● When only the tail lights come on: The tail lights turn off automatically if the
engine switch is turned off and the driver’s door is opened.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch off and then back to or .
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 485)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2104-3. Operating the lights and wipers
4RUNNER (U)_(OM35A83U)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.

2114-3. Operating the lights and wipers
4
Driving
4RUNNER (U)_(OM35A83U)

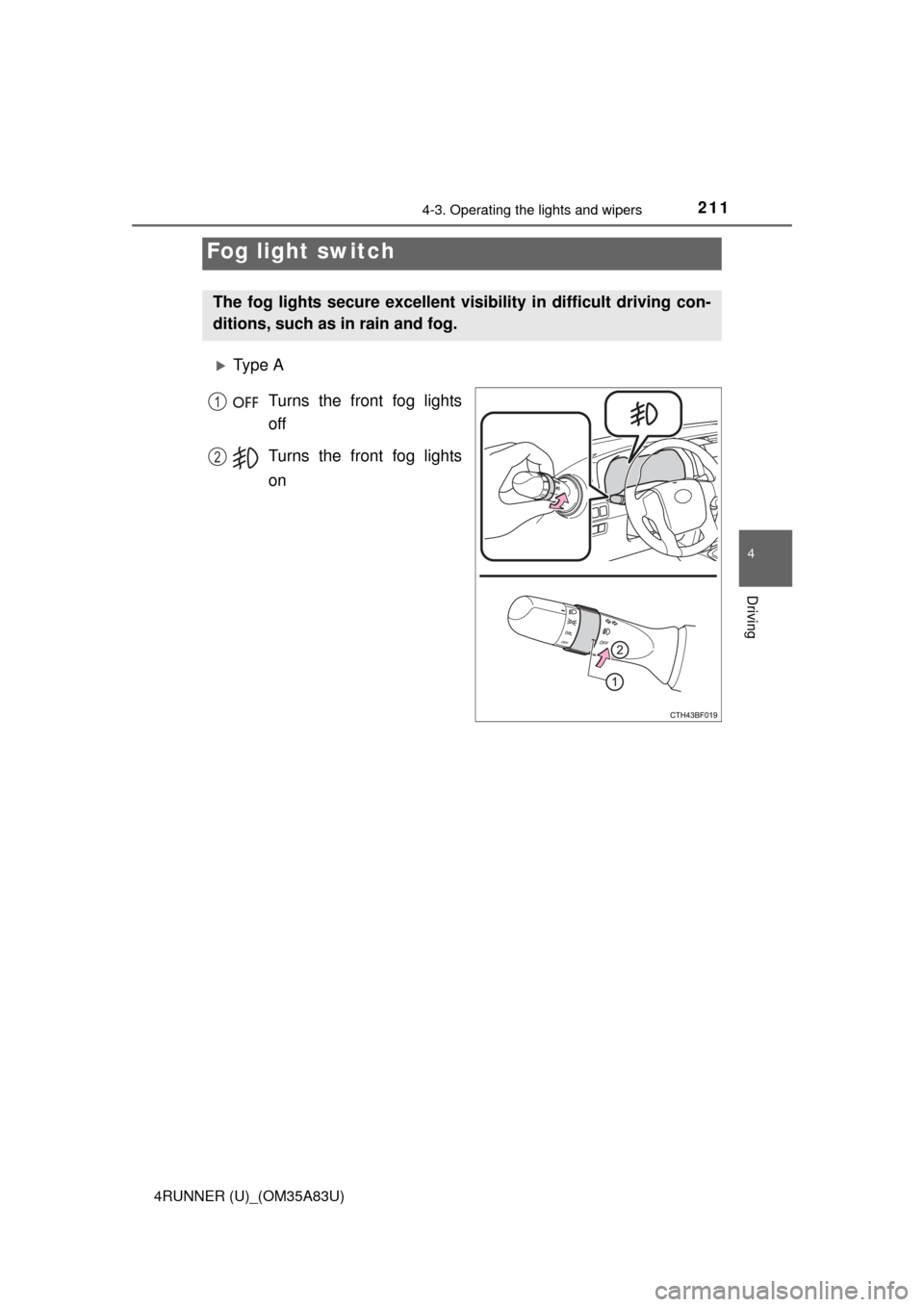

Ty p e ATurns the front fog lights
off
Turns the front fog lights
on
Fog light switch
The fog lights secure excellent visi bility in difficult driving con-
ditions, such as in rain and fog.
1
2

2124-3. Operating the lights and wipers
4RUNNER (U)_(OM35A83U)
Ty p e BTurns the front fog lights
off
Turns the front fog lights
on
■Fog lights can be used when
The headlights are on in low beam.
1
2

2134-3. Operating the lights and wipers
4
Driving
4RUNNER (U)_(OM35A83U)
The wiper operation is selected by moving the lever as follows.
Ty p e A
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent windshield wiper operation
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is
selected. Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
Windshield wipers and washer
Operating the wiper lever
1
2
3
4
5
6

2144-3. Operating the lights and wipers
4RUNNER (U)_(OM35A83U)
Ty p e B
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent windshield wiper operation
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is
selected. Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
■Washer/wiper dual operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
1
2
3
4
5
6
