2014 Seat Ibiza ST Owner's manual

The essentials
More the lever to the required position: Right turn signal: Right-hand parking
light (ignition switched off).
Left turn signal: Left-hand parking light
(ignition switched off).
Main beam switched on: Control lamp 
lit up on the instrument panel.
Headlight flasher: lit up when the lever is
pushed. Control lamp  lit up.
L ev
er all the way down to switch it off.

››› in Turn signal and main beam head-
light lever on page 93
››› page 93 Hazard warning lights
Fig. 22
1
2
3
4 Switched on, for example:
●
When approaching a traffic jam
● In an emergency
● The vehicle has broken down
● When towing or being towed

››› in Hazard warning lights  on
page 95
››› page 95 Interior lights
Fig. 23

KnobFunction 
Switches interior lights off.

Switches interior lights on.
KnobFunction 
Switches door contact control on (central po-
sition).
The interior lights come on automatically
when the vehicle is unlocked, a door is
opened or the key is removed from the igni-
tion.
The lights go off a few seconds after all the
doors are closed, the vehicle is locked or the
ignition is switched on.

Turning the reading light on and off

›››
page 96 Windscreen wipers and rear window
wipers
Fig. 24

» 15
Technical specifications
Advice
Operation
Safety
The essentials

The essentialsMore the lever to the required position:
0
Windscreen wiper off.
1

Windscreen wipers interval wipe.
Using the control
››› Fig. 24 A adjust the
interval (vehicles without rain sensor), or
the sensitivity of the rain sensor.
2 Slow wipe.
3
Continuous wipe.
4
Short wipe. Brief press, short clean. Hold
the lever down for more time to increase
the wipe frequency.
5

Automatic wipe. The windscreen washer
function is activated by pushing the lever
forwards, and simultaneously the wind-
screen wipers start.
6
Interval wipe for rear window. The wiper
will wipe the window approximately every
six seconds.
7
The rear window wash function is activa-
ted by pressing the lever, and the rear wip-
er starts simultaneously.

››› in Front windscreen wipers  on
page 97
››› page 97
››› page 193 Multi-function display (MFA)*
Controlling the information system Fig. 25
Managed from the windscreen wiper lever
››› Fig. 25 .
Pr e

ss to select and confirm ››› Fig. 25
Press up or down to view the submenu
››› Fig. 25

››› in Multi-function display (MFI)* on
page 66
››› page 65 Memory displays
1
: Current memory
1 2 2
: Total memory
● Driv in

g speed
● Journey duration
● Average speed
● Distance
● Operating range
● Average fuel consumption
● Current fuel consumption
● Outside temperature indicator
● Speed warning
Cruise control Operating the cruise control system
(CCS)* Fig. 26
16

The essentials
● Switching on the CCS: Move switch
››› Fig. 26 1 to

. The system is on. If no
s
peed has been programmed, the system will
not control it.
● Activating the CCS: Press button ››› Fig. 26
2 in the

area. The current speed is
memori

sed and controlled.
● Temporarily switching off the CCS: Move
switch ››› Fig. 26
1 to
 or push the
br ak
e. The cruise control system is switched
off temporarily. ●
Reactivating the CCS: Press button
››› Fig. 26 2 in

. The memorised speed
i

s saved and controlled again.
● Increasing stored speed during CCS regula-
tion: press button 2 in

. The vehicle ac-
c

elerates until the new stored speed.
● Reducing stored speed during CCS regula-
tion: press button 2 in

to lower the
s

peed by 1 km/h (1 mph). Speed is reduced
until reaching the new stored speed. ●
Switching off the CCS: Move switch
››› Fig. 26 1 to

. The system is disconnec-
t

ed and the memorised speed is deleted.

››› in Description on page 150
››› page 150 17
Technical specifications
Advice
Operation
Safety
The essentials

The essentials
Warning lamps On the instrument panel Fig. 27
Sym-
bolMeaning of control and warning lampsFurther in-formation 
Engine fault (petrol engine)›››
page
58 
Glow plug system (diesel en-
gines)
If lit up:
glow plug system ac-
tive
If flashing: engine fault
››› page
58 
Soot accumulation in the die-
sel engine particulate filter›››
page
59
Sym-
bolMeaning of control and warning lampsFurther in-formation 
Red:
Engine oil pressure
›››
page
59Yellow:
If flashing: engine oil sensor
faulty
If it remains lit: insufficient
engine oil 
Bulb defective›››
page
59
Sym-
bolMeaning of control and warning lampsFurther in-formation 
Level of liquid for washing
windows too low›››
page
59 
Rear fog light switched on›››
page
59 
Seat belt warning lamp*›››
page
35 
Anti-lock brake system (ABS)
*›››
page
59 18

The essentialsSym-
bolMeaning of control and warning lampsFurther in-formation 
If flashing:
the Electronic Sta-
bility Control (ESC) is working
or the ASR is working
If it remains lit: ESC or ASR
faulty››› page
60
››› page
60 
Brake fluid required or
serious fault in brake system›››
page
61 
Handbrake on›››
page
126 
Cruise speed activated
(Cruise control)›››
page
61 
Tyre pressure›››
page
61 
Selector lever lock (automatic
gearbox)›››
page
62 
Fuel level / reserve›››
page
62 
Doors open›››
page
62 
Rear lid open›››
page
62 
Airbag or belt tensioner sys-
tem fault or airbag disabled›››
page
42 
Main beam switched on›››
page
62 
Start-Stop system switched
off›››
page
142
Sym-
bolMeaning of control and warning lampsFurther in-formation 
Electro-hydraulic steering›››
page
62 
Fault in the emission control
system›››
page
63 
Coolant level / coolant tem-
perature›››
page
63 
Alternator fault›››
page
63 
If it stays lit:
ASR switched off
››› page
60
››› page
60 
Turn signals in operation›››
page
63
SAFEElectronic immobiliser
››› page
64
››› page
79 
››› in Overview of the warning lamps
on page 57
››› page 57 Gear lever
Manual gearbox Fig. 28
The position of the gears is indicated on the
gearbox lever
››› Fig. 28 .
● Pr e

ss the clutch pedal and keep your foot
right down.
● Move the gearbox lever to the required po-
sition.
● Release the clutch.
Selecting reverse gear
● Press the clutch pedal and keep your foot
right down.
● With the gearbox lever in neutral, push it
upwards, move it to the left as far as it will go
and then forwards to select reverse ››› Fig. 28
R .
» 19
Technical specifications
Advice
Operation
Safety
The essentials

The essentials
● Release the clutch.
››› in Driving with a manual gearbox on
page 128

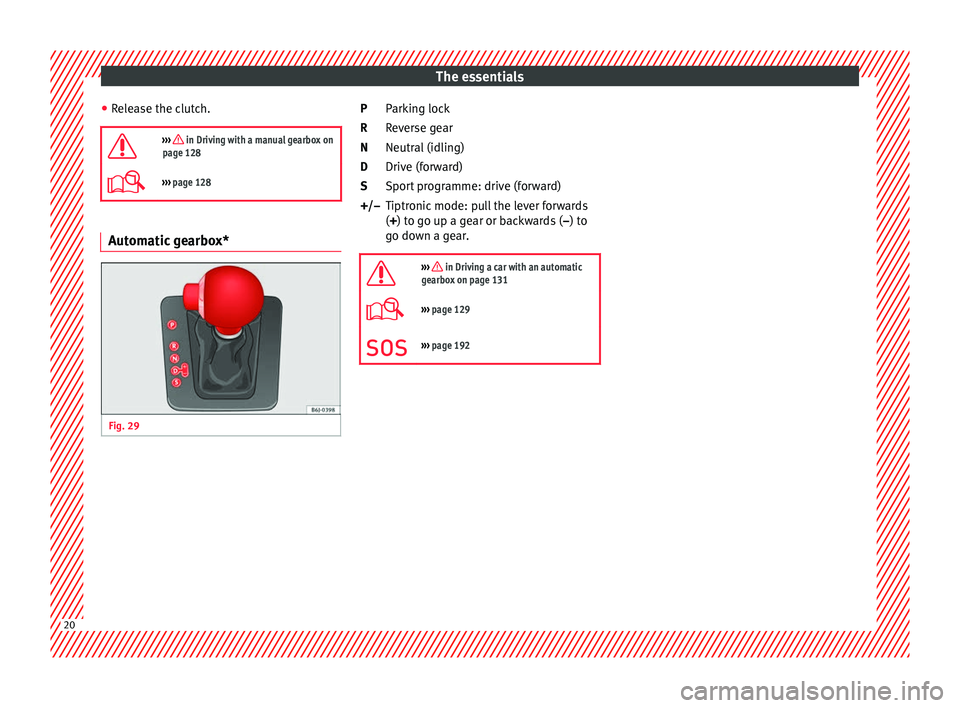

››› page 128 Automatic gearbox*
Fig. 29
Parking lock
Reverse gear
Neutral (idling)
Drive (forward)
Sport programme: drive (forward)
Tiptronic mode: pull the lever forwards
(
+
) to go up a gear or backwards ( –
) to
go do
wn a gear.

››› in Driving a car with an automatic
gearbox on page 131
››› page 129
››› page 192 P
R
N
D
S
+/–
20

The essentials
Air conditioning How does Climatronic* work? Fig. 30
Blower level indicator
Air recirculation display:
AUTO
indicator (automatic operation)
D emi
sting indicator
A/C indicator (cooling connected)
Interior temperature indicator selected
Air flow direction indicator
Fan speed increase
Reducing blower speed and switching off
Climatronic.
Interior temperature increase
1 2
3
4
5
6
7
8
9
10 Interior temperature decrease
AUTO button – Automatic adjustment of
temperature, ventilation and air distribu-
tion
Button 
– Windscreen demisting func-
tion.

The air drawn in is directed at the
windscreen. The air recirculation mode
will be switched off as soon as the de-
misting function is switched on. At tem-
peratures over +3 °C (+37 °F) the cooling
system is switched on automatically in or-
der to dehumidify the air.
 button – Air distribution to windscreen
11 12
13
14 Button

– Air distribution to the upper
body
B

utton
 – Air distribution to footwell
 button – Manual air recirculation
mode
A/C button – To switch on the air condi-
tioning.

››› in Controls on page 121
››› page 121 15
16
17
18
21
Technical specifications
Advice
Operation
Safety
The essentials

The essentials
How does the manual air conditioning* work? Fig. 31
Temperature
Blower
Air distribution

– Air distribution towards the wind-
s c
reen in order to demist.
A B
C 
– Air distribution to upper body.
 – Air di
s

tribution to footwell
 – Air distribution to the windscreen
and the footwell.
Air recirculation
D A/C: Switching the cooling system on

››› page 118 E
22
