2014 PORSCHE 911 TURBO display

3

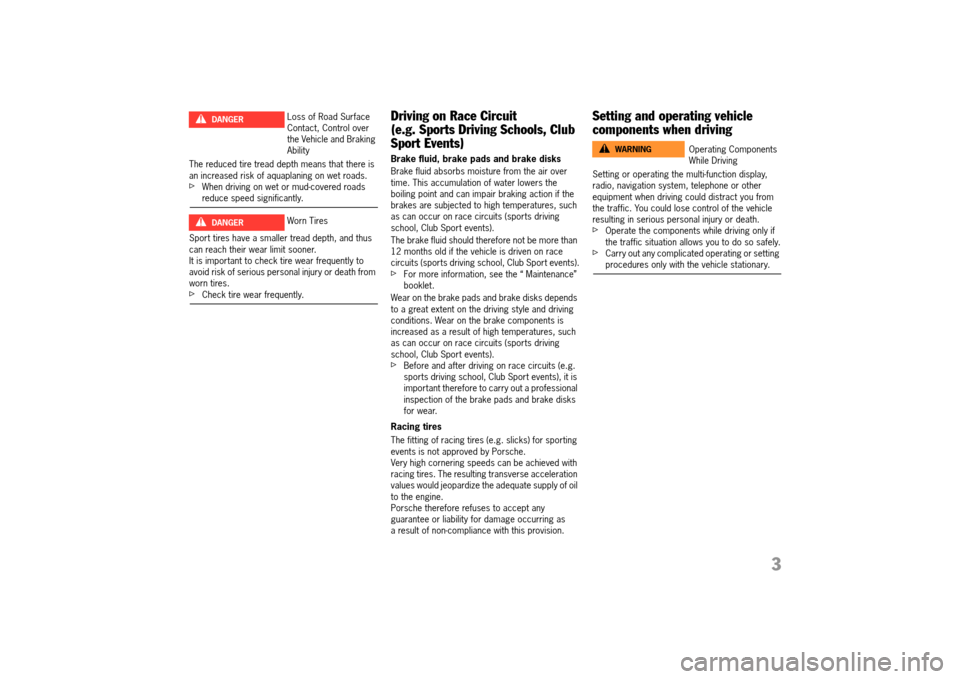

The reduced tire tread depth means that there is an increased risk of aquaplaning on wet roads. fWhen driving on wet or mud-covered roads reduce speed significantly.
Sport tires have a smaller tread depth, and thus can reach their wear limit sooner.It is important to check tire wear frequently to avoid risk of serious personal injury or death from worn tires.fCheck tire wear frequently.
Driving on Race Circuit
(e.g. Sports Driving Schools, Club
Sport Events)
Brake fluid, brake pads and brake disks
Brake fluid absorbs moisture from the air over time. This accumulation of water lowers the boiling point and can impair braking action if the brakes are subjected to high temperatures, such as can occur on race circuits (sports driving school, Club Sport events).
The brake fluid should therefore not be more than 12 months old if the vehicle is driven on race circuits (sports driving school, Club Sport events).fFor more information, see the “ Maintenance” booklet.
Wear on the brake pads and brake disks depends to a great extent on the driving style and driving conditions. Wear on the brake components is increased as a result of high temperatures, such as can occur on race circuits (sports driving school, Club Sport events). fBefore and after driving on race circuits (e.g. sports driving school, Club Sport events), it is important therefore to carry out a professional inspection of the brake pads and brake disks for wear.
Racing tires
The fitting of racing tires (e.g. slicks) for sporting events is not approved by Porsche.Very high cornering speeds can be achieved with racing tires. The resulting transverse acceleration values would jeopardize the adequate supply of oil to the engine.Porsche therefore refuses to accept any guarantee or liability for damage occurring as a result of non-compliance with this provision.
Setting and operating vehicle
components when driving
Setting or operating the multi-function display, radio, navigation system, telephone or other equipment when driving could distract you from the traffic. You could lose control of the vehicle resulting in serious personal injury or death.fOperate the components while driving only if the traffic situation allows you to do so safely.fCarry out any complicated operating or setting procedures only with the vehicle stationary.
Loss of Road Surface Contact, Control over the Vehicle and Braking Ability
Worn Tires
DANGERh
DANGERh
Operating Components While Driving
WARNINGh
14_991_Turbo_21.book Seite 3 Mittwoch, 9. April 2014 2:19 14

5
Dear Porsche Owner,
A lot has gone into the manufacture of your Porsche sports car, including advanced engineering, rigid quality control and demanding inspections. These engineering and safety features will be enhanced by you…
the safe driver…
– who knows her/his car and all controls,– who maintains the vehicle properly,– who uses driving skills wisely and always drives within her/his own capabilities and the level of familiarity with the vehicle.
You will find helpful hints in this manual on how to perform most of the checks listed on the following pages. If in doubt, have these checks performed by your authorized Porsche dealer.
Before driving off…
Check the following items first
fTurn the engine off before you attempt any checks or repairs on the vehicle.fBe sure the tires are inflated correctly. Check tires for damage and tire wear.fSee that wheel bolts are properly tightened and not loose or missing.fCheck engine oil level, add if necessary. Make it a habit to check the engine oil with every refueling.fCheck all fluid levels such as windshield washer and brake fluid levels.
fBe sure the vehicle battery is well charged and cranks the engine properly.fCheck all doors and lids for proper operation and latch them properly.fCheck and if necessary replace worn or cracked wiper blades.fSee that all windows are clear and unobstructed.fCheck air intake slots and area between luggage compartment lid and windshield. Ensure that these areas are free of snow and ice, so the heater and the windshield wipers work properly.fIf a child will be riding in the vehicle, check child seat/child seat restraint system to ensure that restraints are properly adjusted.fCheck all exterior and interior lights for operation and that the lenses are clean.fCheck the headlights for proper aim, and if necessary, have them adjusted.fCheck under the vehicle for leaks.fBe sure all luggage is stowed securely.
Emergency equipment
It is good practice to carry emergency equipment in your vehicle. Some of the items you should have are: window scraper, snow brush, container or bag of sand or salt, emergency light, small shovel, first-aid kit, etc.
In the driver’s seat…
fCheck operation of the horn.fPosition seat for easy reach of foot pedals and controls. To reduce the possibility of injury from the air bag deployment, you should always sit back as far from the steering wheel as is practical, while still maintaining full vehicle control.fAdjust the inside and outside rear view mirrors.fBuckle your safety belts.fCheck operation of the foot and electric parking brake.fCheck all warning and indicator lights with ignition on and engine not running.fStart engine and check all warning displays for warning symbols.fNever leave an idling car unattended.fLock doors from inside, especially with children in the car to prevent inadvertent opening of doors from inside or outside.Drive with doors locked.
14_991_Turbo_21.book Seite 5 Mittwoch, 9. April 2014 2:19 14

Contents 7
Contents
Dear Owner .................................................... 1 Sport tires...................................................... 2Driving on Race Circuit (e.g. Sports Driving Schools, Club Sport Events) ............................ 3Setting and operating vehicle components when driving ................................ 3Engine Exhaust ............................................... 4Portable Fuel Containers ................................. 4Ground Clearance ........................................... 4Porsche Ceramic Composite Brake (PCCB) ....... 4Dear Porsche Owner ....................................... 5Before driving off… ........................................ 5In the driver’s seat… ....................................... 5On the road… ................................................ 6Break in hints for the first 2,000 miles (3,000 kilometers) .......................................... 6
Contents ............................................. 7
Driver’s Cockpit ............................................ 10Steering Wheel and Instrument Panel .............. 11Center Console............................................. 12Control Panel................................................ 13Overhead Console ........................................ 14
Opening and Locking ......................... 15
Never invite car theft! .................................... 16Notes on the Key and Central Locking System ........................................... 16Central Locking System ................................ 18Brief Overview – Opening and Locking from Outside ........................................................ 19Opening and Locking from Outside................. 20Opening and Locking from Inside ................... 23Opening and Closing the Luggage Compartment Lid and Engine Cover ............... 24
Malfunctions when Opening and Closing.......... 26Trunk Entrapment ......................................... 30
Seats, Mirrors and Steering Wheel ..... 31
Seat Adjustment and Head Restraints ............. 32Front Seats .................................................. 32Comfort Entry Function.................................. 34Seat Heating................................................. 35Seat Ventilation ............................................ 35Rear Seat Backrests ..................................... 35Safety belts .................................................. 36Airbag Systems ............................................ 38Child Restraint Systems................................. 42LATCH Child Seat System .............................. 46Roll-Over Protection....................................... 48Exterior Mirrors ............................................ 49Automatic Anti-Dazzle Interior andExterior Mirrors ............................................ 50Steering Wheel Heating ................................. 51Steering Wheel Adjustment ............................ 51Multi-function Steering Wheel ......................... 52Sun Visors .................................................... 53Vanity Mirror ................................................. 53
Air Conditioning................................. 54
Automatically Controlled 2-zone AirConditioning ................................................. 55Air Vents ...................................................... 59Heated Rear Window/Exterior Mirror Heating .. 60
Windows, Sunroof and Cabriolet......... 61
Power Windows ............................................ 62Sunroof ........................................................ 63Convertible Top ............................................ 67Wind Deflector .............................................. 69
Emergency Operation of Convertible Top and Wind Deflector ................70
Lights, Turn Signals and Windshield Wipers ............................. 78
Light Switch..................................................79 Instrument Lighting .......................................82Turn Signal/High Beam/Headlight Flasher Stalk/Parking Light Switch ...82Emergency Flasher .......................................83Interior/Reading Lights ..................................84Brief Overview – Windshield wipers ..............85Windshield Wiper/Washer Stalk ......................86
Instrument Panel and Multi-Function Display ....................... 89
Instrument Panel USA Models.........................90 Instrument Panel Canada Models ....................91Displays on the Instrument Panel ....................92Battery/Alternator .........................................95Check Engine (Emission Control) ....................95Acoustic Signals ...........................................95Operating the Multi-Function Display on the Instrument Panel ...........................................96Vehicle Menu ..............................................100Audio Menu.................................................102Phone Menu................................................103Map Menu ..................................................103Navigation Menu .........................................104Trip Menu ...................................................105Tire Pressure Menu (Tire Pressure Monitoring System, TPMS) ...........................105Allwheel Menu .............................................114Chrono Menu (Stopwatch) ............................114G-Force Menu .............................................116
C_Panamera_21IVZ.fm Seite 7 Donnerstag, 10. April 2014 8:42 08

8 Contents
Performance Menu ..................................... 116 ACC Menu .................................................. 117Vehicle Settings on theMulti-Function Display .................................. 117Overview of Warning and Information Messages ............................. 129
Personal Settings ............................. 141
Brief Overview – Personal Settings ............ 142 Storing personal settings ............................ 143
Driving and Driving Safety ................ 145
Diagnostic Socket....................................... 146Ignition Lock............................................... 146Starting and Stopping the Engine ................. 147Auto Start Stop function .............................. 149Electric Parking Brake ................................. 151Brakes ....................................................... 152Cruise Control ............................................ 155Adaptive Cruise Control ............................... 157Car Audio Operation/Tips ............................ 168Porsche Communication Management (PCM) 170USB/iPod® and AUX ................................... 171Voice Control.............................................. 171Porsche Doppelkupplung (PDK) .................... 172Selector-lever Positions .............................. 174Limp-home mode ........................................ 178Transmission and Chassis Control Systems .. 179Porsche Traction Management (PTM) ........... 180Porsche Stability Management (PSM)............ 181HOLD function: Drive-Off Assistant, Standstill Management ................................ 184ABS Brake System (Anti-lock Brake System) . 184Porsche Active Suspension Management (PASM) ................................... 185Porsche Torque Vectoring (PTV Plus)............ 186Porsche Dynamic Chassis Control (PDCC)..... 187Dynamic Engine Mounting (PADM) ................ 188
“Sport” and “Sport Plus” mode .....................188 Extending Front and Rear Spoilers ................190Rear Axle Steering ......................................191
Storage, Luggage Compartment and Roof Transport System ..................... 192
Storage......................................................193 Drinks Holder/Cupholder .............................194Ashtray ......................................................195Cigarette Lighter .........................................196Sockets .....................................................196Luggage Compartment................................197Roof Transport System................................200Loading Information ....................................204
Parking ........................................... 206
ParkAssist ..................................................207Reversing Camera.......................................209Swivelling Down Mirror Glass as Parking Aid..210Garage Door Opener HomeLink®
(Universal Remote Control)...........................211
Alarm System and Theft Protection ... 215
Alarm System and Passenger Compartment Monitoring.............216Immobilizer.................................................217Theft Protection ..........................................217
Maintenance and Car Care ............... 218
Exercise Extreme Caution when Working on your vehicle...............................219Engine Oil ...................................................221Checking Engine Oil Level ............................222Topping Up Engine Oil .................................222Washer Fluid windshield ...............................224Wiper Blades ..............................................224Emission Control System .............................225
How Emission Control Works....................... 226 Fuel Economy ............................................ 226Operating Your Porsche in other Countries ... 227Fuel........................................................... 227Portable Fuel Container............................... 229Fuel Recommendations............................... 230Fuel Evaporation Control ............................ 231Car Care Instructions.................................. 231
Minor Repairs .................................. 239
Exercise Extreme Caution when Working on your vehicle .............................. 240Checking the Coolant Level and Adding Coolant .......................................... 242Brake Fluid ................................................ 243Electromechanical Power Steering............... 244Changing Air Cleaner .................................. 244Changing Particle Filters ............................. 244Tires and Wheels........................................ 244Changing Wheels........................................ 254Wheel Attachment Faces............................. 257Wheel Bolts ............................................... 257Wheels with Central Lock ............................ 258Central Bolts .............................................. 258Changing a Wheel....................................... 258Rim Cleaner ............................................... 263Central Bolt Emergency Fastening ............... 263Flat Tire ..................................................... 265Electrical System ....................................... 267Battery (12 volt) ......................................... 271External Power Supply, Emergency starting with jumper cables ......................... 273Changing Car Key (Remote Control) Battery . 275Replacing bulbs.......................................... 276Headlights ................................................. 276Headlight Adjustment.................................. 277Towing ...................................................... 278Fire extinguisher......................................... 282
14_991_Turbo_21.book Seite 8 Mittwoch, 9. April 2014 2:19 14

Overview Illustrations 11
Steering Wheel and
Instrument Panel
A PDK shift buttons See page 176.B Turn signal lights See page 82.C Engine oil pressure gauge See page 93.D Engine oil temperature gauge See page 92.E Speedometer See page 92.F Tachometer See page 95.G Multi-function display See page 96.H Coolant temperature gauge See page 92.I Fuel gauge See page 94.J Windshield wipers See page 86.K Cruise control See page 157.L Diagnostic socket (OBD) M Telephone controls, multi-function display See page 103.N Horn
14_991_Turbo_21.book Seite 11 Mittwoch, 9. April 2014 2:19 14

18 Opening and Locking
Central Locking System
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada.
Operation of this device is subject to the following two conditions:1. This device may not cause harmful interference, and 2. this device must accept any interference received including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Information
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modification could void the user's authority to operate the equipment.
Any changes or modifications not expressly approved by Porsche could void the user’s authority to operate this equipment.
Your vehicle is equipped with a central locking system. The following are unlocked or locked together:– Doors– Filler flap
The central locking system is always activated when the vehicle is unlocked and locked.
On the multi-purpose display of the instrument panel, you can set different variants for locking and unlocking. You can open all doors irrespective of the setting made.
The vehicle cannot be locked if the driver’s door is not completely closed.
If one of the following components is not completely closed when you try to lock the vehicle the door is not locked:– vehicle doors– luggage compartment lid
The indication by the emergency flasher and by the acoustic signal will be provided after all doors and the luggage compartment lid are closed.
Information
When locking the vehicle with only the driver's door closed, the vehicle will be pre-locked. Make sure that the key is not inside the vehicle when closing the open passenger's door/luggage compartment lid.
USA: KR55WK50138
Canada: 7812D-5WK50138
14_991_Turbo_21.book Seite 18 Mittwoch, 9. April 2014 2:19 14

20 Opening and Locking
A- Unlock the vehicle B - Lock the vehicle C - Unlock the luggage compartment lid and doors D - Emergency key E - Panic button
Opening and Locking from Outside
Depending on your vehicle equipment, you can unlock and lock the vehicle either with the car key or without a key by means of Porsche Entry & Drive.
With the key
Use the buttons on the key to unlock and lock the vehicle.
Information
If you unlock the vehicle with the emergency key in the door lock, you must switch the ignition on (ignition lock position 1) within 15 seconds of opening the door in order to prevent the alarm system from being triggered. The passenger’s door remains locked.
Information
If the vehicle is unlocked using the button and a door or the luggage compartment lid is not opened, the vehicle is locked again automatically after 30 seconds.
Information
The factory settings of the vehicle are described in this section.In the multi-function display in the instrument panel, you can change the settings and store them on the respective key for vehicles with memory.
For information on modifying the unlocking and locking settings: fPlease see the chapter “LOCKING SETTINGS” on page 122.
With Porsche Entry & Drive
On vehicles with Porsche Entry & Drive, you can unlock, lock and start the vehicle without using the key.You simply have to carry the key with you, e.g. in your trouser pocket. fDo not expose the car key to a high level of electromagnetic radiation. This could adversely affect Porsche Entry & Drive.
14_991_Turbo_21.book Seite 20 Mittwoch, 9. April 2014 2:19 14

22 Opening and Locking
Locking doors
Locking with the key
1. Close the door. 2. Press button once. The emergency flasher flashes twice and an acoustic signal will sound twice.The doors cannot be opened from outside.orIf persons or animals are remaining in the vehicle , press button twice within 2 seconds.The emergency flasher emits one long flash.The alarm system’s interior surveillance is switched off.The doors can be opened from inside by pulling on the door opener.fInform any persons remaining in the vehicle that the alarm system will be triggered if the door is opened.
Information
When locking the vehicle with only the driver's door closed, the vehicle will be pre-locked. Make sure that the key is not inside the vehicle when closing the open passenger's door/luggage compartment lid.
Information
The emergency flasher indicates that the vehicle has been locked successfully only when all the doors, the engine compartment lid and the tailgate are closed.
Locking with Porsche Entry & Drive (keyless)
You must carry the key with you. 1. Close all doors. 2. Press the locking button A on the door handle. The emergency flasher flashes twice and an acoustic signal will sound twice.The doors cannot be opened from outside.orIf persons or animals are remaining in the vehicle ,fpress the locking button A on the door handle twice within 2 seconds.The emergency flasher emits one long flash.The alarm system’s interior surveillance is switched off.The doors can be opened from inside by pulling on the door opener.fInform any persons remaining in the vehicle that the alarm system will be triggered if the door is opened.
Information
The vehicle cannot be locked if any of the doors or the luggage compartment are not completely closed.A warning signal sounds in the passenger compartment and a warning message appears on the multi-function display.
The key must be outside the vehicle when locking the vehicle doors, otherwise the vehicle doors cannot be locked.
If the key is out of range, the vehicle doors and the luggage compartment can no longer be opened after the vehicle is locked.
Automatic door locking and automatic door unlocking
In an emergency situation where you need to exit the car through an automatically locked door, remember the following procedure to open the door.fUnlock the doors by pressing the central locking button or fPull the inner door handle to open the door.
Emergency Auto Lock Override
WARNINGh
