2014 PEUGEOT 4008 Owners Manual

63
2
Access


)
Press the open padlock once to
unlock the driver's door only.

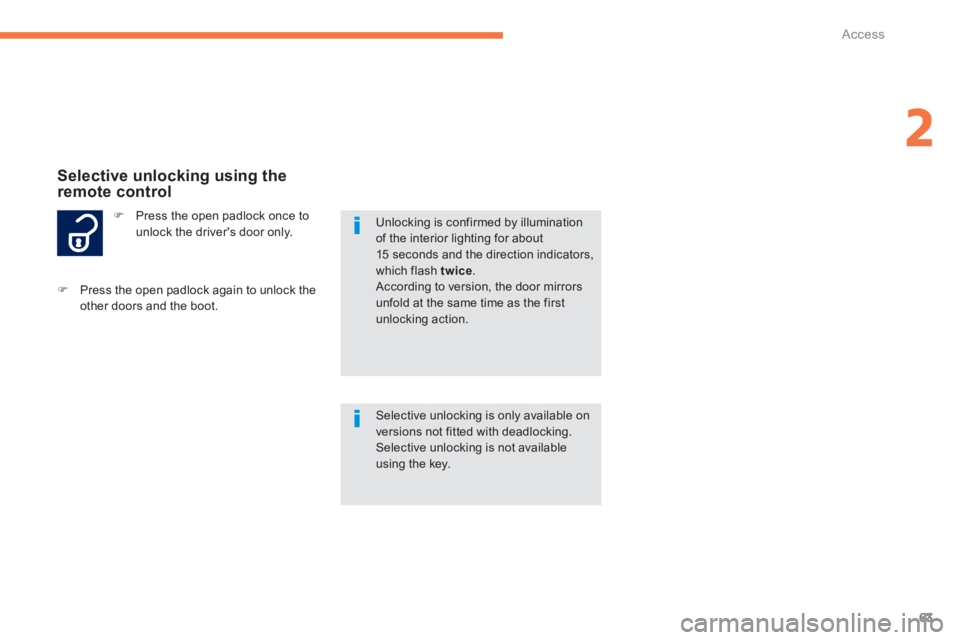

Selective unlocking using the
remote control
Selective unlocking is only available on
versions not fitted with deadlocking.
Selective unlocking is not available
using the key.
)
Press the open padlock again to unlock the
other doors and the boot.

Unlocking is confirmed by illumination
of the interior lighting for about
15 seconds and the direction indicators,
which flash twice
.
According to version, the door mirrors
unfold at the same time as the first
unlocking action.

64
Access

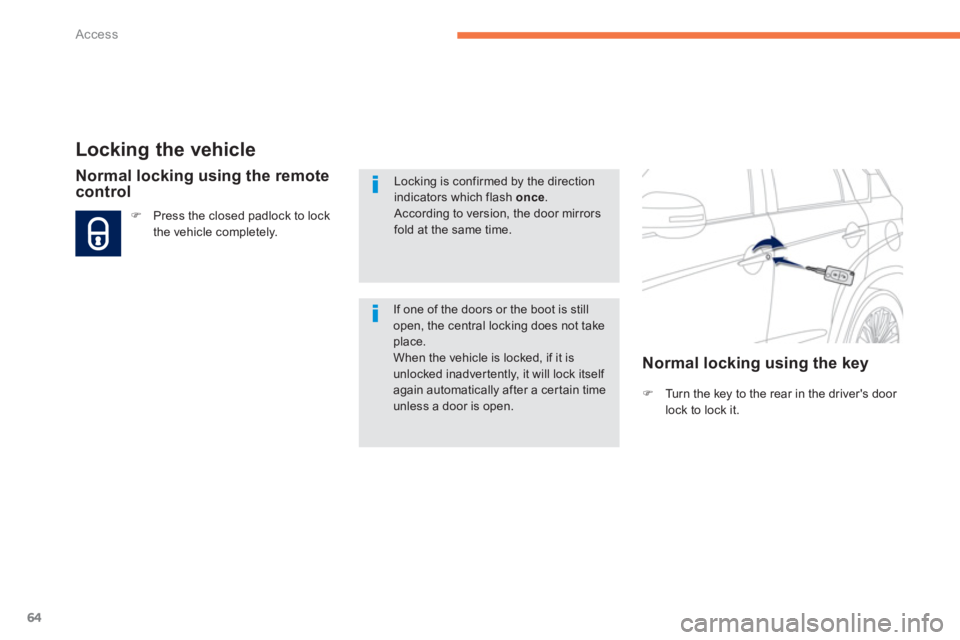

Locking the vehicle



)
Turn the key to the rear in the driver's door
lock to lock it.




Normal locking using the remote
control


)
Press the closed padlock to lock
the vehicle completely.

If one of the doors or the boot is still
open, the central locking does not take
place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after a certain time
unless a door is open.


Normal locking using the key


Locking is confirmed by the direction
indicators which flash once
.
According to version, the door mirrors
fold at the same time.

65
2
Access
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.

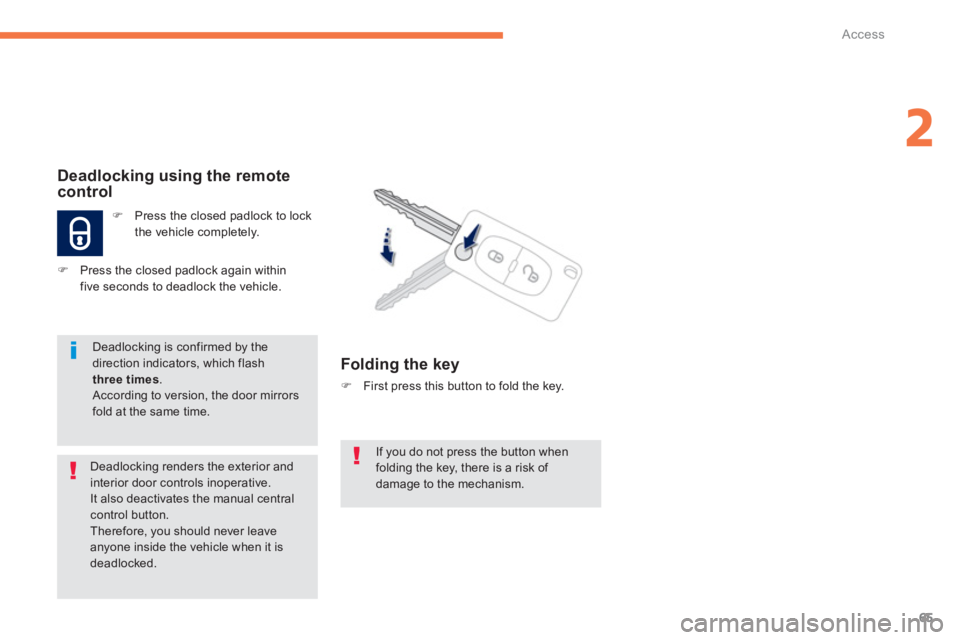

Deadlocking using the remote
control



)
Press the closed padlock to lock
the vehicle completely.

)
Press the closed padlock again within
five seconds to deadlock the vehicle.



Folding the key



)
First press this button to fold the key.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, you should never leave
anyone inside the vehicle when it is
deadlocked.

Deadlocking is confirmed by the
direction indicators, which flash
three times
.
According to version, the door mirrors
fold at the same time.

66
Access

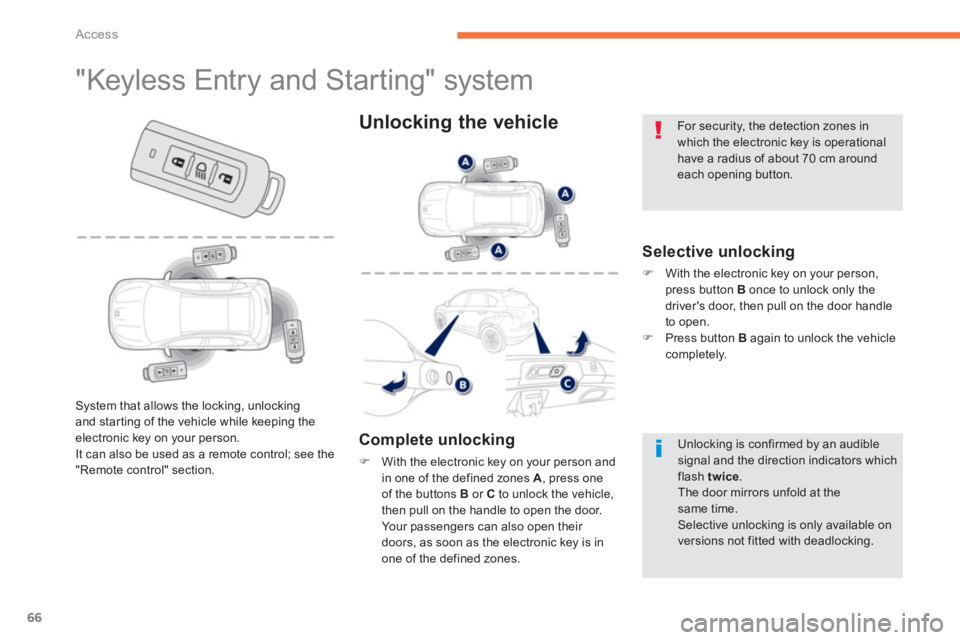

"Keyless Entry and Starting" system


Selective unlocking



)
With the electronic key on your person,
press button B
once to unlock only the
driver's door, then pull on the door handle
to open.

)
Press button B
again to unlock the vehicle
completely.


System that allows the locking, unlocking
and starting of the vehicle while keeping the
electronic key on your person.
It can also be used as a remote control; see the
"Remote control" section.


Unlocking the vehicle


Complete unlocking



)
With the electronic key on your person and
in one of the defined zones A
, press one
of the buttons B
or C
to unlock the vehicle,
then pull on the handle to open the door.
Your passengers can also open their
doors, as soon as the electronic key is in
one of the defined zones.
Unlocking is confirmed by an audible
signal and the direction indicators which
flash twice
.
The door mirrors unfold at the
same time.
Selective unlocking is only available on
versions not fitted with deadlocking.
For security, the detection zones in
which the electronic key is operational
have a radius of about 70 cm around
each opening button.

67
2
Access

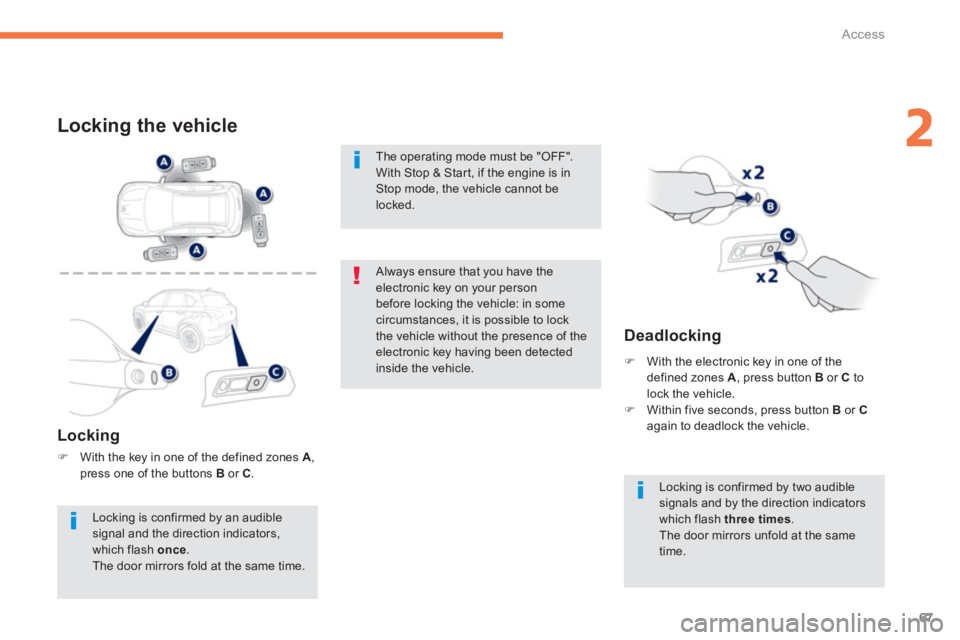

Locking the vehicle


Locking



)
With the key in one of the defined zones A
,
press one of the buttons B
or C
.









Deadlocking


Locking is confirmed by an audible
signal and the direction indicators,
which flash once
.
The door mirrors fold at the same time.


)
With the electronic key in one of the
defined zones A
, press button B
or C
to
lock the vehicle.

)
Within five seconds, press button B
or C

again to deadlock the vehicle.
Locking is confirmed by two audible
signals and by the direction indicators
which flash three times
.
The door mirrors unfold at the same
time. Always ensure that you have the
electronic key on your person
before locking the vehicle: in some
circumstances, it is possible to lock
the vehicle without the presence of the
electronic key having been detected
inside the vehicle.
The operating mode must be "OFF".
With Stop & Start, if the engine is in
Stop mode, the vehicle cannot be
locked.

68
Access

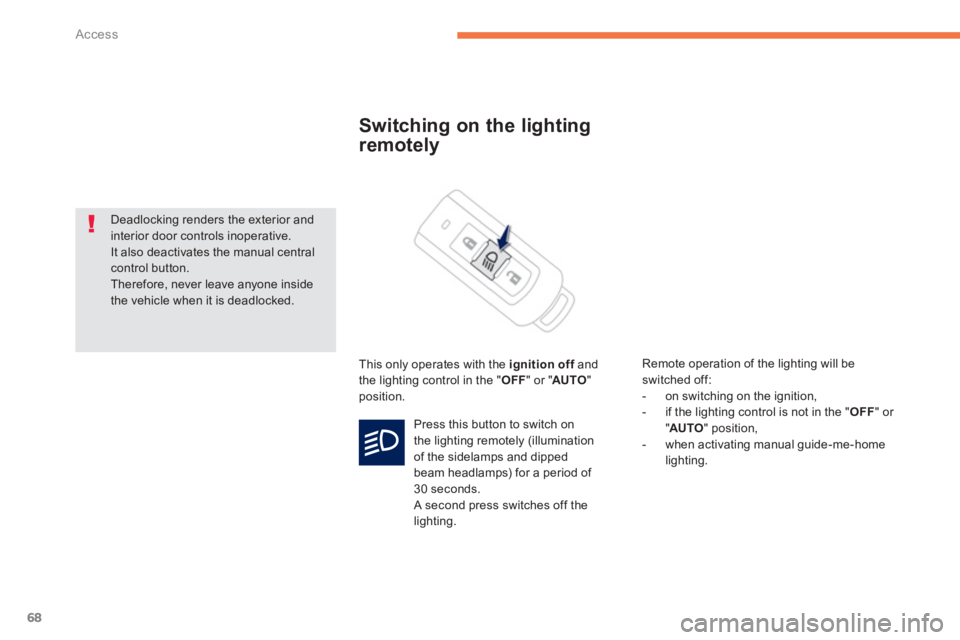

Switching on the lighting
remotely
This only operates with the ignition off
and
the lighting control in the " OFF
" or " AUTO
"
position.
Remote operation of the lighting will be
switched off:


- on switching on the ignition,

- if the lighting control is not in the " OFF
" or
" AUTO
" position,

- when activating manual guide-me-home
lighting.


Press this button to switch on
the lighting remotely (illumination
of the sidelamps and dipped
beam headlamps) for a period of
30 seconds.
A second press switches off the
lighting.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

69
2
Access





Emergency procedure with the Keyless Entry and Starting
system


Unlocking



)
Turn the key towards the front in the
driver's door lock to unlock the vehicle.



Emergency unlocking/locking
using the integral key
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:


- cell battery flat, vehicle battery discharged
or disconnected, ...

- vehicle located in an area with strong
electro-magnetic signals.


)
Pull and hold button 1
, to extract the
integral key 2
.


Locking



)
Turn the key towards the rear in the driver's
door lock to lock the vehicle.


The emergency key allows you to lock
or unlock the driver's door only.
To lock or unlock the other doors, use
the interior controls (see "Locking /
unlocking from inside").

70
Access
With the Keyless Entry and Starting system,
message appears in the instrument panel when
replacement of the battery is needed.

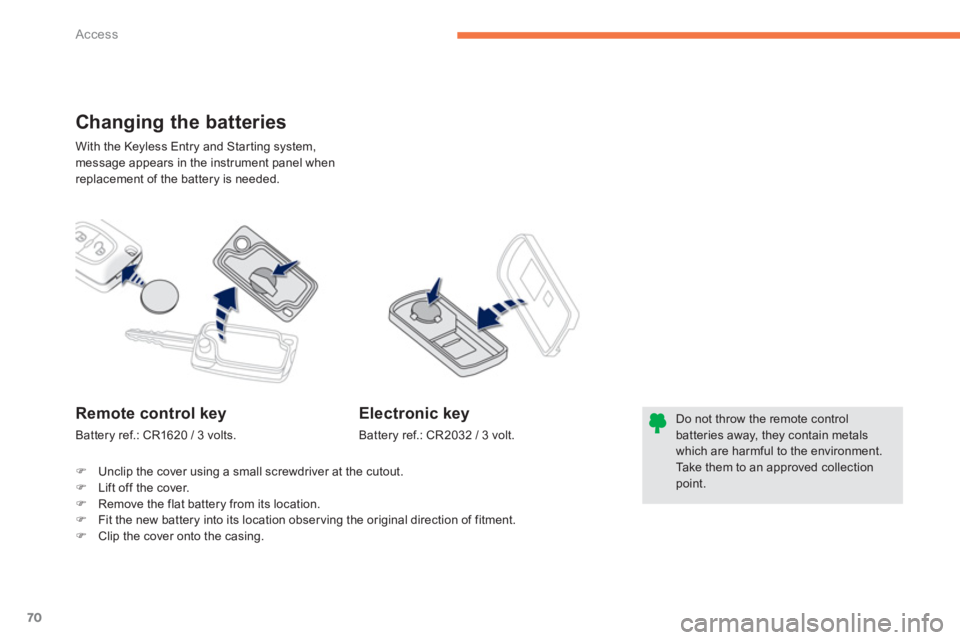

Changing the batteries









Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Remote control key

Battery ref.: CR1620 / 3 volts.


Electronic key

Battery ref.: CR2032 / 3 volt.



)
Unclip the cover using a small screwdriver at the cutout.

)
Lift off the cover.

)
Remove the flat battery from its location.

)
Fit the new battery into its location obser ving the original direction of fitment.

)
Clip the cover onto the casing.
