2014 PEUGEOT 4008 Owners Manual

207
7
Practical information





Towing a trailer, a caravan...

We recommend the use of genuine
PEUGEOT towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle
and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a
qualified workshop.
If the towbar is not fitted by a
PEUGEOT dealer, it is imperative that
it is fitted following the manufacturer's
instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer. Driving with a trailer subjects the towing vehicle
to more significant stress and its driver must be
particularly careful.

208Practical information

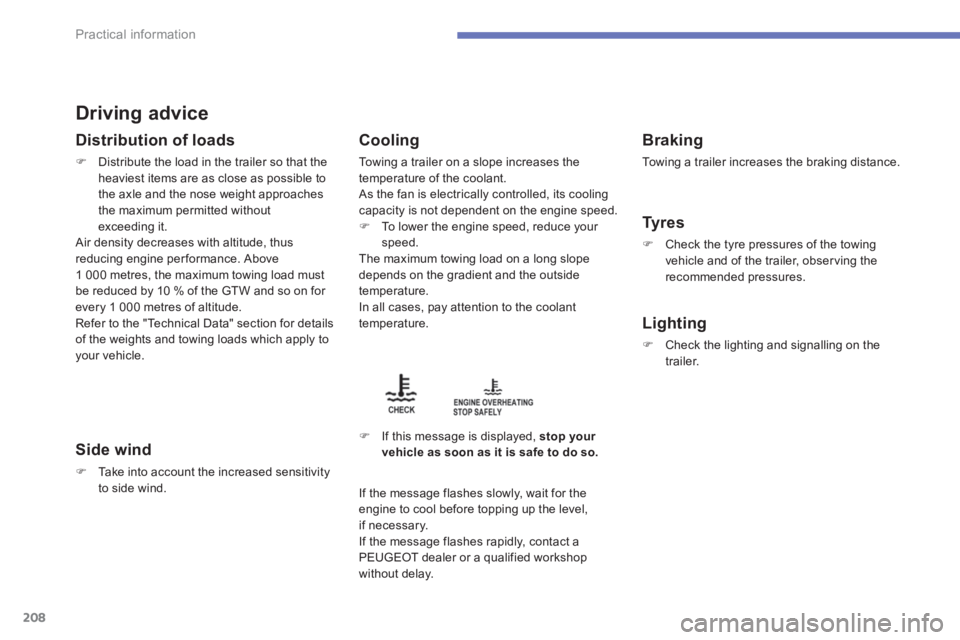

Driving advice


Distribution of loads



)
Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towing load must
be reduced by 10 % of the GTW and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for details
of the weights and towing loads which apply to
your vehicle.


Side wind



)
Take into account the increased sensitivity
to side wind.



Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.


)
To lower the engine speed, reduce your
speed.
The maximum towing load on a long slope
depends on the gradient and the outside
temperature.
In all cases, pay attention to the coolant
temperature.


)
If this message is displayed, stop your
vehicle as soon as it is safe to do so.




Braking

Towing a trailer increases the braking distance.


Ty r e s



)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting



)
Check the lighting and signalling on the
trailer.


If the message flashes slowly, wait for the
engine to cool before topping up the level,
if necessary.
If the message flashes rapidly, contact a
PEUGEOT dealer or a qualified workshop
without delay.

209
7
Practical information





Fitting roof bars

The transverse roof bars are fitted to the longitudinal bars at the 8 fixing points masked by covers.
Using a small screwdriver, remove the 8 covers on the inner faces of the longitudinal bars.
The transverse bars are fitted directly to the roof of the vehicle, at the 4 anchorage points masked
by covers.
Slide the covers towards the front of the vehicle to remove them.
Retain the protective covers.
After removing the roof bars, the protective covers should be refitted:


)
insert the fixing tongues into the apertures then slide the covers towards the rear of the vehicle.


The body sill finishers should not be
used as a step when fitting roof bars.

Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fitting instructions.
Maximum authorised weight on the roof
bars, for a loading height not exceeding
40 cm (except bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars and the fixings on the roof.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.
For reasons of safety and to avoid damaging the roof, it is essential to use transverse bars that are
approved for your vehicle.


Vehicles fitted with longitudinal bars

Vehicles not fitted with longitudinal bars

210
Practical information




Accessories

A wide range of accessories and genuine parts is available from the PEUGEOT dealer network.
These accessories and parts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.







"Comfort":

front and rear parking sensors, smoker's
kit, coat hanger on head restraint, insulated
module, aluminium footrest, reading lamp, air
deflectors, sun blinds...


"Transpor ts solutions":

towbar with quickly detachable ball, roof bars,
boot liner, boot spacers, bicycle carrier for roof
bars, ski carrier, canoe carrier, rigid roof boxes,
flexible roof boxes, boot net...

"Style":

16 inch alloy wheels, 18 inch alloy wheels,
chromed door handle shells, chromed mirror
shells, brushed aluminium interior trim kit, gloss
black interior trim kit, parking brake lever trim,
aluminium gear knob, leather steering wheel...


"Security and safety":

anti-intrusion alarm, warning triangle, high
visibility vest, breathalyser, first aid kit, snow
chains, anti-slip covers, wheel security bolts,
child seats, fire extinguisher, foglamp kit,
dog guard, stolen vehicle tracking system,
accessories for pets (seat belts, seat and boot
protectors, cage)...


"Protection":

mat * , boot carpet, side protective mouldings,
door sill protectors, boot sill protector, vehicle
cover, front and rear bumper protective
mouldings...



Conversion kits

You can obtain an "Enterprise" kit to convert a
trade vehicle to a private car and vice-versa.

If a towbar and its harness is fitted
outside the PEUGEOT dealer network,
this must be done in line with the
manufacturer's instructions.


*
To prevent any risk of jamming of the
pedals:


- ensure that the mat is positioned and
secured correctly,

- never fit one mat on top of another.

211
7
Practical information
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.

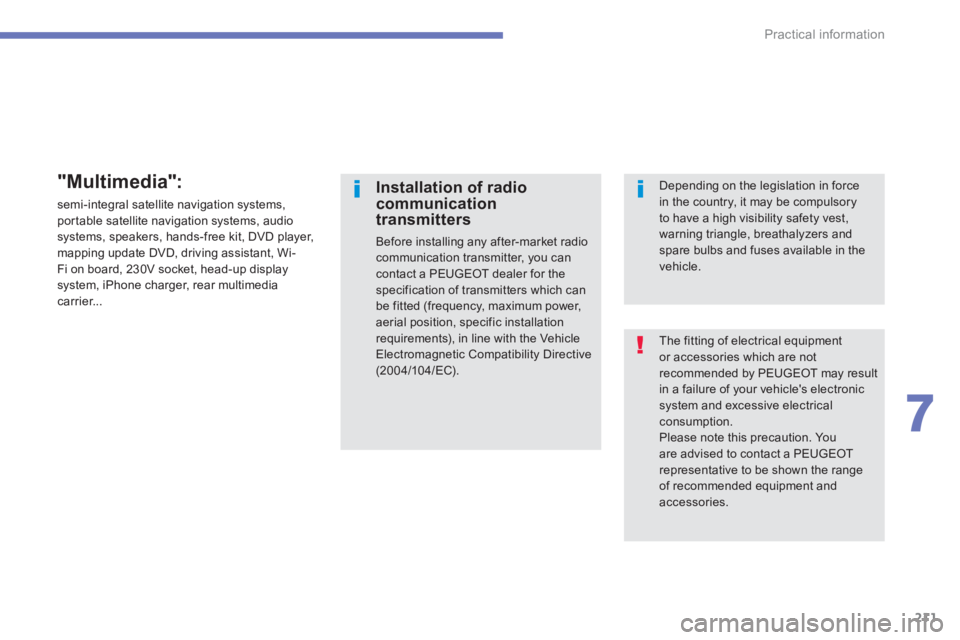

Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a PEUGEOT dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).


Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle, breathalyzers and
spare bulbs and fuses available in the
vehicle.

"Multimedia":

semi-integral satellite navigation systems,
portable satellite navigation systems, audio
systems, speakers, hands-free kit, DVD player,
mapping update DVD, driving assistant, Wi-
Fi on board, 230V socket, head-up display
system, iPhone charger, rear multimedia
carrier...

212
Checks

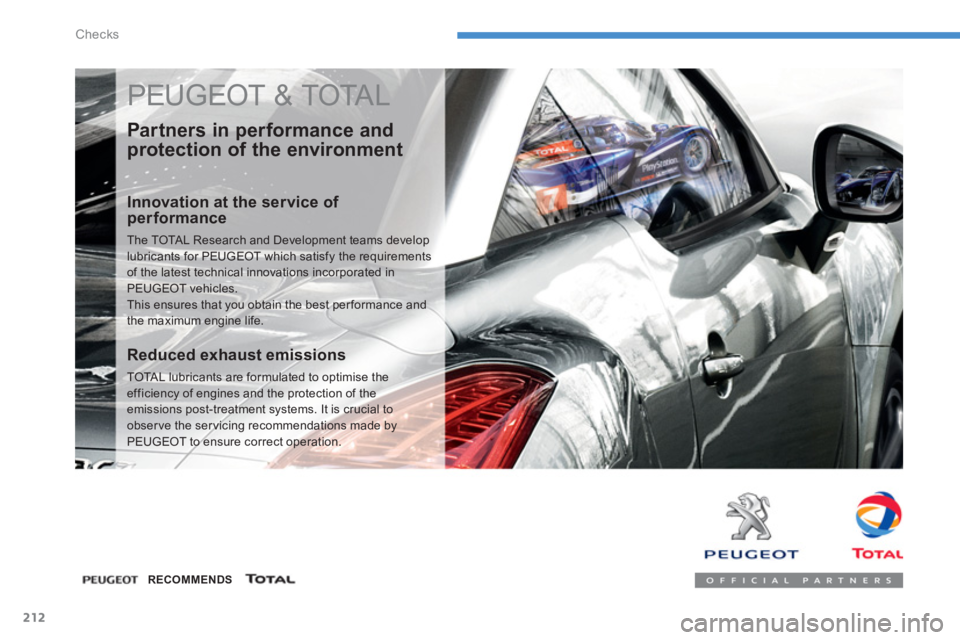

PEUGEOT & TOTAL


Partners in performance and
protection of the environment

Innovation at the service of
performance
The TOTAL Research and Development teams develop
lubricants for PEUGEOT which satisfy the requirements
of the latest technical innovations incorporated in
PEUGEOT vehicles.
This ensures that you obtain the best per formance and
the maximum engine life.


RECOMMENDS





Reduced exhaust emissions

TOTAL lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is crucial to
obser ve the ser vicing recommendations made by
PEUGEOT to ensure correct operation.

213
8
Checks











Bonnet



)
Open the left-hand front door.

)
Pull the interior bonnet release lever A
,
located at the bottom of the door aperture.
Do not open the bonnet in high winds.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).


)
Unclip the stay C
from its housing on the
back of the bonnet.

)
Fix the stay in the notch to hold the bonnet
open.


Closing



)
Take the stay out of the support notch.

)
Clip the stay in its housing on the back of
the bonnet.

)
Lower the bonnet and release it at the end
of its travel.

)
Pull on the bonnet to check that it is
secured correctly.
The location of the interior bonnet release
lever prevents opening of the bonnet while
the front left door is closed.


Opening


)
Push the exterior safety catch B
to the left
and raise the bonnet.
This message appears in the instrument panel
screen if the bonnet is not fully closed.









The cooling fan may star t after
switching off the engine; take care
with ar ticles and clothing that might
become caught by the fan blades.


Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.

214
Checks

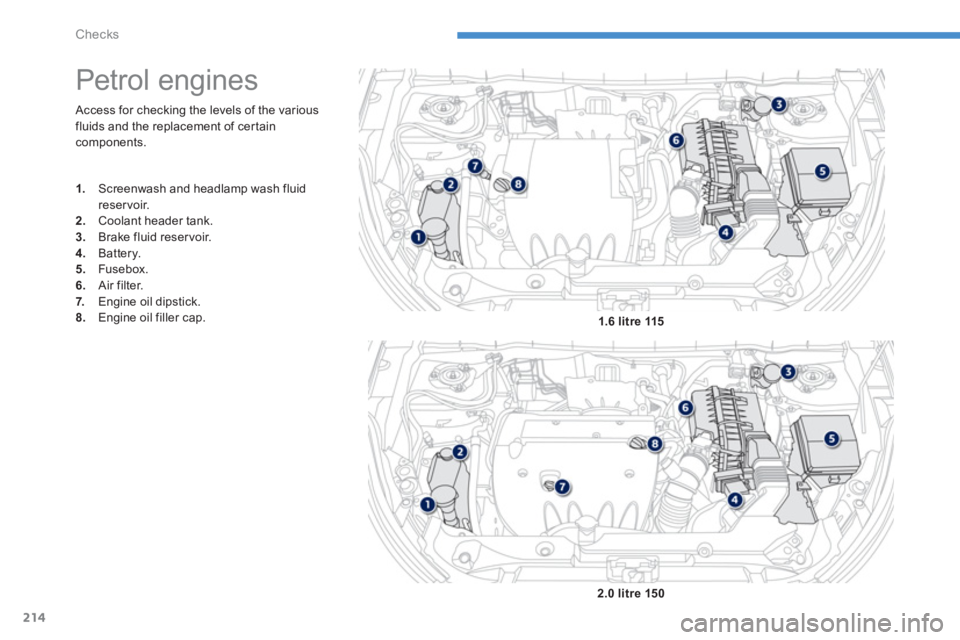

Access for checking the levels of the various
fluids and the replacement of certain
components.














Petrol engines



1.
Screenwash and headlamp wash fluid
reservoir.

2.
Coolant header tank.

3.
Brake fluid reser voir.

4.
Battery.

5.
Fusebox.

6.
Air filter.

7.
Engine oil dipstick.

8.
Engine oil filler cap.


1.6 litre 115


2.0 litre 150
