2014 PEUGEOT 4008 Owners Manual

263

Level 1


Level 2


Level 3


Comments




Go Home Address Book
Select a direct return home.
Press Yes to save your home location (the fi rst time). Go Home
Special Location
My Categories
Address/Junction Country
Select a location using the address or name of the street of the
destination. City
Street
House #
Junction
Set Save the settings.


Point of Interest Country
Select a location using the name of a point of interest (POI). City
Point of Interest
Category
Set Save the settings.


Postal Code Country
Select a location using the post code, address or name of the street of
the destination. Postal Code
Street
House #
Junction
Set Save the settings.
Phone Number Country Code:
Enter the information, the telephone number and confi rm.
Country
Set Save the settings.

264
04 NAVIGATION

Level 1
Level 2
Level 3

265

Level 1


Level 2


Level 3


Comments

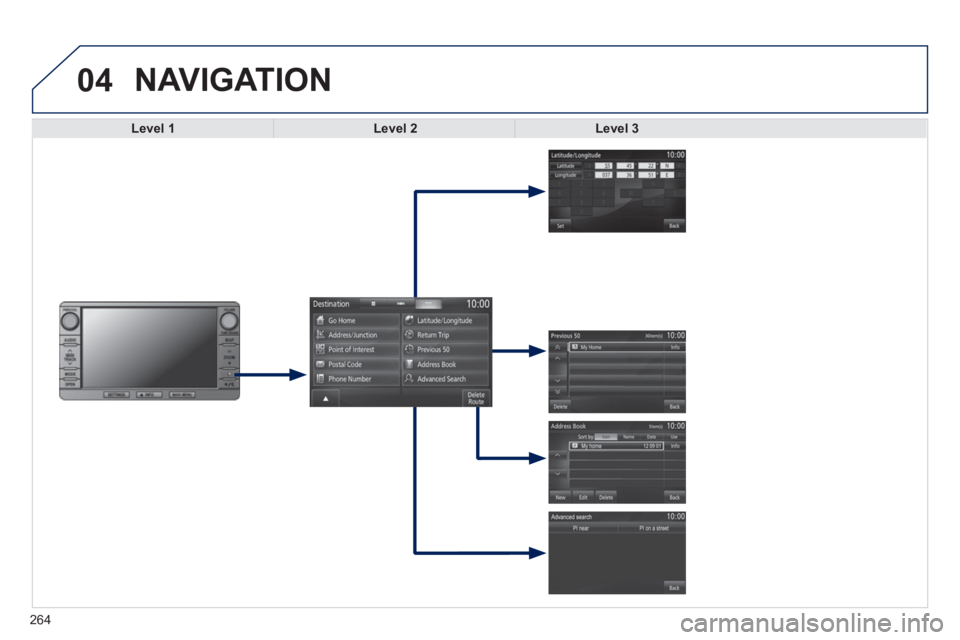

Latitude/Longitude Latitude
Select a location using the latitude and longitude.
Longitude
Set Save the settings.
Return Trip Select the point of departure as a new destination.


Previous 50 Country
Select a location using one of the 50 recent destinations. City
Point of Interest
Category
Delete Delete a destination from the list.
Address Book Icon
Select a location using an address saved in the address book. Name
Date
Use
New Create an address.
Edit Display an address from the list.
Delete Delete an address from list.
Advanced Search POI nearby
Select a location using an advanced search based on a POI.
POI along a Street

266
04 NAVIGATION

Level 1
Level 2
Level 3

267

Level 1


Level 2


Level 3


Comments



Route Menu Check and view the maps of the surroundings on a journey.
Guidance Travel Time
Adjust the route guidance mode and display the results of the route
search.


Time/Distance Remaining
Screen 3D Bldg.
Adjust the screen display settings.
3D Polygon Landmark
POI Icons on Map
TMC Dynamic Route Guidance
Display and select the traffi c information such as traffi c jams and
roadworks by selecting dynamic route guidance. TMC Icons on Map
Current Station
TMC Surveillance Map

268
04 NAVIGATION

Level 1
Level 2
Level 3

269

Level 1


Level 2


Level 3


Comments

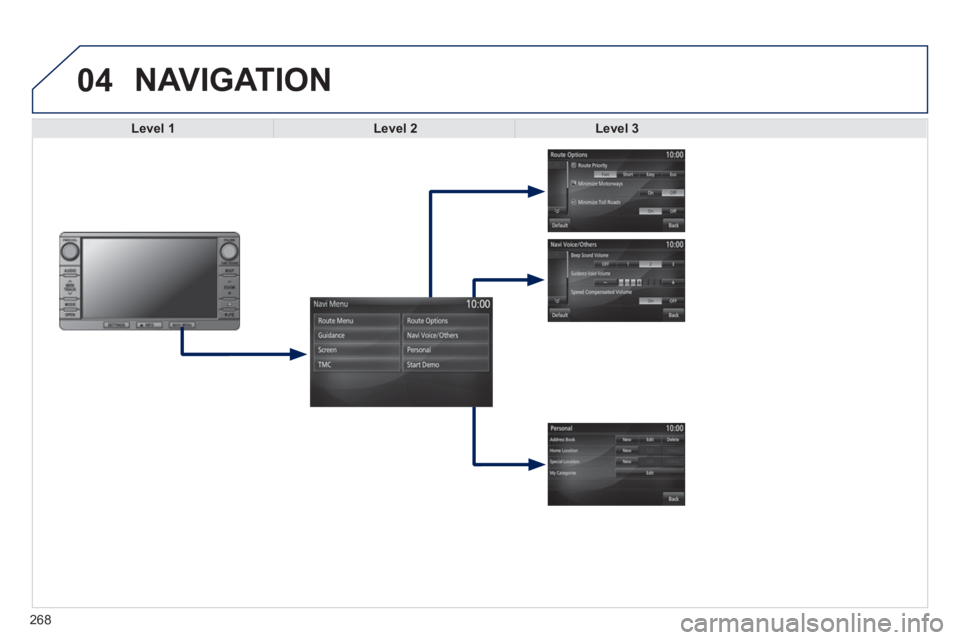

Route Options Route Priority
Adjust the roads used conditions.
Minimize Motorways
Minimize Toll Roads
Navi Voice/Others Beep Sound Volume
Set the voice used for navigation instructions and adjust the volume.
Guidance Voice Volume
Speed Compensated Volume
Personal Address Book
Save, modify or delete an entry in the address book. Go Home
Special Location
My Categories
Start Demo Play the video to check the prepared route.

270
04

The satellite navigation system guides the driver to the destination
set in accordance with a chosen route.
Initially, it searches for the destination required by the user, then
it calculates the route and fi nally it provides the visual and vocal
guidance instructions.

A point of interest (POI) is represented by an icon on
the map, it represents an airport, a station, a town
hall, ...
What is a point of interest (POI)?

Up to 40 different icons may be displayed (refer to the
section "Points of interest icon").
They are classifi ed in 5 groups and identifi ed by one
colour for each group:


- Shops, fi nance and businesses (Green),

- Vehicles and travel (Dark blue),

- Restaurants (Orange),

- Public places and emergency services (Brown),

- Entertainment and attractions (Blue).


GPS (Global Positioning System) consists of several
satellites arranged around the earth. They continuously
transmit digital signals which travel at the speed of
light, on 2 different frequencies.
At any given time, the system receives its position
in relation to the satellites detected and the time of
transmission of the signal.
This enables the telematic unit to calculate its position
and therefore that of the vehicle.
A repositioning process using the map database stored
on the hard disk allows the vehicle to be positioned
on the road network, so improving the accuracy of the
vehicle location function.



















GPS system


What is the navigation system and GPS?

The system's measurements may be inaccurate if the vehicle is:


- in a tunnel or underground car park,

- underneath a two-level motorway,

- in an area with several very high buildings,

- surrounded by closely planted trees.
Depending on the vehicle's situation and the reception of the GPS
information, the displayed information may disappear from the
screen temporarily.

What precautions should be observed in order to make
best use of the system?

Do not place anything on or near the GPS aerial.
Do not use any digital communication equipment (personal
computers, etc.) near the GPS aerial.
Do not affi x any refl ective fi lms or fi lms containing carbon to the
windows.

NAVIGATION - GUIDANCE
