2014 PEUGEOT 4008 Owners Manual

223
8
Checks






Manual gearbox

Refer to the warranty and
maintenance record for ser vicing of
the gearbox.







"CVT" gearbox

Refer to the warranty and
maintenance record for ser vicing of
the "CVT" gearbox.










Particle emissions filter (Diesel)

The start of saturation of the particle filter is
indicated by the temporary illumination of this
warning lamp accompanied by a message in
the instrument panel screen. As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 25 mph (40 km/h) for
about 20 minutes (with the 1.6 litre HDi
engine the minimum speed is 36 mph
(60 km/h)).
If the warning lamp stays on, this
indicates a low additive level.

On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.

224
Checks
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle ser vices.















Brake pads

For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.


Brake disc wear




















Parking brake


If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two ser vices.















Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, PEUGEOT selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Checking this system must be done by a
PEUGEOT dealer or a qualified workshop.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.

9
225
Te c h n i c a l d a t a

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

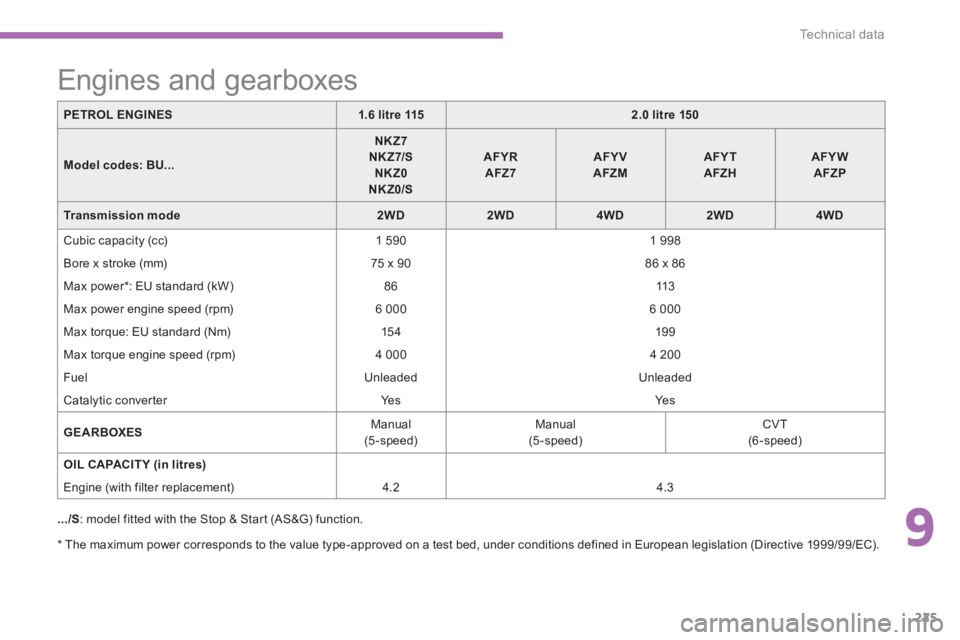

Engines and gearboxes


.../S
: model fitted with the Stop & Start (AS&G) function.
PETROL ENGINES


1.6 litre 115



2.0 litre 150



Model codes :

BU

...


NKZ7

NKZ7/S

NKZ0

NKZ0/S



AFYR

AFZ7



AFYV
AFZM



AFYT
AFZH



AFYW
AFZP



Tr a n s m i s s i o n m o d e


2WD



2WD



4WD



2WD



4WD


Cubic capacity (cc)
1 590
1 998
Bore x stroke (mm)
75 x 90
86 x 86
Max power * : EU standard (kW)
86
113
Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
15 4
19 9
Max torque engine speed (rpm)
4 000
4 200
Fuel
Unleaded
Unleaded
Catalytic conver ter
Ye s
Ye s

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
CVT
(6-speed)

OIL CAPACITY (in litres)











Engine (with filter replacement)
4.2
4.3

226
Te c h n i c a l d a t a















Petrol weights and towed loads (kg)


The values for maximum towed weights type
approved according to the sales zone (see the
tables on the following pages).
The exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
They are also mentioned in sales brochures.
For more details, contact a PEUGEOT dealer
or a qualified workshop.
The kerb weight is equal to the unladen
weight + driver (75 kg).
The GTW and towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
The speed of a towing vehicle must not exceed
60 mph (100 km/h) (comply with the legislation
in force in your country).
High ambient temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the ambient temperature
is above 37 °C, limit the towed load.

The weight of the braked trailer can be
increased, within the GTW limit, if the
GV W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding
.

9
227
Te c h n i c a l d a t a

PETROL ENGINES



1.6 litre 115



Gearboxes



Manual (5-speed)



Model codes:
BU...


NKZ0

NKZ0/S



Tr a n s m i s s i o n m o d e



2WD




- Unladen weight

1 310


- Kerb weight

1 385


- Gross vehicle weight
(GV W)
1 870


- Gross vehicle weight (GV W)
when towing
1 925


- Gross train weight (GTW)
on a 12% gradient
3 025


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 100


- Unbraked trailer

685


- Recommended nose weight
55














For zones: Europe, Turkey, French overseas dominions and territories.

228
Te c h n i c a l d a t a













For: Russia, Ukraine, Morocco, Argentina, Chile, French overseas dominions and territories (2.0 litre 150 engine).


PETROL ENGINES


1.6 litre 115



2.0 litre 150



Gearboxes


Manual
(5 - speed)



Manual (5-speed)



CVT (6- speed)



Model codes:
BU...


NKZ7



AFZ7



AFZM



AFZH



AFZP



Tr a n s m i s s i o n m o d e


2WD



2WD



4WD



2WD



4WD




- Unladen weight
1 315
1 355
1 420
1 385
1 450


- Kerb weight
1 390
1 430
1 495
1 460
1 525


- Gross vehicle weight
(GV W)
1 870
1 970
1 970
1 970
1 970


- Gross vehicle weight
(GV W) when towing
1 925
2 035
2 035
2 035
2 035


- Gross train weight (GTW)
on a 12% gradient
3 025
3 335
3 335
3 335
3 335


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 100
1 300
1 300
1 300
1 300


- Unbraked trailer
685
715
74 5
725
750


- Recommended nose weight
55
65
65
65
65

9
229
Te c h n i c a l d a t a













For: Australia, New-Zealand.


PETROL ENGINES



2.0 litre 150



Gearboxes


Manual (5-speed)



CVT (6- speed)



Model codes:
BU...


AFZ7



AFZM



AFZH



AFZP



Tr a n s m i s s i o n m o d e


2WD



4WD



2WD



4WD




- Unladen weight
1 350
1 415
1 380
1 445


- Kerb weight
1 425
1 490
1 455
1 520


- Gross vehicle weight
(GV W)
1 970
1 970
1 970
1 970


- Gross vehicle weight
(GV W) when towing
2 035
2 035
2 035
2 035


- Gross train weight (GTW)
on a 12% gradient
3 020
3 020
3 020
3 020


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 050
1 050
1 050
1 050


- Unbraked trailer
750
750
750
750


- Recommended nose weight
65
65
65
65

230
Te c h n i c a l d a t a













For: South Africa.


PETROL ENGINES



2.0 litre 150



Gearboxes


Manual (5-speed)



CVT (6- speed)



Model codes:
BU...


AFYR



AFYV



AFYT



AFYW



Tr a n s m i s s i o n m o d e


2WD



4WD



2WD



4WD




- Unladen weight
1 350
1 415
1 390
1 455


- Kerb weight
1 425
1 490
1 465
1 530


- Gross vehicle weight
(GV W)
1 970
1 970
1 970
1 970


- Gross vehicle weight
(GV W) when towing
2 035
2 035
2 035
2 035


- Gross train weight (GTW)
on a 12% gradient
3 075
3 075
2 760
2 760


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 050
1 050
750
750


- Unbraked trailer
1 050
1 050
750
750


- Recommended nose weight
65
65
65
65
