2014 Peugeot 308 PEUGEOT 308 2014 Owners Manual

3
Comfort63

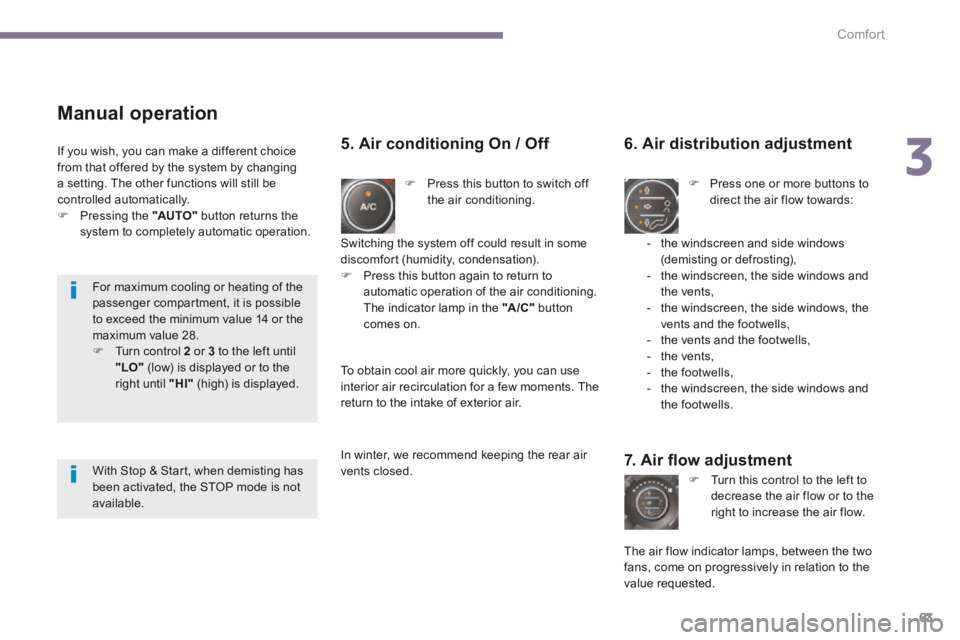

Manual operation
 Press this button to switch off the air conditioning.
6. Air distribution adjustment
 Press one or more buttons to direct the air flow towards:
7. Air fl ow adjustment
 Turn this control to the left to decrease the air flow or to the right to increase the air flow.
5. Air conditioning On / Off
- the windscreen and side windows (demisting or defrosting), - the windscreen, the side windows and the vents, - the windscreen, the side windows, the vents and the footwells, - the vents and the footwells, - the vents, - the footwells, - the windscreen, the side windows and the footwells.
The air flow indicator lamps, between the two fans, come on progressively in relation to the value requested.
Switching the system off could result in some discomfort (humidity, condensation).  Press this button again to return to automatic operation of the air conditioning. The indicator lamp in the "A /C " button comes on.
If you wish, you can make a different choice from that offered by the system by changing a setting. The other functions will still be controlled automatically.  Pressing the "AUTO" button returns the
system to completely automatic operation.
To obtain cool air more quickly, you can use interior air recirculation for a few moments. The return to the intake of exterior air.
In winter, we recommend keeping the rear air vents closed.
For maximum cooling or heating of the passenger compartment, it is possible to exceed the minimum value 14 or the maximum value 28.  Turn control 2 or 3 to the left until "LO" (low) is displayed or to the right until "HI" (high) is displayed.
With Stop & Start, when demisting has been activated, the STOP mode is not available.

Comfort
64
9. Mono-zone / Dual-zone
 Press this button to equalise the comfort value on the passenger side with that on the driver's side (mono-zone). The indicator lamp in the button comes on.

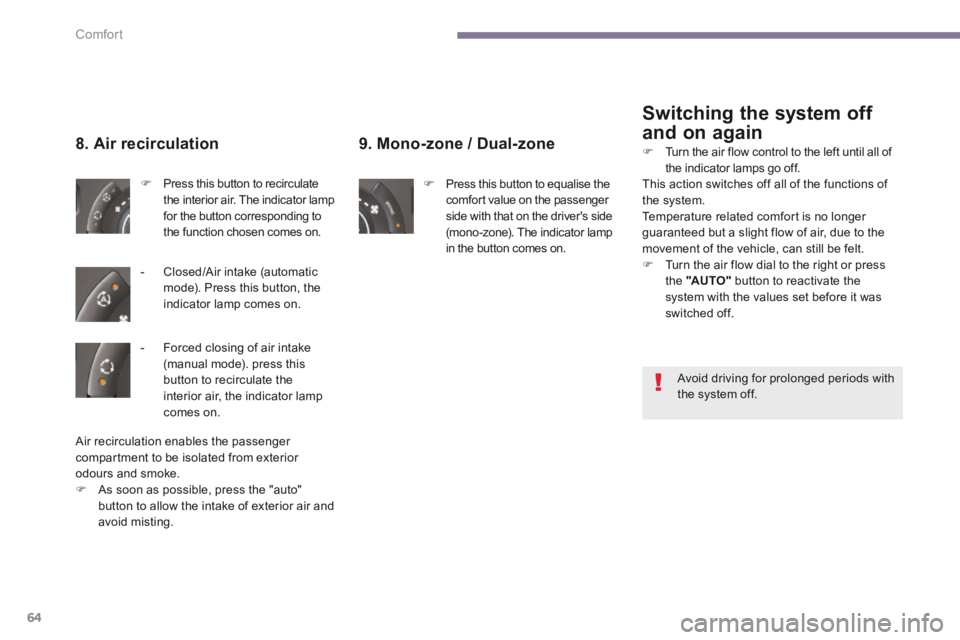

8. Air recirculation
 Press this button to recirculate the interior air. The indicator lamp for the button corresponding to the function chosen comes on.
- Closed/Air intake (automatic mode). Press this button, the indicator lamp comes on.
Switching the system off
and on again
Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke.  As soon as possible, press the "auto" button to allow the intake of exterior air and avoid misting.
Avoid driving for prolonged periods with the system off.
 Turn the air flow control to the left until all of the indicator lamps go off. This action switches off all of the functions of the system. Temperature related comfort is no longer
guaranteed but a slight flow of air, due to the movement of the vehicle, can still be felt.  Turn the air flow dial to the right or press the "AUTO" button to reactivate the system with the values set before it was switched off.
- Forced closing of air intake (manual mode). press this button to recirculate the interior air, the indicator lamp comes on.

3
Comfort65
Front seats with manual adjustments
Height
 Pull the control upwards to raise or push it downwards to lower, as many times as required, to obtain the position required.
Seat back angle
 Push the control rear wards.
Forwards-backwards
 Raise the control and slide the seat for wards or backwards.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

Comfort
66

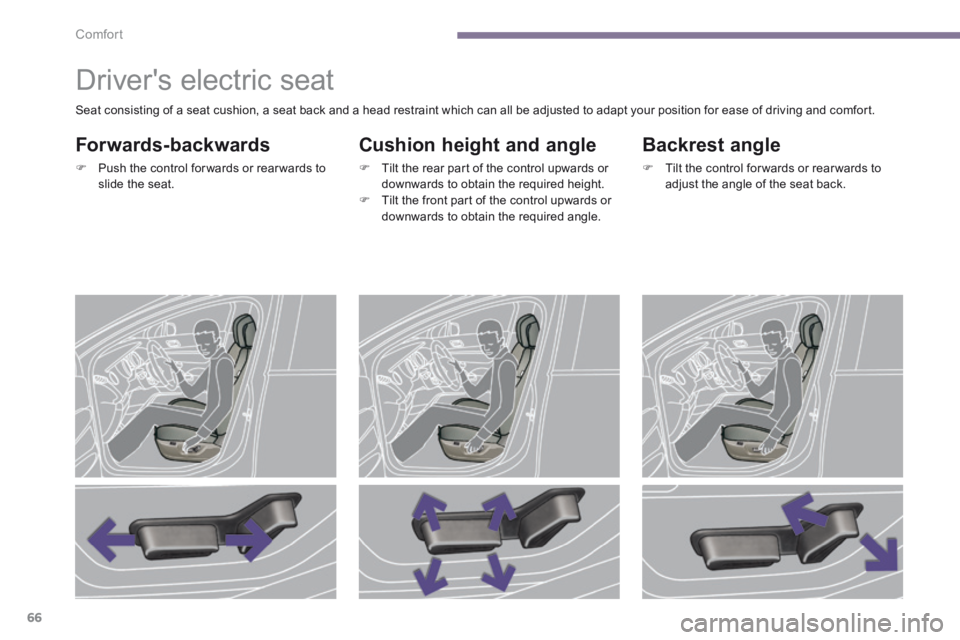

Driver's electric seat
Forwards-backwards
 Push the control for wards or rear wards to slide the seat.
Cushion height and angle
 Tilt the rear part of the control upwards or downwards to obtain the required height.  Tilt the front part of the control upwards or downwards to obtain the required angle.
Backrest angle
 Tilt the control for wards or rear wards to adjust the angle of the seat back.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.

3
Comfort67
The electrical functions of the driver's seat are active approximately one minute after opening the front door. They are deactivated approximately one minute after the ignition is switched off and in economy mode. To reactivate them, switch on the ignition.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects
on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

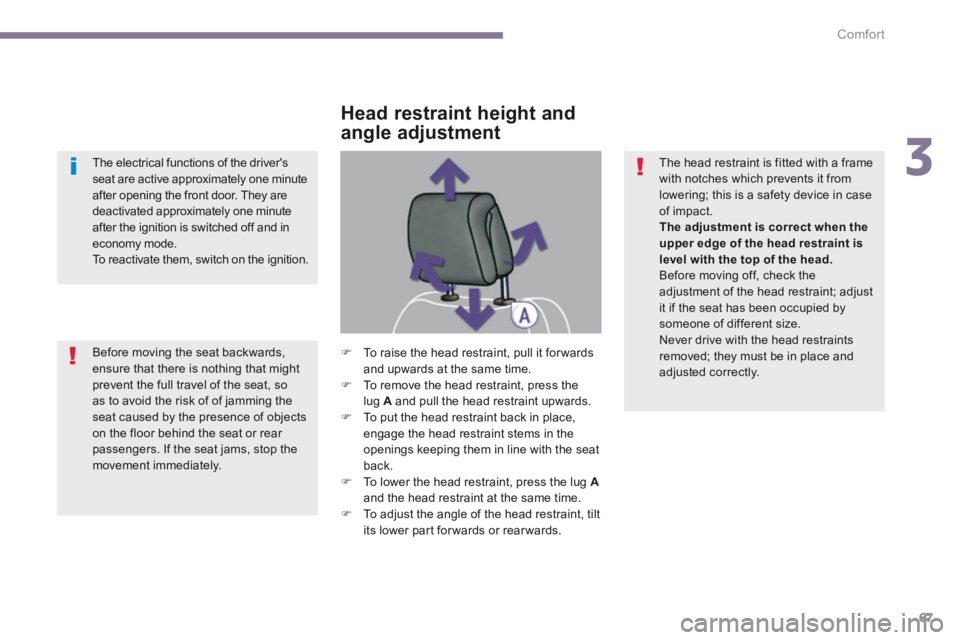

Head restraint height and
angle adjustment
 To raise the head restraint, pull it for wards and upwards at the same time.  To remove the head restraint, press the lug A and pull the head restraint upwards.  To put the head restraint back in place, engage the head restraint stems in the openings keeping them in line with the seat
back.  To lower the head restraint, press the lug Aand the head restraint at the same time.  To adjust the angle of the head restraint, tilt its lower part forwards or rearwards.
The head restraint is fitted with a frame with notches which prevents it from lowering; this is a safety device in case of impact. The adjustment is correct when the upper edge of the head restraint is level with the top of the head. Before moving off, check the adjustment of the head restraint; adjust it if the seat has been occupied by someone of different size. Never drive with the head restraints removed; they must be in place and adjusted correctly.

Comfort
68
Heated seats control
With the engine running, the front seats can be heated separately.  Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating required:
0 : Off. 1 : Low. 2 : Medium. 3 : High.

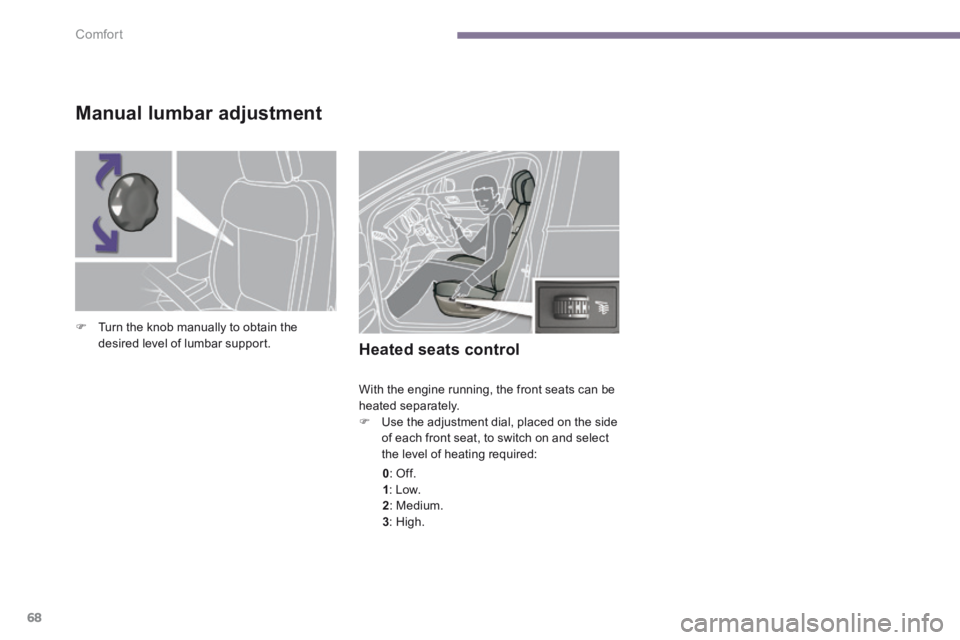

Manual lumbar adjustment
 Turn the knob manually to obtain the desired level of lumbar support.

3
Comfort69
Folding the seat backrest
 Check that no object, either on or underneath the seat, could hinder its movement.  To make the operation easier, place the head restraint in the low position (if the seat is in the fully for ward position).  If your vehicle is fitted with the video pack, place the protective cover on the head restraint.  Lift the control, located behind the seat, then guide the seat backrest for wards.
When the seat backrest is in this position, the seat behind it and the centre rear seat must not be occupied. This position, associated with that of the rear seats, allows you to transport long objects inside the vehicle. The maximum weight on the seat is 30 kg.
Table position, front passenger seat
Returning the seat to the normal position
 Guide the seat backrest rear wards until it locks in place.

Comfort
70

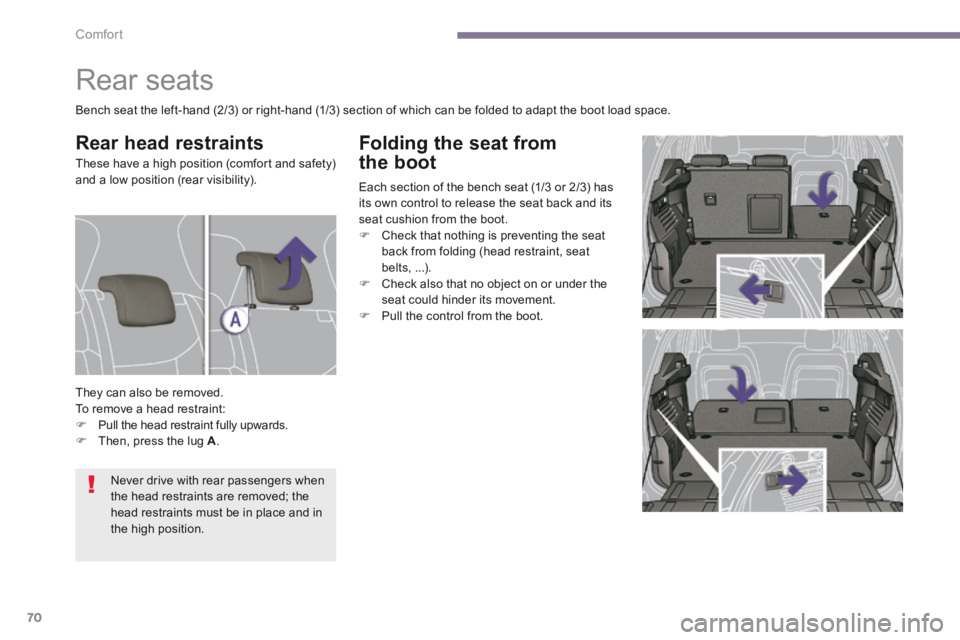

Folding the seat from
the boot
Each section of the bench seat (1/3 or 2/3) has its own control to release the seat back and its seat cushion from the boot.
 Check that nothing is preventing the seat back from folding (head restraint, seat belts, ...).  Check also that no object on or under the seat could hinder its movement.  Pull the control from the boot.
Rear seats
Rear head restraints
They can also be removed. To remove a head restraint:  Pull the head restraint fully upwards.  Then, press the lug A .
Bench seat the left-hand (2/3) or right-hand (1/3) section of which can be folded to adapt the boot load space.
These have a high position (comfort and safety) and a low position (rear visibility).
Never drive with rear passengers when the head restraints are removed; the head restraints must be in place and in the high position.
