2014 Peugeot 308 PEUGEOT 308 2014 Owners Manual

07
367

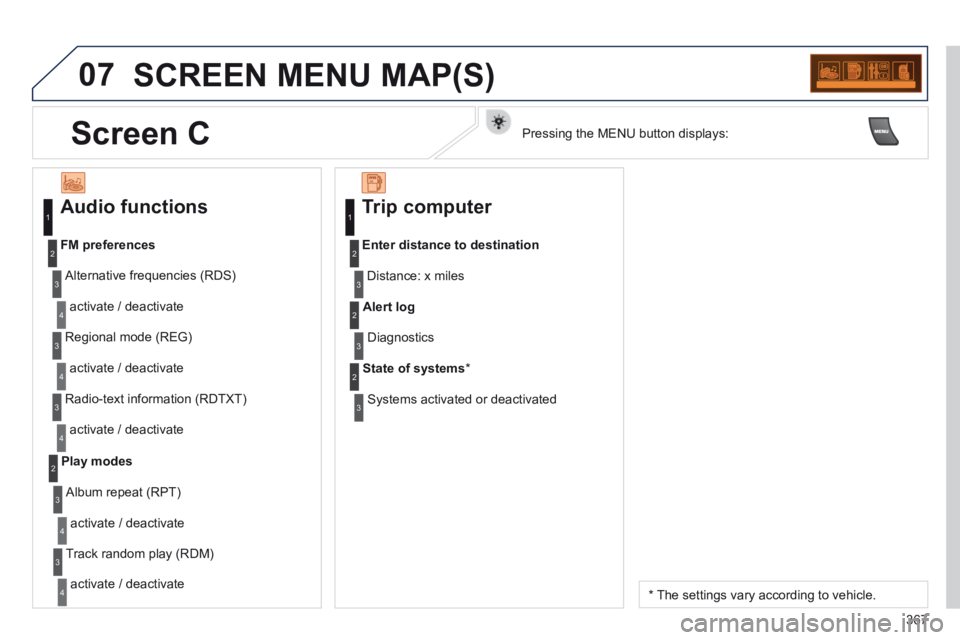

SCREEN MENU MAP(S)
Audio functions
Alternative frequencies (RDS)
activate / deactivate
FM preferences
Regional mode (REG)
activate / deactivate
Radio-text information (RDTXT)
activate / deactivate
1
2
3
4
3
4
3
4
Play modes
Album repeat (RPT)
activate / deactivate
Track random play (RDM)
activate / deactivate
2
3
4
3
4
Trip computer
Distance: x miles
Enter distance to destination
Diagnostics
Alert log
Systems activated or deactivated
State of systems *
1
2
3
3
2
3
2
* The settings vary according to vehicle.
Screen C Pressing the MENU button displays:

07
368
SCREEN MENU MAP(S)
Bluetooth telephone
Connect/Disconnect an equipment
Consult the paired equipment
Bluetooth confi guration
Telephone function
Audio Streaming function
Delete a paired equipment
Perform a Bluetooth search
Calls list
Call
Directory
Terminate the current call
Manage the telephone call
Activate secret mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3
Video-brightness adjustment
Display confi guration
Defi ne vehicle settings *
Personalisation-Configuration
normal video
inverse video
brightness (- +) adjustment
Setting the date and time
setting day/month/year
hour/minute adjustment
choice of 12 h / 24 h mode
Choice of units
l/100 km - mpg - km/l
°Celsius / °Fahrenheit
Choice of language
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The settings vary according to vehicle.

369

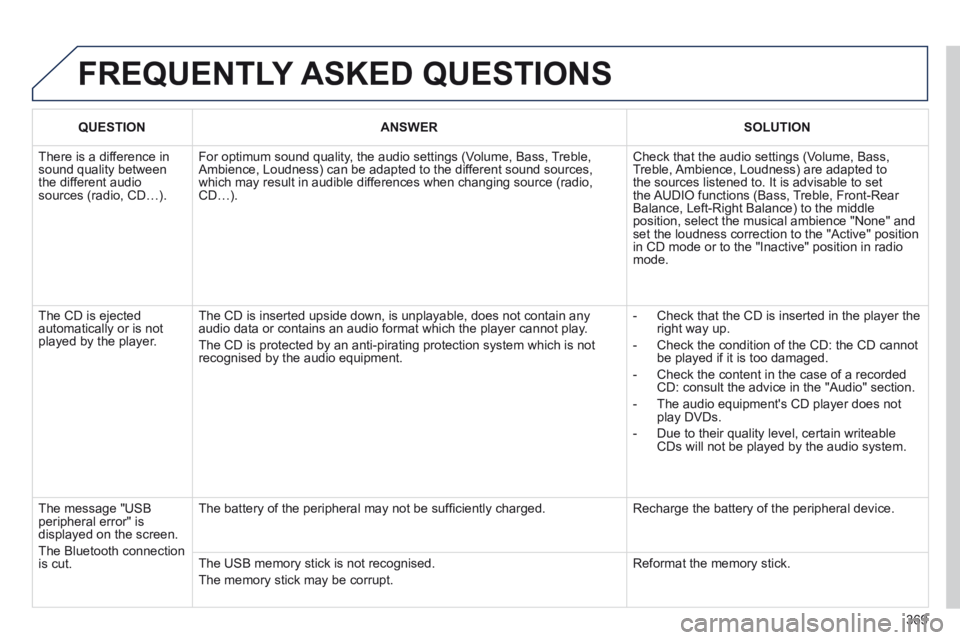

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD…).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD…).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

370

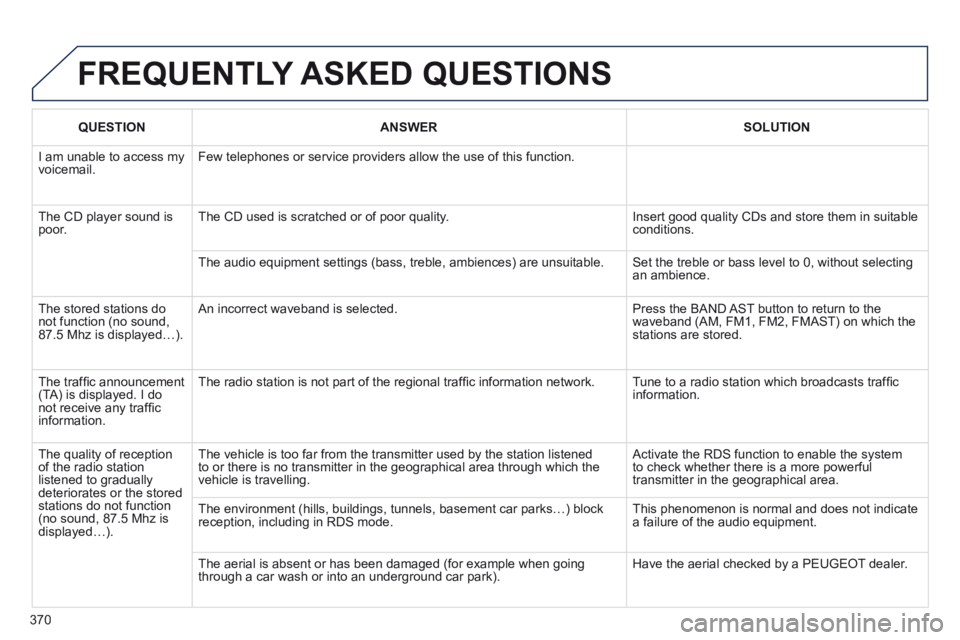

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
I am unable to access my voicemail. Few telephones or service providers allow the use of this function.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.\
Set the treble or bass level to 0, without selecting an ambience.
The stored stations do not function (no sound, 87.5 Mhz is displayed…).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed…).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks…) bl\
ock reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.

371

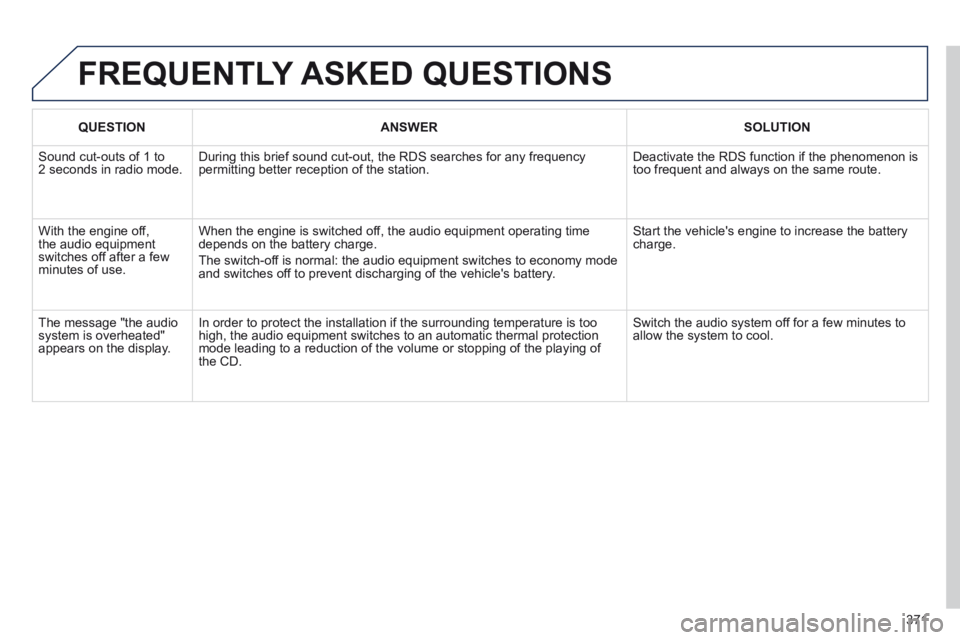

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.

Alphabetical index
372
Accessories ..................................................239Accessory socket, 12V ..................111, 114 , 12 2Adjusting headlamps ....................................101Adjusting head restraints ................................67Adjusting seat belt height .............................147Adjusting the steering wheel ..........................74Airbags ............................................................37Airbags, curtain .....................................152, 153Airbags, front.........................................150, 153Airbags, lateral ......................................152, 153Air conditioning ...............................................25Air conditioning, automatic .............................58Air conditioning, digital ...................................62Air conditioning, manual ...........................58, 59Air filter ..........................................................Air filter ..........................................................Air filter19 9Air flow ............................................................25Air vents ..........................................................57Alarm ...............................................................81Anti-pinch ................................................8 3 , 118Anti-theft .........................................................78Armrest ..........................................................111Armrest, front ................................................113Armrest, rear .................................................Armrest, rear .................................................Armrest, rear117Assistance call ......................................249, 250Audible warning ............................................13 9Audio streaming (Bluetooth) ................336, 363Audio systems .................................................52Audio/video sockets ......................................280Automatic illumination of headlamps ........................................95, 100Automatic operation of hazard warning lamps ............................................13 9Automatic rain sensitive windscreen wipers ..............................103, 10 6Auxiliary sockets ..................280, 337, 358, 360
Backup starting .............................................230Battery ...........................................199, 229 -231Battery, charging ...........................................231Battery, remote control .............................79, 80Blind for panoramic sunroof ..........................Blind for panoramic sunroof ..........................Blind for panoramic sunroof118Blinds.............................................................124Bluetooth (hands-free) ..........281-283, 320, 361Bluetooth (telephone) ....................281-283, 320Bonnet ...........................................................192Bonnet stay ...................................................192Boot floor, adjustable ....................................123Boot lamp ..............................................11 0 , 12 4Boot lid ............................................................89Brake discs ....................................................200Brake lamps ..................................................219Brake pads ....................................................200Brakes ...........................................................200
A
Checks .................................194, 195, 199, 200Child lock .......................................................13 8Children .........................................13 3, 13 5, 13 6Child seats ...........................125, 126, 130, 137Child seats, conventional ......................132, 13 3Closing the boot ..................................76, 88, 89Closing the doors ......................................76, 85Cold climate screen ......................................238Colour screen, retractable ........................50, 52Connectors, audio .................112, 113, 358, 360Control for panoramic sunroof blind .............118Coolant level ...........................................38, 198Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator38Courtesy lamps .............................................108Courtesy mirror .............................................Courtesy mirror .............................................Courtesy mirror112Cruise control ................................................169Cup holder .....................................................Cup holder .....................................................Cup holder111
Capacity, fuel tank ..........................................90CD MP3 .........................................................357Central locking ..........................................76, 86Changing a bulb ............................216, 219 -221Changing a fuse ............................................222Changing a wheel .................................2 0 7, 2 1 0Changing a wiper blade ........................1 0 7, 2 3 3Changing the date ...............................43, 45, 47Changing the remote control battery ..............79Changing the time ...............................43, 45, 47Checking levels .....................................19 6 -198Checking the engine oil level ..........................41Checking tyre pressures (using the kit) ........201
Date (setting) .......................................43, 45, 47Deactivating ESP ..........................................14 4Deactivating the passenger airbag ...............150Deadlocking ....................................................76Defrosting ............................................59 - 61, 72Demisting ........................................................59Dials and gauges ............................................27Diesel additive level ......................................198Dimensions ...................................................246Dipped beam ...................................94, 216 -218Dipstick ....................................................41, 196Directional lighting ........................................102Direction indicators ...............139, 216, 217, 219
CD
B

.
Alphabetical index373
Eco-driving .....................................................25Eco-driving (advice) ........................................25Economical driving ........................................25Economy mode .............................................232Electric window controls .................................83Electronic engine immobiliser...................78, 80Electronic gearbox system ................25, 27, 31,154, 157, 158, 174, 183, 200, 231Electronic stability control (ESC) ..................142Emergency call .....................................24 9 - 2 51Emergency warning lamps ...........................13 9Energy economy mode .................................232Engine compartment ............................19 4, 195Engine compartment fusebox .......................222Engine, Diesel .................92, 193, 195, 243 -245Engine oil level indicator .........................Engine oil level indicator .........................Engine oil level indicator41, 196Engine, petrol ..........................92, 194, 241, 242Engines .................................................241, 243Environment ..............................................25, 80Equipment settings .................28, 43, 45, 47, 50ESC/ASR .......................................................142
Gearbox, automatic .........................27, 31, 154,157, 158, 179, 200, 231Gearbox, manual .........................15 4, 157, 15 8,172, 173, 183, 200Gear lever .......................................................Gear lever .......................................................Gear lever25Gear lever, automatic gearbox .....................179Gear lever, manual gearbox .........................172Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator173Glove box ......................................................112G . P. S . ...................................................264, 306Grab handle on console ...............................111Grab handles ................................................111
Identification plates .......................................247Indicator lamps, status ....................................31Indicators, direction ......................................13 9Inflating accessories (using the kit) ..............201Inflating tyres ..................................................25
E
G
I
F
Distance alert ................................................163Doors ...............................................................85Doors emergency control ...............................87Door trays ......................................................111Dynamic emergency braking ........................157Dynamic stability control (DSC) ....................................36, 143, 145, 157
Filling with fuel ...................................90, 92, 93Fitting a wheel ...............................................2 11Fitting roof bars .............................................237Fittings, boot .................................................11 9Flashing indicators ........................................13 9Floor, three-position ......................................123Foglamps, rear ................................................Foglamps, rear ................................................Foglamps, rear96Folding the rear seats .....................................70Folding/unfolding the door mirrors .................72Front foglamps ................................96, 216, 218Front seats .........................................65, 66, 69Fuel......................................................25, 90, 92Fuel consumption ............................................25Fuel filler cap ...................................................90Fuel filler flap .............................................90, 93Fuel gauge ......................................................90Fuel tank....................................................90, 93Fusebox, dashboard .....................................222Fuses .............................................................222
Grip control ...................................................145Guidance .......................................264, 304, 311Guide-me-home ............................................10 0
H
Halogen headlamps ..............................216, 217Hands-free kit .......................................320, 361Hazard warning lamps ..................................13 9Headlamp adjustment ...................................101Headlamps, directional .........................102, 216Headlamp wash ............................................105Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir198Head restraints, front ......................................67Head restraints, rear .......................................Head restraints, rear .......................................Head restraints, rear70Head-up display ............................161, 166, 169Heated seats ...................................................68Heating ......................................................25, 59Height and reach adjustment, steering wheel ..............................................74Hill start assist ...............................................15 8Hooks ............................................................121Horn...............................................................13 9

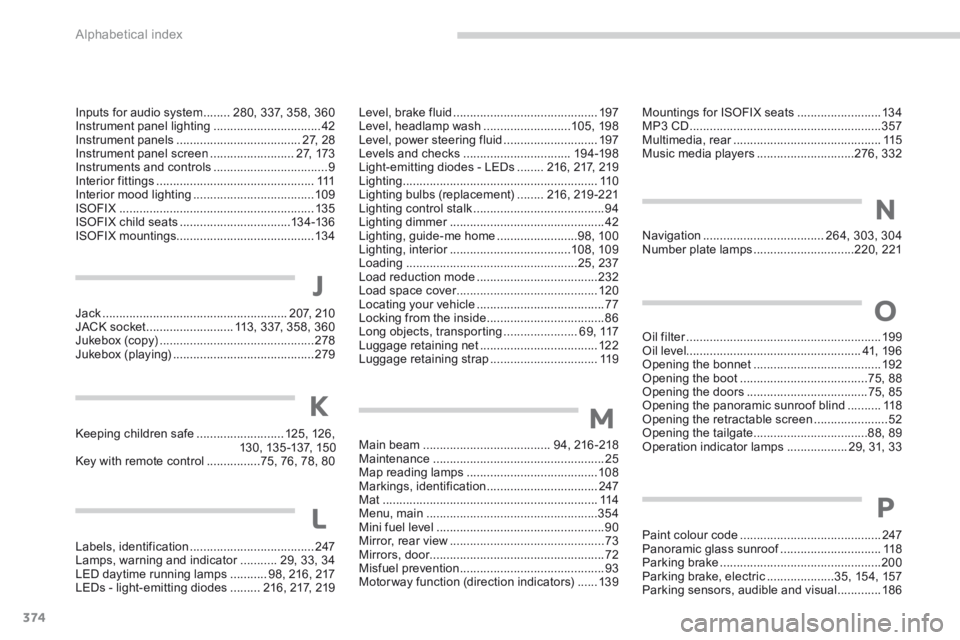

Alphabetical index
374
Keeping children safe ..........................125, 126,13 0, 13 5 -137, 15 0Key with remote control ................75, 76, 78, 80
Labels, identification .....................................247Lamps, warning and indicator ...........Lamps, warning and indicator ...........Lamps, warning and indicator29, 33, 34LED daytime running lamps ...........98, 216, 217LEDs - light-emitting diodes .........216, 217, 219
Paint colour code ..........................................247Panoramic glass sunroof ..............................Panoramic glass sunroof ..............................Panoramic glass sunroof118Parking brake ................................................200Parking brake, electric ....................35, 15 4, 157Parking sensors, audible and visual .............18 6
Jack .......................................................2 0 7, 2 1 0JACK socket ..........................113, 337, 358, 360Jukebox (c opy) ..............................................278Jukebox (playing) ..........................................279
Main beam ......................................94, 216 -218Maintenance ...................................................25Map reading lamps .......................................108Markings, identification .................................247Mat ................................................................114Menu, main ...................................................354Mini fuel level ..................................................90Mirror, rear view ..............................................73Mirrors, door....................................................72Misfuel prevention ...........................................93Motorway function (direction indicators) ......13 9
J
K
LP
M
Mountings for ISOFIX seats .........................13 4MP3 CD .........................................................357Multimedia, rear ............................................Multimedia, rear ............................................Multimedia, rear115Music media players .............................276, 332
Navigation ....................................264, 303, 304Number plate lamps ..............................220, 221
Oil filter ..........................................................Oil filter ..........................................................Oil filter19 9Oil level....................................................41, 196Opening the bonnet ......................................192Opening the boot ......................................75, 88Opening the doors ....................................75, 85Opening the panoramic sunroof blind ..........118Opening the retractable screen ......................52Opening the tailgate ..................................88, 89Operation indicator lamps ..................29, 31, 33
N
O
Inputs for audio system ........280, 337, 358, 360Instrument panel lighting ................................42Instrument panels .....................................2 7, 2 8Instrument panel screen .........................2 7, 17 3Instruments and controls ..................................9Interior fittings ...............................................111Interior mood lighting ....................................109ISOFIX ..........................................................13 5ISOFIX child seats .................................13 4 -13 6ISOFIX mountings.........................................13 4
Level, brake fluid ...........................................197Level, headlamp wash ..........................105, 198Level, power steering fluid ............................197Levels and checks ................................19 4 -198Light-emitting diodes - LEDs ........216, 217, 219Lighting ..........................................................11 0Lighting bulbs (replacement) ........216, 219 -221Lighting control stalk .......................................94Lighting dimmer ..............................................Lighting dimmer ..............................................Lighting dimmer42Lighting, guide-me home ........................98, 100Lighting, interior ....................................Lighting, interior ....................................Lighting, interior108, 109Loading ...................................................25, 237Load reduction mode ....................................232Load space cover ..........................................Load space cover ..........................................Load space cover120Locating your vehicle ......................................77Locking from the inside ...................................86Long objects, transporting ......................69, 117Luggage retaining net ...................................12 2Luggage retaining strap ................................11 9
