2014 Peugeot 308 PEUGEOT 308 2014 Owners Manual

.Familiarisation15
Ventilation
Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.
Recommended interior settings
I require...
Heating or Manual Air Conditioning
Air distributionAir flowAir recirculation / Air recirculation / Air recirculation /Intake of outside airTemperatureManual A/C
HOT
COLD
DEMISTING DEFROSTING

27
29
186
143
81
189
183
161
139
163
86
Familiarisation
16

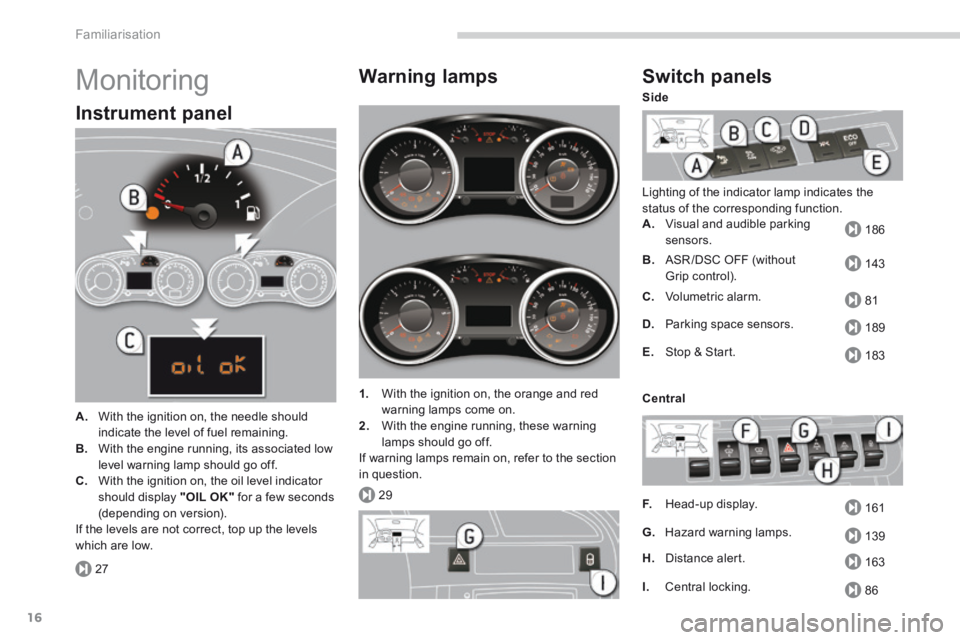

Monitoring
Instrument panel
A. With the ignition on, the needle should
indicate the level of fuel remaining. B. With the engine running, its associated low level warning lamp should go off. C. With the ignition on, the oil level indicator should display "OIL OK" for a few seconds (depending on version). If the levels are not correct, top up the levels which are low.
Warning lamps
1. With the ignition on, the orange and red warning lamps come on. 2. With the engine running, these warning lamps should go off. If warning lamps remain on, refer to the section in question.
Switch panels
Lighting of the indicator lamp indicates the status of the corresponding function. A. Visual and audible parking sensors.
B. ASR /DSC OFF (without Grip control).
C. Volumetric alarm.
D. Parking space sensors.
E. Stop & Start.
F. Head-up display.
G. Hazard warning lamps.
H. Distance alert.
Side
Central
I. Central locking.

.
151
148
138
Familiarisation17

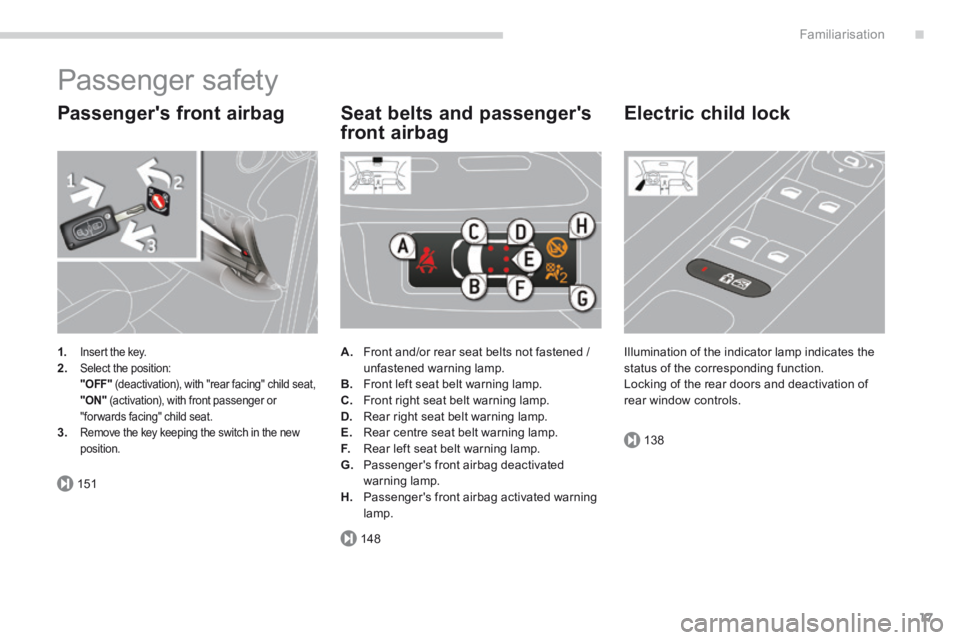

Passenger safety
Passenger's front airbag
1.Insert the key. 2. Select the position: "OFF" (deactivation), with "rear facing" child seat, "ON" (activation), with front passenger or "for wards facing" child seat.
3. Remove the key keeping the switch in the new position.
Seat belts and passenger's
front airbag
A. Front and/or rear seat belts not fastened / unfastened warning lamp. B. Front left seat belt warning lamp. C. Front right seat belt warning lamp. D. Rear right seat belt warning lamp.
E. Rear centre seat belt warning lamp. F. Rear left seat belt warning lamp. G. Passenger's front airbag deactivated warning lamp. H. Passenger's front airbag activated warning lamp.
Electric child lock
Illumination of the indicator lamp indicates the status of the corresponding function. Locking of the rear doors and deactivation of rear window controls.

123
Familiarisation
18
Arrange your boot
3 position adjustable boot
Low position (150 kg max) (except for version with standard spare wheel). Intermediate position (100 kg max).
High position (50 kg max) with the lower tailgate closed to isolate the lower part of the
boot.
From the high position, place the floor at an angle), supported by the side stops, to allow access to the spare wheel or to the storage areas in the bottom of the boot.
 To release the floor, push it slightly for wards then raise it from the rear.  Use the stops A , placed on each side of the boot to change the height of the floor more easily.

.
70
Familiarisation19

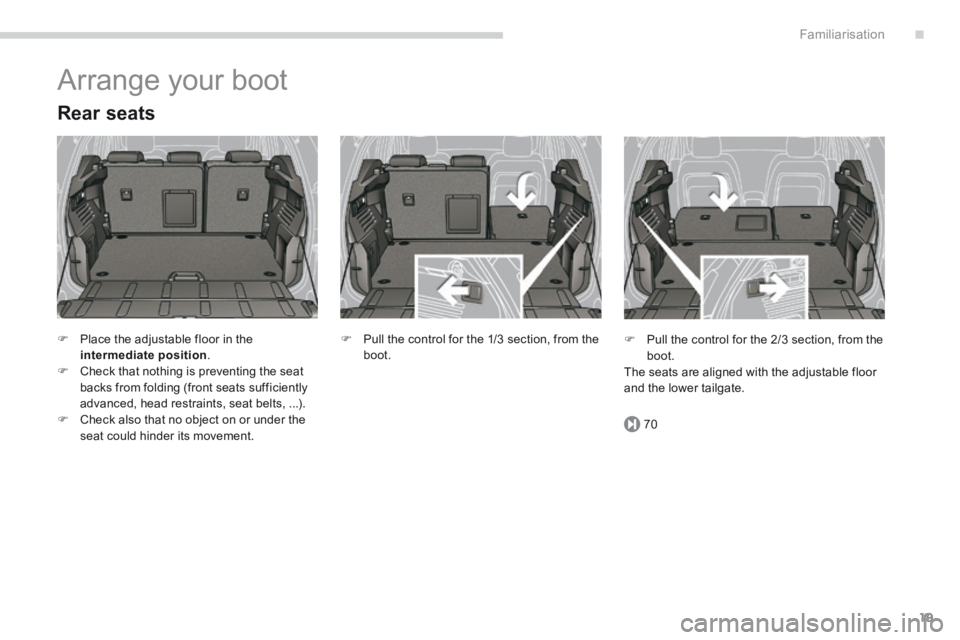

Arrange your boot
Rear seats
 Place the adjustable floor in the intermediate position .  Check that nothing is preventing the seat backs from folding (front seats sufficiently advanced, head restraints, seat belts, ...).  Check also that no object on or under the seat could hinder its movement.
 Pull the control for the 1/3 section, from the boot.  Pull the control for the 2/3 section, from the boot. The seats are aligned with the adjustable floor and the lower tailgate.

183
Familiarisation
20

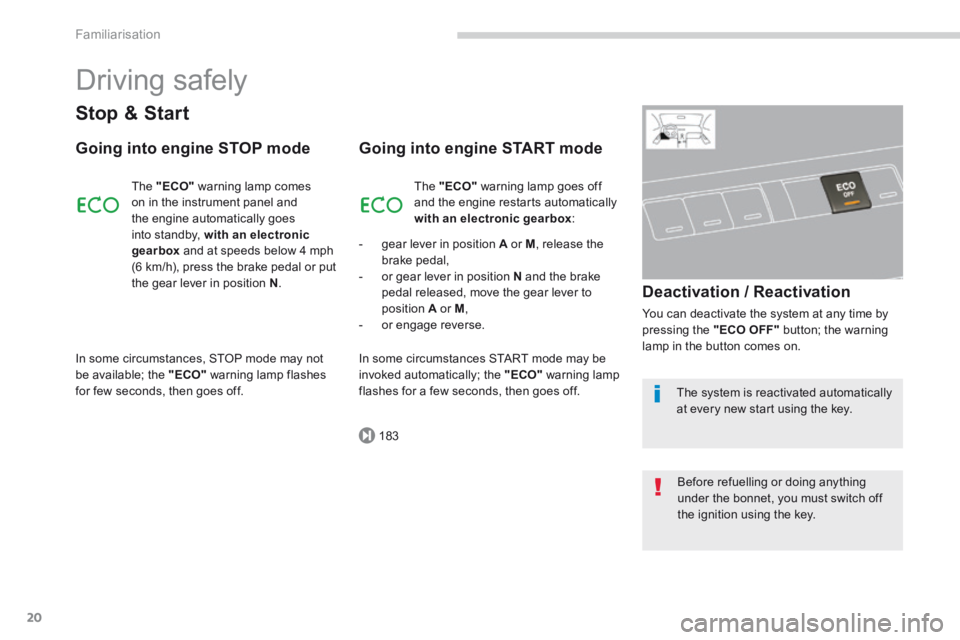

Driving safely
Stop & Start
Going into engine STOP mode
The "ECO" warning lamp comes on in the instrument panel and the engine automatically goes
into standby, with an electronic gearbox and at speeds below 4 mph (6 km/h), press the brake pedal or put the gear lever in position N .
Going into engine START mode
Deactivation / Reactivation
You can deactivate the system at any time by pressing the "ECO OFF" button; the warning lamp in the button comes on.
The "ECO" warning lamp goes off and the engine restarts automatically with an electronic gearbox :
- gear lever in position A or M , release the brake pedal, - or gear lever in position N and the brake pedal released, move the gear lever to position A or M , - or engage reverse.
In some circumstances, STOP mode may not be available; the "ECO" warning lamp flashes for few seconds, then goes off.
In some circumstances START mode may be invoked automatically; the "ECO" warning lamp flashes for a few seconds, then goes off. The system is reactivated automatically at every new start using the key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition using the key.

.
154158
Familiarisation21
Electric parking brake
Manual application / release
The parking brake can be applied manually by pulling the control lever A . When the ignition is on, the parking brake can be released manually by pressing the brake pedal and pulling then releasing the control lever A .
Automatic application / release
Press the accelerator and release the clutch, the parking brake is released automatically and progressively on acceleration. On switching off the engine , the parking brake is applied automatically.
Before getting out of the vehicle, check that the braking warning lamp ( red ! ) and the warning lamp P in the control lever A , are on (not flashing).
Before getting out of the
vehicle, check that the braking warning lamp ( red ! ) and the warning lamp P in the control lever A are on (not flashing).
Your vehicle is equipped with a system which keeps it immobile for a short time (approximately 2 seconds) to assist you when starting on a hill, the time required for you to move your foot from the brake pedal to the accelerator pedal. This function is only active: - when the vehicle has been immobilised completely with your foot on the brake pedal, - on certain gradients, - when the driver's door is closed.
Hill start assist
If this warning lamp is on in the instrument panel, the automatic application/release function is deactivated .
Driving safely
If you get out of your vehicle with the engine running, apply the parking brake manually.
Do not leave a child alone in the vehicle with the ignition on; they could release the parking brake.
Do not get out of the vehicle during the hill start assist temporary hold phase.

161163
145
Familiarisation
22

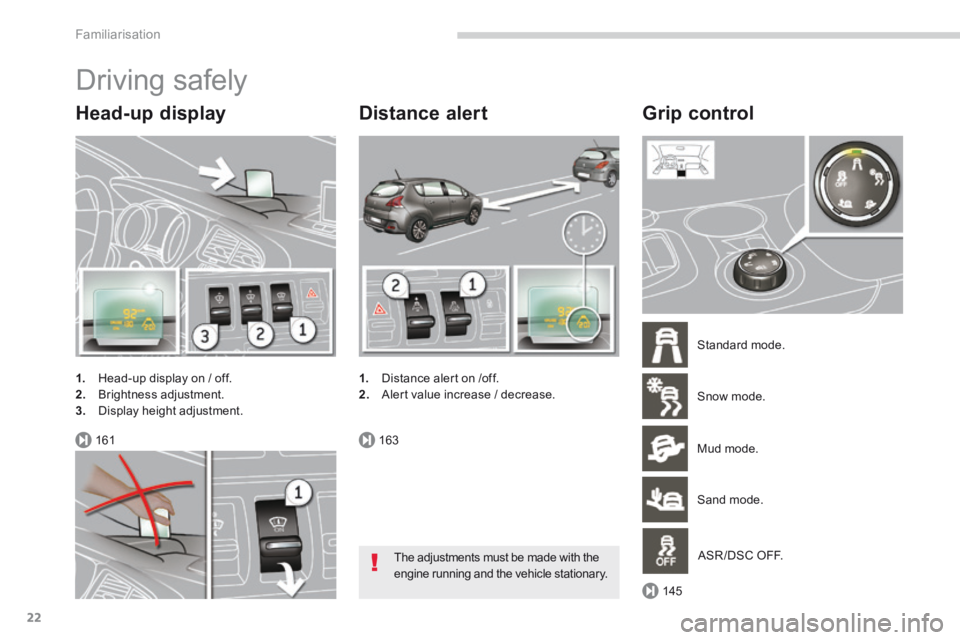

Driving safely
Head-up display
1. Head-up display on / off. 2. Brightness adjustment. 3. Display height adjustment.
Distance alert
1. Distance alert on /off. 2. Alert value increase / decrease.
Grip control
Standard mode.
Snow mode.
Mud mode.
Sand mode.
ASR /DSC OFF. The adjustments must be made with the engine running and the vehicle stationary.
