11
Practical information215

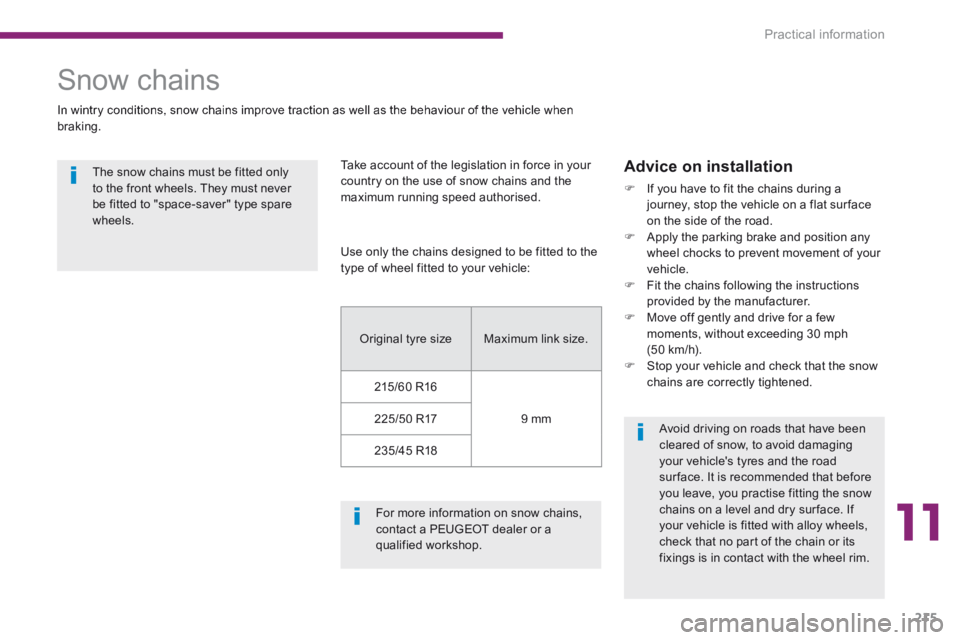

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.
The snow chains must be fitted only to the front wheels. They must never be fitted to "space-saver" type spare wheels.
Take account of the legislation in force in your country on the use of snow chains and the maximum running speed authorised.
Advice on installation
 If you have to fit the chains during a journey, stop the vehicle on a flat sur face on the side of the road.  Apply the parking brake and position any wheel chocks to prevent movement of your vehicle.  Fit the chains following the instructions provided by the manufacturer.  Move off gently and drive for a few moments, without exceeding 30 mph (50 km/h).  Stop your vehicle and check that the snow chains are correctly tightened.
Avoid driving on roads that have been
cleared of snow, to avoid damaging your vehicle's tyres and the road sur face. It is recommended that before you leave, you practise fitting the snow chains on a level and dry sur face. If your vehicle is fitted with alloy wheels, check that no part of the chain or its fixings is in contact with the wheel rim.
For more information on snow chains, contact a PEUGEOT dealer or a qualified workshop.
Use only the chains designed to be fitted to the type of wheel fitted to your vehicle:
Original tyre size Maximum link size.
215/60 R16
9 mm 225/50 R17
235/45 R18

Practical information
216

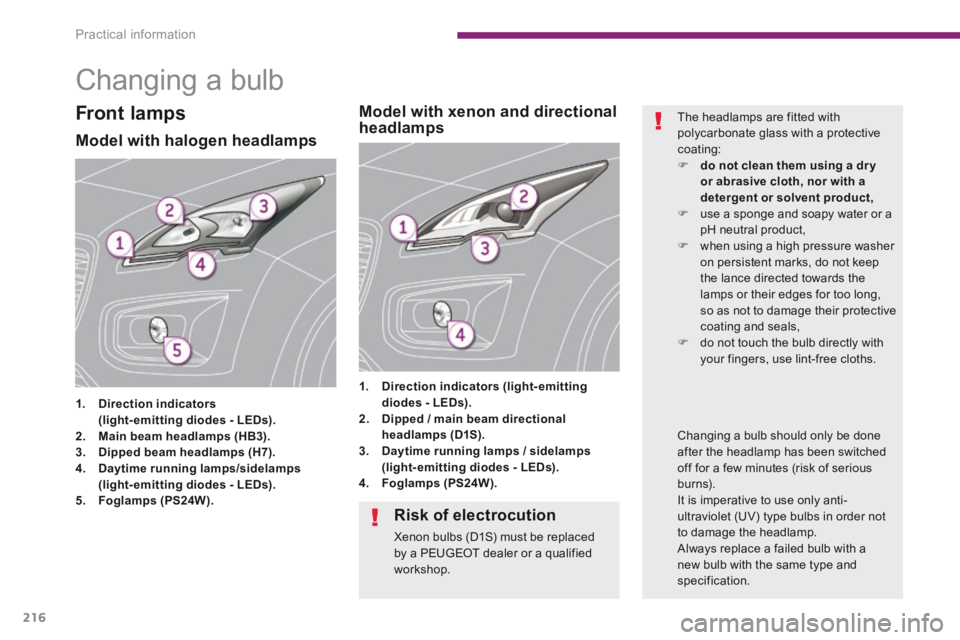

Changing a bulb
Model with halogen headlamps
1. Direction indicators (light-emitting diodes - LEDs).2. Main beam headlamps (HB3).3. Dipped beam headlamps (H7).4. Daytime running lamps/sidelamps (light-emitting diodes - LEDs).5. Foglamps (PS24W).
1. Direction indicators (light-emitting diodes - LEDs).2. Dipped / main beam directional
headlamps (D1S).3. Daytime running lamps / sidelamps (light-emitting diodes - LEDs).4. Foglamps (PS24W).
Model with xenon and directional headlamps Front lamps The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water or a pH neutral product,  when using a high pressure washer on persistent marks, do not keep the lance directed towards the lamps or their edges for too long, so as not to damage their protective coating and seals,  do not touch the bulb directly with your fingers, use lint-free cloths.
Risk of electrocution
Xenon bulbs (D1S) must be replaced by a PEUGEOT dealer or a qualified workshop.
Changing a bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order not to damage the headlamp. Always replace a failed bulb with a new bulb with the same type and specification.

11
Practical information217

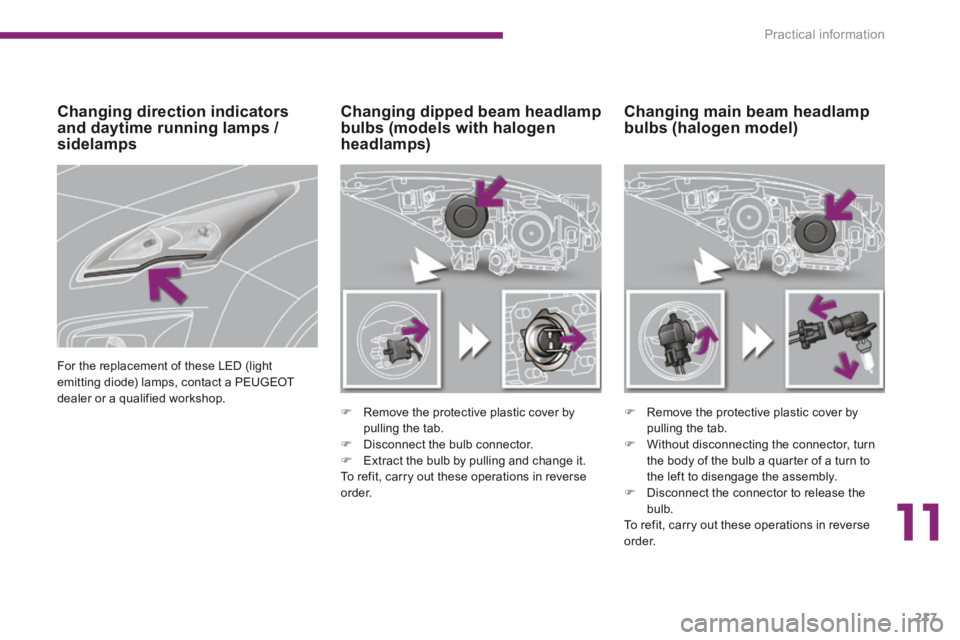

Changing main beam headlamp bulbs (halogen model) Changing dipped beam headlamp bulbs (models with halogen headlamps)
 Remove the protective plastic cover by pulling the tab.
 Disconnect the bulb connector.  Extract the bulb by pulling and change it. To refit, carry out these operations in reverse o r d e r.
 Remove the protective plastic cover by pulling the tab.
 Without disconnecting the connector, turn the body of the bulb a quarter of a turn to the left to disengage the assembly.  Disconnect the connector to release the bulb. To refit, carry out these operations in reverse o r d e r.
Changing direction indicators and daytime running lamps / sidelamps
For the replacement of these LED (light emitting diode) lamps, contact a PEUGEOT dealer or a qualified workshop.

Practical information
218

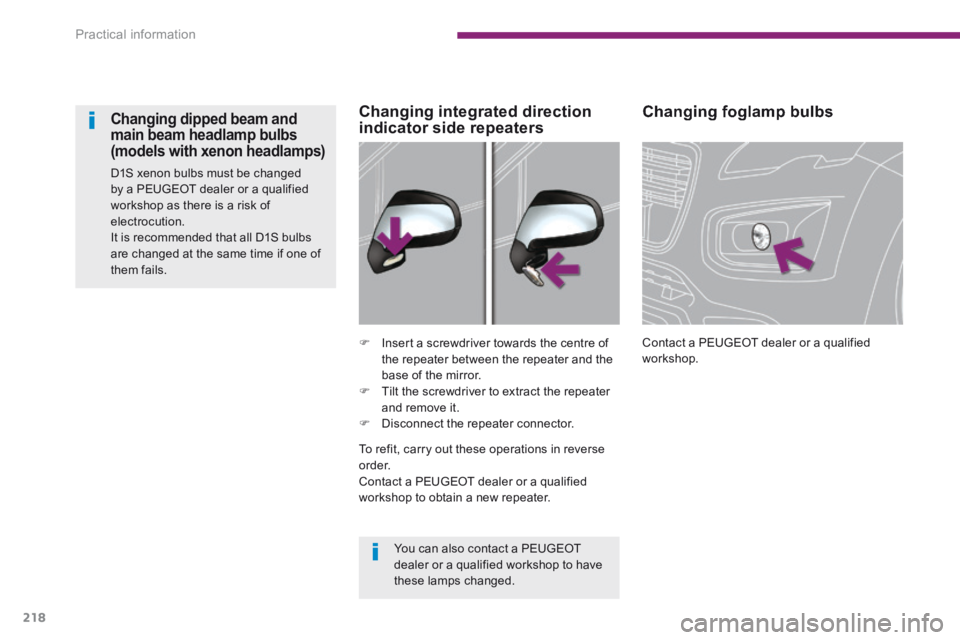

Changing foglamp bulbs
Contact a PEUGEOT dealer or a qualified workshop.  Insert a screwdriver towards the centre of the repeater between the repeater and the base of the mirror.  Tilt the screwdriver to extract the repeater and remove it.  Disconnect the repeater connector.
Changing integrated direction indicator side repeaters Changing dipped beam and main beam headlamp bulbs (models with xenon headlamps)
D1S xenon bulbs must be changed by a PEUGEOT dealer or a qualified workshop as there is a risk of electrocution. It is recommended that all D1S bulbs are changed at the same time if one of them fails.
You can also contact a PEUGEOT dealer or a qualified workshop to have these lamps changed.
To refit, carry out these operations in reverse o r d e r. Contact a PEUGEOT dealer or a qualified workshop to obtain a new repeater.

11
Practical information219

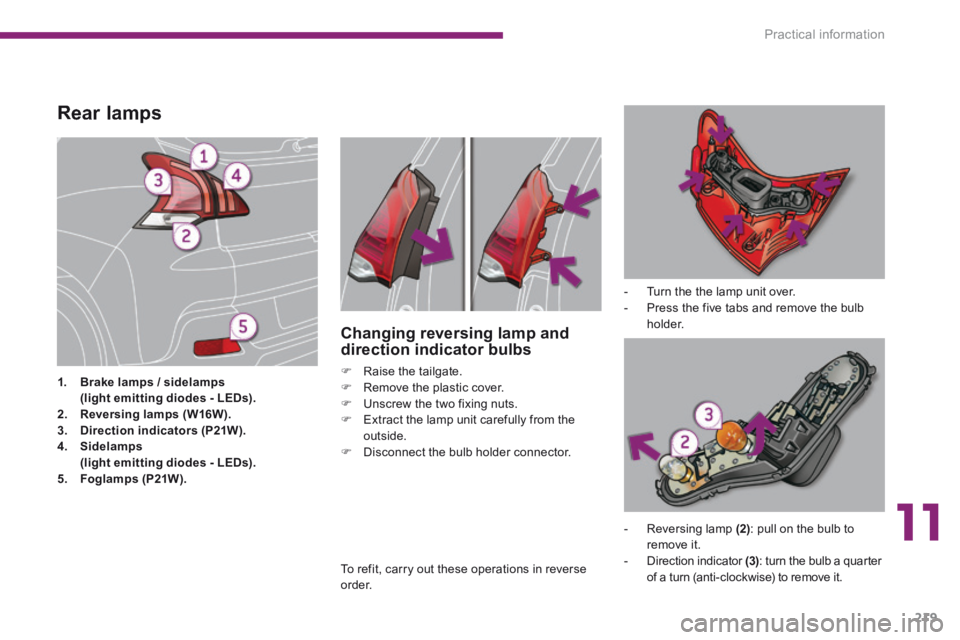

Rear lamps
1. Brake lamps / sidelamps (light emitting diodes - LEDs).2. Reversing lamps (W16W).
3. Direction indicators (P21W).4.Sidelamps (light emitting diodes - LEDs).5. Foglamps (P21W).
- Turn the the lamp unit over. - Press the five tabs and remove the bulb h o l d e r. Changing reversing lamp and direction indicator bulbs
 Raise the tailgate.  Remove the plastic cover.  Unscrew the two fixing nuts.  Extract the lamp unit carefully from the outside.  Disconnect the bulb holder connector.
- Reversing lamp (2) : pull on the bulb to remove it. - Direction indicator (3) : turn the bulb a quarter of a turn (anti-clockwise) to remove it. To refit, carry out these operations in reverse
o r d e r.

Practical information
220

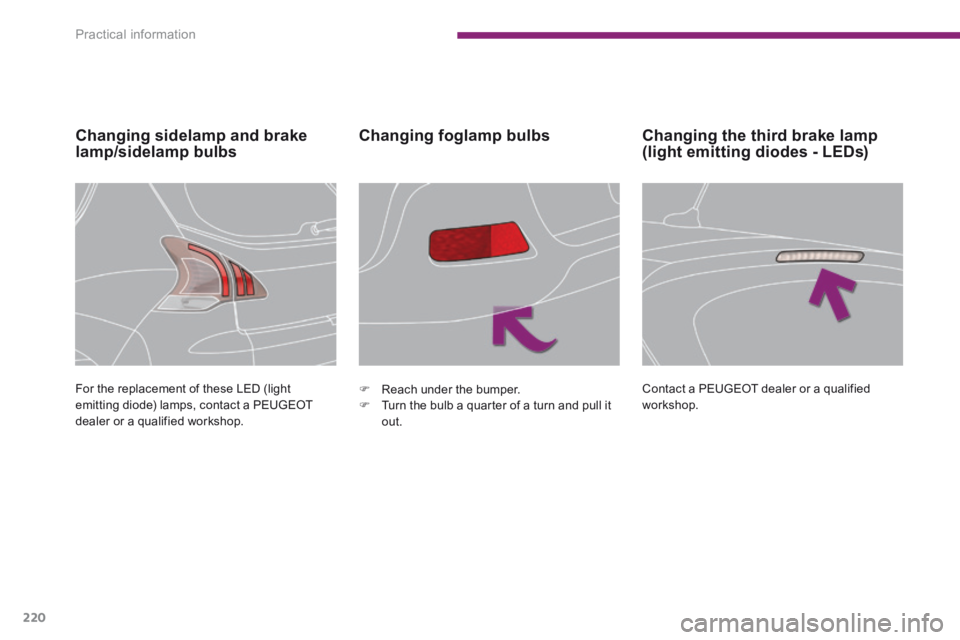

Changing sidelamp and brake lamp/sidelamp bulbs Changing foglamp bulbs
For the replacement of these LED (light emitting diode) lamps, contact a PEUGEOT dealer or a qualified workshop.
 Reach under the bumper.  Turn the bulb a quarter of a turn and pull it out.
Changing the third brake lamp (light emitting diodes - LEDs)
Contact a PEUGEOT dealer or a qualified workshop.

11
Practical information221
Changing the number plate lamp bulbs (W5W)
 Insert a thin screwdriver into one of the outer holes of the lens.  Push it outwards to unclip.  Remove the lens.  Pull the bulb out and change it.

Practical information
222
Changing a fuse
The extraction tweezer is fitted to the back of
the dashboard fusebox cover. To gain access to it:  Remove the cover completely.
 Remove the tweezer.
Changing a fuse
GoodFailed
 Use the special tweezer to extract the fuse from its housing.  Always replace the faulty fuse with a fuse of the same rating.  Check that the number marked on the fusebox, the rating marked on the fuse and the following tables all agree.
Before changing a fuse, the cause of the failure must be identified and rectified.  Identify the failed fuse by checking the
condition of its filament.
Procedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding function.
The replacement of a fuse not mentioned in the tables below may cause a serious malfunction on your vehicle. Contact a PEUGEOT dealer or a qualified workshop.
PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
Access to the tools
Installing electrical accessories
Your vehicle's electrical system is designed to operate with standard or optional equipment. Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop.
