2014 Peugeot 308 Owner's Manual

01
308_EN_CHAP10C_SMEGPLUS_ED02-2013
Use the buttons on either side of the touch screen for access to the men\
us, then press the virtual buttons in the touch screen.
Each menu is displayed in one or two pages (primary page and secondary \
page).

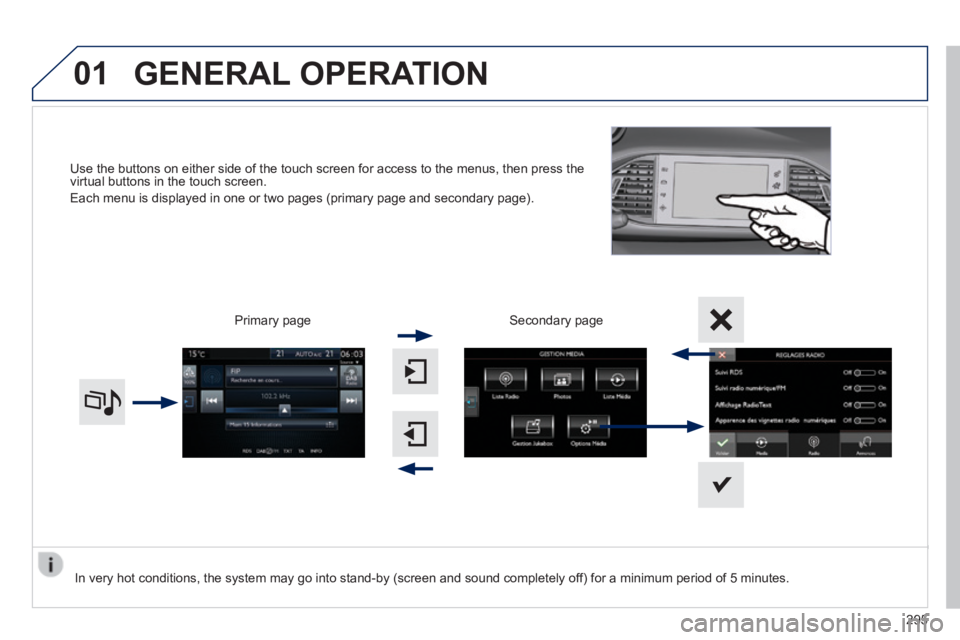

GENERAL OPERATION
In very hot conditions, the system may go into stand-by (screen and sou\
nd completely off) for a minimum period of 5 minutes.
Secondary page
295
Primary page

02
296
308_EN_CHAP10C_SMEGPLUS_ED02-2013
With the engine running, press to mute the sound.
With the ignition off, press to switch the system on.
Volume adjustment (each source is independent, including Traffi c announcements (TA) and navigation instructions).
Selecting the audio source (depending on version):
- "FM" / "AM" / "DAB" * radio wavebands.
- "USB" memory stick.
- CD player (located in the glove box) * .
- Jukebox * , after fi rst copying audio fi les to the internal memory of the touch screen tablet.
- Telephone connected by Bluetooth and Bluetooth audio streaming.
- Media player connected to the auxiliary socket (jack, cable not supplie\
d).
The screen is of the "resistive" type, it is necessary to press fi rmly, particularly for "fl ick" gestures (scrolling through a list, moving the map...). A simple wipe will not be enough. pressing with more than one fi nger is not recognised.
The screen can be used when wearing gloves. This technology allows use at all temperatures.
FIRST STEPS
* Depending on equipment.
To clean the screen, use a soft non-abrasive cloth (spectacles cloth) w\
ithout any additional product.
Do not use pointed objects on the screen.
Do not touch the screen with wet hands.
Following prolonged operation in sunny conditions, the volume may be limited to protect the system. The return to normal takes place when the temperature in the passenger compartment drops.
Shortcuts: using virtual buttons in the top band of the touch screen, it\
is possible to go directly to the choice of audio source, the list of stations (or titles depending o\
n the source) or to temperature adjustment.

03
297
308_EN_CHAP10C_SMEGPLUS_ED02-2013
STEERING MOUNTED CONTROLS
- Press: mute / restore sound.
- Increase volume.
- Decrease volume.
- Press: change the audio source: Radio, Media.
- Rotation.
Radio: automatic selection of next / previous frequency.
Media: previous / next track.
Menus: movement
- Press.
Radio: pre-set radio stations.
Menus: confi rm.
Audio source: confi rm selection
- Incoming call: answer call.
- Call in progress:
Telephone menu (contacts, call log).
End call.
- Radio: display the list of stations.
Media: display the list of albums / tracks.

04
298
308_EN_CHAP10C_SMEGPLUS_ED02-2013
MEDIA
Level 1Level 2Level 3
List of FM stations "Media"
Primary page
Recalling preset stations

299
308_EN_CHAP10C_SMEGPLUS_ED02-2013
Level 1Level 2Level 3Comments
Media

List
List of FM stations Press on a radio station to select it.
Confi rm Save the settings.
Media

Source
FM Radio
Select change of source .
DAB Radio
AM Radio
Jukebox
CD
USB
iPod
Bluetooth
AUX
Video
Media
Memo
Recall of preset stations Press on a radio station to select it.

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013
MEDIA
Level 1Level 2Level 3
MediaPhotos
Manage Jukebox
300300300
"Media"
Secondary page
List of FM stations
Copy to Jukebox

301
308_EN_CHAP10C_SMEGPLUS_ED02-2013
Level 1Level 2Level 3Comments
Media
Secondary page
Radio list
Preset Press a radio station to select it.
Update list Update the list of stations received.
Frequency Enter the desired radio frequency.
Confi rm Save the settings.
Media

Secondary page

Photos
Page selection Display the selected photo full screen.
Rotate Rotate the photo 90°.
Select all Select all the photos in the list.
Press again to deselect.
Slideshow
Previous photo.
Display the photos in sequence, full screen. Pause / Play.
Next photo.
Confi rm Save the settings.

Media

Secondary page

Manage Jukebox
Sort by folder
Choose the selection mode. Sort by album
Select all
Magnifying glass
Create folder
Choose the handling mode. Rename
Delete
Select all
Confi rm Save the options.
Copy Save the settings .

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013
302
MEDIA
Level 1Level 2Level 3
"Media"
Secondary page
Media
Media options
Radio settings
Radio settings
