2014 Peugeot 308 Owner's Manual

87
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
 To connect a 12 V accessory (maximum power: 120 Watts), lift the cover and connect a suitable adaptor.
It permits the connection of a portable device, such as a digital audio player of the iPod ® type, ® type, ®
to listen to your music files using the vehicle's speakers. The management of the files is done using your portable device.
It allows the connection of a portable device, such as a digital audio player of the iPod ® type ® type ®
or a USB memory stick. It reads the audio files which are transmitted to your audio equipment and played via the vehicle's speakers. You can manage these files using the steering mounted controls or the audio system.

12 V accessory
socket Auxiliary socket
USB port(s)
For more information on the use of this equipment, refer to the "Audio equipment and telematics" section.
When a USB port is used, the portable device charges automatically. For more information on using this equipment, refer to the "Audio equipment and telematics" section.

88
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

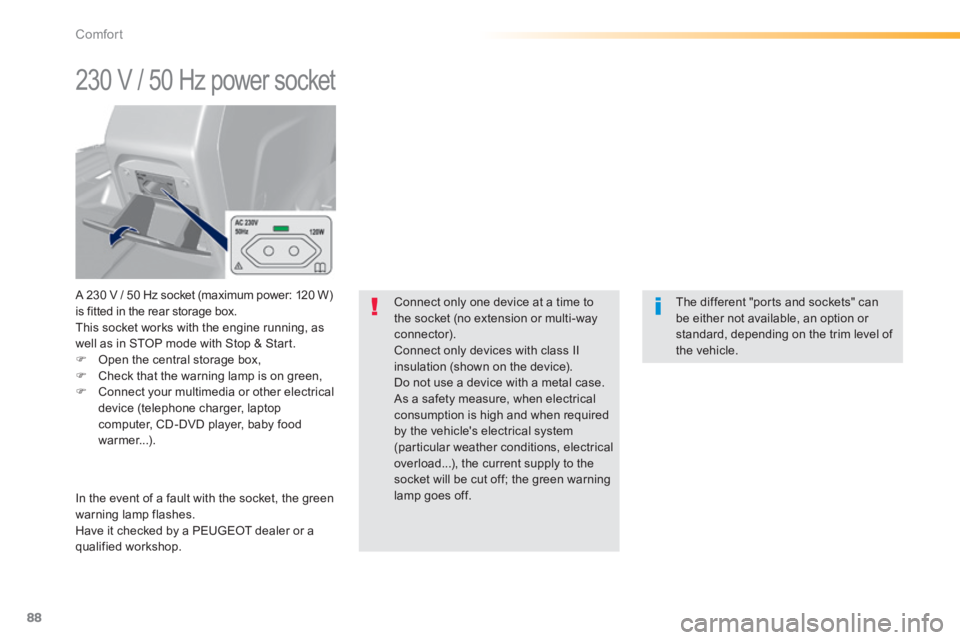

230 V / 50 Hz power socket
A 230 V / 50 Hz socket (maximum power: 120 W) is fitted in the rear storage box. This socket works with the engine running, as well as in STOP mode with Stop & Start.  Open the central storage box,  Check that the warning lamp is on green,  Connect your multimedia or other electrical device (telephone charger, laptop computer, CD-DVD player, baby food warmer...).
In the event of a fault with the socket, the green warning lamp flashes. Have it checked by a PEUGEOT dealer or a qualified workshop.
Connect only one device at a time to the socket (no extension or multi-way connector). Connect only devices with class II insulation (shown on the device). Do not use a device with a metal case. As a safety measure, when electrical consumption is high and when required
by the vehicle's electrical system (particular weather conditions, electrical overload...), the current supply to the socket will be cut off; the green warning lamp goes off.
The different "ports and sockets" can be either not available, an option or standard, depending on the trim level of the vehicle.

89
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

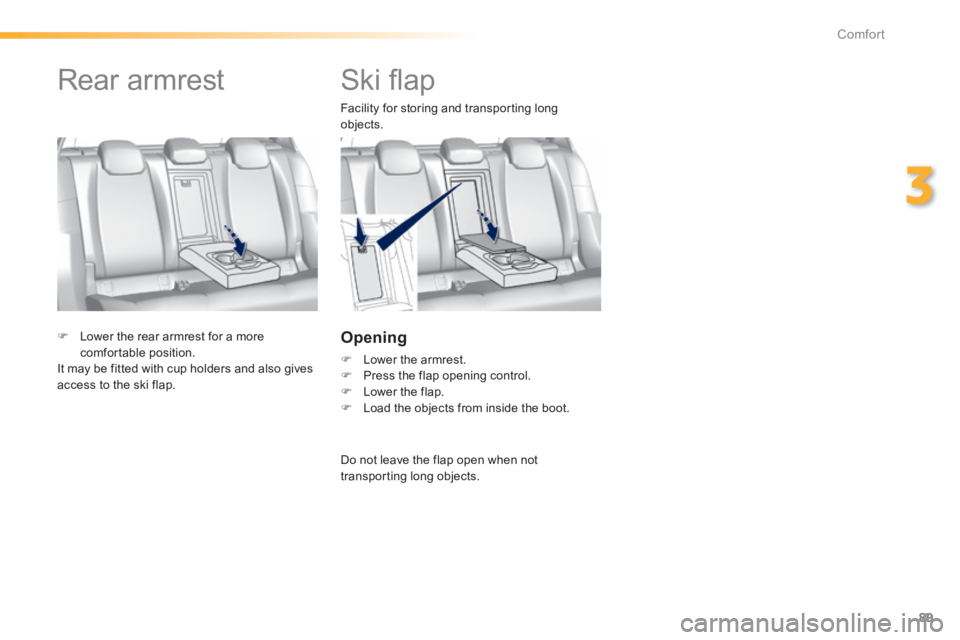

Ski fl ap
Facility for storing and transporting long objects.
Opening
 Lower the armrest.  Press the flap opening control.  Lower the flap.  Load the objects from inside the boot.
 Lower the rear armrest for a more comfortable position. It may be fitted with cup holders and also gives access to the ski flap.
Rear armrest
Do not leave the flap open when not transporting long objects.

90
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

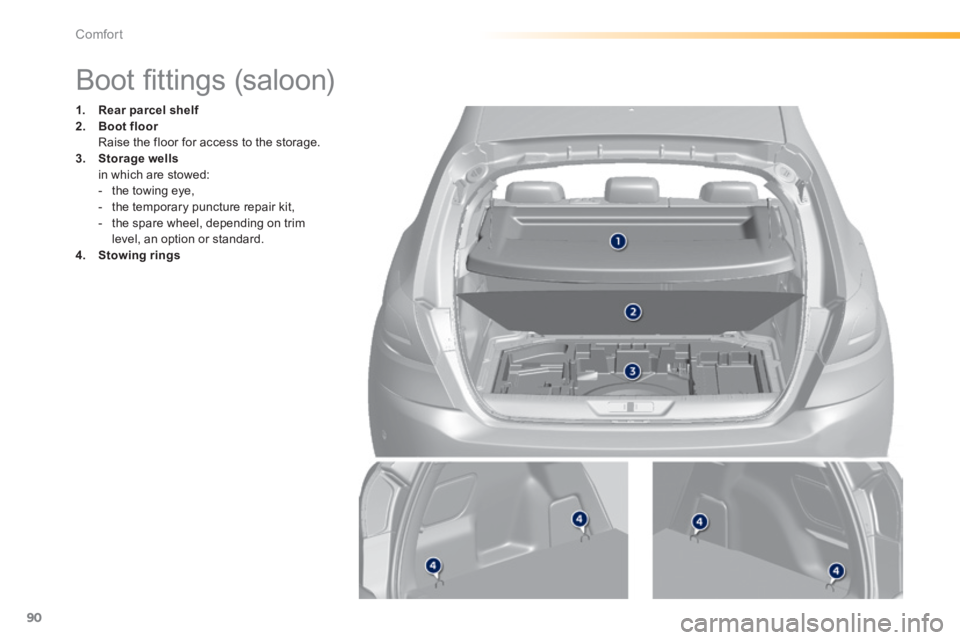

Boot fi ttings (saloon)
1. Rear parcel shelf2. Boot floor Boot floor Boot floor Raise the floor for access to the storage. 3. Storage wells in which are stowed: - the towing eye, - the temporary puncture repair kit, - the spare wheel, depending on trim level, an option or standard. 4. Stowing rings

91
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

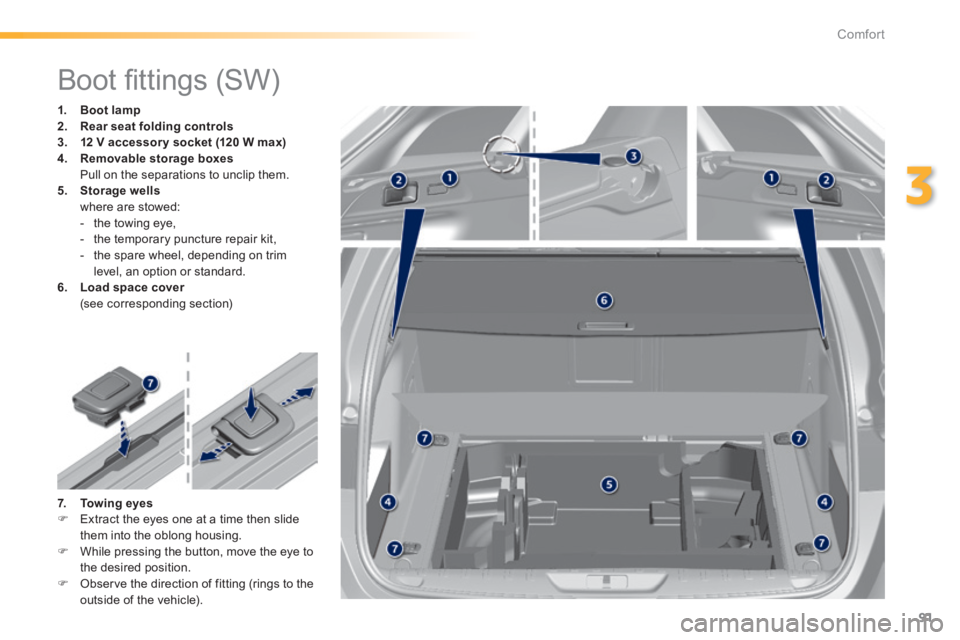

Boot fi ttings (SW)
1. Boot lamp2. Rear Rear Rearseat folding controls3. 12 V accessor y socket (120 W max)4. Removable storage boxes Pull on the separations to unclip them. 5. Storage wells where are stowed: - the towing eye, - the temporary puncture repair kit, - the spare wheel, depending on trim level, an option or standard. 6. Load space cover Load space cover Load space cover (see corresponding section)
7. Towing eyes Extract the eyes one at a time then slide them into the oblong housing.  While pressing the button, move the eye to the desired position.  Observe the direction of fitting (rings to the
outside of the vehicle).

92
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

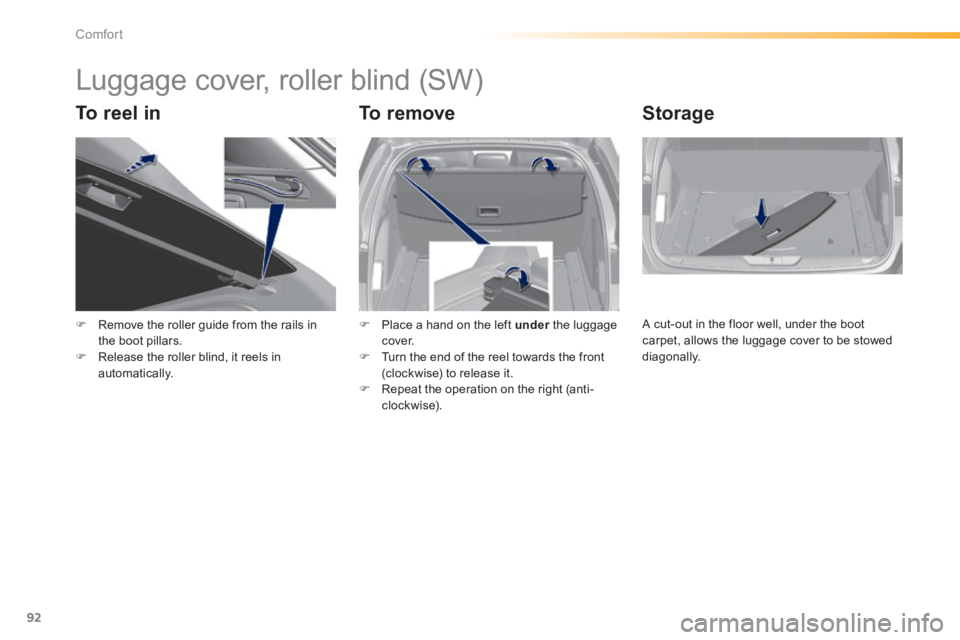

Luggage cover, roller blind (SW)
To reel in To remove Storage
 Remove the roller guide from the rails in the boot pillars.  Release the roller blind, it reels in automatically.
 Place a hand on the left under the luggage under the luggage undercover.  Turn the end of the reel towards the front (clockwise) to release it.  Repeat the operation on the right (anti-clockwise).
A cut-out in the floor well, under the boot carpet, allows the luggage cover to be stowed diagonally.

93
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

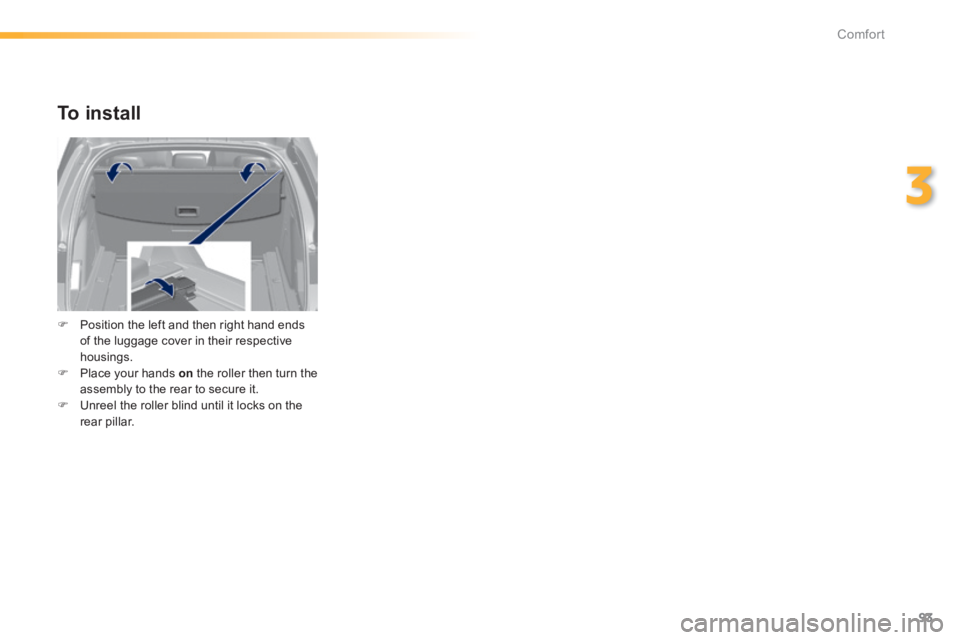

To install
 Position the left and then right hand ends of the luggage cover in their respective housings.  Place your hands on the roller then turn the assembly to the rear to secure it.  Unreel the roller blind until it locks on the rear pillar.

94
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
Warning triangle (stowing)
Before getting out of your vehicle to assemble the triangle and place it on the road, put on your high visibility vest.
The maximum dimensions of the triangle (once folded) or its storage box must be: - A : length = 44 cm, - B : height = 4 cm, - C : width = 6.5 cm.
The location for a folded triangle is under the boot floor. Placing the triangle in the
road
Distance from your vehicle (in metres)
Road
Motor way
DayNight
50 m 80 m 150 m
These are the internationally recognised values. Use the triangle in line with local driving regulations.
The triangle is available as an accessory, contact a PEUGEOT dealer or a qualified workshop.
 Place the triangle at a distance behind the vehicle, as shown in the table below, according to the type of road and the level of ambient light.
Refer to the manufacturer's instructions for use of the triangle.
