2014 Peugeot 308 Owner's Manual

215
6
Safety
308_EN_CHAP06_SECURITE_ED02-2013
ISOFIX child seats recommended by PEUGEOT
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
"RÖMER Baby- Safe Plus and its Baby- Safe Plus ISOFIX base" (size category: E )
Group 0+: from bir th to 13 kg
Installed "rear ward facing" using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor. This seat can be secured with a seat belt. In this case, only the shell is used and attached to the vehicle's seat by the three-point seat belt.
Baby P2C Midi and its ISOFIX base (size categories: D, C, A, B, B1 )
Group 1: from 9 to 18 kg
Installed "rear ward facing" using an ISOFIX base which is attached to the rings A .The base has a support leg, adjustable for height, which sits on the vehicle's floor. This child seat can also be used "for ward facing". This seat can not be secured with a seat belt. We recommend that you use the seat in the "rear ward facing" position up to the age of 3 years.

216
Safety
308_EN_CHAP06_SECURITE_ED02-2013
This seat can be used on seats not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle's seat using the three-point seat belt. Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Is installed in the for ward facing position. Is attached to the rings A and the upper ring B , referred to as the Top Tether, using an upper strap. Three seat body angles: sitting, reclining, lying down.
FAIR G 0/1 S and its base RWF B ISOFIX (size category C )
Group 0+ and 1: from bir th to 18 kg
Is installed "rearward facing". Is installed using an ISOFIX base attached to the rings A . 6 seat body angles. Use the type B ISOFIX base rearward facing (RWF) . This child seat can also be used in the "for ward facing" position on seating positions not fitted with ISOFIX mountings. In this case, the child seat body must be attached to the seat of the vehicle by the three point seat belt.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.

217
6
Safety
308_EN_CHAP06_SECURITE_ED02-2013
Locations for ISOFIX child seats
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings. In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is indicated on the child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0) Up to approx. 6 months
Less than 10 kg
(group 0) Less than 13 kg (group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatInfant carrier"rearward facing""rearward facing""forward facing"
ISOFIX size categor yFGCDECDABB1
Front passenger seat Not ISOFIX
Saloon
Outer rear seats IL- SU (1+2) IL- SU (3) IL- SU (1) IL- SU (3) IL- SU (1) IUF IL- SU
Centre rear seat Not ISOFIX
SW
Outer rear seats IL- SU (1+2) IL- SU (3) IL- SU (1) IL- SU (3) IL- SU (1) IUF IL- SU
Centre rear seat Not ISOFIX

218
Safety
308_EN_CHAP06_SECURITE_ED02-2013
I UF: seat suitable for the installation of an I sofix U niversal seat, " F or ward facing" secured using the upper strap. IL- SU: seat suitable for the installation of an I sofix S emi- U niversal seat either: - "rear facing" fitted with an upper strap or a support leg, - "for ward facing" fitted with a support leg, - an infant car seat fitted with an upper strap or a support leg.
For advice on securing of the upper strap, refer to the "ISOFIX mountings" section.
X: seat not suitable for the installation of a child seat for the weight group indicated. (1) move a seat without height adjustment for wards by 1 notch from the mid position for wards and backwards A seat with height adjustment must be in the highest position. (2) the installation of an infant carrier on one of the outer seats makes use of the other two seats impossible. (3) a seat with height adjustment must be placed in the highest position. Move the seat without height adjustment for ward by 5 notches from the mid-position for wards and backwards.
Remove and stow the head restraint before fitting a child seat with a backrest to a passenger seat. Refit the head restraint when the child seat is removed.

219
6
Safety
308_EN_CHAP06_SECURITE_ED02-2013

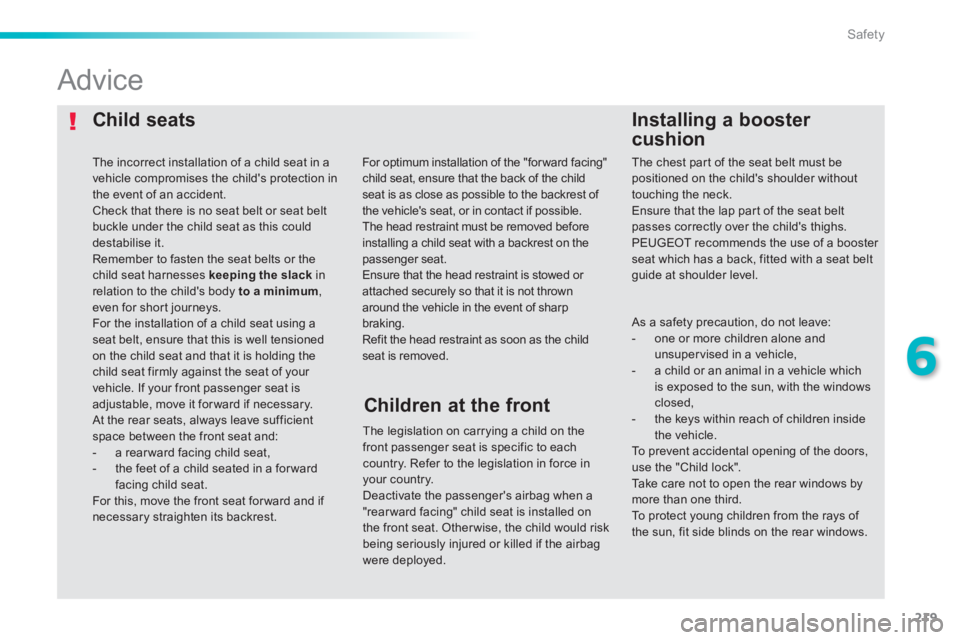

Child seats Installing a booster
cushion
Advice
The legislation on carrying a child on the front passenger seat is specific to each country. Refer to the legislation in force in your country. Deactivate the passenger's airbag when a "rear ward facing" child seat is installed on the front seat. Otherwise, the child would risk
being seriously injured or killed if the airbag were deployed.
For optimum installation of the "forward facing" child seat, ensure that the back of the child seat is as close as possible to the backrest of the vehicle's seat, or in contact if possible . The head restraint must be removed before installing a child seat with a backrest on the passenger seat. Ensure that the head restraint is stowed or attached securely so that it is not thrown around the vehicle in the event of sharp braking. Refit the head restraint as soon as the child seat is removed.
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident. Check that there is no seat belt or seat belt buckle under the child seat as this could destabilise it. Remember to fasten the seat belts or the child seat harnesses keeping the slack in relation to the child's body to a minimum , even for short journeys. For the installation of a child seat using a seat belt, ensure that this is well tensioned on the child seat and that it is holding the child seat firmly against the seat of your vehicle. If your front passenger seat is adjustable, move it for ward if necessary. At the rear seats, always leave sufficient space between the front seat and: - a rear ward facing child seat, - the feet of a child seated in a for ward facing child seat. For this, move the front seat for ward and if necessary straighten its backrest.
Children at the front
The chest part of the seat belt must be positioned on the child's shoulder without touching the neck. Ensure that the lap part of the seat belt passes correctly over the child's thighs. PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
As a safety precaution, do not leave: - one or more children alone and unsupervised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors, use the "Child lock". Take care not to open the rear windows by more than one third. To protect young children from the rays of the sun, fit side blinds on the rear windows.

220
Safety
308_EN_CHAP06_SECURITE_ED02-2013

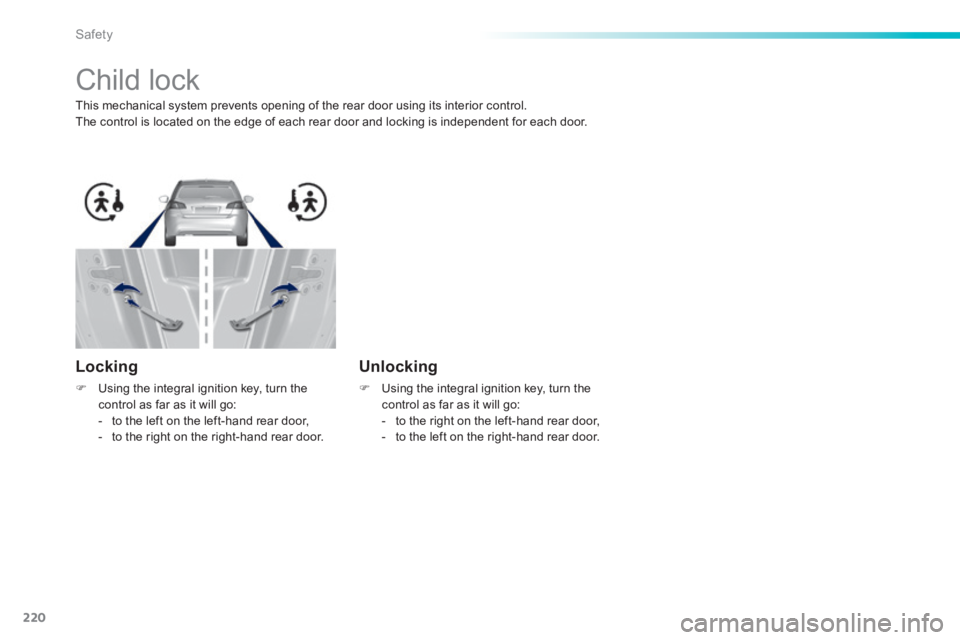

Child lock
This mechanical system prevents opening of the rear door using its interior control. The control is located on the edge of each rear door and locking is independent for each door.
Locking
 Using the integral ignition key, turn the control as far as it will go: - to the left on the left-hand rear door, - to the right on the right-hand rear door.
Unlocking
 Using the integral ignition key, turn the control as far as it will go: - to the right on the left-hand rear door, - to the left on the right-hand rear door.

221
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

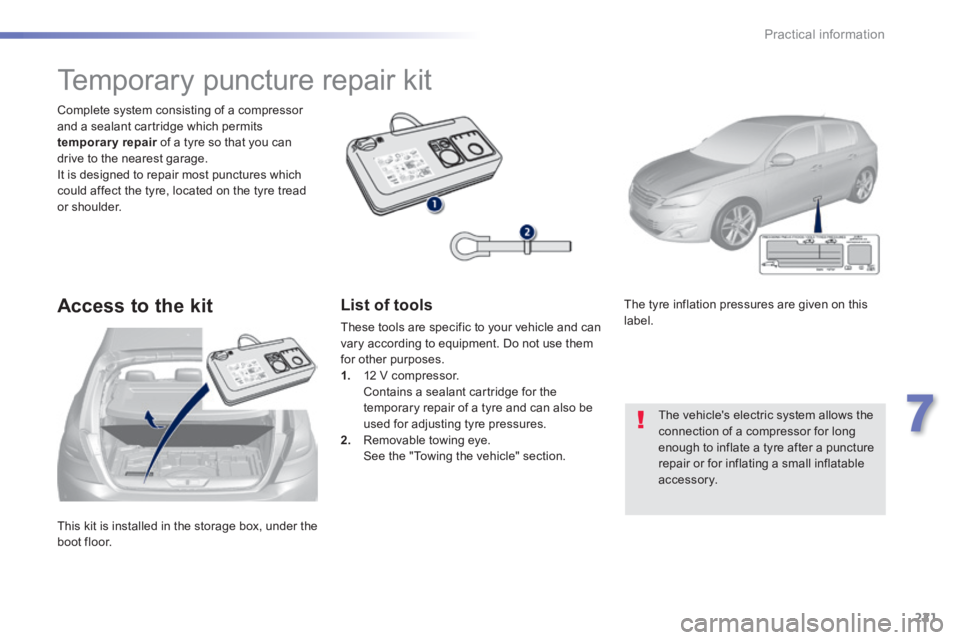

This kit is installed in the storage box, under the boot floor.
Complete system consisting of a compressor and a sealant cartridge which permits temporary repair of a tyre so that you can temporary repair of a tyre so that you can temporary repairdrive to the nearest garage. It is designed to repair most punctures which could affect the tyre, located on the tyre tread or shoulder.
Temporary puncture repair kit
Access to the kit List of tools
These tools are specific to your vehicle and can vary according to equipment. Do not use them for other purposes. 1. 12 V compressor. Contains a sealant cartridge for the temporary repair of a tyre and can also be used for adjusting tyre pressures. 2. Removable towing eye. See the "Towing the vehicle" section.
The tyre inflation pressures are given on this label.
The vehicle's electric system allows the connection of a compressor for long enough to inflate a tyre after a puncture repair or for inflating a small inflatable accessory.

222
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
A. "Sealant" or "Air" position selector. B. On "I" / off "O" switch. C. Deflation button. D. Pressure gauge (in bar and p.s.i.). E. Compartment housing: - a cable with adaptor for 12 V socket, - various inflation adaptors for accessories, such as balls, bicycle tyres...
Description of the kit
F. Sealant cartridge. G. White pipe with cap for repair. H. Black pipe for inflation. I. Speed limit sticker.
The speed limit sticker I must be affixed to the vehicle's steering wheel to remind you that a wheel is in temporary use. Do not exceed a speed of 50 mph (80 km/h) when driving with a tyre repaired using this type of kit.
