2014 Peugeot 308 Owner's Manual

167
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
 Once you have identified a parking zone, press this control at the steering wheel,
Assistance with bay parking manoeuvres
 Select " Park Assist " in the " Driving assistance " menu of the touch screen to activate the function.
This indicator lamp comes on in the instrument panel to confirm the activation of the function.
 Operate the direction indicator on the parking side chosen to activate the measurement function. You should drive at a distance of between 0.5 m and 1.5 m from the row of parked vehicles.
 Drive slowly following the instructions until
the system finds a free space.
 Move for wards slowly until a message is displayed, accompanied by an audible
signal, asking you to engage reverse gear.
or
 Limit the speed of the vehicle to a maximum of 12 mph (20 km/h)
and select " Star t parking in a bay " on the touch screen.
When several successive bays are found, the vehicle will be directed towards the last one.

168
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
During a bay parking manoeuvre, the Park Assist system is automatically deactivated once the rear of the vehicle is within 50 cm of an obstacle.
 Select reverse, release the steering wheel and start moving without exceeding 5 mph (8 km/h).
 The assisted parking manoeuvre is in progress. Without exceeding 5 mph (8 km/h), follow the instructions displayed in the instrument
panel, aided by the warnings from the "Parking sensors" system, until the indication of the end of the manoeuvre.
At the end of the manoeuvre, the operating indicator lamp goes out in the instrument panel, accompanied by a message and an audible signal. The assistance is deactivated: you can take over control.
During parking and exit from parking manoeuvres, the reversing camera function may come into operation. It facilitates monitoring of the surroundings of the vehicle, by displaying additional information in the instrument panel (see the corresponding section).

169
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
The system is deactivated automatically: - on switching off the ignition, - if the engine stalls, - if no manoeuvre is started within 5 minutes of selection of the type of manoeuvre, - after a prolonged stop of the vehicle during a manoeuvre, - if the road wheel anti-slip regulation (ASR) is triggered, - if the speed of the vehicle exceeds the stated limit, - when the driver interrupts movement of the steering wheel, - if the driver presses the Park Assist control, - after 4 manoeuvre cycles, - on opening the driver's door, - if one of the front wheels encounters an obstacle.
The operation indicator lamp goes off in the instrument panel and a message is displayed accompanied by an audible signal. The driver should then take back control of the vehicle's steering.
Deactivation
If the system is deactivated during a manoeuvre, the drive should reactivate it manually to repeat the measurement.
The system is switched off automatically: - when towing a trailer, - if the driver's door is opened, - if the speed of the vehicle is above 42 mph (70 km/h). To switch the system of for a prolonged period, contact a PEUGEOT dealer or a qualified workshop.
In the event of a fault with the system, this warning lamp is displayed in the instrument panel and a message appears, accompanied by an audible signal.
Operating faults
In the event of a fault with the power steering, this warning lamp comes on in the instrument panel accompanied by an alert message.
Contact a PEUGEOT dealer or a qualified workshop.
Switching off
If the lateral distance between your vehicle and the space is too great, the system may not be able to measure the space. Anything projecting beyond the envelope of the vehicle (long or wide load) is not taken into account by the Park Assist system during a manoeuvre.
In bad weather or in winter, ensure that the sensors are not covered by road dirt, ice or snow. In the event of a fault, have the system checked by a PEUGEOT dealer or a qualified workshop.
The indicator lamp for the function flashes for a few seconds. If the fault occurs during the use of the system, the indicator lamp goes off.

170
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

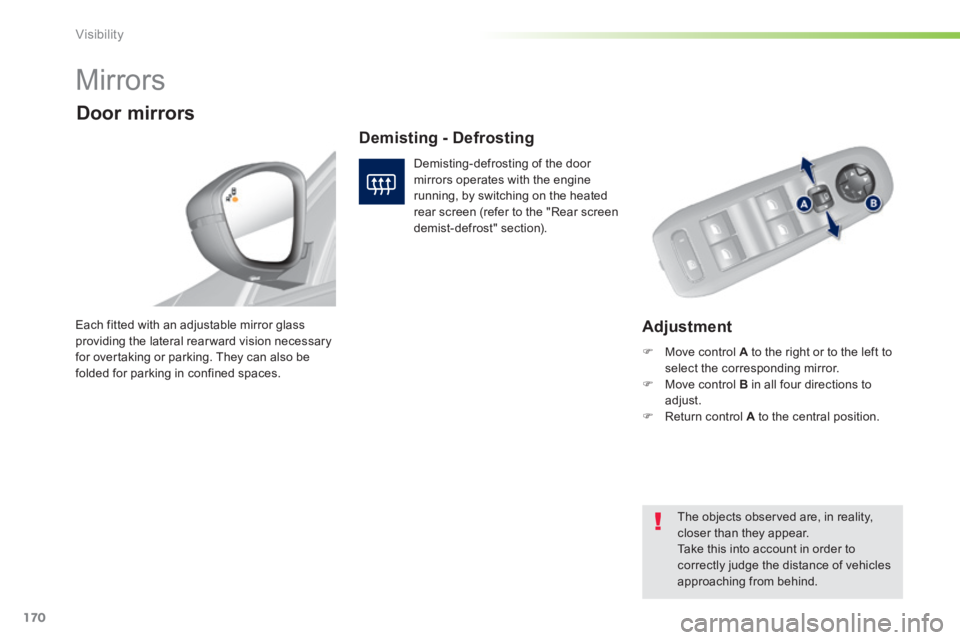

Mirrors
Adjustment Each fitted with an adjustable mirror glass providing the lateral rear ward vision necessary for overtaking or parking. They can also be folded for parking in confined spaces.
Demisting - Defrosting
Door mirrors
Demisting-defrosting of the door mirrors operates with the engine running, by switching on the heated rear screen (refer to the "Rear screen
demist-defrost" section).
The objects observed are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.
 Move control A to the right or to the left to select the corresponding mirror.  Move control B in all four directions to adjust.  Return control A to the central position.

171
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
 From outside: unlock the vehicle using the electronic key or the Keyless Entry and Starting system.  From inside: with the ignition on, pull the control A in the central position rear wards.
Unfolding Folding
 From outside: lock the vehicle using the electronic key or the Keyless Entry and Starting system.  From inside: with the ignition on, pull the control A in the central position rear wards.
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
If necessary, it is possible to fold the mirrors manually.

172
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013
Rear view mirror
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Manual day/night model
Adjustment
 Adjust the mirror so that the glass is directed correctly in the "day" position.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
Day / night position
 Pull the lever to change to the "night" anti-dazzle position.  Push the lever to change to the normal "day" position.
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.

173
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013
Lighting System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
Main lighting
There are various lamps on the vehicle: - sidelamps, to be seen, - dipped beam headlamps to see without dazzling other drivers, - main beam headlamps to see clearly when the road is clear.
Additional lighting
Other lamps are installed to fulfil the requirements of particular driving conditions: - rear foglamps, to better signal the presence of the vehicle in foggy conditions,
- front foglamps, for better visibility in foggy conditions and to improve lighting at intersections and when parking, - daytime running lamps, to be seen during the day.
Automatic lighting
functions
Various automatic lighting functions are also available depending on options: - guide-me-home lighting (from a distance), - welcome lighting, - daytime running lamps, - automatic illumination of headlamps.

174
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013
Model without AUTO lighting
Model with AUTO lighting
Selection ring for main lighting mode
Turn the ring to position the symbol required facing the mark.
Lighting off.
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
In the lighting off and sidelamps modes, the driver can switch on the main beam headlamps temporarily ("headlamp flash") by maintaining a pull on the stalk.
Displays
Illumination of the corresponding indicator lamp in the instrument panel confirms the lighting switched on.
Pull the stalk to switch the lighting between dipped / main beam headlamps.
