2014 Peugeot 308 Owner's Manual

308_EN_CHAP10C_SMEGPLUS_ED02-2013
303

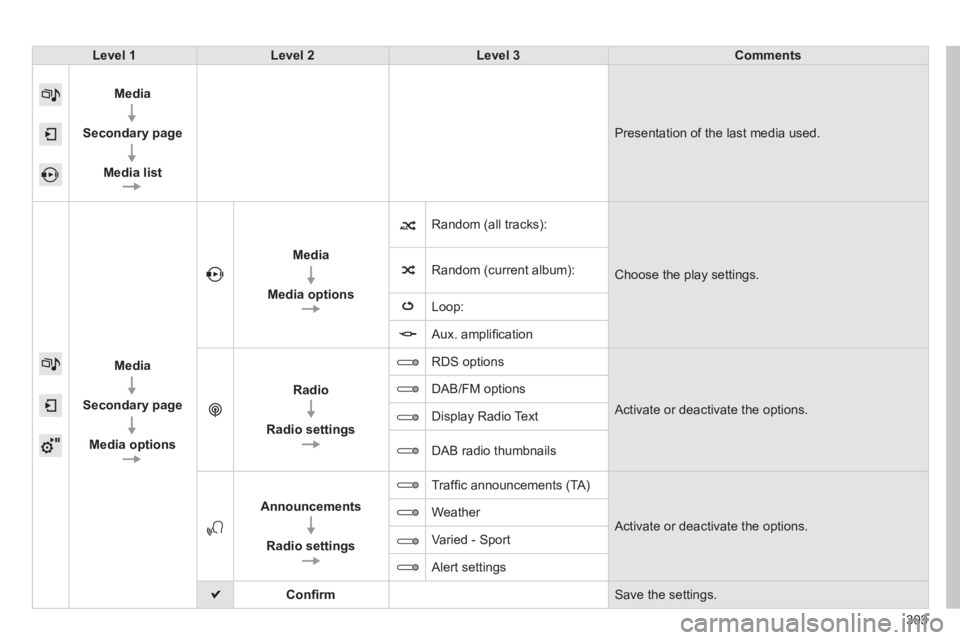

Level 1Level 2Level 3Comments
Media

Secondary page

Media list
Presentation of the last media used.
Media

Secondary page

Media options
Media

Media options
Random (all tracks):
Choose the play settings. Random (current album):
Loop:
Aux. amplifi cation
Radio

Radio settings
RDS options
Activate or deactivate the options.
DAB/FM options
Display Radio Text
DAB radio thumbnails
Announcements

Radio settings
Traffi c announcements (TA)
Activate or deactivate the options. Weather
Varied - Sport
Alert settings
Confi rm Save the settings.

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013
Selecting a station
The exterior environment (hills, buildings, tunnel, car park, below gro\
und...) may prevent reception, even in RDS station tracking mode. This phenomenon is normal in the propagation of radio waves and is in no\
way indicative of a fault with the audio system.
Select " List " in the primary page.
or
Select " Radio list " in the secondary page.
Press on Media to display the primary page.
or
Press on Media to display the primary page then go to the secondary page.
Select a radio station from the list offered. If necessary, select change of source.
Press Media to display the primary page then select " Memo ".
Select " FM Radio " or " AM Radio ".
OR
Select " Update list " to refresh the list.
RADIO
Select a preset radio station in the list.
304

04
305
308_EN_CHAP10C_SMEGPLUS_ED02-2013

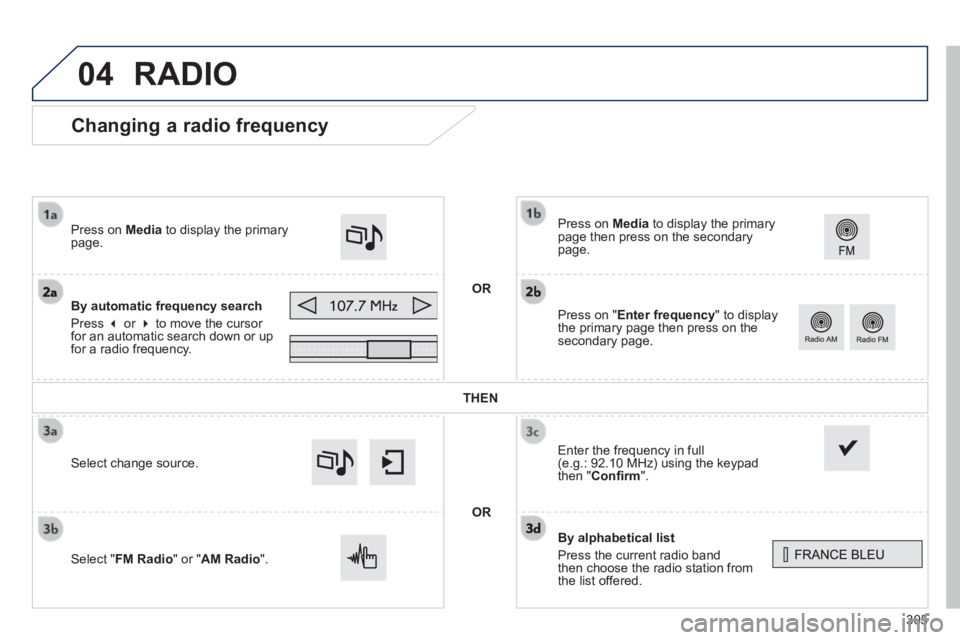

Changing a radio frequency
By alphabetical list
Press the current radio band then choose the radio station from the list offered.
Press on Media to display the primary page then press on the secondary page.
Enter the frequency in full (e.g.: 92.10 MHz) using the keypad then " Confi rm ".
By automatic frequency search
Press  or  to move the cursor for an automatic search down or up for a radio frequency.
Press on Media to display the primary page.
Press on " Enter frequency " to display the primary page then press on the secondary page.
OR
RADIO
Select change source.
Select " FM Radio " or " AM Radio ".
THEN
OR

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013

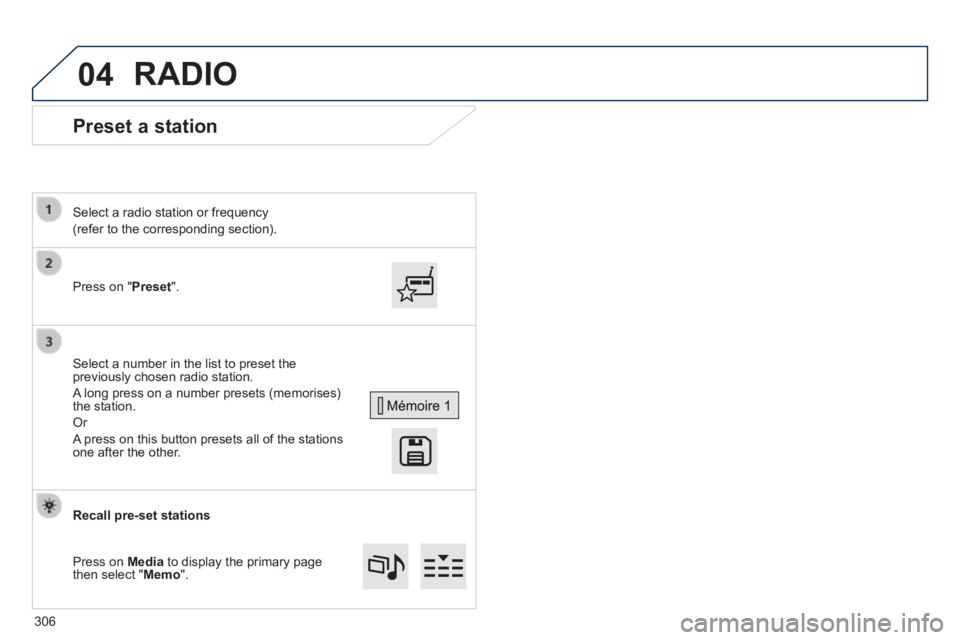

Preset a station
Press on " Preset ".
Select a radio station or frequency
(refer to the corresponding section).
Select a number in the list to preset the previously chosen radio station.
A long press on a number presets (memorises) the station.
Or
A press on this button presets all of the stations one after the other.
Recall pre-set stations
Press on Media to display the primary page then select " Memo ".
RADIO
306

04
307
308_EN_CHAP10C_SMEGPLUS_ED02-2013
RADIO

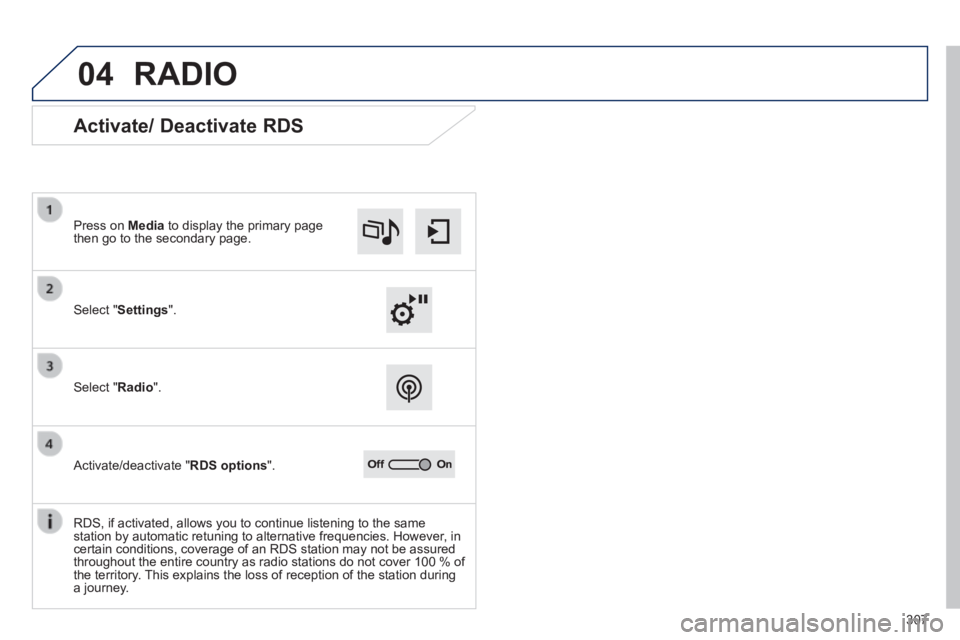

Activate/ Deactivate RDS
Select " Settings ".
Press on Media to display the primary page then go to the secondary page.
Select " Radio ".
Activate/deactivate " RDS options ".
RDS, if activated, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.

04
308
308_EN_CHAP10C_SMEGPLUS_ED02-2013
RADIO
Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.
Display of "Radiotext" for the current station.
Manage the Jukebox.
Display current action.
Select the audio source.
Display the "DAB" band.
Display of the name of the current station.
Short-cut: access to some of the settings for the air conditioning, radio and changing the audio source. Select the radio station.
If the "DAB" radio station being listened to is not available on "FM", the "DAB FM" option is greyed out.
Any thumbnail broadcast by the station.
Preset stations, buttons 1 to 15 .
Short press: select the preset radio station.
Long press: preset a radio station.
Next "Multiplex".
Next radio station.
Secondary page.
Display the name and number of the multiplex service being used.
Previous "Multiplex".
Previous radio station.

04
309
308_EN_CHAP10C_SMEGPLUS_ED02-2013
RADIO
If "DAB / FM auto tracking" is activated, there is a difference of a few seconds when the system switches to "FM" analogue radio with sometimes a variation in volume.
When the digital signal is restored, the system automatically changes back to "DAB".
Select change of source.
Press on Media to display the primary page.
Select " DAB Radio ".
Select " List " in the primary page.
or
Select " Radio list " in the secondary page.
Select the radio station from the list offered.
Digital radio provides higher quality reception and also the graphical display of current information on the radio station being listened to. Select "List" in the primary page.
The range of multiplexes available is displayed in alphabetical order.
Press Media to display the primary page then press on the secondary page.
Select " Settings ".
Select " RADIO ".
Select " Digital/FM auto tracking " then " Confi rm ".
"DAB" does not cover 100% of the territory.
When the digital radio signal is weak, "DAB / FM auto tracking" allows you to continue listening to the same station, by automatically switching to the corresponding "FM" analogue station (if there is one).
If the "DAB" station being listened to is not available on "FM" (" DAB/FM " option greyed out), or "DAB / FM auto tracking" is not activated, the sound will cut out while the digital signal is too weak.

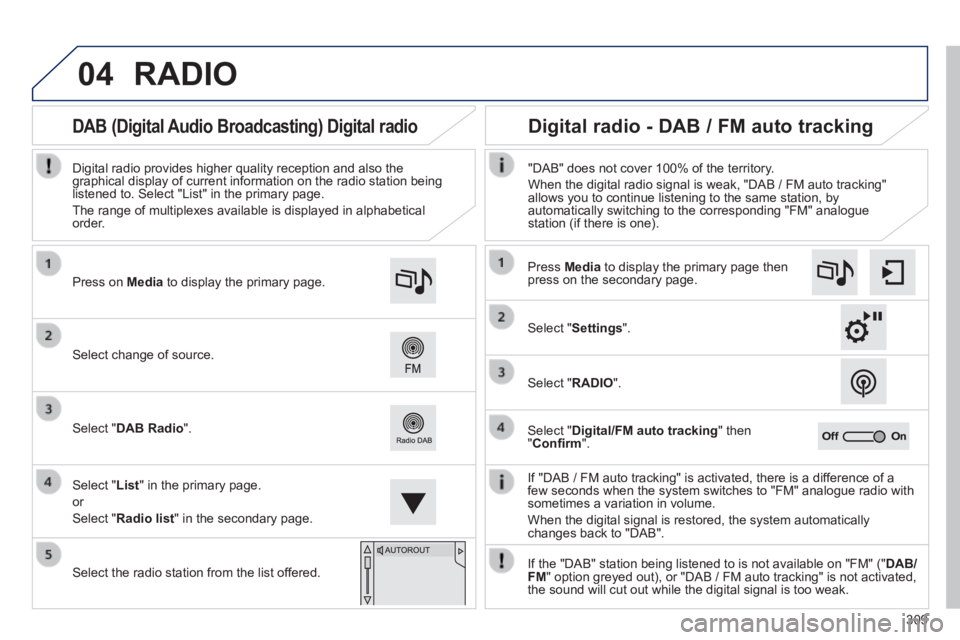

Digital radio - DAB / FM auto tracking DAB (Digital Audio Broadcasting) Digital radio

04
310
308_EN_CHAP10C_SMEGPLUS_ED02-2013

CD, MP3 CD, USB player, auxiliary input
Insert the CD in the player, insert the USB memory stick in the USB player or connect the USB peripheral to the USB port using a suitable cable (not supplied) .
The system builds playlists (in temporary memory), an operation which can take from a few seconds to several minutes at the fi rst connection.
Reduce the number of non-music fi les and the number of folders to reduce the waiting time.
The playlists are updated every time the ignition is switched off or connection of a USB memory stick. However, the system memorises these lists and if they are not modifi ed, the loading time will be shorter.
Selection of source
The steering mounted SRC (source) button can be used to go to the next media source, available if the source is active.
Press OK to confi rm the selection.
" CD / CD MP3 "
" USB, iPod "
" Bluetooth (streaming) " " Auxiliary "
" Radio "
Select change of source then choose the source.
Press on Media to display the primary page.
MUSIC
