2014 NISSAN ROGUE LC2 Kai Navigation Manual

End User shall indemnify and save harmless the
licensors, including Her Majesty, Canada Post
and NRCan, and their officers, employees and
agents from and against any claim, demand or
action, irrespective of the nature of the cause of
the claim, demand or action, alleging loss, costs,
expenses, damages or injuries (including injuries
resulting in death) arising out of the use or pos-
session of the data or the Data.
Terms and conditions
Personal Use Only:
You agree to use this Data together with
NISSAN Automotive Products for the solely
personal, non-commercial purposes for which
you were licensed, and not for service bureau,
timesharing or other similar purposes.
Accordingly, but subject to the restrictions set
forth in the following paragraphs, you may copy
this Data only as necessary for your personal use
to view it, and save it, provided that you do not
remove any copyright notices that appear and do
not modify the Data in any way. You agree not to
otherwise reproduce, copy, modify, decompile,
disassemble or reverse engineer any portion of
this Data, and may not transfer or distribute it in
any form, for any purpose, except to the extent
such restrictions are expressly prohibited or lim-
ited by applicable law.Restrictions:
Except where you have been specifically li-
censed to do so by NISSAN and without limiting
the preceding paragraph, you may not:
a. use this Data with any products, systems, or
applications installed or otherwise connected
to or in communication with vehicles, capable
of vehicle navigation positioning, dispatch,
real time route guidance, fleet management
or similar applications;
b. use this Data with or in communication with any positioning devices or any mobile or
wireless-connected electronic or computer
devices, including without limitation mobile
phones, palmtop and handheld computers,
pagers, and personal digital assistants or
PDAs.
Warnings:
The Data may contain inaccurate or incomplete
information due to the passage of time, changing
circumstances, sources used and the nature of
collecting comprehensive geographic data, any
of which may lead to incorrect results. No Warranty:
This Data is provided to you “as is,” and you
agree to use it at your own risk. NISSAN and its
licensors (and their licensors and suppliers)
make no guarantees, representations or warran-
ties of any kind, express or implied, arising by law
or otherwise, including but not limited to,
content, quality, accuracy, completeness,
effectiveness, reliability, fitness for a particular
purpose, usefulness, use or results to be ob-
tained from this Data, or that the Data or server
will be uninterrupted or error-free.
Disclaimer of Warranty:
NISSAN AND ITS LICENSORS (INCLUDING
THEIR LICENSORS AND SUPPLIERS) DIS-
CLAIM ANY WARRANTIES, EXPRESS OR
IMPLIED, OF QUALITY, PERFORMANCE,
MERCHANTABILITY FITNESS FOR A PAR-
TICULAR
PURPOSE OR
NON-INFRINGEMENT.
Some countries, local laws and territories do not
allow certain warranty exclusions, so to that ex-
tent the above exclusion may not apply to you.
Map settings3-15

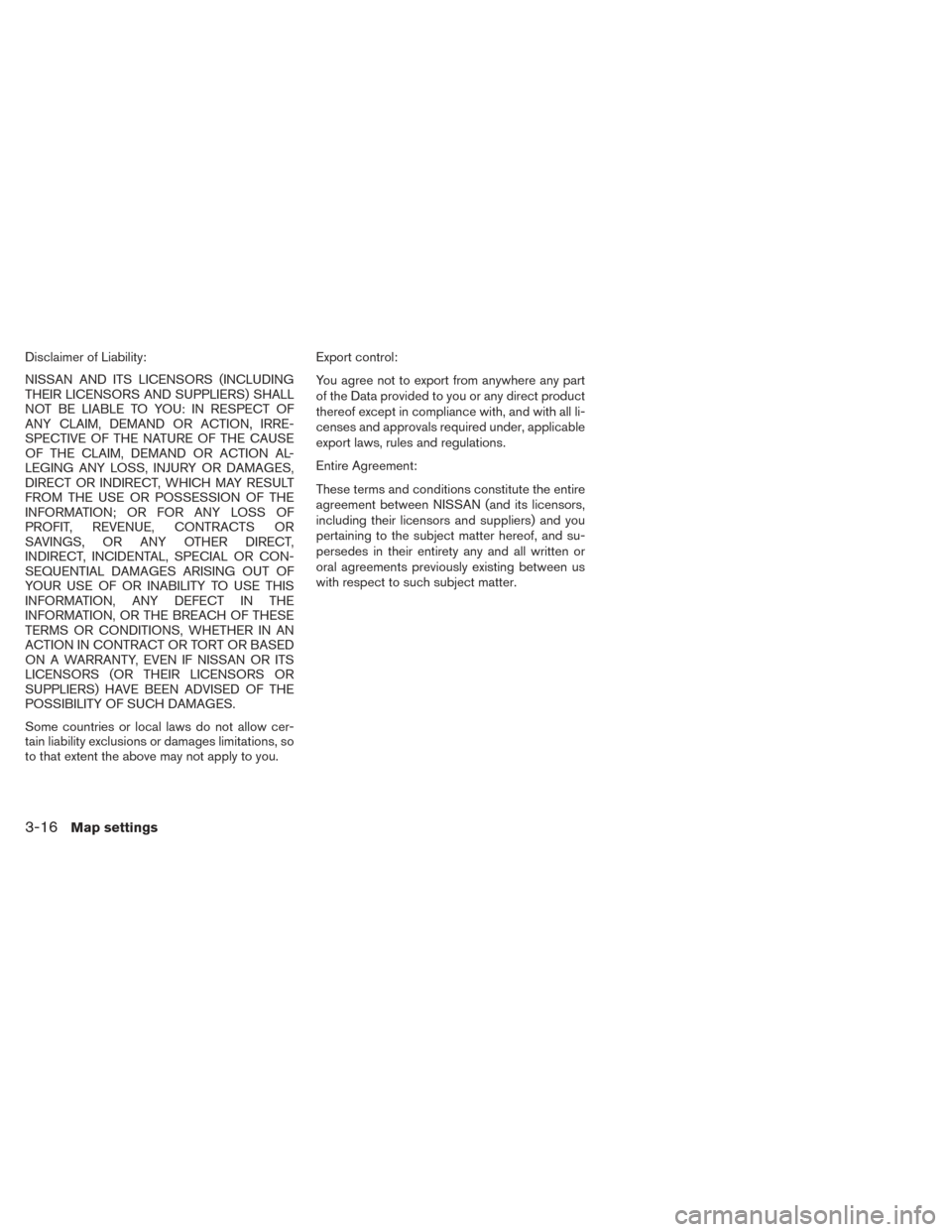

Disclaimer of Liability:
NISSAN AND ITS LICENSORS (INCLUDING
THEIR LICENSORS AND SUPPLIERS) SHALL
NOT BE LIABLE TO YOU: IN RESPECT OF
ANY CLAIM, DEMAND OR ACTION, IRRE-
SPECTIVE OF THE NATURE OF THE CAUSE
OF THE CLAIM, DEMAND OR ACTION AL-
LEGING ANY LOSS, INJURY OR DAMAGES,
DIRECT OR INDIRECT, WHICH MAY RESULT
FROM THE USE OR POSSESSION OF THE
INFORMATION; OR FOR ANY LOSS OF
PROFIT, REVENUE, CONTRACTS OR
SAVINGS, OR ANY OTHER DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR CON-
SEQUENTIAL DAMAGES ARISING OUT OF
YOUR USE OF OR INABILITY TO USE THIS
INFORMATION, ANY DEFECT IN THE
INFORMATION, OR THE BREACH OF THESE
TERMS OR CONDITIONS, WHETHER IN AN
ACTION IN CONTRACT OR TORT OR BASED
ON A WARRANTY, EVEN IF NISSAN OR ITS
LICENSORS (OR THEIR LICENSORS OR
SUPPLIERS) HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Some countries or local laws do not allow cer-
tain liability exclusions or damages limitations, so
to that extent the above may not apply to you.Export control:
You agree not to export from anywhere any part
of the Data provided to you or any direct product
thereof except in compliance with, and with all li-
censes and approvals required under, applicable
export laws, rules and regulations.
Entire Agreement:
These terms and conditions constitute the entire
agreement between NISSAN (and its licensors,
including their licensors and suppliers) and you
pertaining to the subject matter hereof, and su-
persedes in their entirety any and all written or
oral agreements previously existing between us
with respect to such subject matter.
3-16Map settings

4 Navigation
About route guidance..............................4-2
Voice guidance during route guidance ............4-2
Navigation screen . . ...............................4-3
Basic operation ................................4-3
Available setting items ..........................4-3
Setting a destination ...............................4-5
Available destination setting methods .............4-5
Setting a destination from a street address ...........4-5
Setting a destination from points of interest ...........4-9
Searching for nearby restaurants or gas
stations .......................................4-9
Searching for places near current location ........4-11
Searching for points of interest in another
city .......................................... 4-12
Searching for places using Voice
Recognition (if so equipped) ....................4-12
My points of interest/User-defined points of
interest (POIs) ................................ 4-13Setting a destination from the address book
.........4-17
Setting a new entry to the address book .........4-17
Setting an entry as a destination .................4-18
Setting a destination from the address book
using Voice Recognition (if so equipped) .........4-18
Setting an intersection as a destination .............4-18
Setting a city center as a destination ................4-19
Traffic feature .................................... 4-20
Displaying traffic events along route .............4-20
Traffic flow feature ............................. 4-21
Traffic settings ................................ 4-21
Weather feature .................................. 4-22
Displaying weather information on the
screen ....................................... 4-22
Fuel prices ....................................... 4-23

After setting the destination, select “Start” to be-
gin route guidance.
During route guidance, the system navigates you
through the guide points using visual and voice
guidance.
CAUTION
●The navigation system visual and
voice guidance is for reference pur-
poses only. The contents of the guid-
ance may be inappropriate depend-
ing on the situation.
● When driving along the suggested
route, follow all traffic regulations
(for example, one-way traffic) .
“Route guidance” (page 6-2)VOICE GUIDANCE DURING ROUTE
GUIDANCE
When approaching a guide point (intersection or
corner) , destination, etc., during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction.
Touch “Voice” on the upper left of the screen to
repeat the voice guidance.
Example of voice guidance:
1“In about one quarter mile (400 meters) , right
(or left) turn.” “Right (or left) turn ahead.”
2“In about one quarter mile (400 meters)
freeway entrance on your right onto (road
number and direction) .” “Freeway entrance
on your right onto (road number and
direction) .”
3“In about one mile (1.6 kilometers) , exit on
your right.” “Take the second exit on your
right.”
4“You have reached your destination. Ending
route guidance.”
LNV0943
ABOUT ROUTE GUIDANCE
4-2Navigation

Several methods are available to set your
destination.
BASIC OPERATION
1. Press the NAV button.
2. Select the appropriate destination settingmethod by touching the screen or scrolling
with the scrolling dial.AVAILABLE SETTING ITEMS
●Street Address:
Set a destination address.
Several methods are available to set your
destination.
“SETTING A DESTINATION”
(page 4-5)
● Points of Interest:
The system features a database of places
such as restaurants, hotels, banks and more
to assist you in navigation. These points of
interest can be set as destinations and the
system can then calculate a route.
● Cancel Route:
Touch “Cancel Route” to cancel the route
guidance.
LNV2409LNV2410
NAVIGATION SCREEN
Navigation4-3

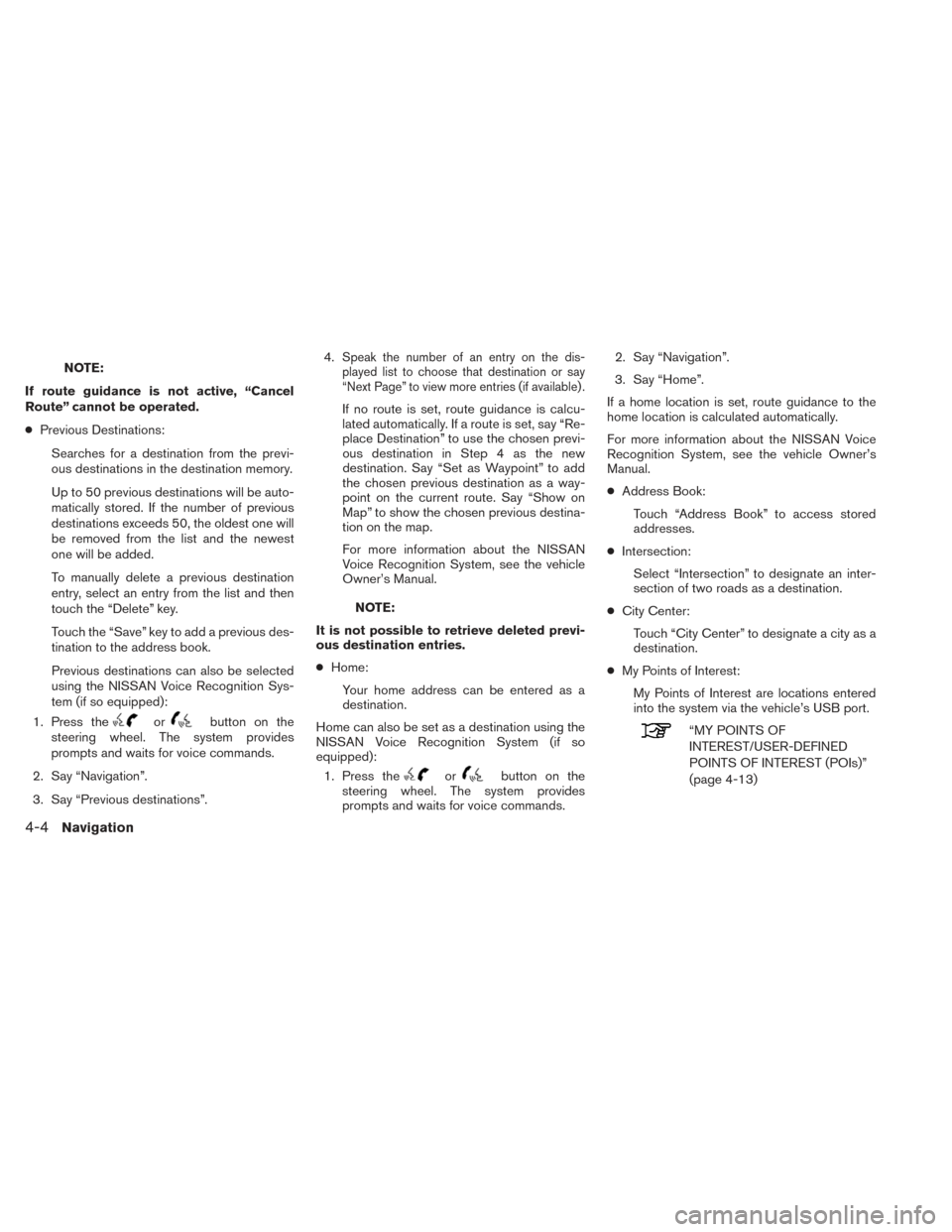

NOTE:
If route guidance is not active, “Cancel
Route” cannot be operated.
● Previous Destinations:
Searches for a destination from the previ-
ous destinations in the destination memory.
Up to 50 previous destinations will be auto-
matically stored. If the number of previous
destinations exceeds 50, the oldest one will
be removed from the list and the newest
one will be added.
To manually delete a previous destination
entry, select an entry from the list and then
touch the “Delete” key.
Touch the “Save” key to add a previous des-
tination to the address book.
Previous destinations can also be selected
using the NISSAN Voice Recognition Sys-
tem (if so equipped):
1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Previous destinations”. 4.
Speak the number of an entry on the dis-
played list to choose that destination or say
“Next Page” to view more entries (if available) .
If no route is set, route guidance is calcu-
lated automatically. If a route is set, say “Re-
place Destination” to use the chosen previ-
ous destination in Step 4 as the new
destination. Say “Set as Waypoint” to add
the chosen previous destination as a way-
point on the current route. Say “Show on
Map” to show the chosen previous destina-
tion on the map.
For more information about the NISSAN
Voice Recognition System, see the vehicle
Owner’s Manual.
NOTE:
It is not possible to retrieve deleted previ-
ous destination entries.
● Home:
Your home address can be entered as a
destination.
Home can also be set as a destination using the
NISSAN Voice Recognition System (if so
equipped): 1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands. 2. Say “Navigation”.
3. Say “Home”.
If a home location is set, route guidance to the
home location is calculated automatically.
For more information about the NISSAN Voice
Recognition System, see the vehicle Owner’s
Manual.
● Address Book:
Touch “Address Book” to access stored
addresses.
● Intersection:
Select “Intersection” to designate an inter-
section of two roads as a destination.
● City Center:
Touch “City Center” to designate a city as a
destination.
● My Points of Interest:
My Points of Interest are locations entered
into the system via the vehicle’s USB port.
“MY POINTS OF
INTEREST/USER-DEFINED
POINTS OF INTEREST (POIs)”
(page 4-13)
4-4Navigation

Press the NAV button. The methods for setting a
destination are shown.
If route guidance is active, you can choose how
to use the new destination. Select “Add as Way-
point” to keep the current destination and to add
the current destination as a waypoint along the
route. Select “Replace” to cancel the current
route and replace the current destination with
the new destination.
AVAILABLE DESTINATION SETTING
METHODS
●“Street Address”
“SETTING A DESTINATION
FROM A STREET ADDRESS”
(page 4-5)
● “Points of Interest”
“SETTING A DESTINATION
FROM POINTS OF INTEREST”
(page 4-9)
● “My Points of Interest”
“MY POINTS OF
INTEREST/USER-DEFINED MY
POINTS OF INTEREST”
(page 4-13) ●
“Address Book”
“SETTING A DESTINATION
FROM THE ADDRESS BOOK”
(page 4-17)
● “Intersection”
“SETTING AN INTERSECTION
AS A DESTINATION”
(page 4-18)
● “City Center”
“SETTING A CITY CENTER AS
A DESTINATION” (page 4-19) 1. Press the NAV button.
2. Touch “Street Address”.
3. If the state or province shown on the screen
is correct, proceed to step 5. If the state or
province shown on the screen is not
correct, touch “Change State/Province”.
LNV2426
SETTING A DESTINATION SETTING A DESTINATION FROM A
STREET ADDRESS
Navigation4-5

4. Enter the name of the state or province. Thedisplay shows the touch keyboard.
“HOW TO INPUT CHARAC-
TERS” (page 2-9)
The keyboard has an intelligent spelling
setting, so it excludes non-existing
combinations. On the top right of the
screen, the number of matches is shown. At
any time, touch the “List” key to display a list
of possible names based on the letters cur-
rently entered. When the number of
matches is reduced to six or less, a list will
be shown automatically.
5. Touch “City”
NOTE:
It is possible to choose “House Number &
Street” at this step if you want to manually
enter the street name. However, the sys-
tem can automatically narrow down the
street in most cases when you enter the
city name first. Entering by city can also be
useful if you are unsure of the street’s cor-
rect spelling. 6. The display shows a touch keyboard to en-ter the city of the destination. Enter the
name of the city. At any time, touch the
“List” key to display a list of possible city
names based on the letters currently
entered. When the number of matches is
reduced to six or less, the city list will be
shown automatically.
LNV2415LNV2406
4-6Navigation
