2014 NISSAN JUKE Owners Manual

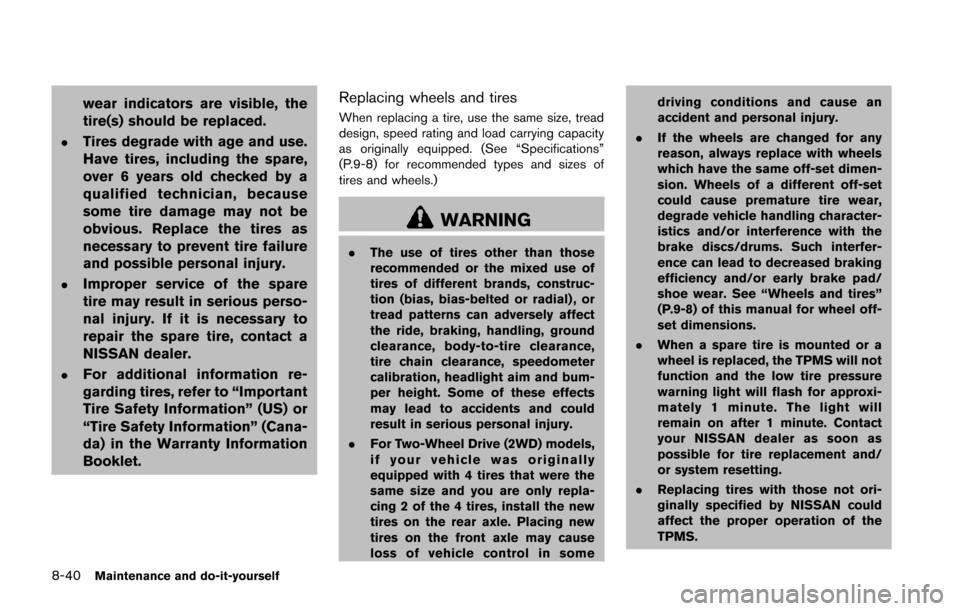

8-40Maintenance and do-it-yourself
wear indicators are visible, the
tire(s) should be replaced.
.Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
.Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
.For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “Specifications”
(P.9-8) for recommended types and sizes of
tires and wheels.)
WARNING
.The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. For Two-Wheel Drive (2WD) models,
if your vehicle was originally
equipped with 4 tires that were the
same size and you are only repla-
cing 2 of the 4 tires, install the new
tires on the rear axle. Placing new
tires on the front axle may cause
loss of vehicle control in some driving conditions and cause an
accident and personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See “Wheels and tires”
(P.9-8) of this manual for wheel off-
set dimensions.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.

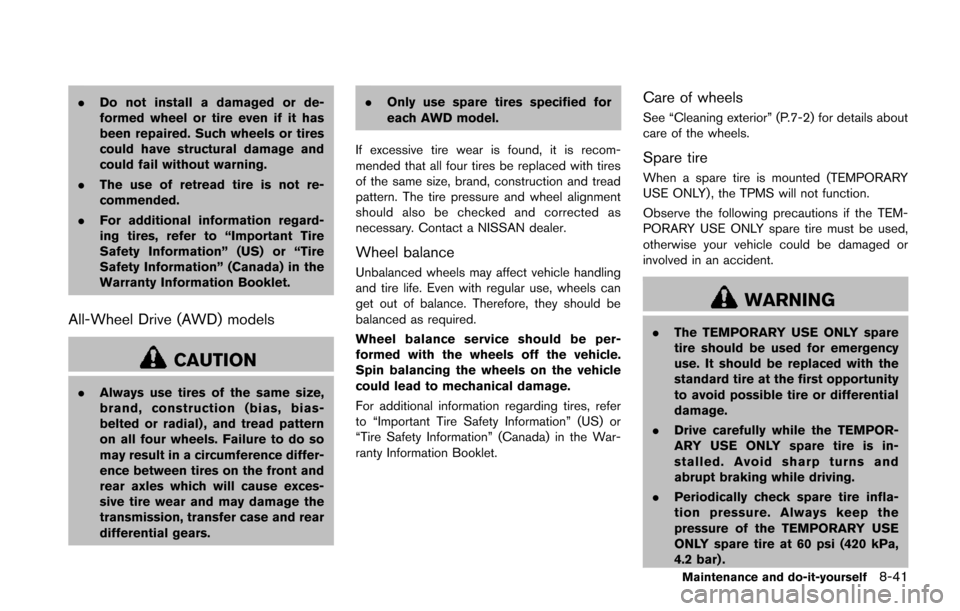

.Do not install a damaged or de-
formed wheel or tire even if it has
been repaired. Such wheels or tires
could have structural damage and
could fail without warning.
. The use of retread tire is not re-
commended.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in the
Warranty Information Booklet.
All-Wheel Drive (AWD) models
CAUTION
.Always use tires of the same size,
brand, construction (bias, bias-
belted or radial) , and tread pattern
on all four wheels. Failure to do so
may result in a circumference differ-
ence between tires on the front and
rear axles which will cause exces-
sive tire wear and may damage the
transmission, transfer case and rear
differential gears. .
Only use spare tires specified for
each AWD model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as
necessary. Contact a NISSAN dealer.
Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the War-
ranty Information Booklet.
Care of wheels
See “Cleaning exterior” (P.7-2) for details about
care of the wheels.
Spare tire
When a spare tire is mounted (TEMPORARY
USE ONLY) , the TPMS will not function.
Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used,
otherwise your vehicle could be damaged or
involved in an accident.
WARNING
. The TEMPORARY USE ONLY spare
tire should be used for emergency
use. It should be replaced with the
standard tire at the first opportunity
to avoid possible tire or differential
damage.
. Drive carefully while the TEMPOR-
ARY USE ONLY spare tire is in-
stalled. Avoid sharp turns and
abrupt braking while driving.
. Periodically check spare tire infla-
tion pressure. Always keep the
pressure of the TEMPORARY USE
ONLY spare tire at 60 psi (420 kPa,
4.2 bar) .
Maintenance and do-it-yourself8-41

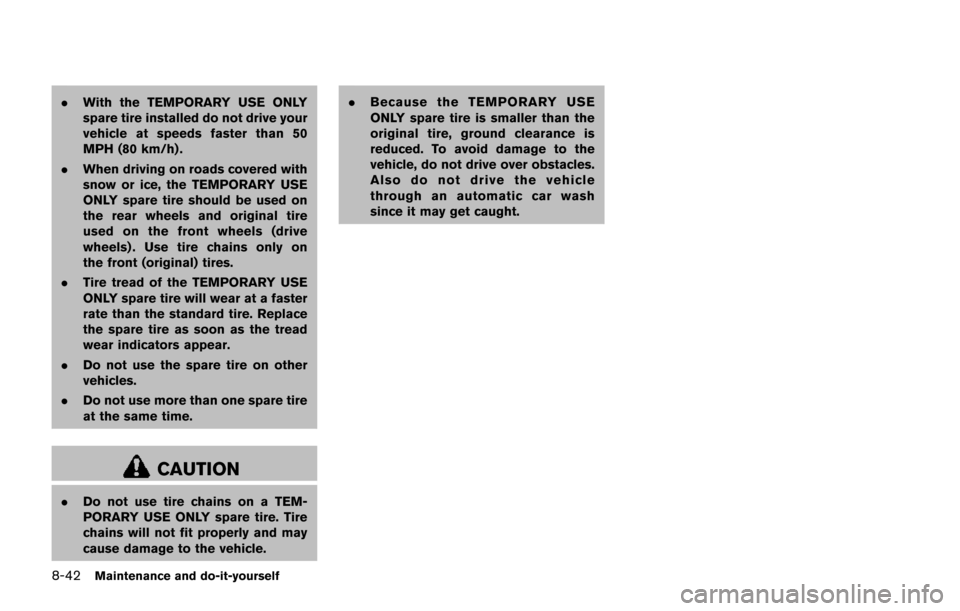

8-42Maintenance and do-it-yourself
.With the TEMPORARY USE ONLY
spare tire installed do not drive your
vehicle at speeds faster than 50
MPH (80 km/h) .
. When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on
the rear wheels and original tire
used on the front wheels (drive
wheels) . Use tire chains only on
the front (original) tires.
. Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.
. Do not use the spare tire on other
vehicles.
. Do not use more than one spare tire
at the same time.
CAUTION
.Do not use tire chains on a TEM-
PORARY USE ONLY spare tire. Tire
chains will not fit properly and may
cause damage to the vehicle. .
Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is
reduced. To avoid damage to the
vehicle, do not drive over obstacles.
Also do not drive the vehicle
through an automatic car wash
since it may get caught.

MEMO
Maintenance and do-it-yourself8-43

8-44Maintenance and do-it-yourself

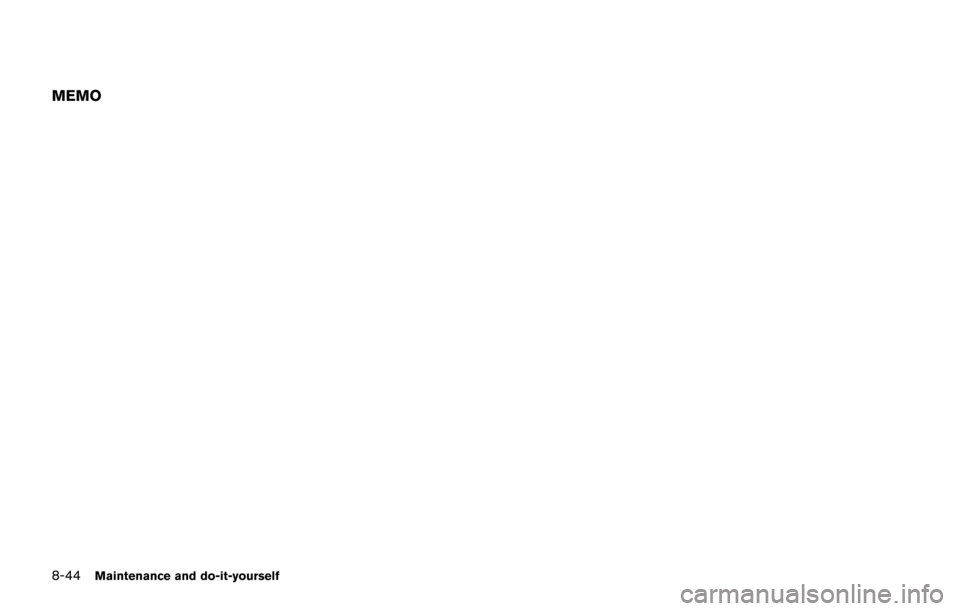

MEMO

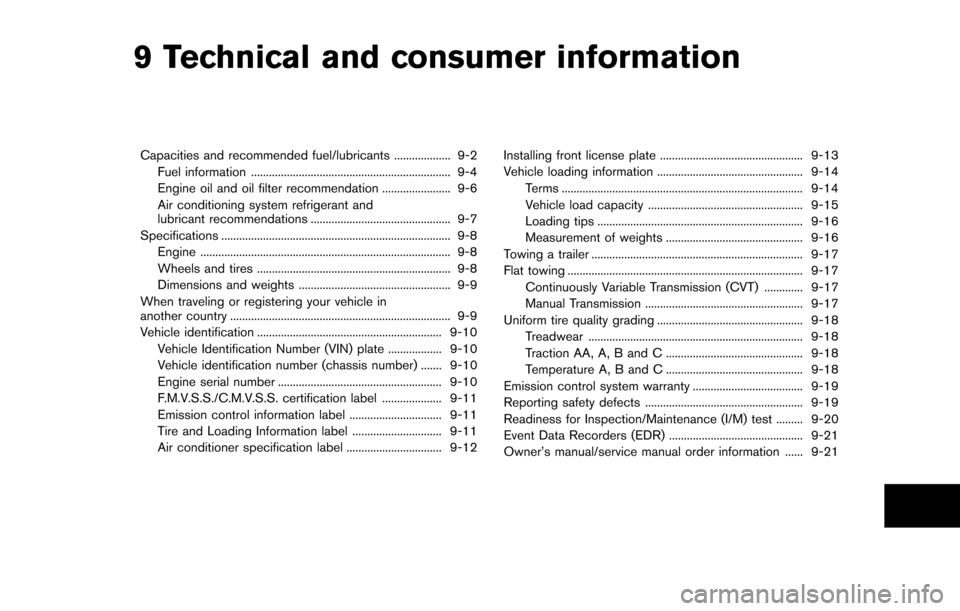

9 Technical and consumer information
Capacities and recommended fuel/lubricants ................... 9-2Fuel information ................................................................... 9-4
Engine oil and oil filter recommendation ....................... 9-6
Air conditioning system refrigerant and
lubricant recommendations ............................................... 9-7
Specifications ........................................................................\
..... 9-8
Engine ........................................................................\
............ 9-8
Wheels and tires ................................................................. 9-8
Dimensions and weights ................................................... 9-9
When traveling or registering your vehicle in
another country ........................................................................\
.. 9-9
Vehicle identification .............................................................. 9-10 Vehicle Identification Number (VIN) plate .................. 9-10
Vehicle identification number (chassis number) ....... 9-10
Engine serial number ....................................................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label .................... 9-11
Emission control information label ............................... 9-11
Tire and Loading Information label .............................. 9-11
Air conditioner specification label ................................ 9-12 Installing front license plate ................................................ 9-13
Vehicle loading information ................................................. 9-14
Terms ........................................................................\
......... 9-14
Vehicle load capacity .................................................... 9-15
Loading tips ..................................................................... 9-16
Measurement of weights .............................................. 9-16
Towing a trailer ....................................................................... 9-17
Flat towing ........................................................................\
....... 9-17 Continuously Variable Transmission (CVT) ............. 9-17
Manual Transmission ..................................................... 9-17
Uniform tire quality grading ................................................. 9-18 Treadwear ........................................................................\
9-18
Traction AA, A, B and C .............................................. 9-18
Temperature A, B and C .............................................. 9-18
Emission control system warranty ..................................... 9-19
Reporting safety defects ..................................................... 9-19
Readiness for Inspection/Maintenance (I/M) test ......... 9-20
Event Data Recorders (EDR) ............................................. 9-21
Owner’s manual/service manual order information ...... 9-21

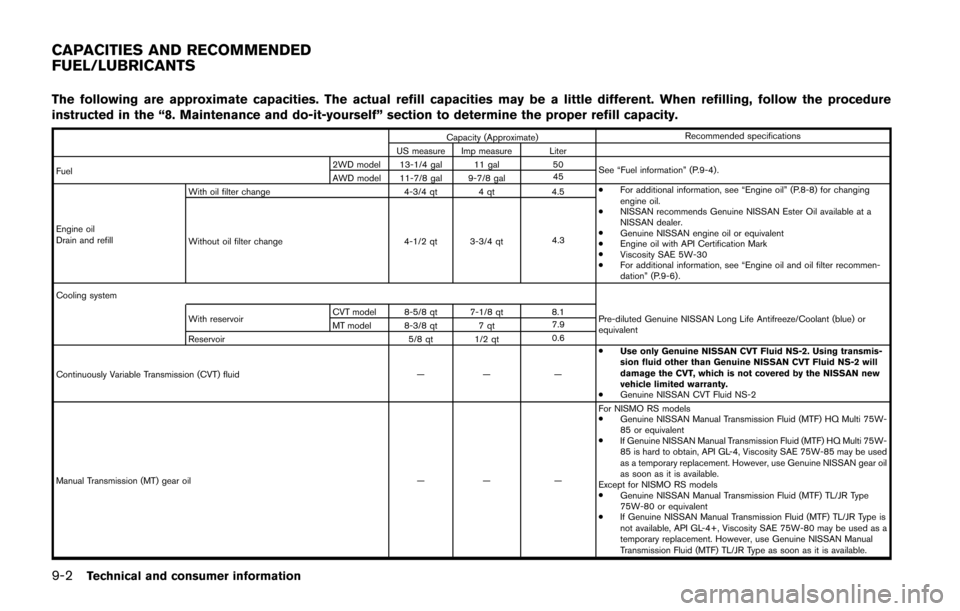

9-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 2WD model 13-1/4 gal 11 gal
50
See “Fuel information” (P.9-4).
AWD model 11-7/8 gal 9-7/8 gal 45
Engine oil
Drain and refill With oil filter change
4-3/4 qt 4 qt4.5.
For additional information, see “Engine oil” (P.8-8) for changing
engine oil.
. NISSAN recommends Genuine NISSAN Ester Oil available at a
NISSAN dealer.
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark
. Viscosity SAE 5W-30
. For additional information, see “Engine oil and oil filter recommen-
dation” (P.9-6).
Without oil filter change
4-1/2 qt 3-3/4 qt4.3
Cooling system With reservoir CVT model 8-5/8 qt 7-1/8 qt
8.1
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
MT model 8-3/8 qt 7 qt
7.9
Reservoir 5/8 qt 1/2 qt0.6
Continuously Variable Transmission (CVT) fluid —— —.
Use only Genuine NISSAN CVT Fluid NS-2. Using transmis-
sion fluid other than Genuine NISSAN CVT Fluid NS-2 will
damage the CVT, which is not covered by the NISSAN new
vehicle limited warranty.
. Genuine NISSAN CVT Fluid NS-2
Manual Transmission (MT) gear oil —— —For NISMO RS models
.
Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-
85 or equivalent
. If Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-
85 is hard to obtain, API GL-4, Viscosity SAE 75W-85 may be used
as a temporary replacement. However, use Genuine NISSAN gear oil
as soon as it is available.
Except for NISMO RS models
. Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type
75W-80 or equivalent
. If Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type is
not available, API GL-4+, Viscosity SAE 75W-80 may be used as a
temporary replacement. However, use Genuine NISSAN Manual
Transmission Fluid (MTF) TL/JR Type as soon as it is available.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS

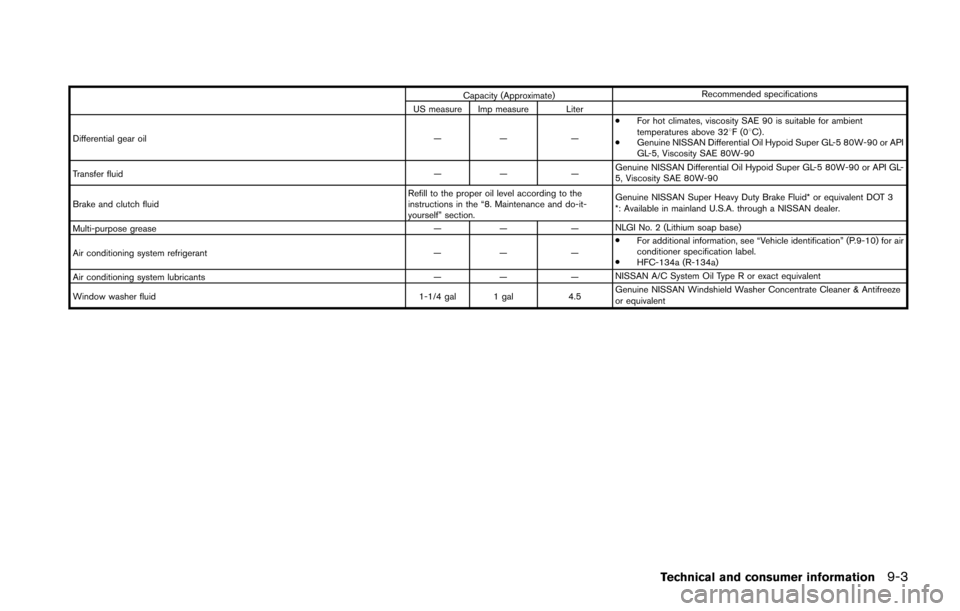

Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Differential gear oil —— —.
For hot climates, viscosity SAE 90 is suitable for ambient
temperatures above 328F(0 8C).
. Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API
GL-5, Viscosity SAE 80W-90
Transfer fluid —— —Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-
5, Viscosity SAE 80W-90
Brake and clutch fluid Refill to the proper oil level according to the
instructions in the “8. Maintenance and do-it-
yourself” section.Genuine NISSAN Super Heavy Duty Brake Fluid* or equivalent DOT 3
*: Available in mainland U.S.A. through a NISSAN dealer.
Multi-purpose grease —— —NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant —— —.
For additional information, see “Vehicle identification” (P.9-10) for air
conditioner specification label.
. HFC-134a (R-134a)
Air conditioning system lubricants —— —NISSAN A/C System Oil Type R or exact equivalent
Window washer fluid 1-1/4 gal 1 gal4.5Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
or equivalent
Technical and consumer information9-3
