1-52Safety — Seats, seat belts and supplemental restraint system
SSS1020

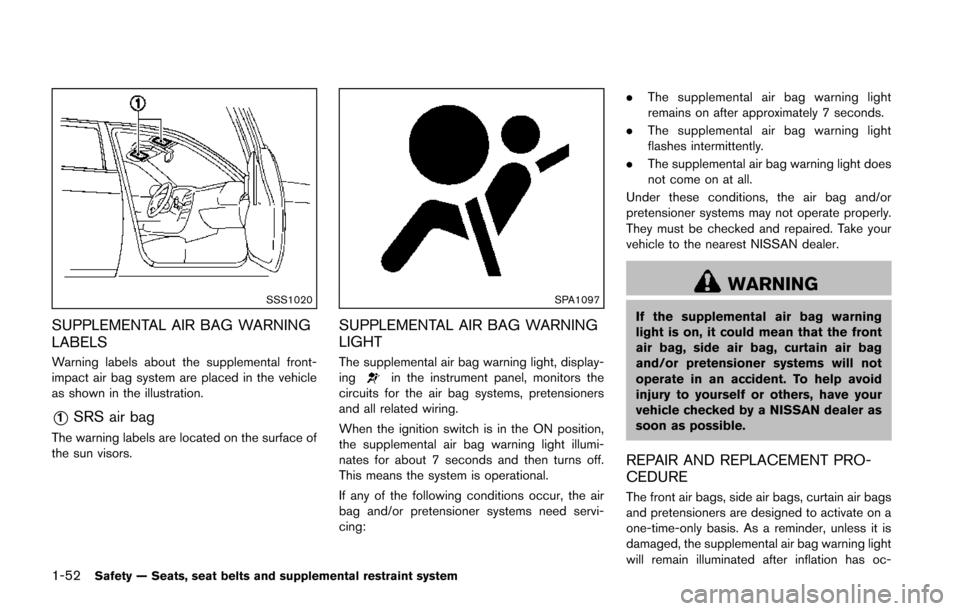

SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle
as shown in the illustration.
*1SRS air bag
The warning labels are located on the surface of
the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light, display-
ingin the instrument panel, monitors the
circuits for the air bag systems, pretensioners
and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational.
If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing: .
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE
The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-

curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags and pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
.Once a front air bag, side air bag or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioners must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced by a NISSAN dealer. The
air bag modules and pretensioner
system cannot be repaired.
. The front air bag, side air bag and
curtain air bag systems, and preten-
sioner system should be inspected
by a NISSAN dealer if there is any
damage to the front end or side
portion of the vehicle. .
If you need to dispose of a supple-
mental air bag or pretensioner or
scrap the vehicle, contact a NISSAN
dealer. Correct supplemental air
bag and pretensioner system dis-
posal procedures are set forth in the
appropriate NISSAN Service Man-
ual. Incorrect disposal procedures
could cause personal injury.
Safety — Seats, seat belts and supplemental restraint system1-53

1-54Safety — Seats, seat belts and supplemental restraint system
MEMO

2 Instruments and controls
Cockpit ........................................................................\
................ 2-3
Instrument panel ........................................................................\
2-4
Meters and gauges ................................................................... 2-5Speedometer and odometer ............................................ 2-6
Tachometer ........................................................................\
... 2-8
Engine coolant temperature gauge ................................ 2-8
Fuel gauge ........................................................................\
.... 2-9
Vehicle information display ................................................ 2-9
Outside air temperature .................................................. 2-10
Continuously Variable Transmission (CVT) position
indicator (if so equipped) ............................................... 2-10
Trip computer .................................................................... 2-10
Warning/indicator lights and audible reminders ............ 2-12
Checking bulbs ................................................................. 2-13
Warning lights ................................................................... 2-13
Indicator lights ................................................................... 2-17
Audible reminders ............................................................ 2-19
Integrated control system (if so equipped) ..................... 2-21 Drive mode ........................................................................\
. 2-21
Setup function ................................................................... 2-22
Drive information ............................................................... 2-27
Eco information ................................................................. 2-28 Security systems ................................................................... 2-29
Vehicle Security System ............................................... 2-29
NISSAN Vehicle Immobilizer System ........................ 2-31
Windshield wiper and washer switch .............................. 2-32
Rear window wiper and washer switch .......................... 2-34
Rear window and outside mirror defroster switch ....... 2-35
Headlight and turn signal switch ....................................... 2-35 Headlight switch ............................................................ 2-35
Turn signal switch .......................................................... 2-38
Fog light switch (if so equipped) .............................. 2-39
Horn ........................................................................\
.................. 2-39
Vehicle Dynamic Control (VDC) off switch .................... 2-39
Heated seats (if so equipped) ........................................... 2-40
Clock (if so equipped) ......................................................... 2-41 Adjusting the time .......................................................... 2-41
Power outlet ........................................................................\
.... 2-42
Storage ........................................................................\
............ 2-42 Cup holders ..................................................................... 2-42
Cargo floor box ............................................................... 2-43
Glove box ........................................................................\
. 2-44
Coat hook ........................................................................\
2-44
Cargo cover (if so equipped) ..................................... 2-44>

Windows ........................................................................\
.......... 2-45Power windows ................................................................ 2-45
Moonroof (if so equipped) ................................................... 2-48 Power moonroof ............................................................... 2-48 Interior lights ........................................................................\
.. 2-49
Map lights (if so equipped) ......................................... 2-50
Map light control switch (if so equipped) ............... 2-50
Cargo light ....................................................................... 2-51

JVC0572X
1. Outside mirror remote control switch
2. Headlight, fog light and turn signal switch— Headlight
— Turn signal light
— Fog light*
3. Paddle shifter*
4. Steering wheel — Electric power steering system
— Horn
— Driver’s supplemental air bag
5. Wiper and washer switch
6. Shift lever
— Continuously Variable Transmission (CVT)
— Manual Transmission (MT) 7. Fuse box cover
8. Vehicle Dynamic Control (VDC) OFF switch
9. All-Wheel Drive (AWD) switch*
10. Tilting steering wheel lever
11. Steering-wheel-mounted controls (left side)
— Audio control
— Bluetooth
®Hands-Free Phone System con-
trol
12. Ignition switch (models without Intelligent Key system)
13. Steering-wheel-mounted controls (right side) — Cruise control switches
14. Heated seat switch*
*: if so equipped
Instruments and controls2-3
COCKPIT

2-4Instruments and controls
JVC0607X
1. Meters and gauges
2. Center ventilator
3. Audio system* or Navigation system**— Clock*
4. Hazard warning flasher switch
5. Integrated Control System* — Drive mode — Heater and air conditioner control
— Defroster switch
5. Heater and air conditioner control (models without Integrated Control System)
— Defroster switch
6. Front passenger supplemental air bag
7. Side ventilator 8. Fuel-filler door release handle
9. Hood release handle
10. Push-button ignition switch (models with Intel-
ligent Key system)
11. AUX/USB connector*
12. Parking brake
13. Cup holder
14. Power outlet
15. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual.
INSTRUMENT PANEL

SIC4601

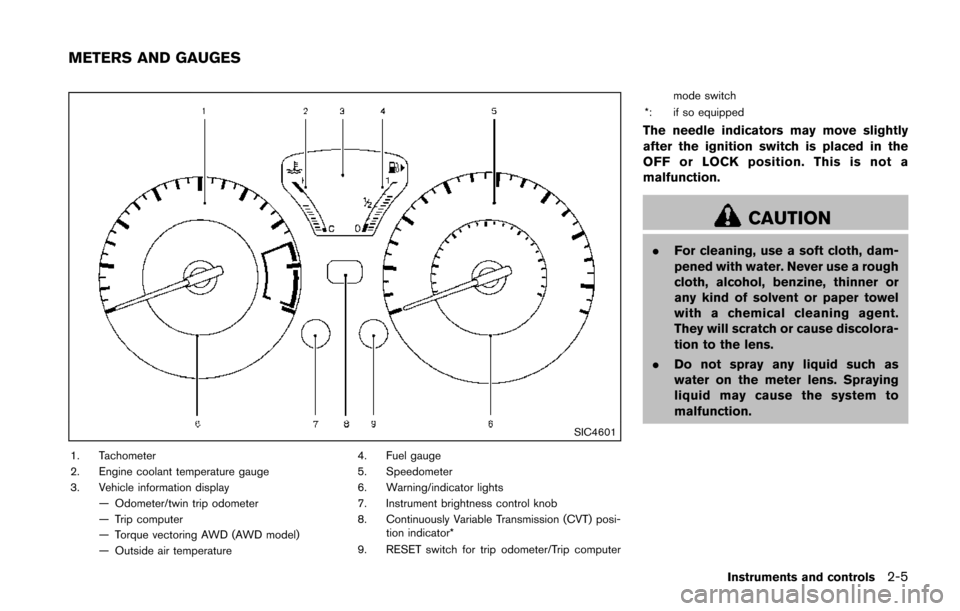

1. Tachometer
2. Engine coolant temperature gauge
3. Vehicle information display— Odometer/twin trip odometer
— Trip computer
— Torque vectoring AWD (AWD model)
— Outside air temperature 4. Fuel gauge
5. Speedometer
6. Warning/indicator lights
7. Instrument brightness control knob
8. Continuously Variable Transmission (CVT) posi-
tion indicator*
9. RESET switch for trip odometer/Trip computer mode switch
*: if so equipped
The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.
CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
Instruments and controls2-5
